Wholesale 10, 12 Inches Red Green White 8888 LED Digital Price Signs LED Display
Wholesale 10, 12 inches red green white 8888 led digital price signs led display LED Chips parameterColorBrightnessWave LengthCurrentOperatingVoltageViewing angelLEDChips sizeColortemperatureLuminous fluxRED4000mcd620-63060MA1.9-2.4V60°/120°/180°10*20Mil620-630K2LMGREEN10000m......
Send Inquiry

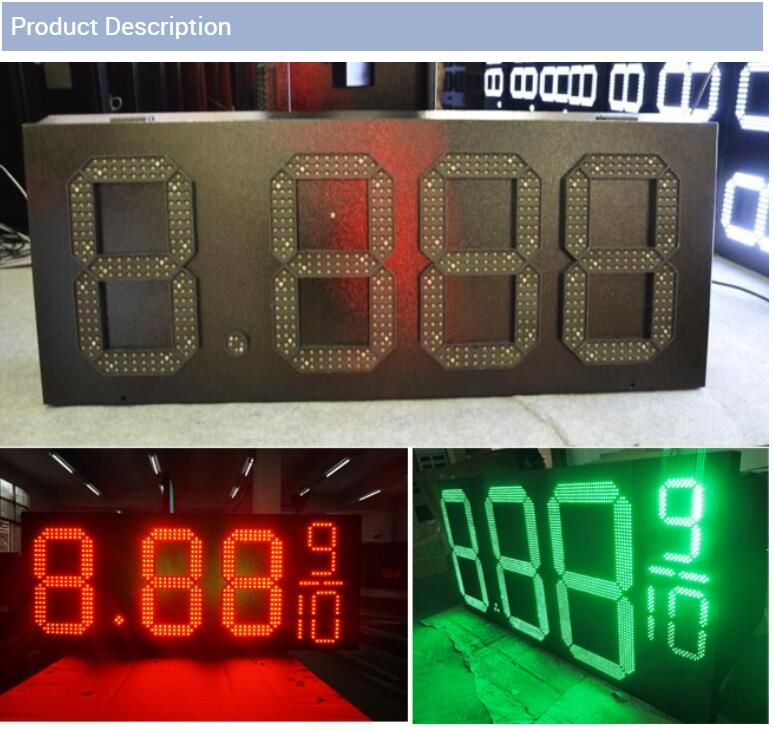

Product Description

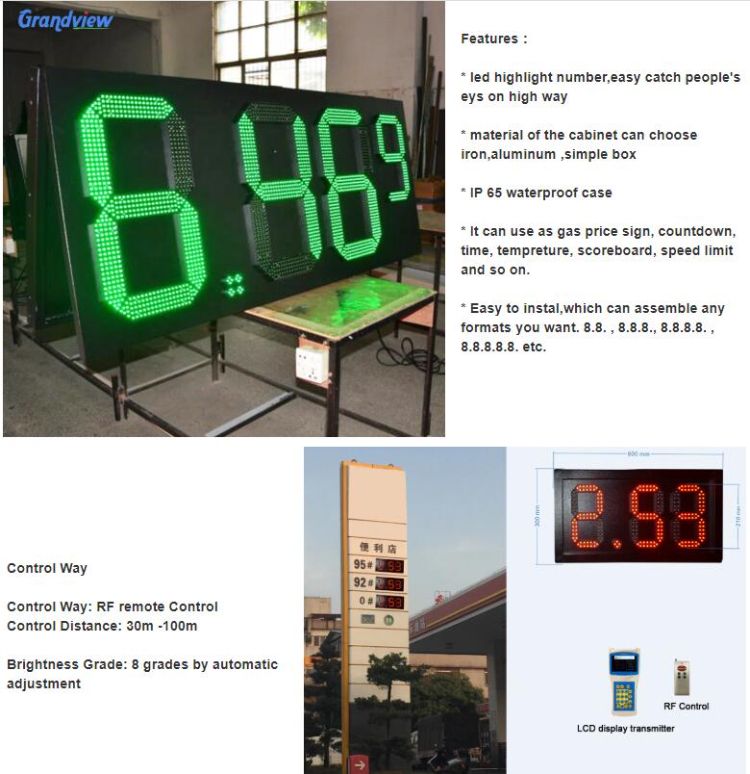

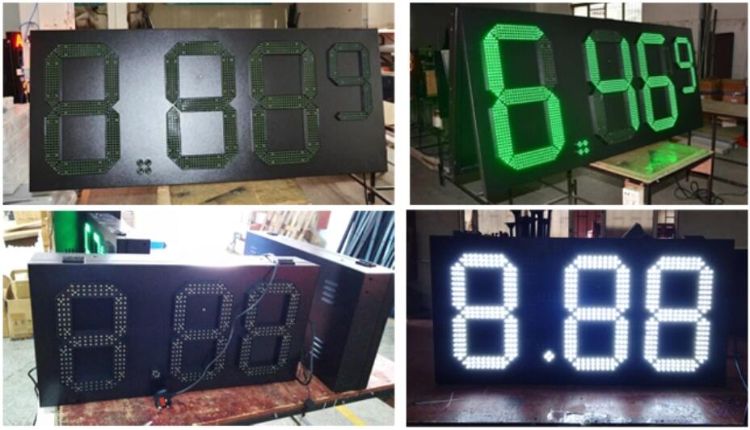

Wholesale 10, 12 inches red green white 8888 led digital price signs led display

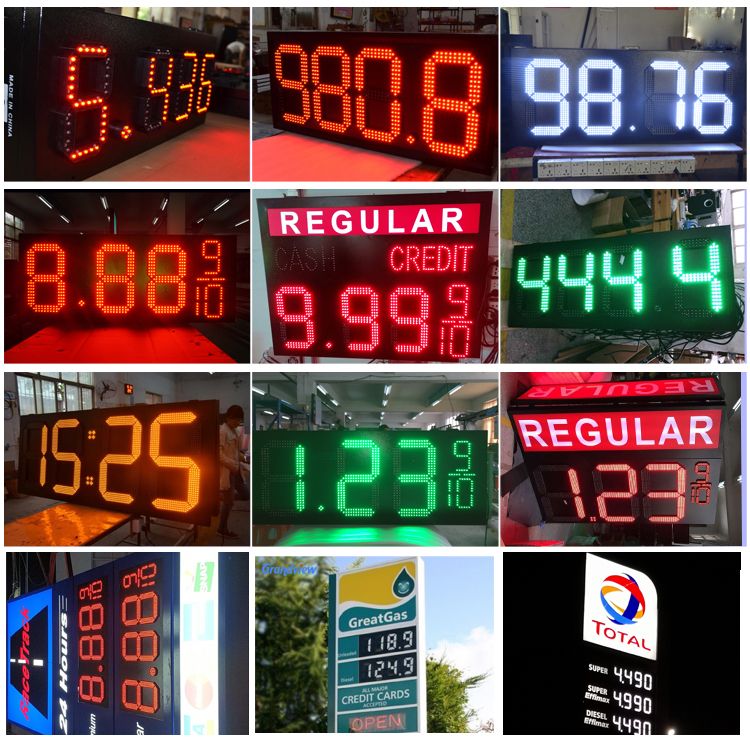

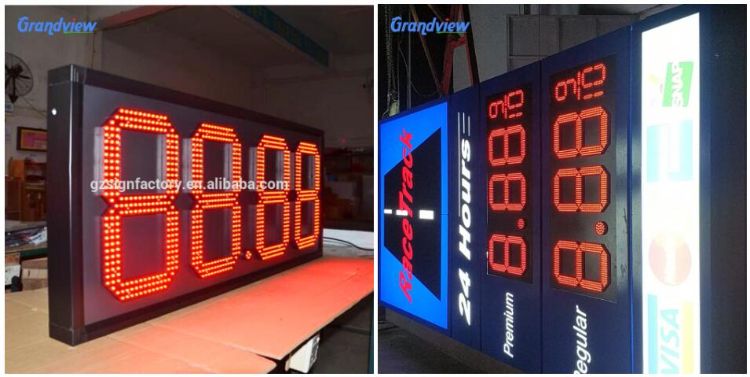

Customers Case

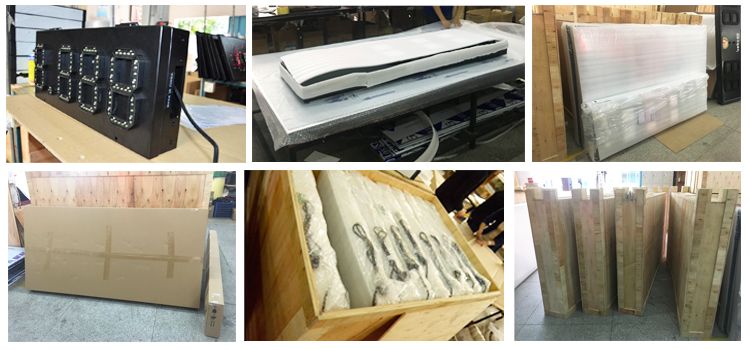

Package

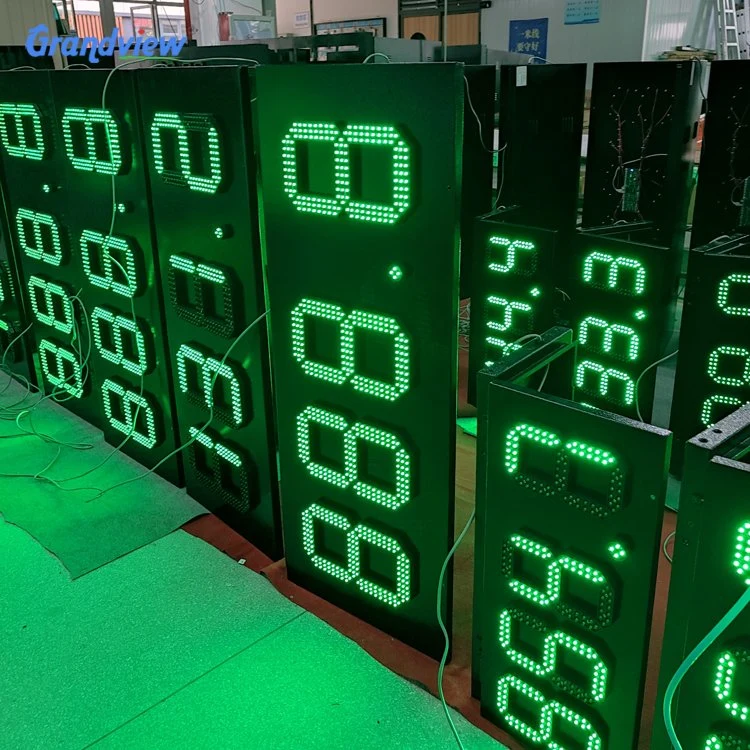

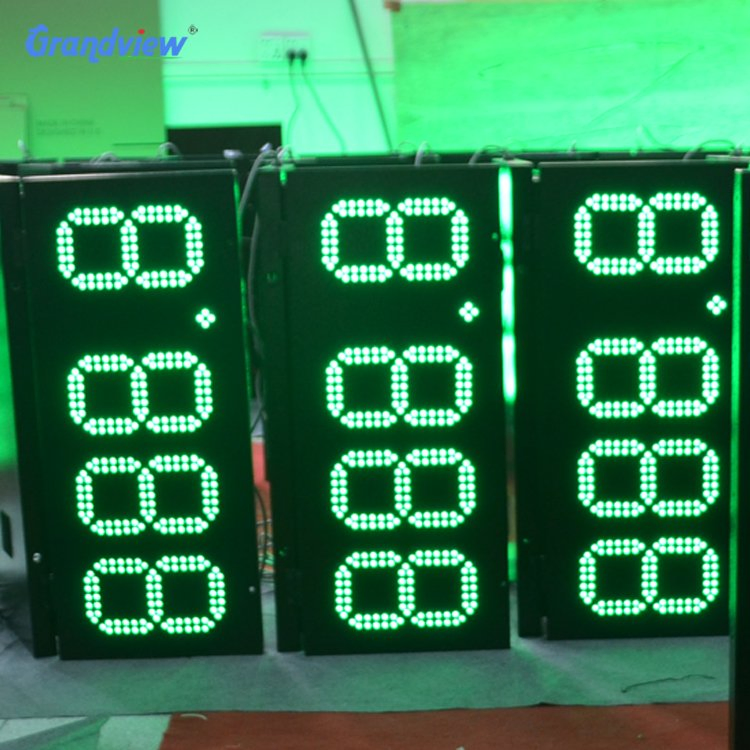

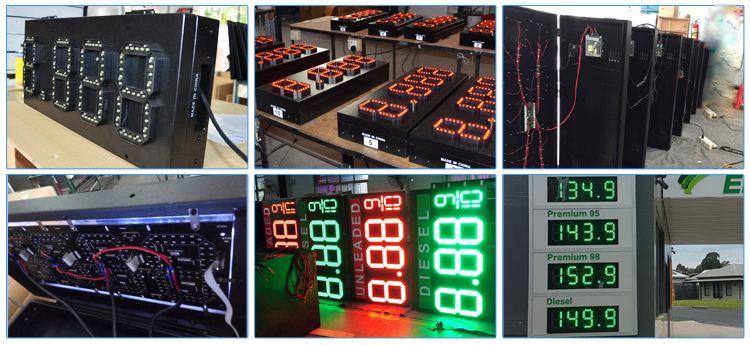

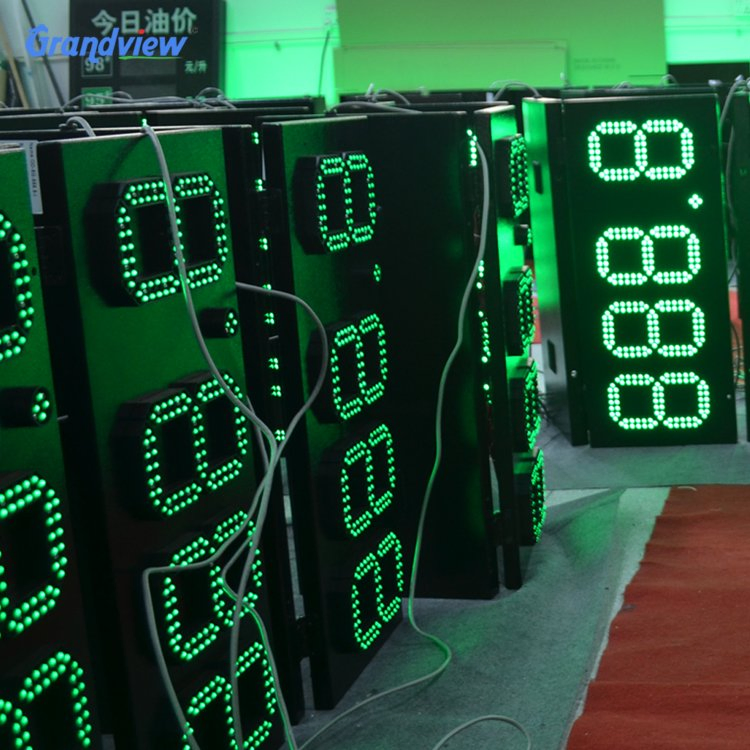

Production line
Our company
LED Chips parameter | ||||||||
Color | Brightness | Wave Length | Current | Operating Voltage | Viewing angel | LED Chips size | Color temperature | Luminous flux |
RED | 4000mcd | 620-630 | 60MA | 1.9-2.4V | 60°/120° /180° | 10*20Mil | 620-630K | 2LM |
GREEN | 10000mcd | 515-525 | 3.0-3.4V | 515-525K | 3LM | |||
BLUE | 8000mcd | 515-525 | 2.5-3.0V | 460-470K | 3LM | |||
YELLOW | 3500mcd | 585-590 | 1.9-2.2V | 588-595K | 1.5LM | |||
WHITE | 12000mcd | 0 | 3.0-3.4V | 6000-7000K | 5LM | |||
SERIES PARAMETERS | |||||||
Item | Technical Parameters | ||||||
Color: | Red, Amber, Green, Blue, White | ||||||
Digit Height: | 6'', 8'', 10'', 12'', 15'', 18'', 20'', 22'', 24'', 32'', 64'', 72'' | ||||||
Digit Design: | 7 segments modules are sealed with glue,reach IP67 waterproof grade,with dust shade that make leds work normally all the time. | ||||||
Brightness Control: | Auto dimming by brightness sensor | ||||||
Display Dimming: | Over 8 levels of automatic intensity adjustment | ||||||
Viewing Angle: | Horizontal:60°-120°,Vertical: 60°-120° or customized | ||||||
Service Access: | Front or rear open | ||||||
Master/slave: | Single sided or double sided, master/slaves available | ||||||
Cabinet Material: | Iron cabinet or aluminum alloy frame | ||||||
Waterproof Level: | IP53 with aluminum alloy frame, IP65 with iron cabinet | ||||||
Led Driving Mode: | Constant current | ||||||
Power Input: | 110/220V AC,50-60HZ | ||||||
PC Communication: | RS232/485;LAN(TCP/IP) with cables or wireless,customer can choose | ||||||
Communication Distance: | Max.15 meters for RS232, 1200 meters for RS485 | ||||||
Remote Control Type: | RF remote control (Normal 6 buttons or LCD remote controller) | ||||||
Continuous Working Time: | Unlimited | ||||||
Lifetime of Leds: | >100,000 hours | ||||||
Installation Method: | Hanging,mounting or per custom design | ||||||
Working Temperature: | -40ºC~75ºC | ||||||
Display Format: | 8.88, 8.888,8.888, 8.889/10, 88.88, 88.888 etc. | ||||||
