P8 Outdoor Full Color LED Module Screen Display 256mm *128mm
P8 Outdoor Full Color LED Module Screen Display 256mm*128mmCharacteristics:1. Large viewing angle2. Light weight3. Long lifespan4. High brightness5. Energy saving6. WaterproofOur FactoryQuanzhou Xinrui Optoelectronics Technology Co., Ltd. is a company who engages in researching & development, pr......
Send Inquiry
Product Description
P8 Outdoor Full Color LED Module Screen Display 256mm*128mm
Characteristics:
1. Large viewing angle
2. Light weight
3. Long lifespan
4. High brightness
5. Energy saving
6. Waterproof

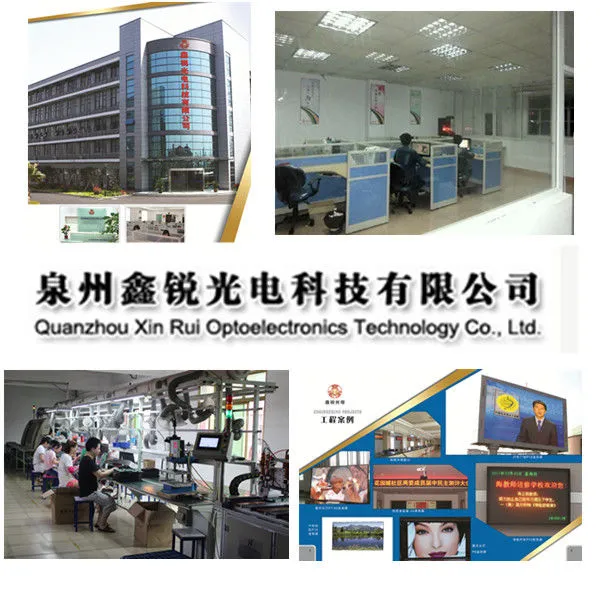

Our Factory
Quanzhou Xinrui Optoelectronics Technology Co., Ltd. is a company who engages in researching & development, production, sales of high-tech Led screens. We own the independent developing design and utility model patent, the products has passed the multi authentication. Our main products are outdoor & indoor full color LED screen, Led unit board, indoor LED bare-board, outdoor LED screen cabinet, module, interest & exchange rate screen, line-screen, electronic industry billboard, Led nixie tube screen, stage screen, various type of frames, powers and accessories etc.
Specification:
Why choose us:
Product advantages:
1. Price Advantage: We have the best competitive price in the market, we also have the same or even better quality.
2. Quality advantage: From material to finished product, from design to production, we control all processes.
3. Service advantage: We also provide best service after sales and we prioritize every customer's needs.
4. We ensure that our products are CE certified, ROHS compliant, FCC identified and passed the system of ISO 9001.
Products list:
1. P2/P2.5/P3/P4/P5/P6...Indoor full color led display;
2. P10/P8P6/P5/P4/...Outdoor full color led screen;
3. Indoor/outdoor/semi-outdoor single/dual color led panel etc.

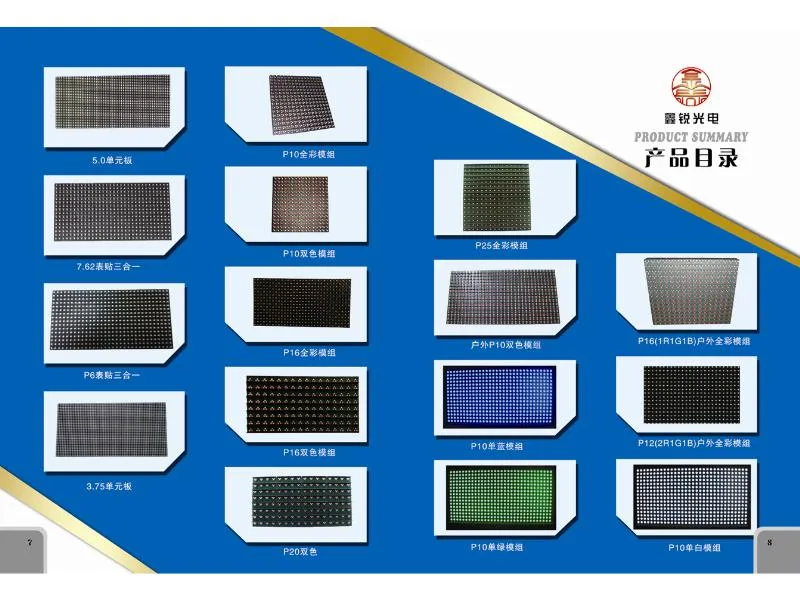

Product summary:
Certification:
Exhibition:
Package and shipment:

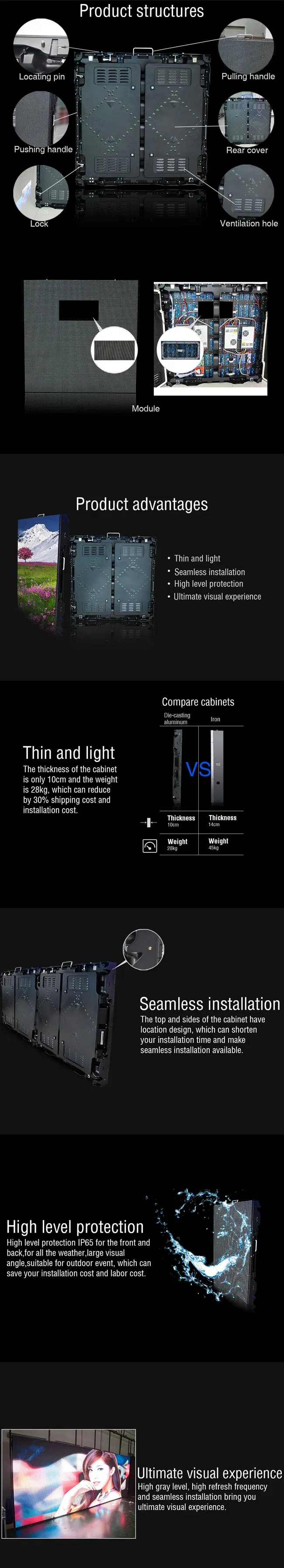

Cabinet design:
Characteristics:
1. Large viewing angle
2. Light weight
3. Long lifespan
4. High brightness
5. Energy saving
6. Waterproof
Our Factory
Quanzhou Xinrui Optoelectronics Technology Co., Ltd. is a company who engages in researching & development, production, sales of high-tech Led screens. We own the independent developing design and utility model patent, the products has passed the multi authentication. Our main products are outdoor & indoor full color LED screen, Led unit board, indoor LED bare-board, outdoor LED screen cabinet, module, interest & exchange rate screen, line-screen, electronic industry billboard, Led nixie tube screen, stage screen, various type of frames, powers and accessories etc.
Specification:
Unit Module | Item | Parameter |
| Module size | 256mm*128mm | |
| Pixel pitch | 8mm | |
| Pixels Density | 15625 dots/m² | |
| Pixel configuration | 1R1G1B | |
| LED Package mode | SMD3535 | |
| Pixel resolution | 32dots(W)*16dots(H) | |
| Drive type | Constant drive | |
| Scan mode | 1/4 scan | |
| Port type | HUB75-A | |
| Brightness of white balance | ≥5600cd/m² | |
| LED Unit Module | Power supply | 5V/40A*1 pcs |
| Best viewing distance | 8m~40m | |
| Best viewing distance | 160°(W) 120°(H) | |
| Temperature | storage:-35ºC~+85ºC working:-20ºC~+50ºC | |
| Relative humidity | 10%-95% | |
| Power | Working voltage | AC220V/50HZ and AC110V/60HZ Optional |
| Average Power consumption | 380 w/m² | |
| Max.Power consumption | ≤760 w/m² | |
| Current | ≤20mA(single LED) | |
Control system | Operation system | WIN98/2000/NT/XP/7/8 |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥600HZ | |
| MTBF | ≥10,000hours | |
| Life span | ≥100,000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768/1280*900 |
Why choose us:
Product advantages:
1. Price Advantage: We have the best competitive price in the market, we also have the same or even better quality.
2. Quality advantage: From material to finished product, from design to production, we control all processes.
3. Service advantage: We also provide best service after sales and we prioritize every customer's needs.
4. We ensure that our products are CE certified, ROHS compliant, FCC identified and passed the system of ISO 9001.
Products list:
1. P2/P2.5/P3/P4/P5/P6...Indoor full color led display;
2. P10/P8P6/P5/P4/...Outdoor full color led screen;
3. Indoor/outdoor/semi-outdoor single/dual color led panel etc.
Product summary:
Certification:
Exhibition:
Package and shipment:
Cabinet design:
