Product Description
P16 Outdoor Waterproof 256*256mm Module
We focus on all kinds of led display screen manufacturing included indoor outdoor led display, rental led display, flexible led display, transparent led display, dance floor led series, HD resolution led display, perimeter led display,stadium sport led display screen, led sign, led display board and led billboard.
Part 1: Product mainly features
Shenzhen High Waterproof P16 Full Color LED Display Panel is very hot sale for outdoor media solution series, it is very cost effective, and high refresh rate more than 1920hz, also light weight design cabinet for options, image quality is top, running stable, resolution is high density, plus simple installation to make this series more and more popular in outdoor media screens.
| Pixel Pitch | 3mm to 20mm |
| Brightness | > 6000nits |
| Cabinet size | 960x960mm / 1280x1280mm(optional) |
| Max. Power consumption | 720W/panel |
| LED Brand | Epistar |
| Driver IC | MBI |
| PSU | MW |
| Refresh rate | >1920HZ |

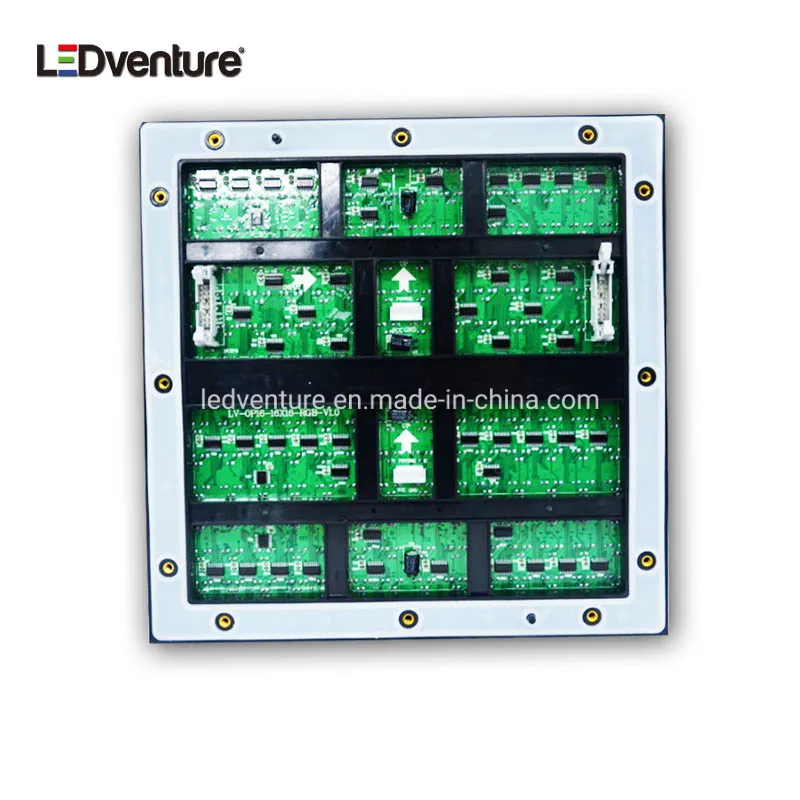

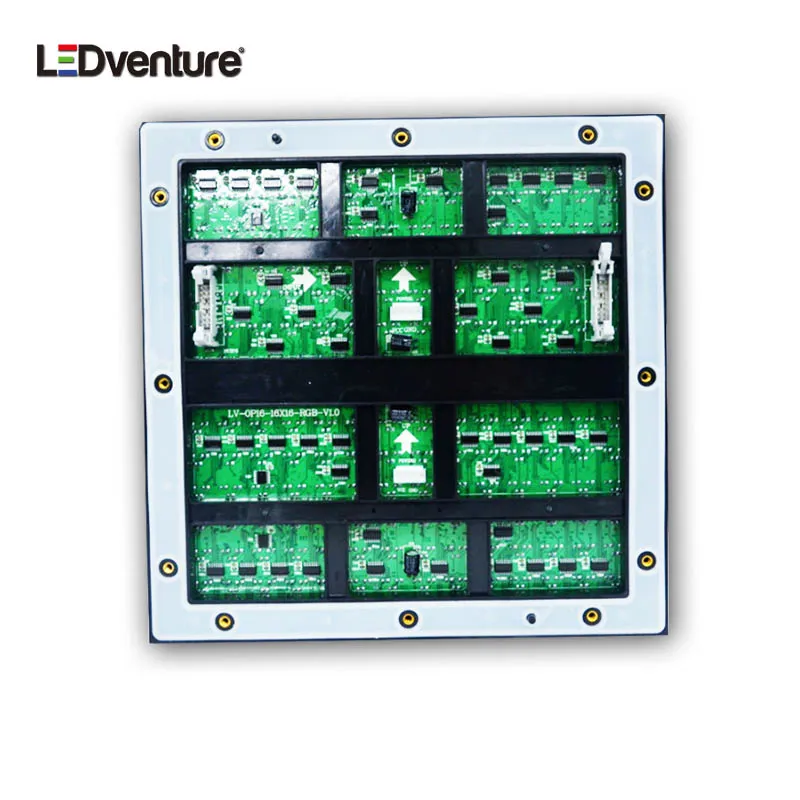

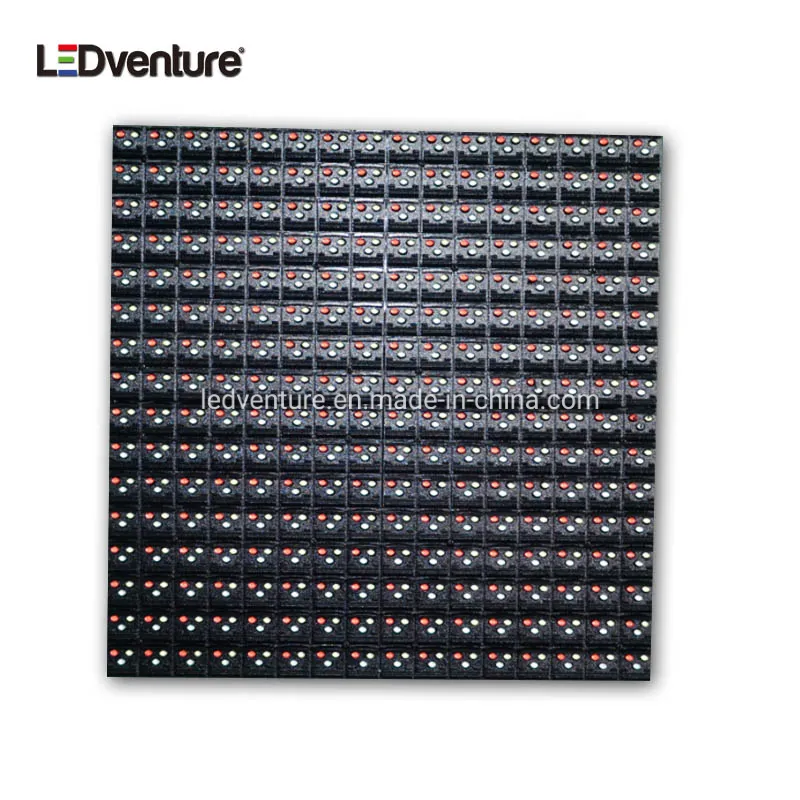

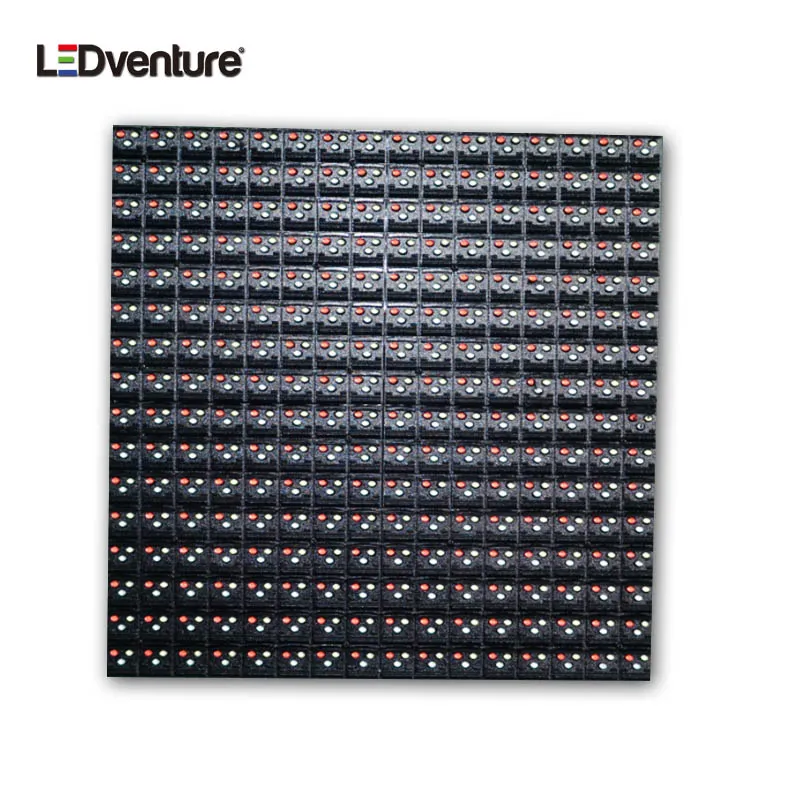

Part 2: Outdoor P16 LED module detail images

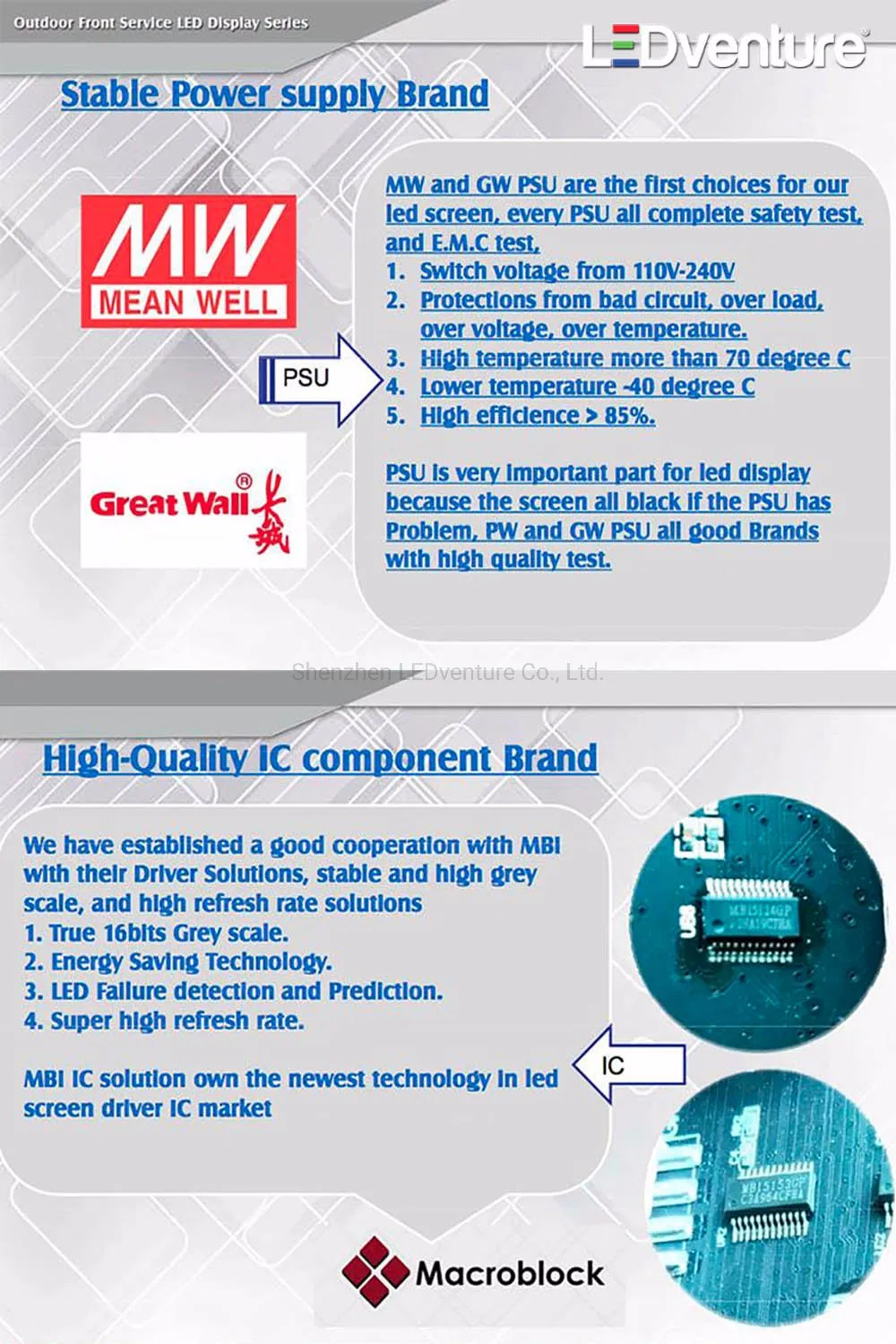

Part 3: Material quality level
All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.
Part 4: Technical specification.
Item | Outdoor Fixed Series P16 Advertising LED Display Screen |
Model Number | P16 |
Pixel Pitch | 16mm |
Pixel Density(pixels/M2) | 3906 pixels |
Pixel Configuration | DIP346 |
LED Type | Epistar |
Module size(mm) | 256x256mm |
Module Resolution(pixels) | 16*16 |
Min.Viewing Distance(m) | 16 |
Brightness(nits) | >7000 |
Viewing Angle(degree) | ≤140° |
Average Power Consumption(W/M2) | 250 |
Scan Mode | Static Scan |
Protection Level | IP65/IP54 |
Cabinet Size(mm) | 1024x1024mm(Optional) |
Color Temperature | The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC110-240V, 50Hz/60hz |
Refresh Rate | >1920hz |
Color | 65535 Levels |
Horizontal/Vertical viewing angle | <140° |
Gray Scale | 16 bits |
Effective Communication Distance(without relay) | <100 meters |
Lifespan | ≥100,000 hours |
Environment Temperature | Storage: -40°C~+85°C , Operation: -20 °C~+45°C |
Blind Spot Rate | <0.0001(led display industry standard is less than 0.0003) |
Control Mode | Video frequency synchronization |

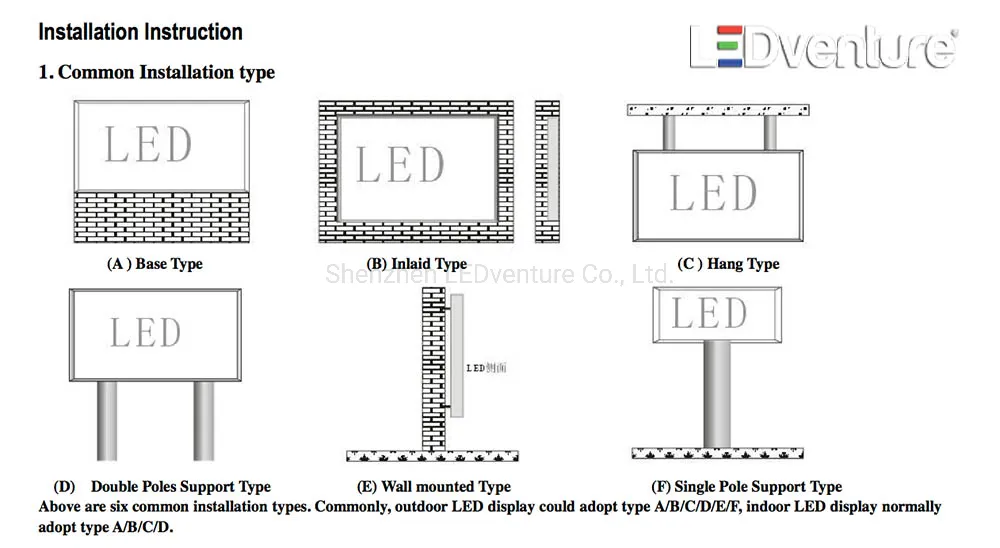

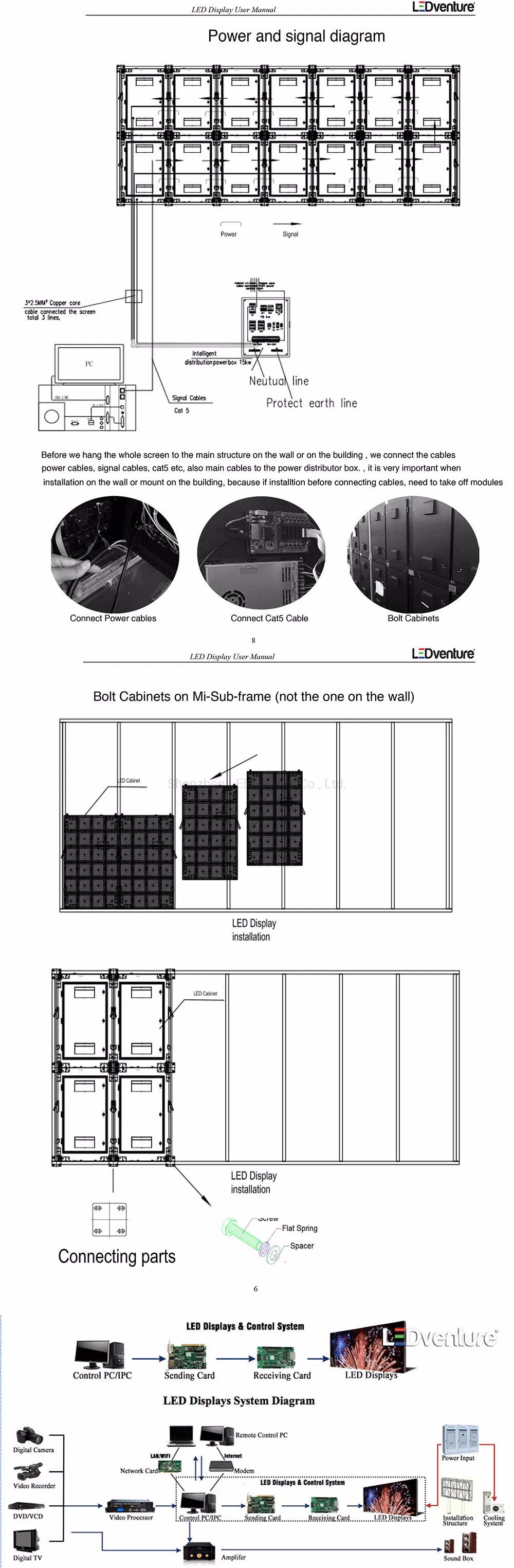

Part 5: Installation methods, outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

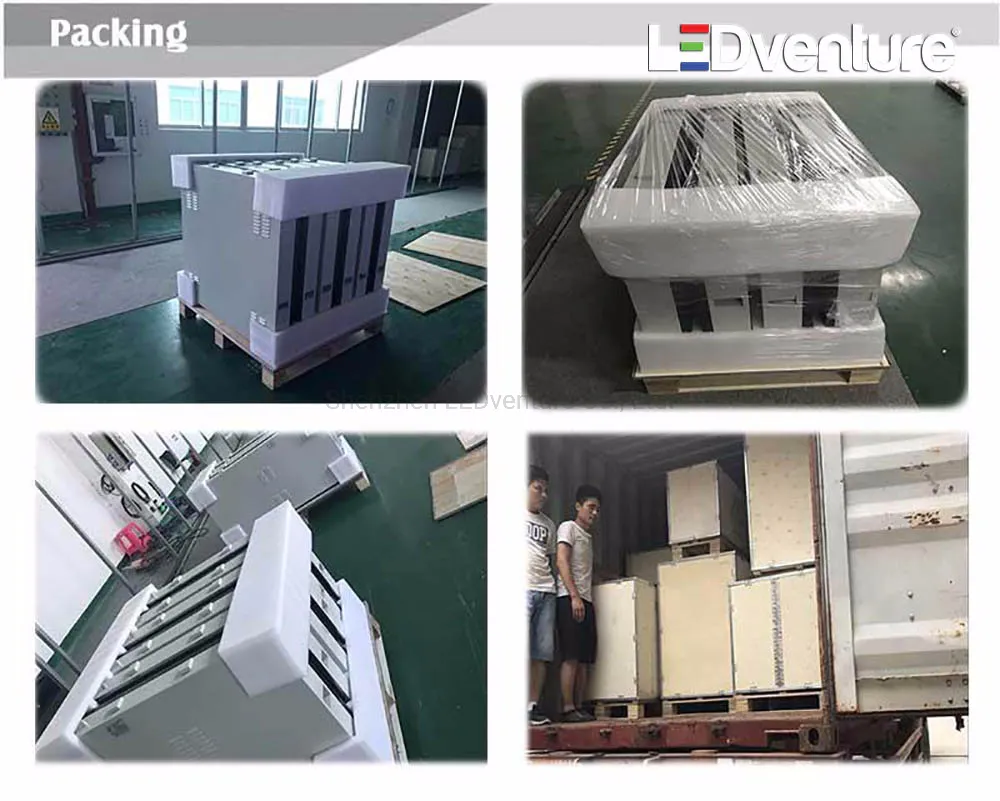

Part 6: Packing information by plywood cases, packing well and easy to load
Part 7: Certificates.
ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

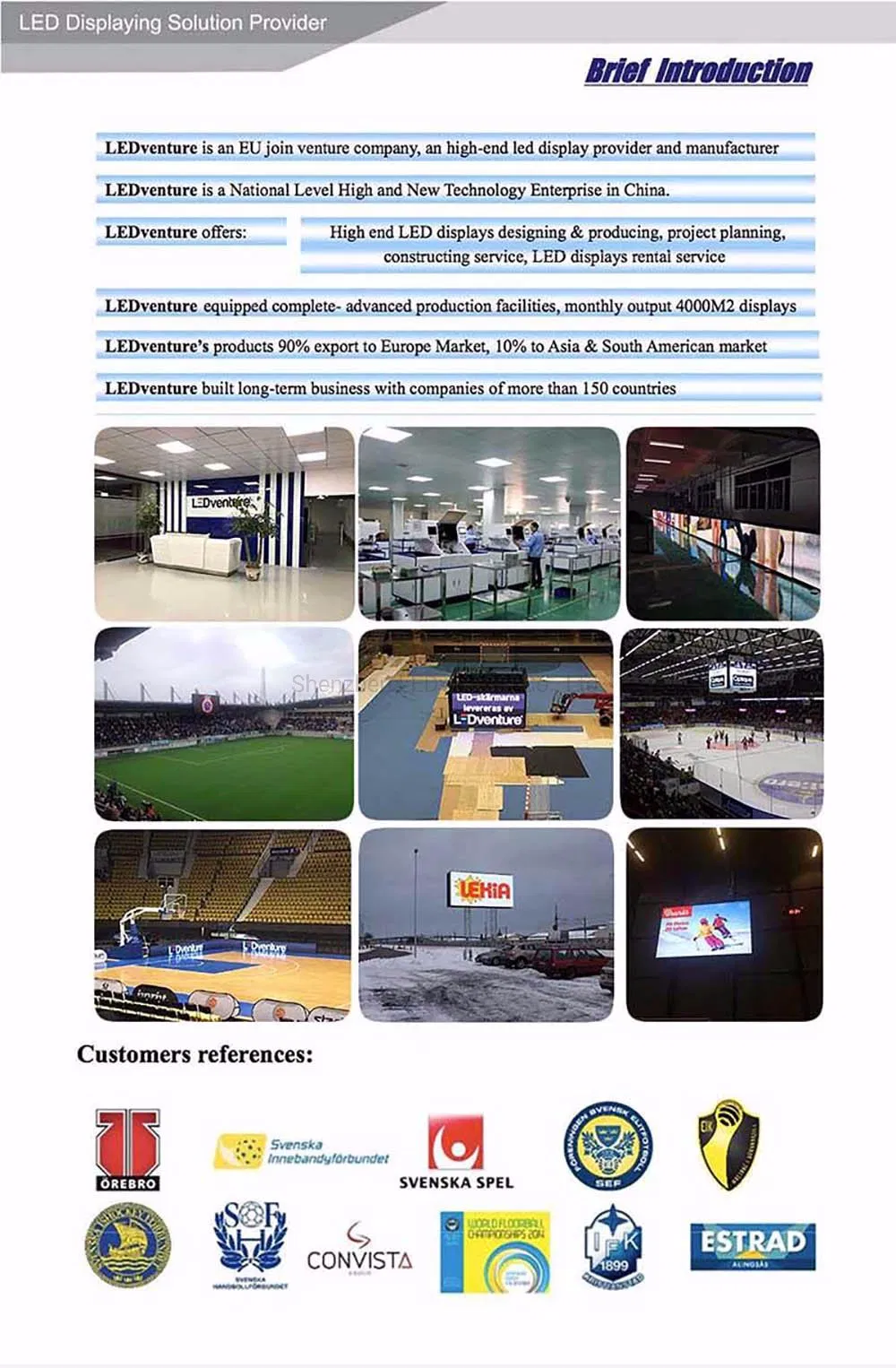

Part 8: About LEDventure.

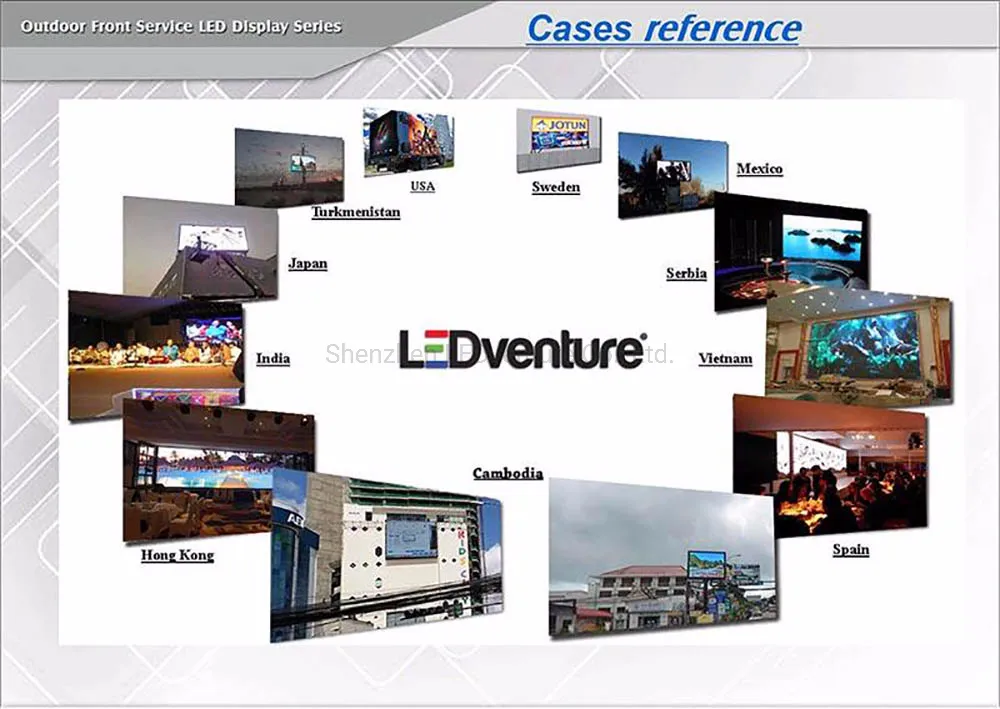

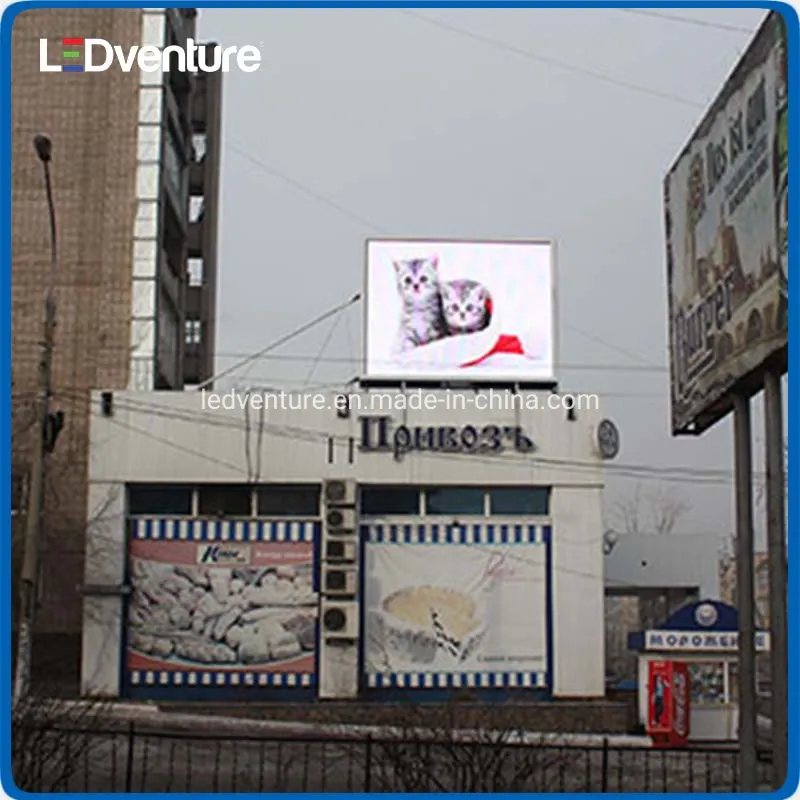

Part 9: LED display screen installation cases.
Most of our led display exported to Europe with high standards, and small percent to USA and Asia
