Product Description

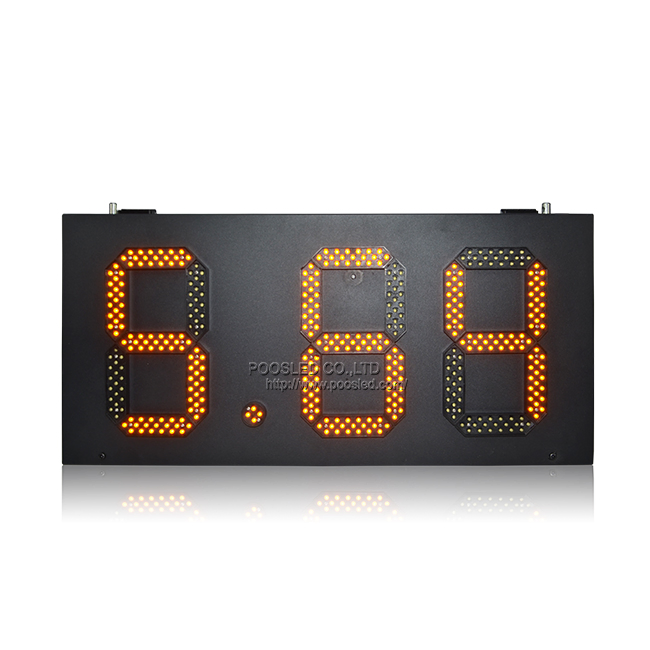

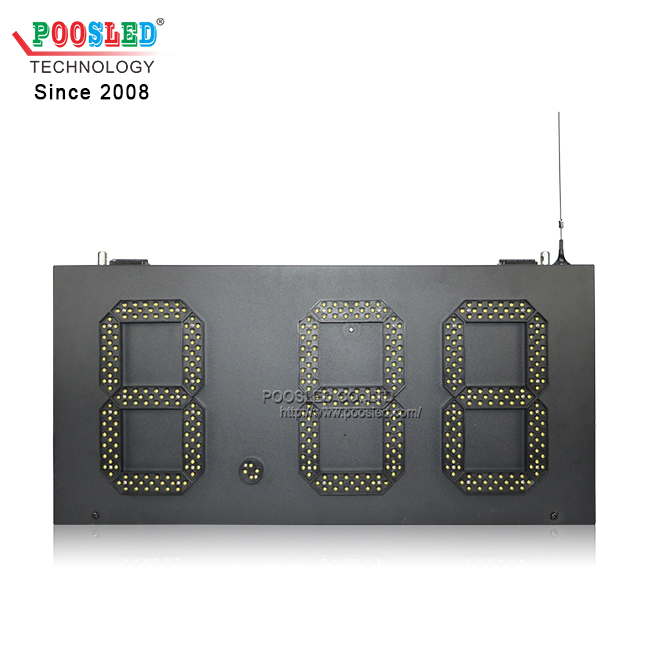

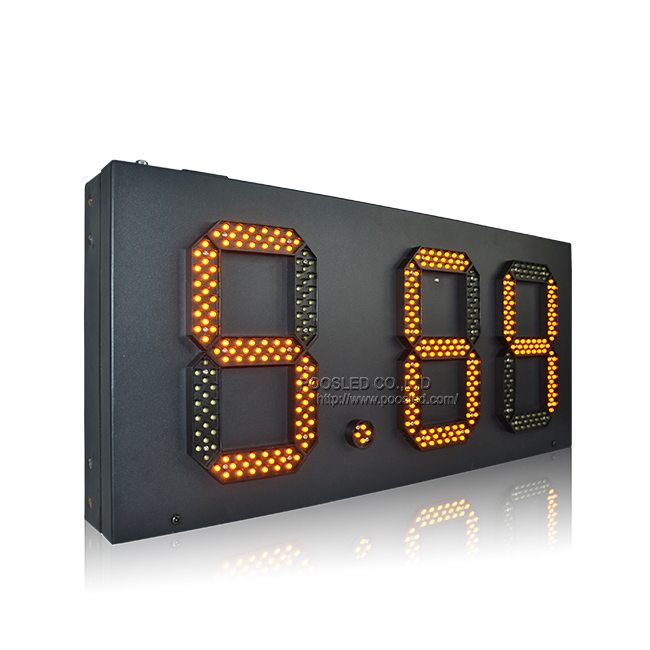

Europe outdoor waterproof led oil display 7 segment digital gas price led display gas station led price display

Application	Gas station
Color	Yellow

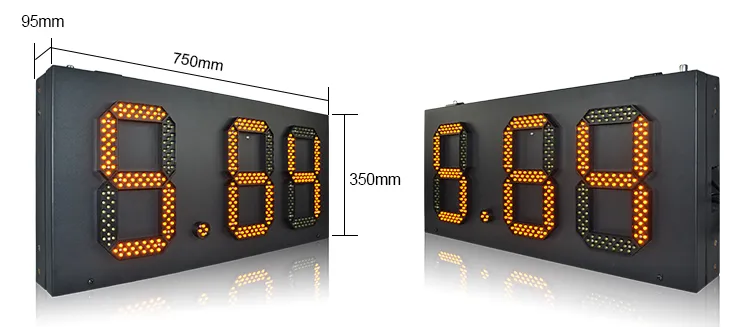

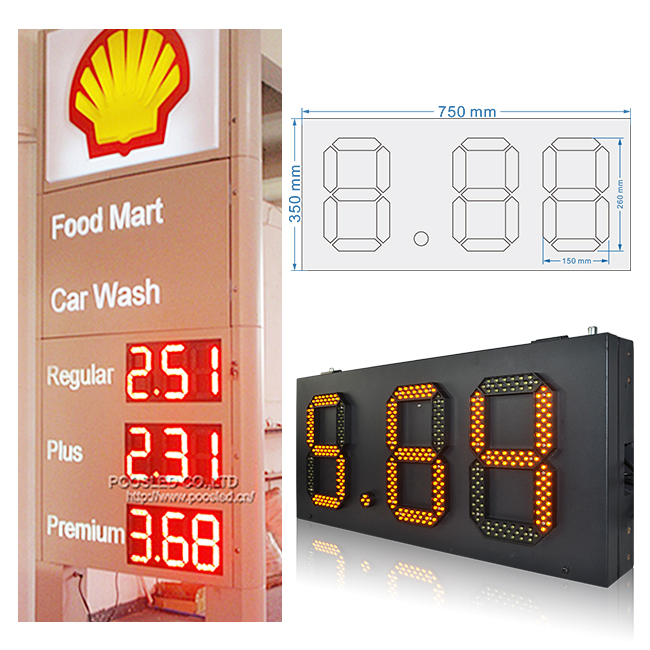

Panel Size	75035095mm
Pixel Pitch	D10''
Place of Origin	China
Model Number	D10''-Y-8.88-GAS-A
Brand Name	POOSLED
Letter Height	10inch
Module Size	150*260mm
Material	Aluminum cabinet
Gross Weight	13kg
Input Voltage	AC110V / 220V
Output Voltage	DC12V
Power	19.5W
Package Size	850430175mm

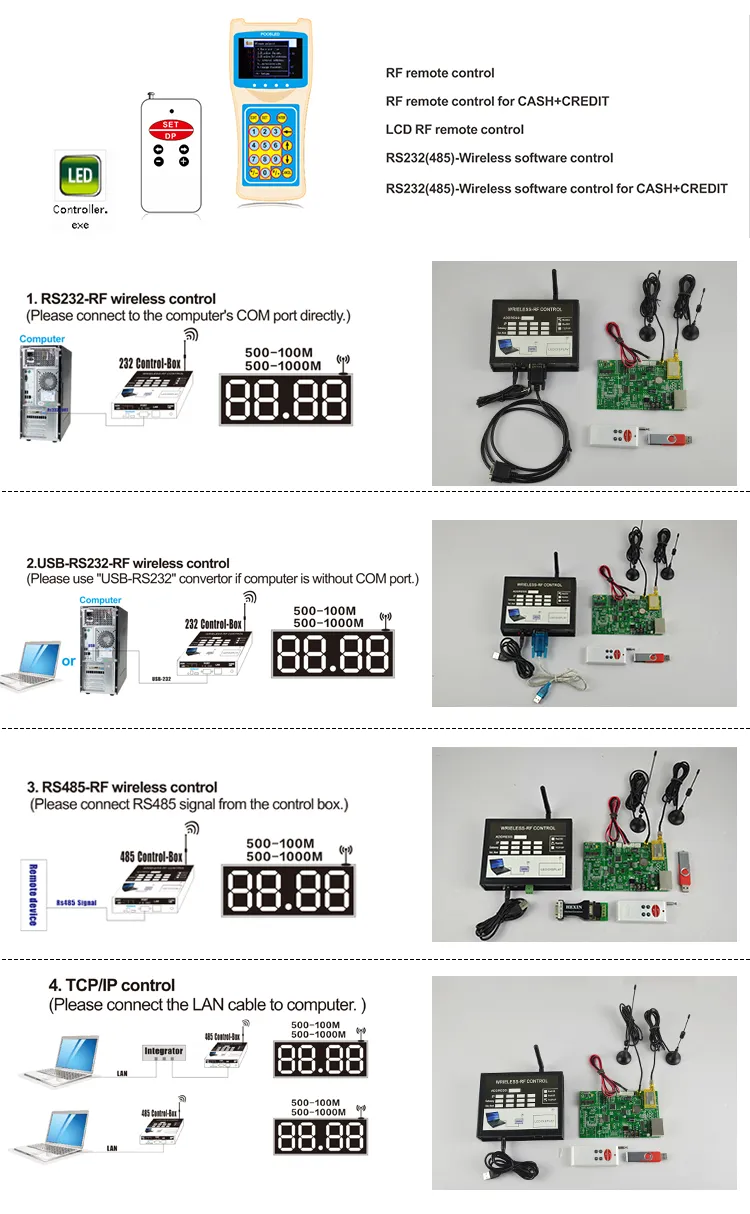

Control way	RF controller / RS 485

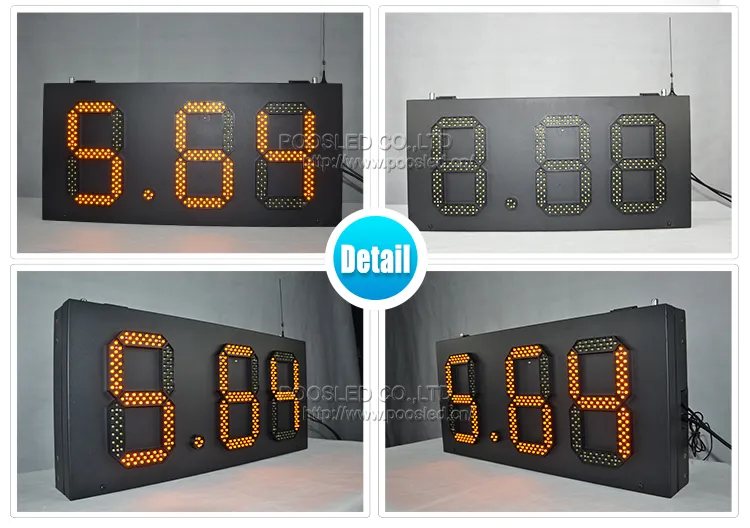

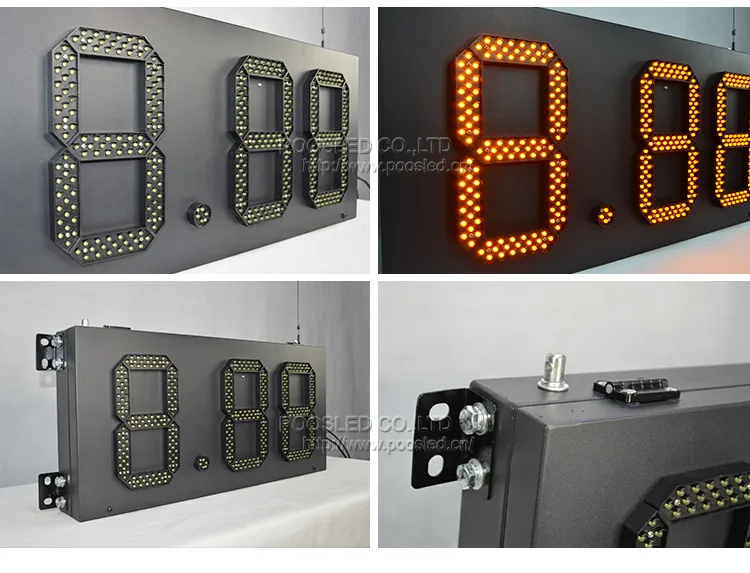

Waterproof LED Oil Display Gas Station LED Price Sign

Question 1:Led digits sign can not work well, some led modules can not be lighting.
Answer :
A.Please check the connecting cables of drive card whether it is loose or not,and connect them again.
B.LED module is broken, please replace the new module to the led sign.
C.Please set the correct quantity of the numbers.For example: 88.88, 8.889/10 is 4 numbers.(Single sided or double sided are the same.)
D.Please check drive card's 2pin ports,and connect to other 2pin ports or change led number.

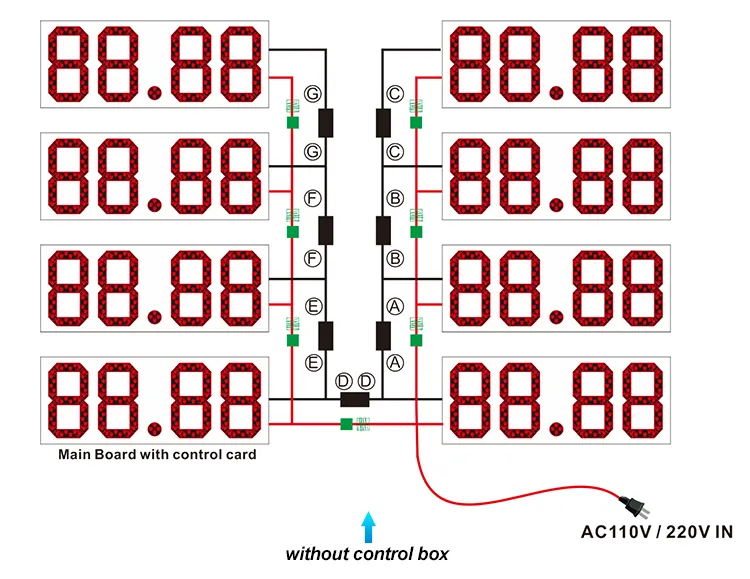

Question 2:All the led digits are not lighting.Some led signs are controlled together, but only the sign which has control (main) card can work, the other signs can not work.

Answer :

A. Please use the multi-meter to check power supply whether it is on or off.

B. And please connect the power supply's cables again.

C. Please check power supply whether it is 12V.

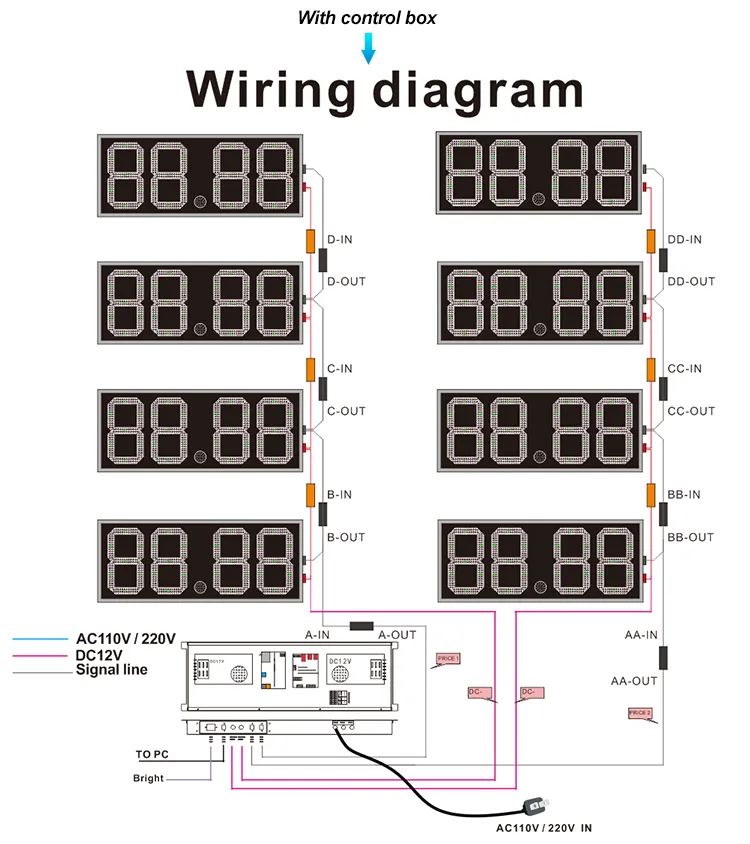

Question 3:Some led signs are controlled together, but only the sign which has control (main) card can work normally, the other signs can not work well.

Answer :

A. Please check the cables of control card and connect them again.

B. Please use the RF remote controller to set the numbers again.

C. Please check the connecting cable of control card and drive card.

D. Please check IN and OUT port. Please connect them again.

E. Please check control card's signal light is on.

Summary: If all steps you have tried and done, but led sign still can not work well.please repair and change the parts.

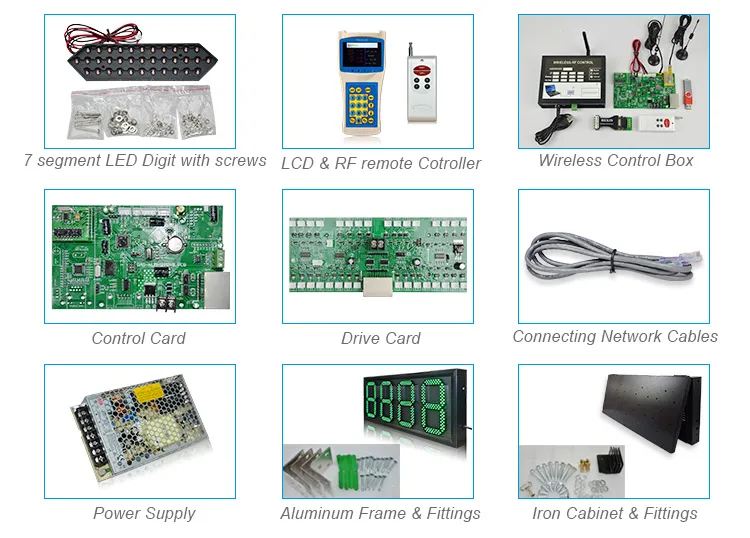

1.Change led numbers.

2.Change drive card

3.Change power supply

4.Change control card and remote controller.

Remark: Please return all the parts to supplier after you change.We still want to help solve all the problems and check our products to provide better service to you for long time. If you have some more other questions when you are using the led gas price sign, please feel free to contact us. We will support you anytime.Thanks in advanced!
