Product Description

P10-Red semi-outdoor Module Specification
Item	Unit	Parameter
Pixel Pitch	mm	10
Resolution of Module	Dots	32×16
Module Size	mm	320×160mm
Led Package	DIP Oval 546 Lamp
Pixel Configuration	W	1
Module Weight	KG	0.59
Pixel Density	dots/sqm	10,000
Brightness (White Balance)	nits(cd/sq.m)	2000
Scan Mode	Scan	1/4
The best viewing distance(m)	M	>=10
The best viewing angle:	deg	110
Module Maximum Power	W	20
Max. Power Consumption	W/sq.m	400
Avg. Power Consumption	W/sq.m	100-250
Working Voltage	V	5
Power Supply	AC 110/220V
Waterproof Grade	IP65
Refresh Rate	Hz/Sqn	300
Frame Rate	Hz/Sqn	≥ 60
Display Function	Texts
Input Signal	RS232/485, USB,Ethernet
Defective Dot Rate	<0.0001
Life Span	hours≥100,000
MTBF	hours≥5,000
Operating Temperature	-20°C~+60°C
Working Humidity	10%-90%RH
Control System	Asynchronous or Synchronous
Warranty	2 Year
Note: The above parameter is just for reference. Changes can be made according to customers' requirements.

SHOW

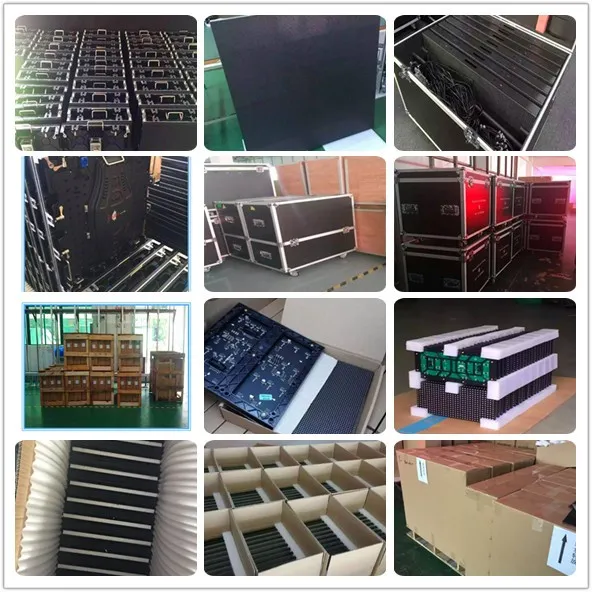

Packaging

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.
