P8 SMD (5 Scan ) Outdoor Full-Color Rental LED Display/Screen
Outdoor P8 LED Display High brightness which is adjustable to sufficiently meet the needs of various application environments. The raw material of all of the outdoor products including LED chips, mask, glue and steel cabinets have the ability of enduring high temperature and high humidity, and bei......
Send Inquiry
Product Description
Outdoor P8 LED Display
High brightness which is adjustable to sufficiently meet the needs of various application environments.
The raw material of all of the outdoor products including LED chips, mask, glue and steel cabinets have the ability of enduring high temperature and high humidity, and being anti-UV, waterproof, anticorrosion and antirust.

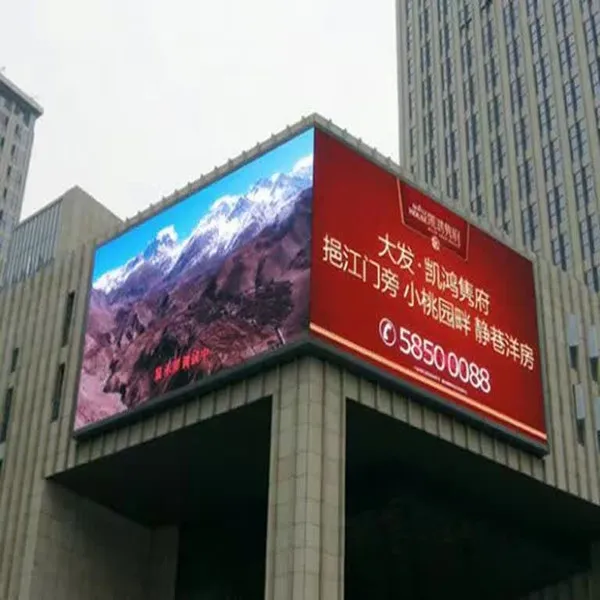

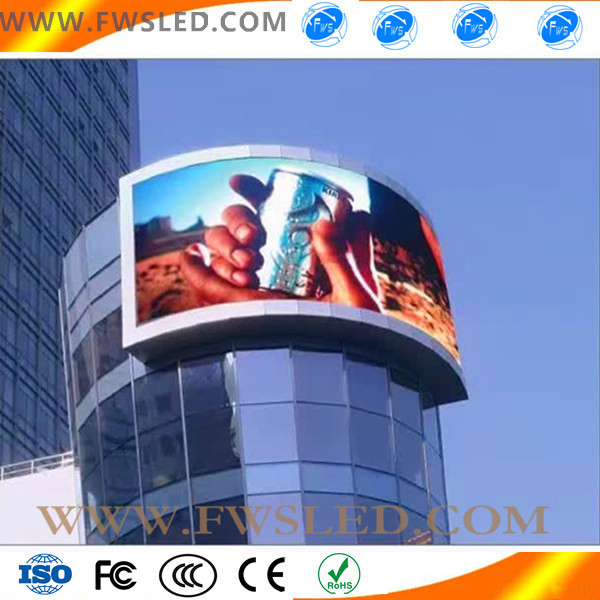

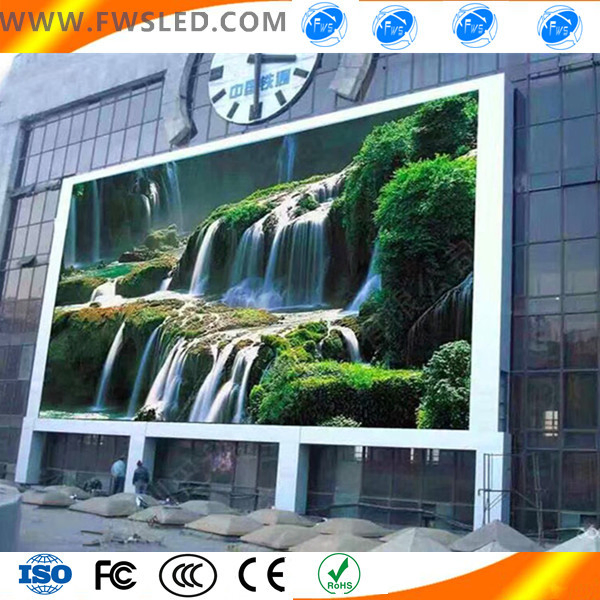

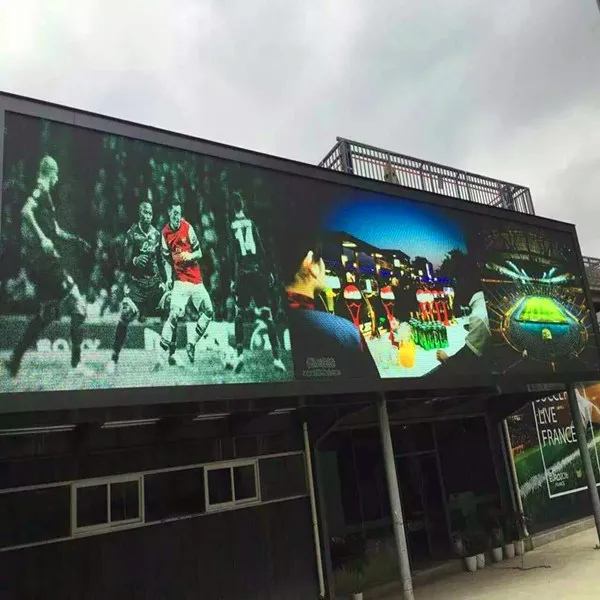

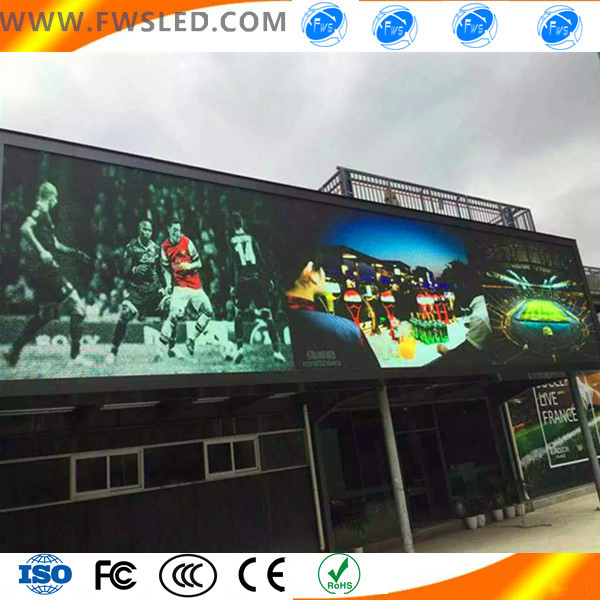

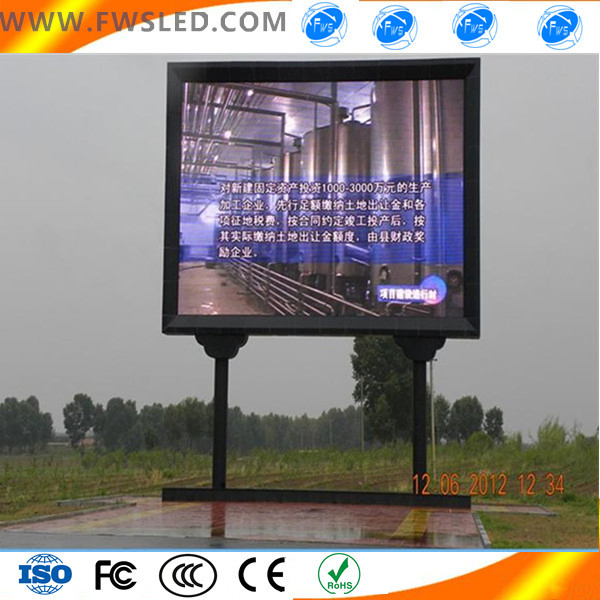

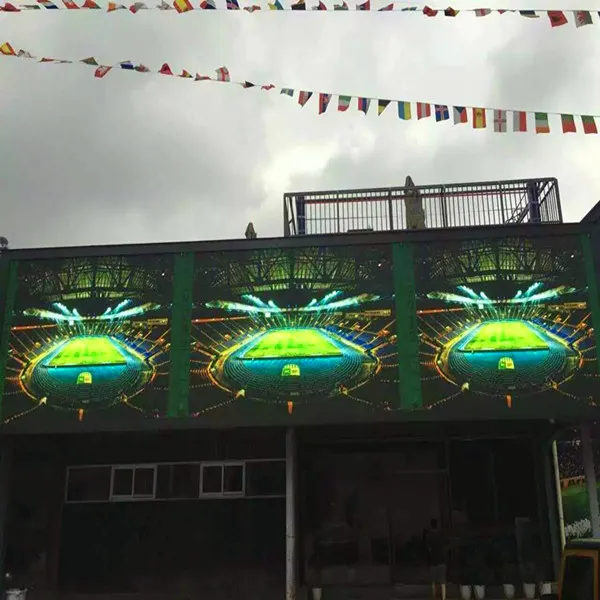

EEFFECTS SHOW

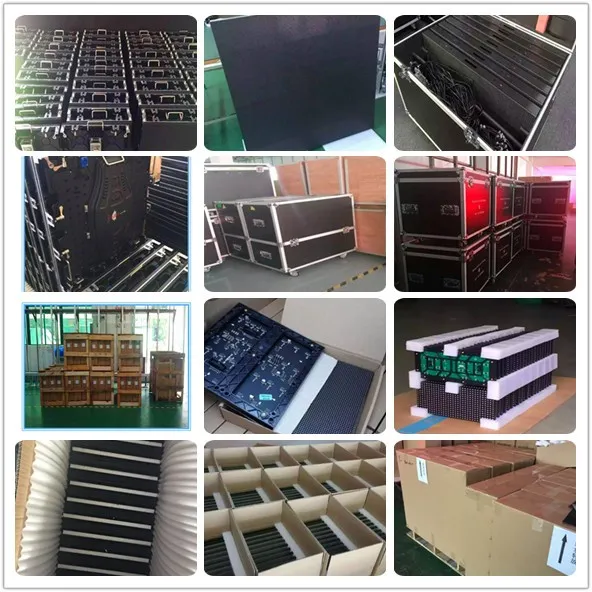

Packging
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.
High brightness which is adjustable to sufficiently meet the needs of various application environments.
The raw material of all of the outdoor products including LED chips, mask, glue and steel cabinets have the ability of enduring high temperature and high humidity, and being anti-UV, waterproof, anticorrosion and antirust.
| Item | Tehnical parameter | |
| Panel | Dimension | (w) 320mm*160mmH) |
| Pixel pitch | 8mm | |
| Pixel Density | 15625 DOTS/M2 | |
| Pixel configuration | 1R1G1B | |
| LED specification | SMD 3535 | |
| Pixel resolution | 32*16 dots | |
| Average power | 30W | |
| Panel weight | 0.25KG | |
| Cabinet&Bracket | Bracket size | 640mm*640mm |
| Power supply | 5V/40A*2PCS | |
| Thermal DIscharge | Fan 2PCS | |
| Weight for bracket | 40 KG | |
| Best viewing distance | 160/120 | |
| Best viewing angle | 8-40 Meter | |
| Temperature | -20ºC/±50ºC | |
| Screen power supply | AC220V-AC250V | |
| Max power | 760W/M2 | |
| Average power | 220W/M2 | |
| Tehnical parametr | Driving device | Constant current drive |
| Drive type | 1/5 Scanning | |
| Refresh frequency | >1200HZ | |
| Display color | 4096*4096*4096 | |
| Brightness | 6500 mcd/M2 | |
| Life span | 100000 Hours | |
| Communicaion distance | <100 Meter | |
