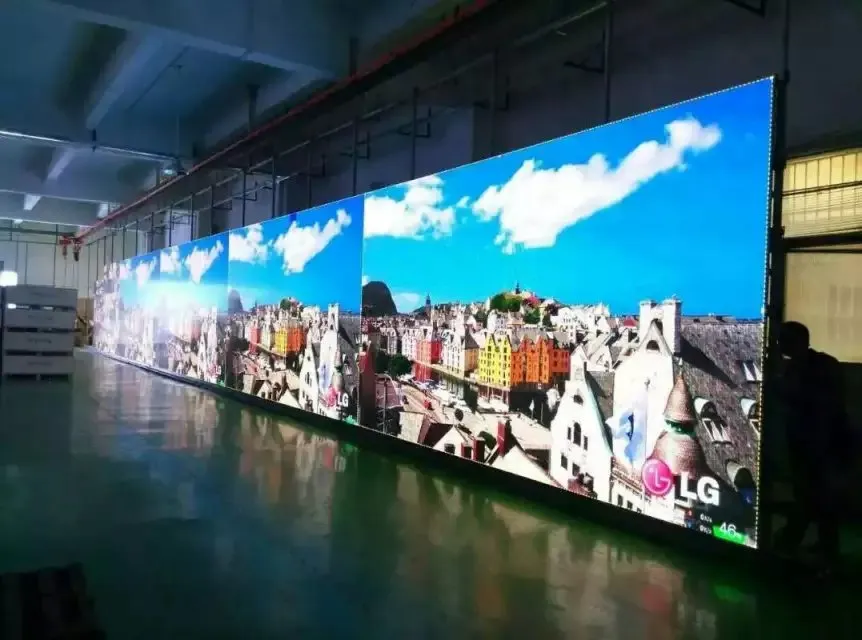

China P6 Highest Effective Outdoor Full Color Advertising LED Display Screen

Product Description

P6 Highest Effective Outdoor Full Color Advertising LED Display screen

1. Waterproof and dustproof: IP68front, IP65back
2. Best viewing distance: 10-300m
3. White balance brightness: 7000CD/sqm can adjustable
4. Horizontal viewing angle: 140degree
5. Working temperatue: -20degree-+80degree
6. MTBF: More than 10, 000hours
7. Life span: More than 100, 000hours
8. Contrast ratio: 4000: 1
9. Average power consumption: 300W

Product descripition:

Technical Specifications
NO	Product name	outdoor DIP P6 led display
1	Pixel Pitch(mm)	6mm
2	Pixel configuration	1R1G1B/
3	Pixel density	27778dots/m2
4	Brightness	6500cd/m2
5	Module size(W*H)	192*192mm
6	Module Resolution (W*H)	32 dots x 32dots
7	Module weight	450g
8	Cabinet size (W*H)	576mm×576mm
9	Drive IC	MBI5124
10	Drive mode	1/8 scan
11	Viewing Angle(V/H)	140ºC
12	Grey Scale	65536 degree
13	Life time	>100,000 Hours (50%)
14	MTBF	>50,000 Hours
15	Operating Voltage	AC110V/220V±10%
17	Screen Power Consumption	Max: 680w/m2; Average:220w/m2
18	Input Power Frequency	50/60Hz
19	Operating temperature	-30--60ºC
20	Humidity	10%-95%
21	Refresh Rate	≥1200HZ
22	Control Method	Synchronized with computer monitor
23	Color Temperature	6500K-9500K
24	LED control system	LINSN,Nova-star,Colorlight is selectable
25	Control Distance	100 m (no repeating); Optical fiber transmission: 500m- 15km
26	Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
27	Systems Operating Platform	Windows Xp / Windows 7 / windows 8 /8.1 / windows 10

Professional production:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen

Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.

FAQ :
1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Usually below 100pcs is 3 days quick delivery.
3. Q: How long is the warranty period ?
A: Non-artificial damage, one years warranty
4. Q: Do you have the products in stock?
A: Yes ,of course
5. Q: Freight Cost?
A: The shipping cost depends on different weight;
We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
A: Quality is priority. Every product will be fully assembled and carefully tested before packing and shipping.

Application

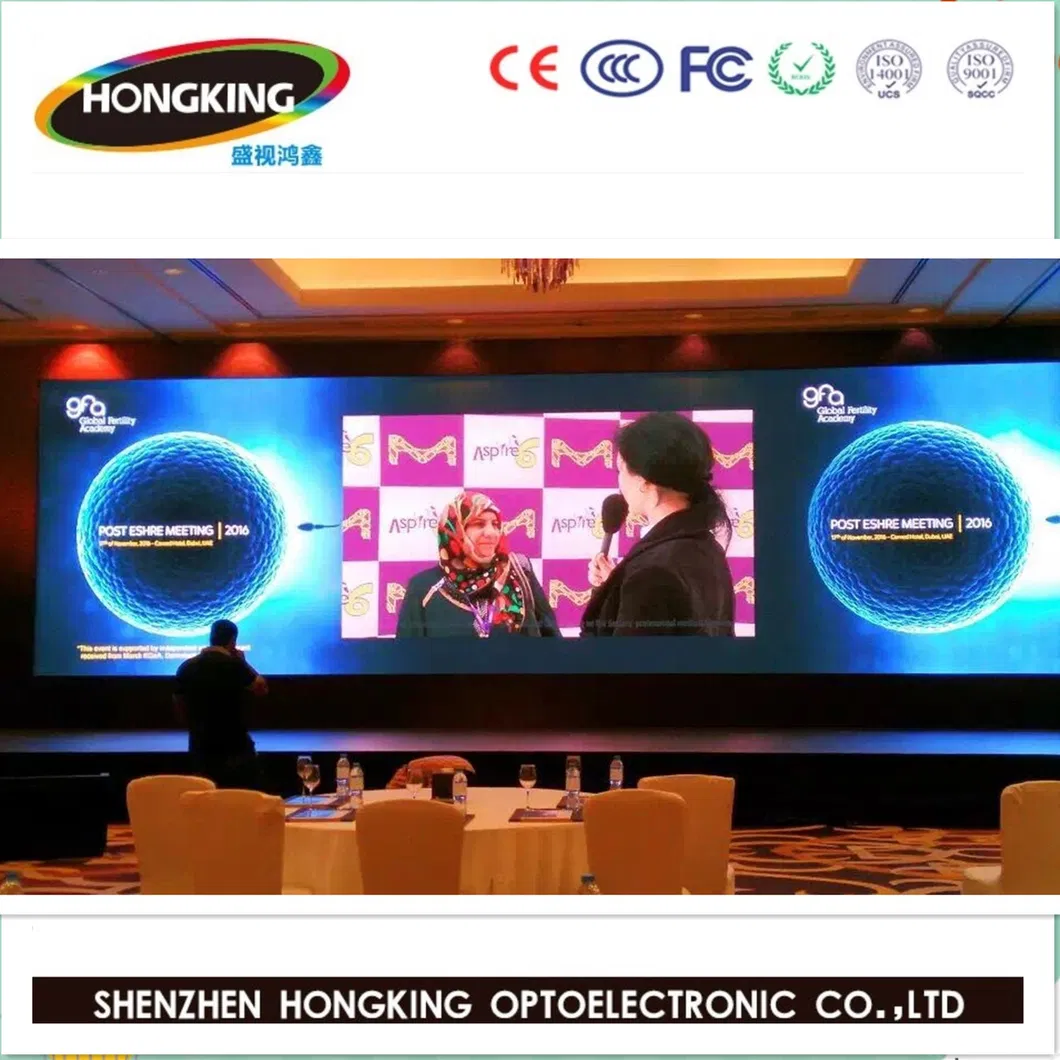

HONGKING LED display screen can be widely used in retail store, pubs and hotels, shopping center, TV and broadcasting center, worship, theater, auto show, award and corporate show, concert touring, rental and staging, festival and sports event, art exhibition, press conference etc.

OEM ODM Service:
Pixels Pitch: P1.6 P1.9 P2 P2.5 P3 P3.91 P4 P4.81 P5 P6 P6.25 P6.66 P7.62 P8 P8.94 P9.64 P10 P12 P13.33 P16 P18.75 P20 P25 P31.25 P37.5mm etc
LED Screen Size: 1x1mts / 2x2mst / 3x2mts / 3x3mets / 4x3mts / 4x4mts / 5x4mts / 6x4mts / 7x5mts / 8x5mts / 10x6mts etc

LED Cabinet Size: 480mmx480mm / 500mmx500mm / 576mmx576mm / 640mmx640mm / 800mmx800mm / 960mmx960mm / 1024mmx1024mm etc
