P6.2 Commercial Wide Viewing Outdoor LED Display Panel
Application: 1. It's a series of advanced LED screen which can be easily installed and removed. 2. Outdoor commercial advertising billboard, stage, banks, stock exchange centers, theme park, airport, schools, government agencies, exhibition, meeting rooms, cinemas, hotels, and a variety of publ......
Send Inquiry
Product Description
Application:
1. It's a series of advanced LED screen which can be easily installed and removed.

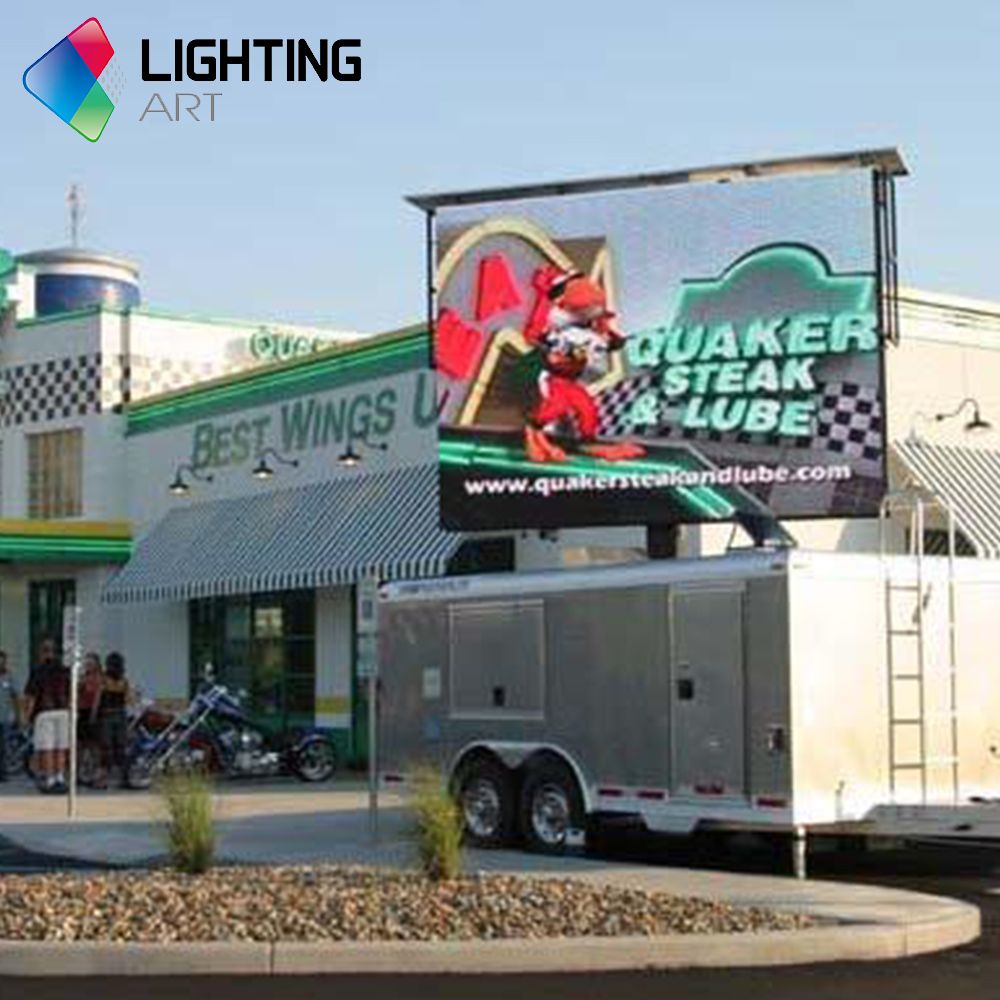

2. Outdoor commercial advertising billboard, stage, banks, stock exchange centers, theme park, airport, schools, government agencies, exhibition, meeting rooms, cinemas, hotels, and a variety of public facilities and etc.
Product feature:
Specification:
The development ability:
1. We can provide all the accessories and software for a whole project. Including hanging bars, sending cards, video processor, software, flight case, power box, power cable, data cable, module mask, etc.
2. We are professional in designing and manufacturing high-end rental LED display screen.
Who we are:
We are a trade factory in Shenzhen with 6 years experience. There are professional develop engineers, experienced sales engineers, and skillful workers.
1. If you want to develop a new design LED screen, please contact us. We can help you.
2. If you have a new project/order but don't know how to process it, please contact us. We can help provide the best solutions/scheme, and guide you.
3. If you are searching for alternative suppliers, please contact us. We are professional.

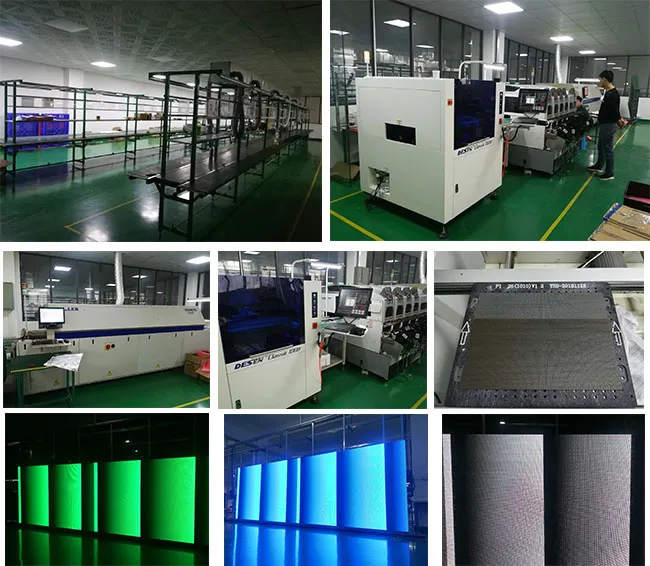

Factory:
(The pictures below were taken during night, after most of the workers off work)
1. Skillful workers who have worked more than 6 years in our factory.
2. High technology auntomatic machines.
3. Aging test + Grayscale test for each module.
Terms:
1. Production time for 0-200 m² LED screen is about 25 days. (Including aging test).
2. Payment term: T/T, 30% in advance and 70% before shipping.
3. Trade term: FOB Shenzhen, CIF, DDU, DDP.
4. Plywood case or flight case provided.
1. It's a series of advanced LED screen which can be easily installed and removed.
2. Outdoor commercial advertising billboard, stage, banks, stock exchange centers, theme park, airport, schools, government agencies, exhibition, meeting rooms, cinemas, hotels, and a variety of public facilities and etc.

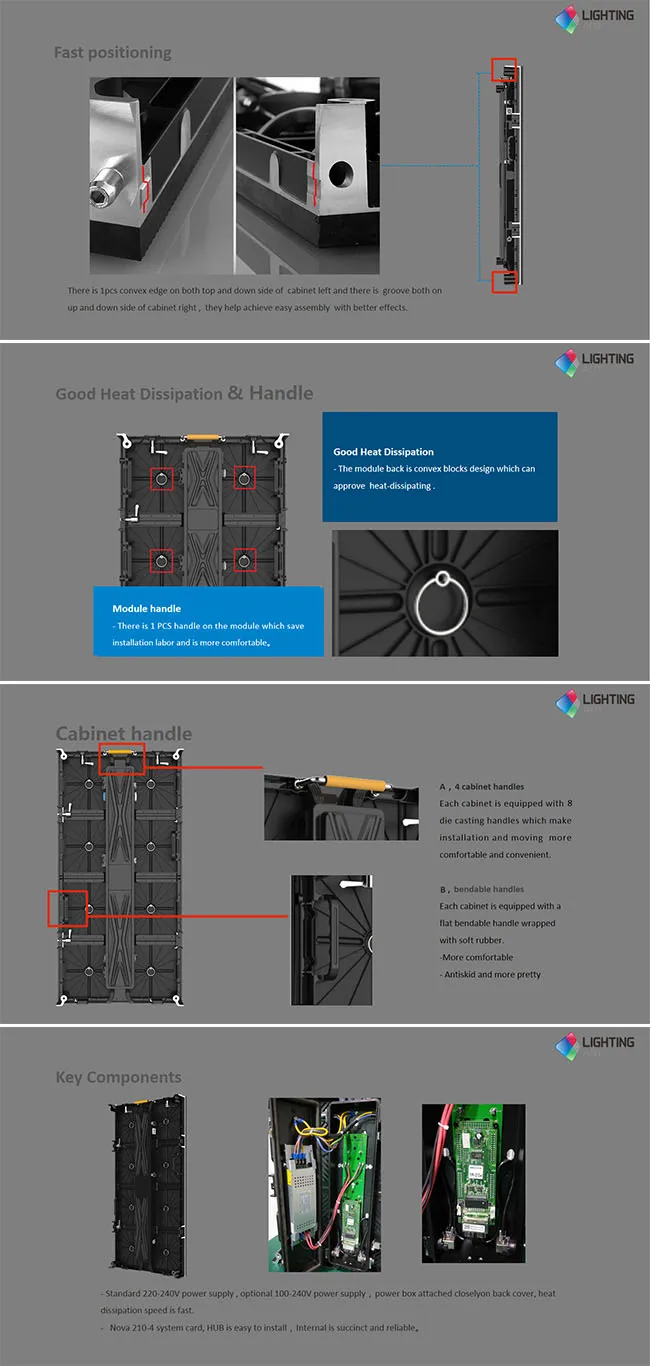

Product feature:
- Slim and light weight design, convenient for installation and save transportation costs.
- Die-casting aluminum forming process, the tolerance of cabinet frame is controlled within 0.1mm, using special connection lock, whole screen flatness and the stitching gap is less than 0.5mm.
- Low power consumption PCB design, anti-noise cabinet design.
- Support hanging installation and stand on floor installation, fast stitching without tools.
- Support front service option and angle adjustment.
- 500x500mm, and 500x1000mm can use together
Specification:
| 1 | Model No. | ELO MAX-5.68 |
| 2 | Pixel Pitch (mm) | P5.68 |
| 3 | Module Size (mm) | 250x250x15 |
| 4 | Module Resolution (pixels) | 44x44 |
| 5 | Cabinet Size (mm) | 500x1000x88 |
| 6 | Cabinet Resolution (pixels) | 88x176 |
| 7 | Pixel configuration | 1RGB |
| 8 | LED Encapsulation | SMD2727 NationStar |
| 9 | Work Voltage (DC) | 5V |
| 10 | Driver Mode (Scan) | 1/11 |
| 11 | Cabinet Weight (kg) | 16 |
| 12 | Physical Density (pixels) | 30976 |
| 13 | Brightness (NIT) | 5000 |
| 14 | Gray Scale (BIT) | 14 |
| 15 | Contrast Ratio | 3000:1 |
| 16 | Refresh Rate (Hz) | 3840 |
| 17 | Viewing Angle (H/V) | ±140°/±140° |
| 18 | Protection Grade | IP65 |
| 19 | MAX Power Consumption (W/m²) | 560 |
| 20 | Average Power Consumption (W/m²) | 224 |
| 21 | Work Temperature | -20ºC~50ºC |
| 22 | Work Humidity | 10%RH~90%RH |
| 23 | Optimal Viewing Distance | ≥11.5m |
| 24 | Input AC Power | 100-240 V |
The development ability:
1. We can provide all the accessories and software for a whole project. Including hanging bars, sending cards, video processor, software, flight case, power box, power cable, data cable, module mask, etc.
2. We are professional in designing and manufacturing high-end rental LED display screen.
Who we are:
We are a trade factory in Shenzhen with 6 years experience. There are professional develop engineers, experienced sales engineers, and skillful workers.
1. If you want to develop a new design LED screen, please contact us. We can help you.
2. If you have a new project/order but don't know how to process it, please contact us. We can help provide the best solutions/scheme, and guide you.
3. If you are searching for alternative suppliers, please contact us. We are professional.
Factory:
(The pictures below were taken during night, after most of the workers off work)
1. Skillful workers who have worked more than 6 years in our factory.
2. High technology auntomatic machines.
3. Aging test + Grayscale test for each module.
Terms:
1. Production time for 0-200 m² LED screen is about 25 days. (Including aging test).
2. Payment term: T/T, 30% in advance and 70% before shipping.
3. Trade term: FOB Shenzhen, CIF, DDU, DDP.
4. Plywood case or flight case provided.
