P37.5mm High Brightness Outdoor Flexible LED Curtain Display Screen
P37.5mm High Brightness Outdoor Flexible LED Curtain Display ScreenFlexible LED Mesh can be arbitrary bent into an arc, circle, waves, etc. Size and color can be customized. It is 70%~80% transparency, can make the screen and stage lighting as a whole, rendering vivid stage effect. Lock the two join......
Send Inquiry
Product Description
P37.5mm High Brightness Outdoor Flexible LED Curtain Display Screen

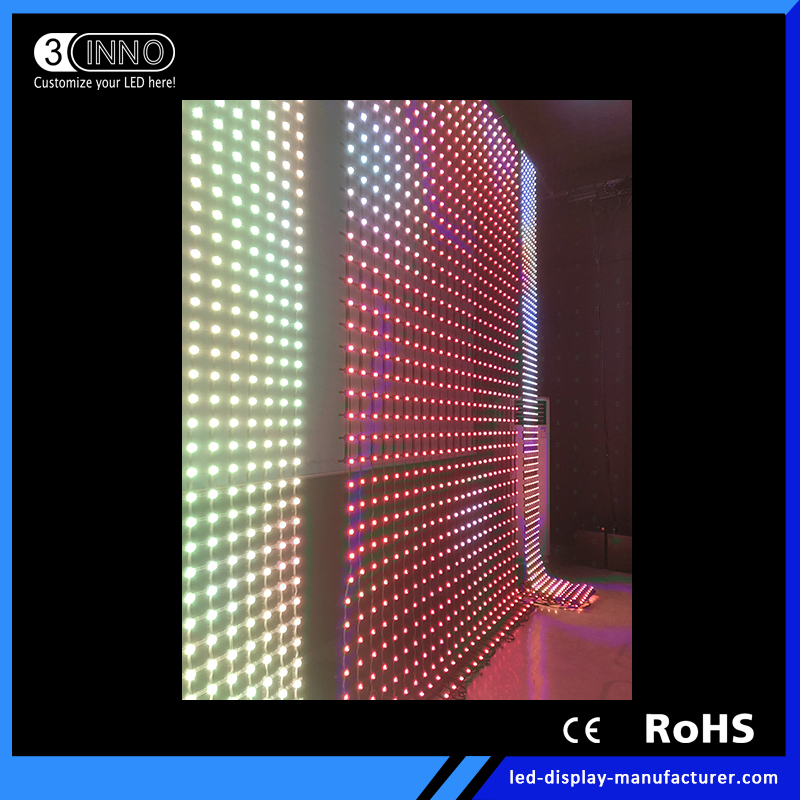

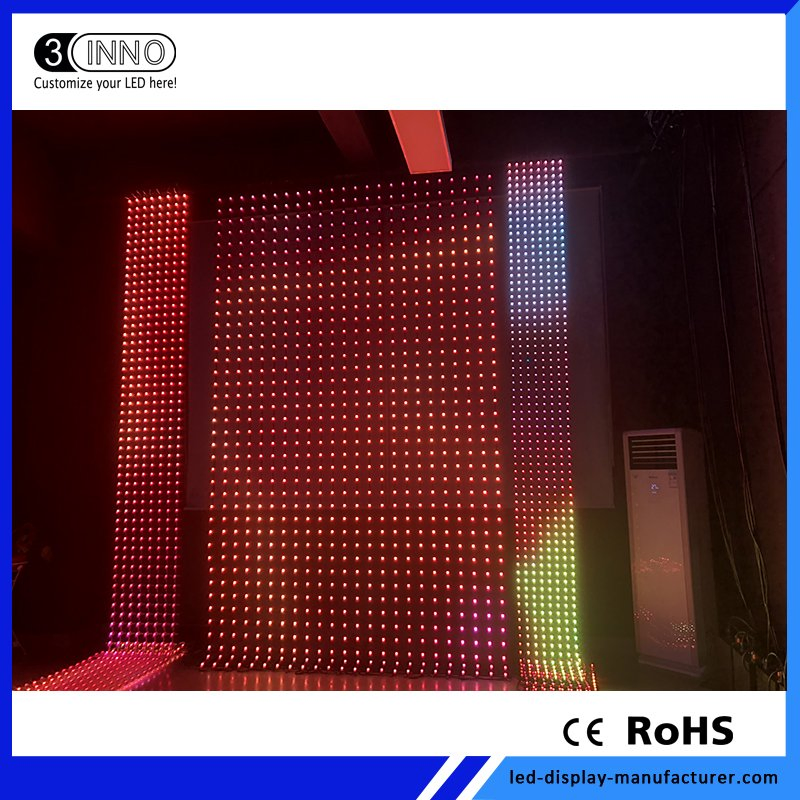

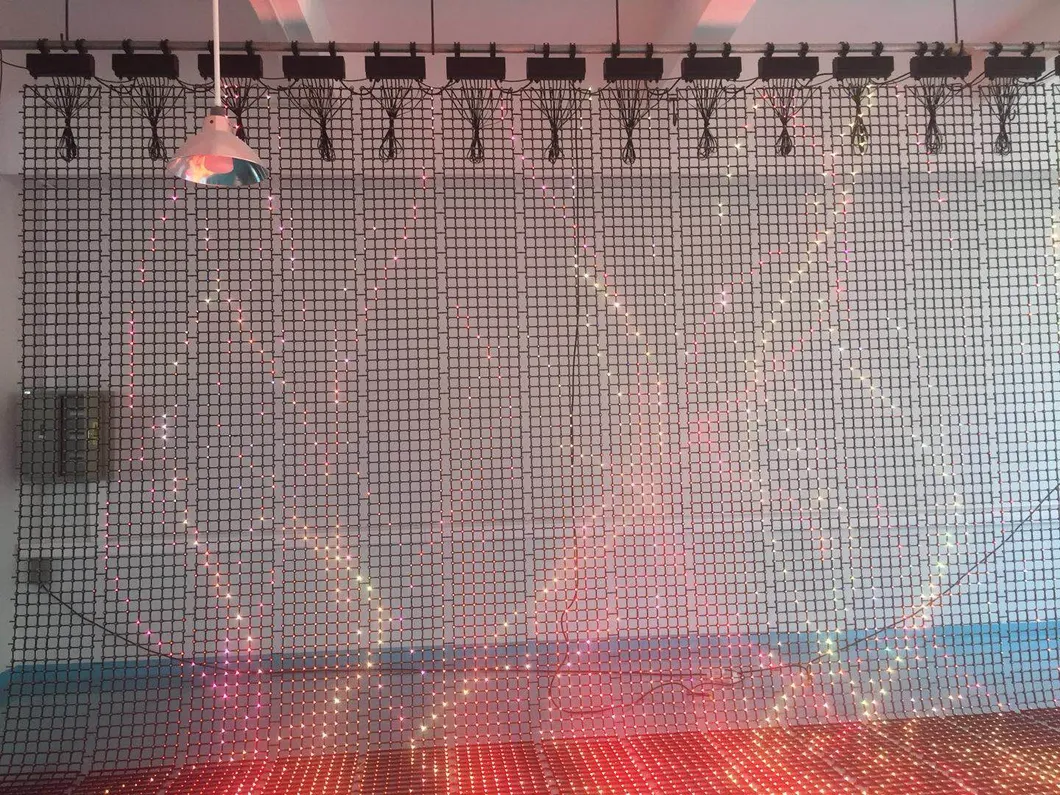

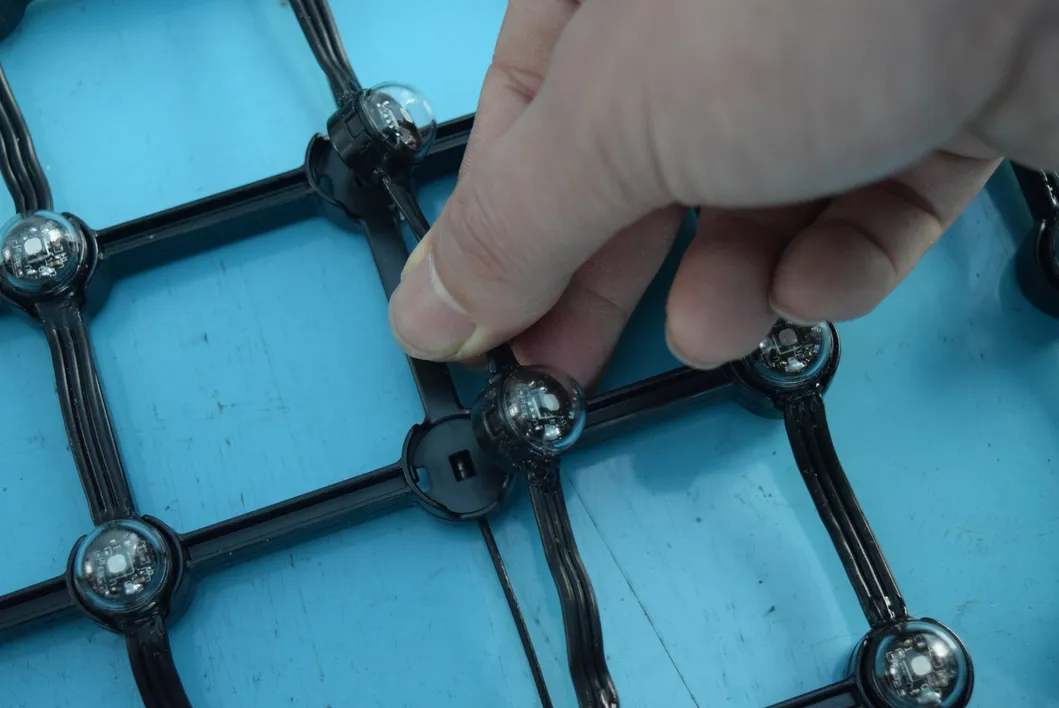

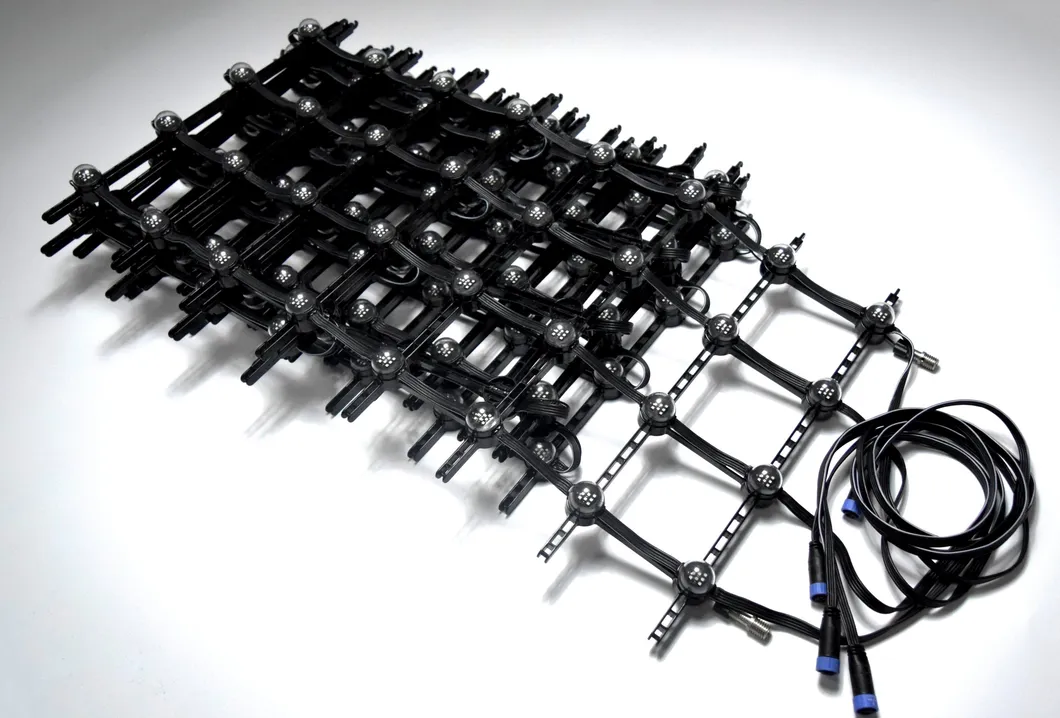

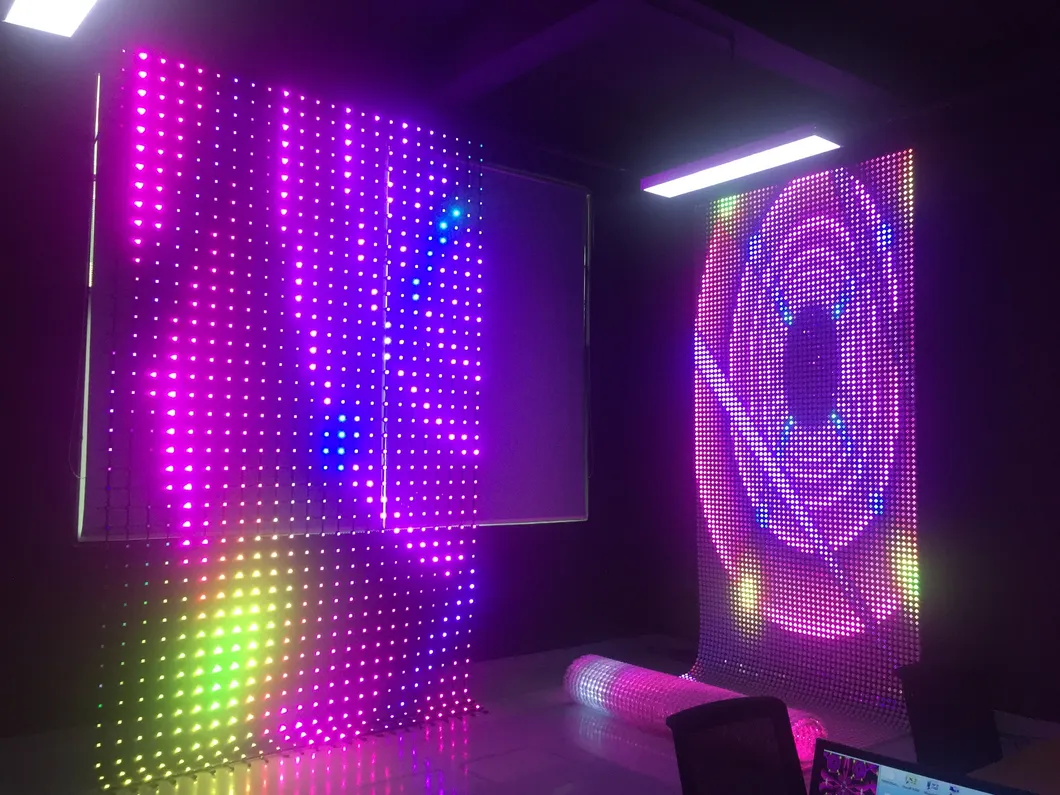

Flexible LED Mesh can be arbitrary bent into an arc, circle, waves, etc. Size and color can be customized. It is 70%~80% transparency, can make the screen and stage lighting as a whole, rendering vivid stage effect. Lock the two joint of Flexible LED Mesh panel on the hanging beam to achieve quickly lifting of the curtain without any tools. LEDs can be removed separately, are used to implement various creative style. Flexible LED Mesh is only 4.1kg/m²weight, saving install and transport time and cost. Quick lock system assured stable and reliable connection, fast and easy installation or dismount. It is IP65 rated, applicable for both indoor and nighttime outdoor applications.
SPECIFICATION
CERTIFICATE
PRODUCT PROCESS
Flexible LED Mesh can be arbitrary bent into an arc, circle, waves, etc. Size and color can be customized. It is 70%~80% transparency, can make the screen and stage lighting as a whole, rendering vivid stage effect. Lock the two joint of Flexible LED Mesh panel on the hanging beam to achieve quickly lifting of the curtain without any tools. LEDs can be removed separately, are used to implement various creative style. Flexible LED Mesh is only 4.1kg/m²weight, saving install and transport time and cost. Quick lock system assured stable and reliable connection, fast and easy installation or dismount. It is IP65 rated, applicable for both indoor and nighttime outdoor applications.
SPECIFICATION
1. Ultra flexible, easy to form a flat screen or curved to match with irregular shaped building facade, both pixel pitch, panel size and panel color can be customized
2. High transparency maximizes the natural light get inside of the building, also ensuring the screen has great ventilation and wind-resistance function
3. Fast inter-panel locks make installation quick and easy especially for a large-sized screen
CONTROL SYSTEM

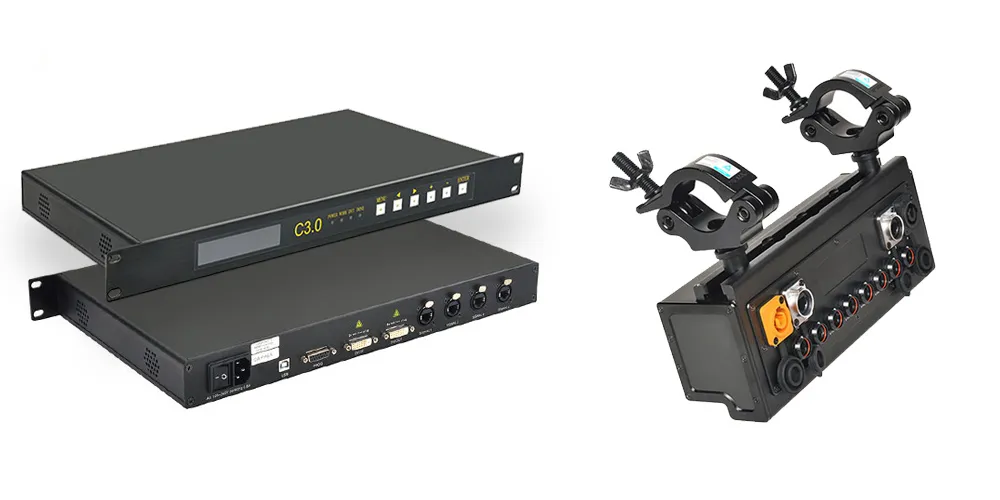

Main controller Slave controller

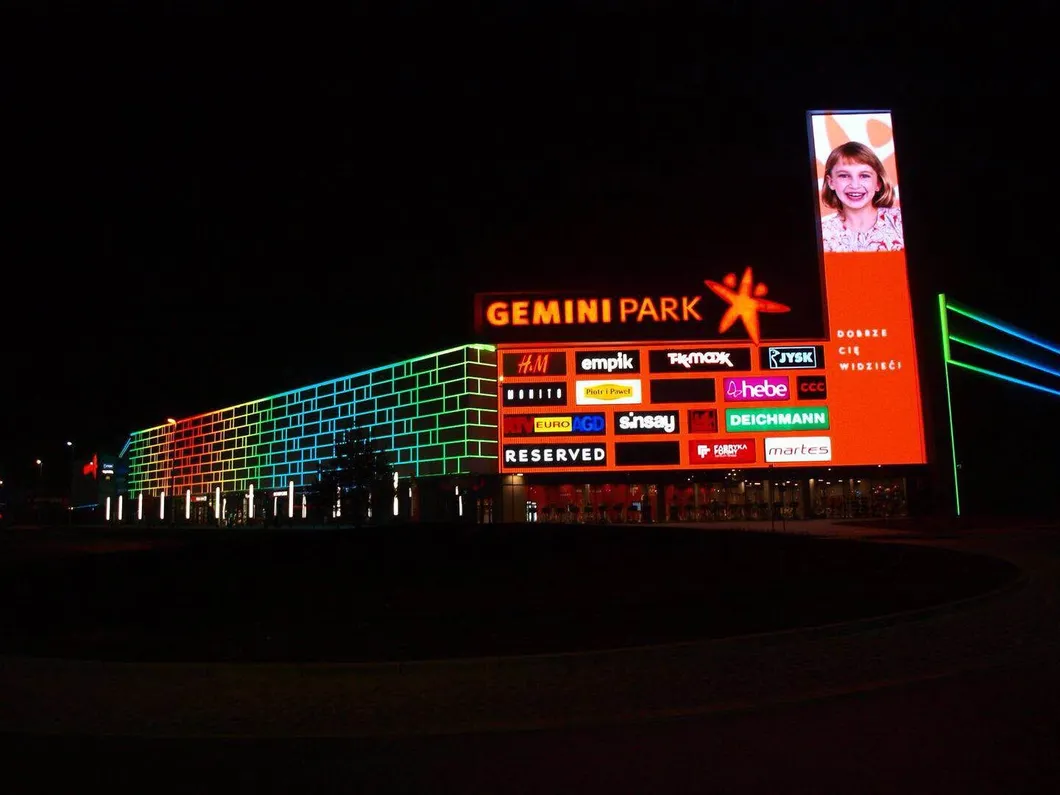

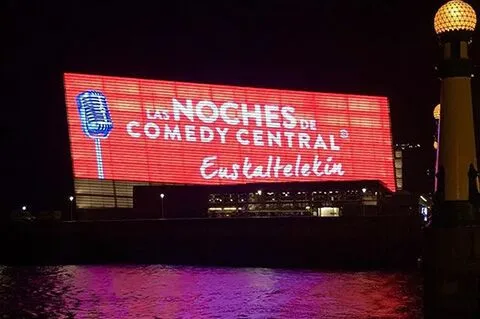

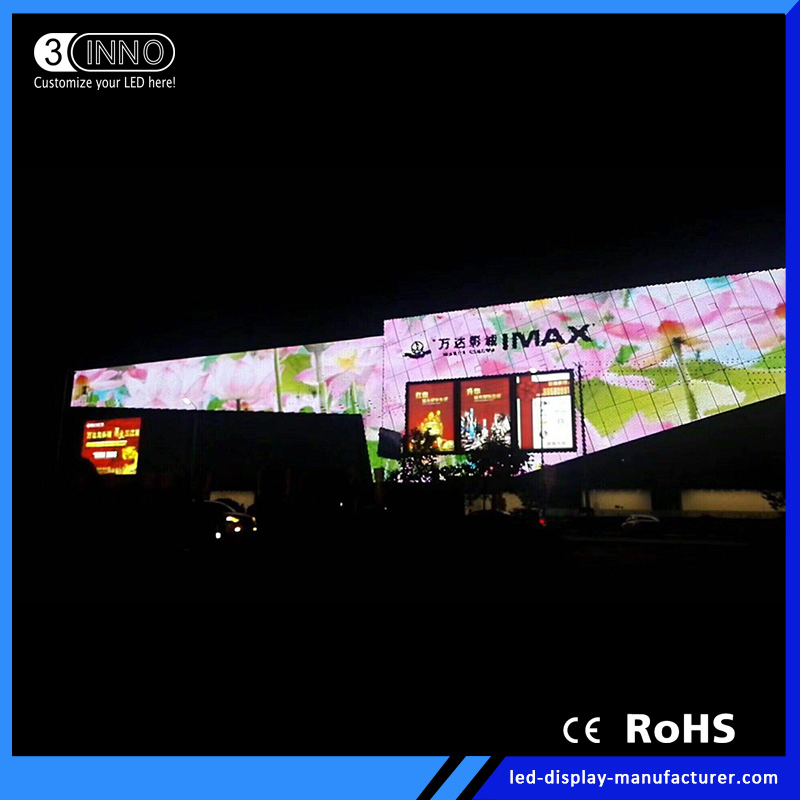

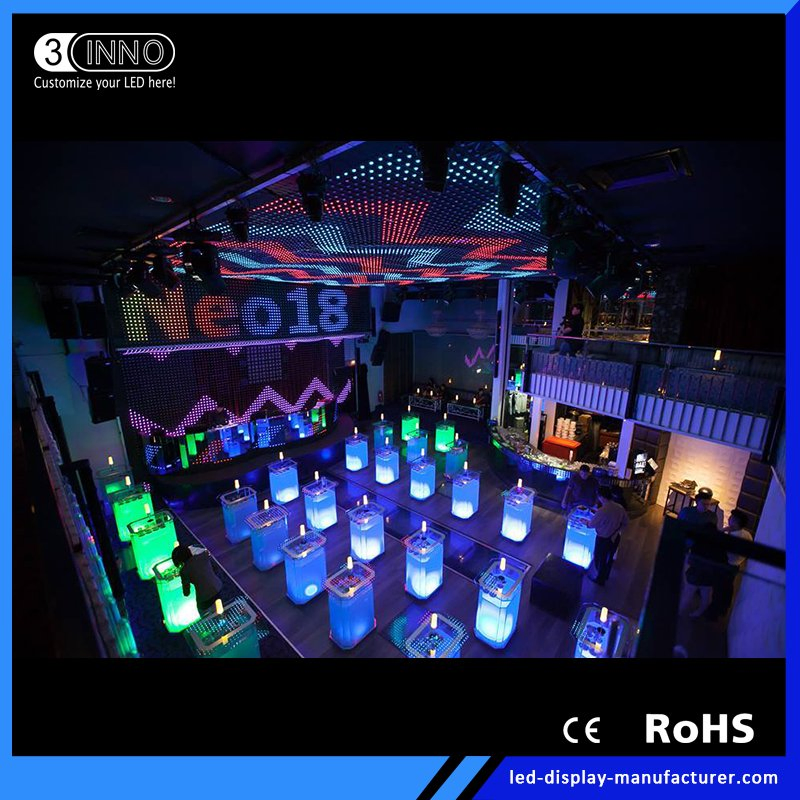

PROJECT
SPECIFICATION
CONTROL SYSTEM
Main controller Slave controller
PROJECT
SPECIFICATION
| optical | Pixel Pitch | mm | 37.5mm |
| LED Type | - | SMD3535 | |
| Brightness | nit | 5400 | |
| Panel Resolution (W*H) | pixels | 8*128 | |
| Pixel Density | pixel/m² | 711 | |
| LED Quantity/ Pixel | pixel | 4 | |
| Transparency | - | 75 | |
| Viewing Angle | degree | H 140°/ V110° | |
| Color Depth | bit | 16 | |
| Refresh Rate | HZ | 1000 - 3000 Hz | |
| Panel Size | mm | 300*4800 | |
| Electrical | Max Power Consumption | w/sqm | 500 |
| Scan Mode | Static | ||
| Main Power Source | AC/V | AC 100-240V | |
| Input Voltage | DC | 15 | |
| Mechanical | IP Rating | - | IP66 |
| Panel Weight | kg/sqm | 10.5 | |
| Weight Per Tile | IB/sqm | 23.17 | |
| Life Time | hours | >100,000 | |
| Certification | - | CE,ROHS | |
| Working Temperature | ºC | ' -40~45°C | |
| Humidity | - | 10~90%RH | |
| Control | Control System | - | DVI synchronous |

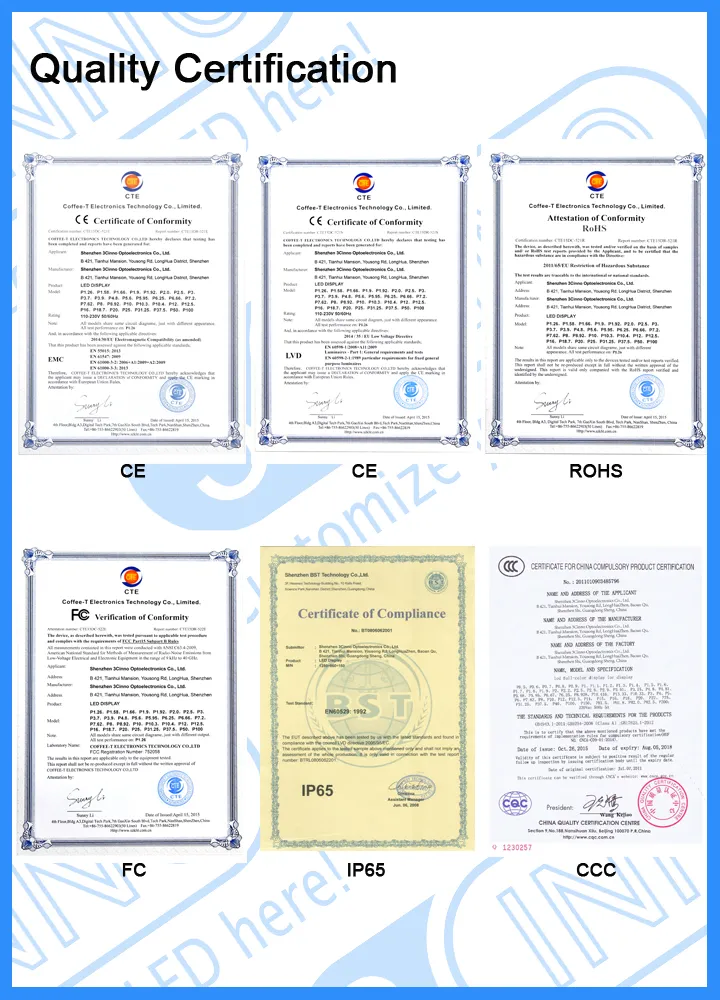

CERTIFICATE
