P37.5 (4LEDs) Outdoor High Transparent LED Screen Flexible Mesh Display
P37.5(4leds) Outdoor High Transparent LED Screen Flexible Mesh DisplayFlexible LED Mesh can be arbitrary bent into an arc, circle, waves, etc. Size and color can be customized. It is 70%~80% transparency, can make the screen and stage lighting as a whole, rendering vivid stage effect. Lock the two j......
Send Inquiry
Product Description
P37.5(4leds) Outdoor High Transparent LED Screen Flexible Mesh Display

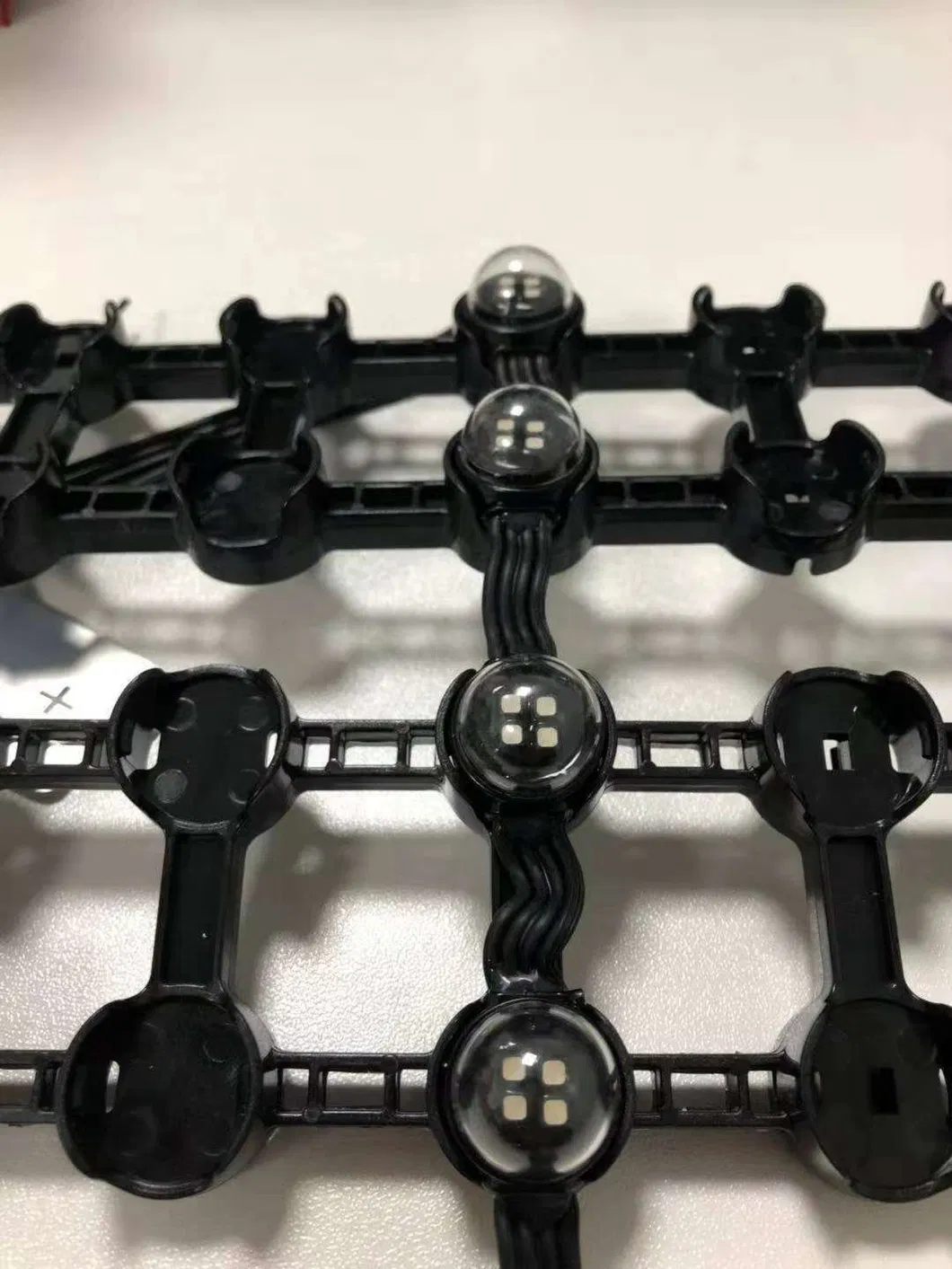

Flexible LED Mesh can be arbitrary bent into an arc, circle, waves, etc. Size and color can be customized. It is 70%~80% transparency, can make the screen and stage lighting as a whole, rendering vivid stage effect. Lock the two joint of Flexible LED Mesh panel on the hanging beam to achieve quickly lifting of the curtain without any tools. LEDs can be removed separately, are used to implement various creative style. Flexible LED Mesh is only 4.1kg/m²weight, saving install and transport time and cost. Quick lock system assured stable and reliable connection, fast and easy installation or dismount. It is IP65 rated, applicable for both indoor and nighttime outdoor applications.
Product description

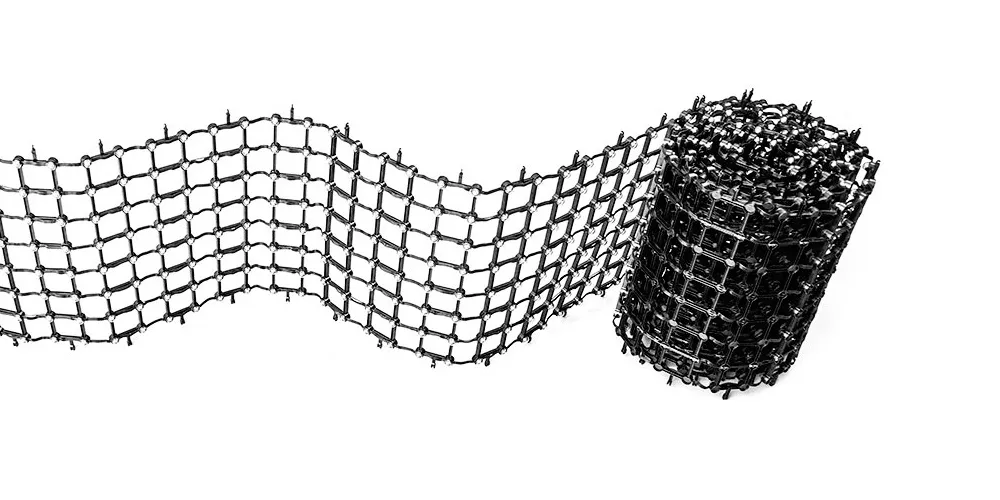

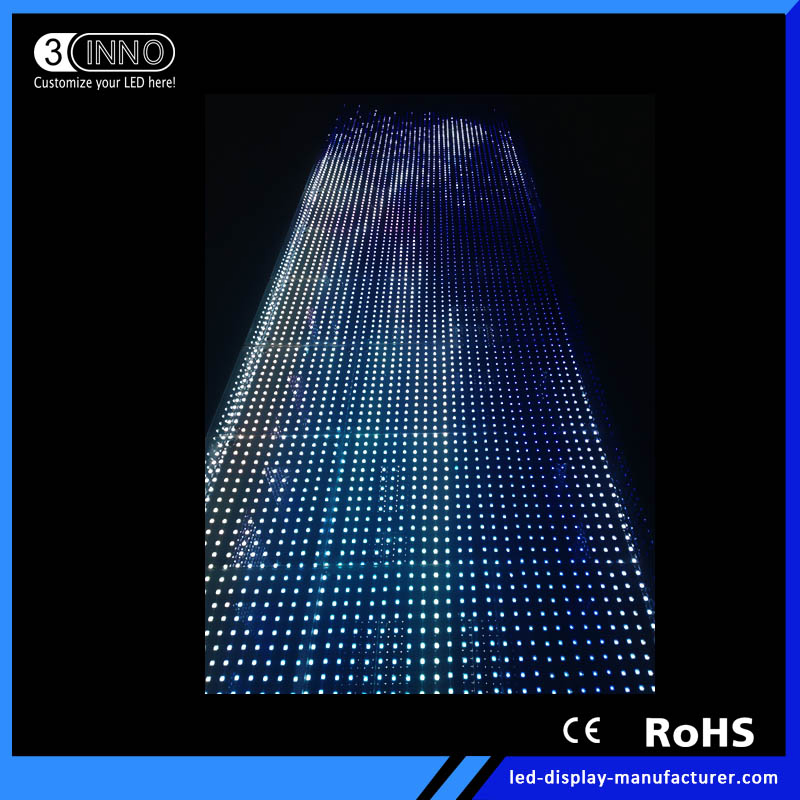

*Ultra flexible design

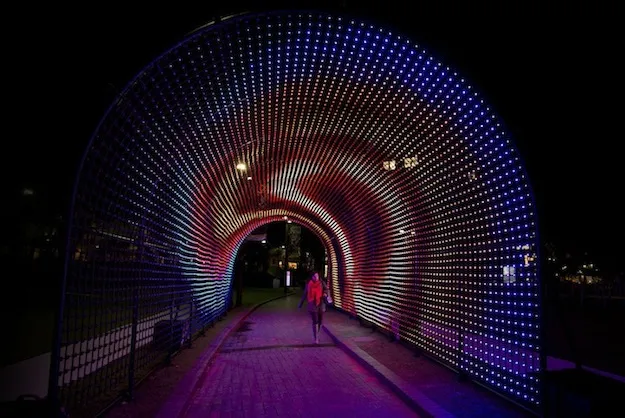

It can be curved freely to achieve creative shapes like arch, circle, wave, customized size available.

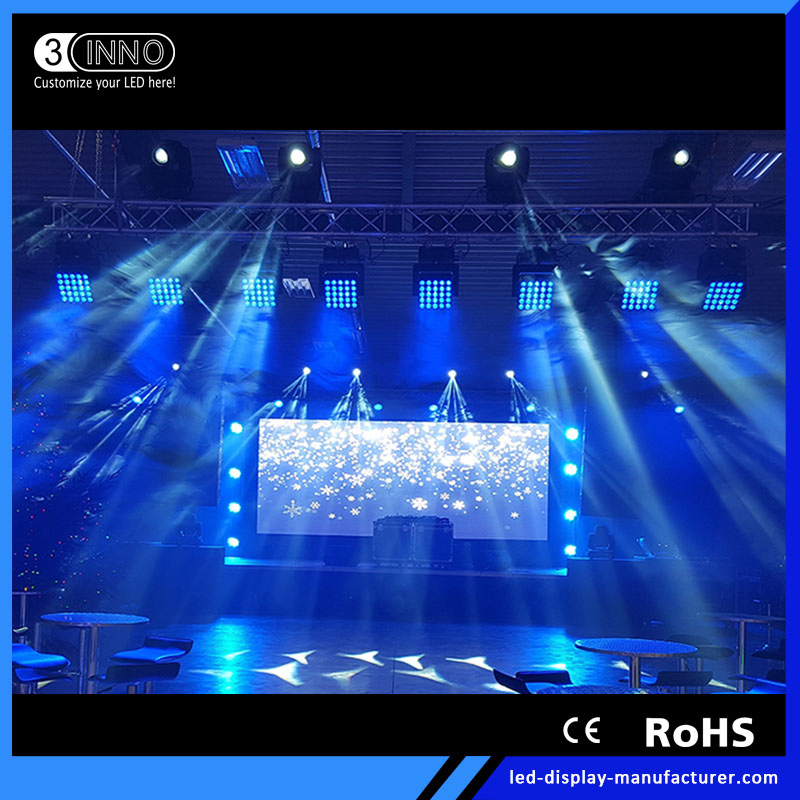

70% transparency rate, easy for stage light,fog, lasers go through the screen to create superb visual effect
* Quick Lock Systen
With this new and improved feature, large square feet of Q-DOT can be setup and broken down without any tools in only few minutes which can saving installation costs

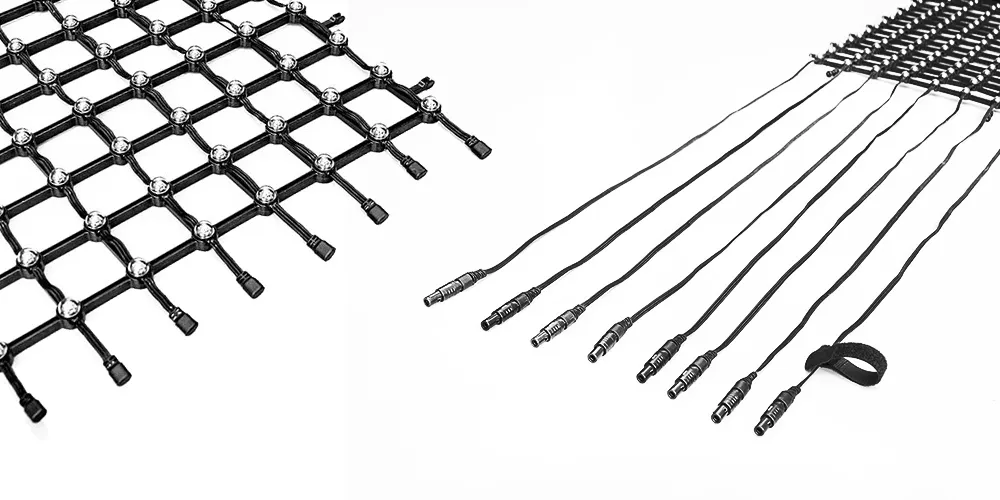

* Connector
The connectors of the panel head are locked on the hanging beam to achieve the rapid lifting of the screen without any tools.

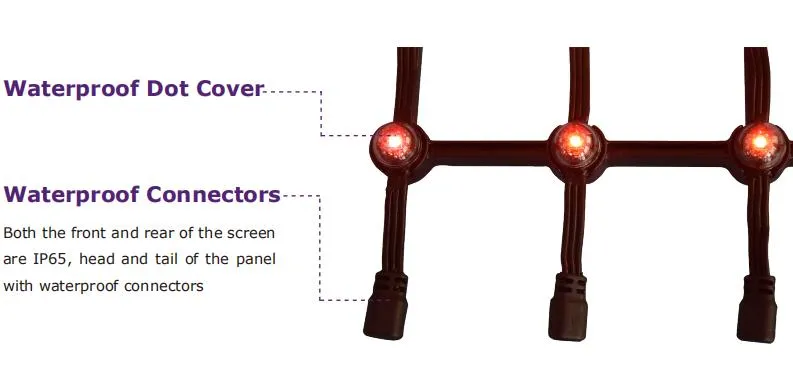

* Waterproof

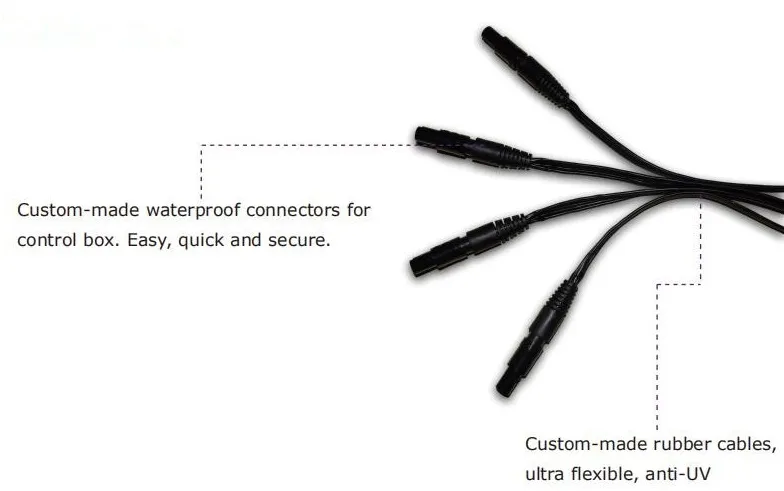

*Anti-UA Cables

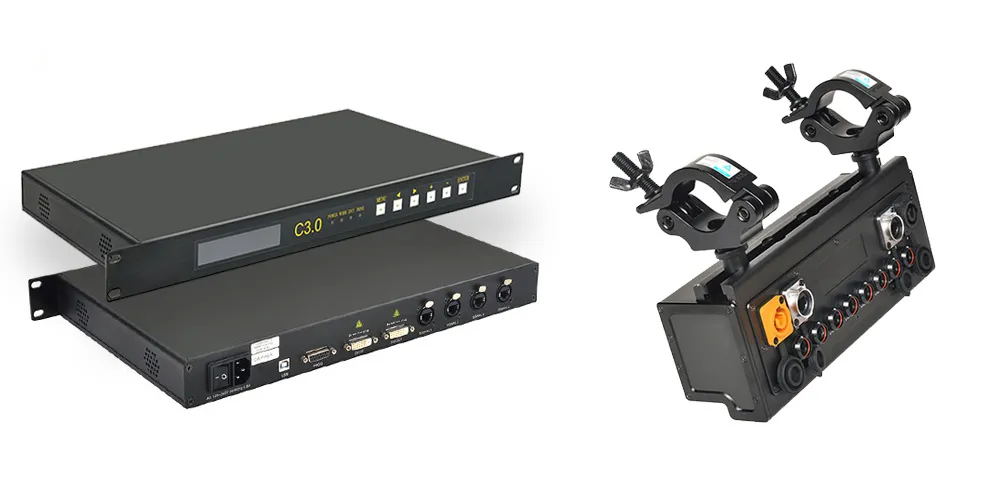

Control system:
Main controller Slave controller
Flexible LED Mesh can be arbitrary bent into an arc, circle, waves, etc. Size and color can be customized. It is 70%~80% transparency, can make the screen and stage lighting as a whole, rendering vivid stage effect. Lock the two joint of Flexible LED Mesh panel on the hanging beam to achieve quickly lifting of the curtain without any tools. LEDs can be removed separately, are used to implement various creative style. Flexible LED Mesh is only 4.1kg/m²weight, saving install and transport time and cost. Quick lock system assured stable and reliable connection, fast and easy installation or dismount. It is IP65 rated, applicable for both indoor and nighttime outdoor applications.
Product description
*Ultra flexible design
It can be curved freely to achieve creative shapes like arch, circle, wave, customized size available.
70% transparency rate, easy for stage light,fog, lasers go through the screen to create superb visual effect
* Quick Lock Systen
With this new and improved feature, large square feet of Q-DOT can be setup and broken down without any tools in only few minutes which can saving installation costs
* Connector
The connectors of the panel head are locked on the hanging beam to achieve the rapid lifting of the screen without any tools.
* Waterproof
*Anti-UA Cables
Control system:
Main controller Slave controller
| Specification | |||
| optical | Pixel Pitch (Pixel Pitch Can Be Customized) | mm | 37.5mm |
| LED Type | - | SMD3535 | |
| Brightness | nit | 7000 | |
| Panel Resolution (W*H) | pixels | 8*128 | |
| Pixel Density | pixel/m² | 711 | |
| LED Quantity/ Pixel | pixel | 4 | |
| Transparency | - | 55 | |
| Viewing Angle | degree | H 140°/ V110° | |
| Color Depth | bit | 16 | |
| Refresh Rate | HZ | 1000 - 3000 | |
| Electrical | Max Power Consumption | w/sqm | 850 |
| Scan Mode | - | Static | |
| Main Power Source | AC/V | AC 100-240V | |
| Input Voltage | DC | 15 | |
| Mechanical | IP Rating | - | IP66 |
| Life Time | hours | >100,000 | |
| Certification | - | CE,ROHS | |
| Working Temperature | ºC | -40~45°C | |
| Humidity | - | 10~90%RH | |
| Control | Control System | - | DVI controller |
