P3.9mm Wide Viewing Angle Full Color LED Wall Outdoor LED Display Screen
P3.9mm Wide Viewing Angle Full Color LED Wall Outdoor LED display screen Features: 1. Only 16kg For Each PanelLight weight of only 16kg for each panel2. Details reveal charmStriving to achieve the ultimate,these series are made to incorporate all the details you care into its designing concept.......
Send Inquiry
Product Description
P3.9mm Wide Viewing Angle Full Color LED Wall Outdoor LED display screen
Features:
2. Details reveal charmStriving to achieve the ultimate,these series are made to incorporate all the details you care into its designing concept.

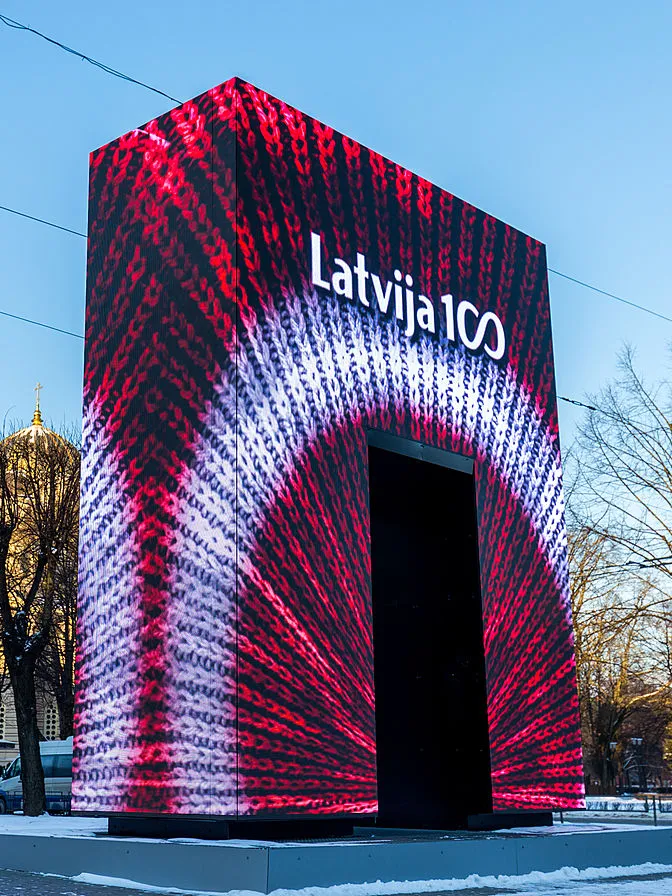

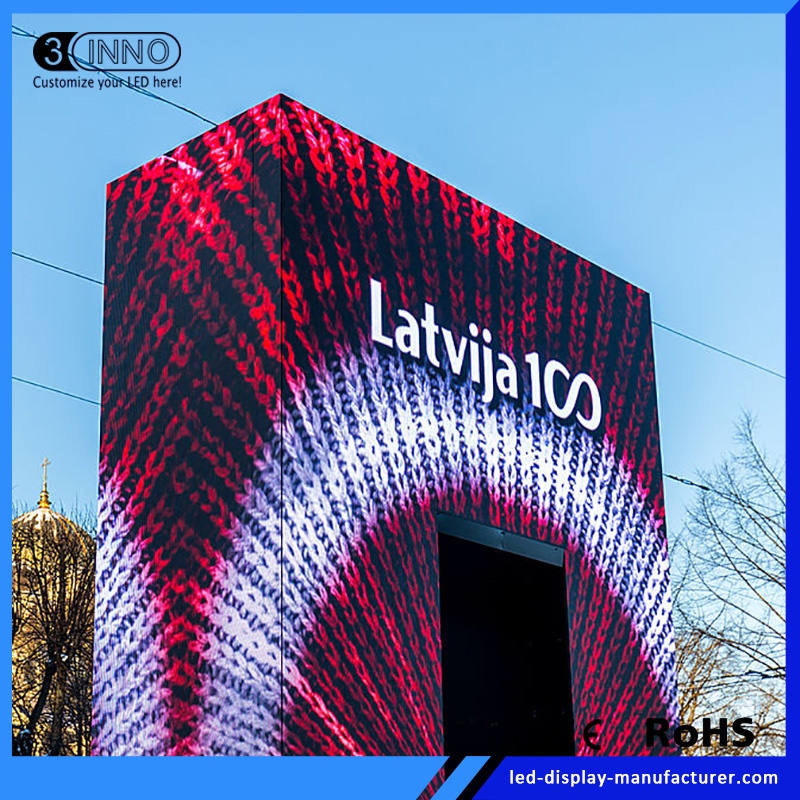

3. Cherish and realize your every creative ideaBy the use of only one type of panel, these series can realize your valued creations by being assembled into concave
and convex screens, and the minimum radius is only 2.85m long to make a circle.

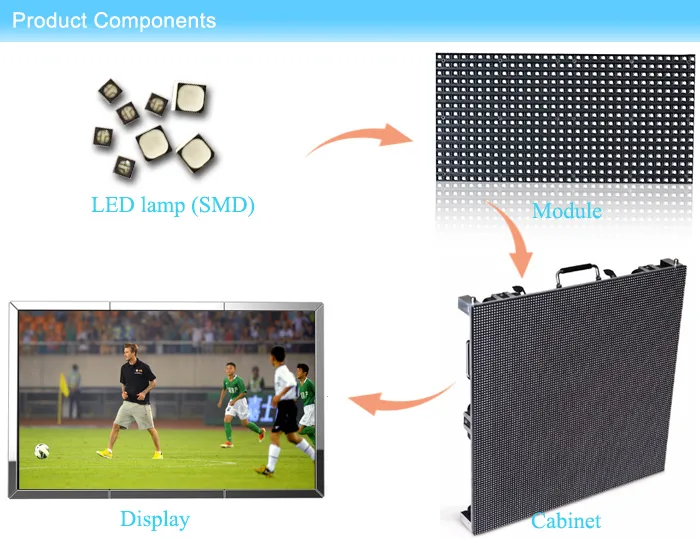

4. User-friendly maintenanceThe die-casting aluminum panel employs modular design. Modules and power box can all be maintained conveniently from
the front or rear according to requirements.
5. Mix or mismatch splicing? The answer is YES!Panels of two different sizes can be assembled together, and more surprisingly the super compatible panels
also support for mismatch splicing from all directions.
SPECIFICATION
Features:
1. Only 16kg For Each Panel
Light weight of only 16kg for each panel2. Details reveal charm
3. Cherish and realize your every creative idea
and convex screens, and the minimum radius is only 2.85m long to make a circle.
4. User-friendly maintenance
the front or rear according to requirements.
5. Mix or mismatch splicing? The answer is YES!
also support for mismatch splicing from all directions.
| OPTICAL | Pixel Pitch | mm | 3.9mm |
| LED No. Per Pixel | pcs/pixel | 1 | |
| Brightness(Adjustment) | cd/m² | ≥5000 | |
| LED Encapsulation | - | SMD3-IN-1 | |
| Module Resolution(W*H) | pixels | 64*64 | |
| Cabinet Resolution(W*H) | dots | 128*256 | |
| Pixel Density | dots/sqm | 65,536 | |
| Viewing Angle(H/V) | degree | H140/V140 | |
| Color Depth/Number | bit | 16bit | |
| Grey Scale | bit | 16bit | |
| ELECTRICAL | Frame Frequency | Hz/s | 50/60 |
| Refresh Rate | Hz | 3840 | |
| Contrast Ratio | - | ≥3000:1 | |
| Max Power Consumption | W/m² | 840 | |
| Ave Power Consumption | W/m² | 280 | |
| Working Voltage | AC | AC 100~240 | |
| Drive Voltage | DC | 5V | |
| Working Temperature | ºC | -20~+50 | |
| Humidity | - | 10%~90% RH | |
| MECHANICAL | Frame Material | - | Die-casting aluminum |
| Module Size | mm | 250*250 | |
| Panel Weight | kg/pcs | 16 | |
| Weight Per Tile | lbs | 35.30 | |
| Panel Size | mm | 500*1000*88 | |
| Optimum Viewing Distance | m | >4m | |
| IP Rating(Front/Rear) | - | IP65/54 | |
| Lifetime | hours | ≥100,000 | |
| Service Access | - | Front/Rear | |

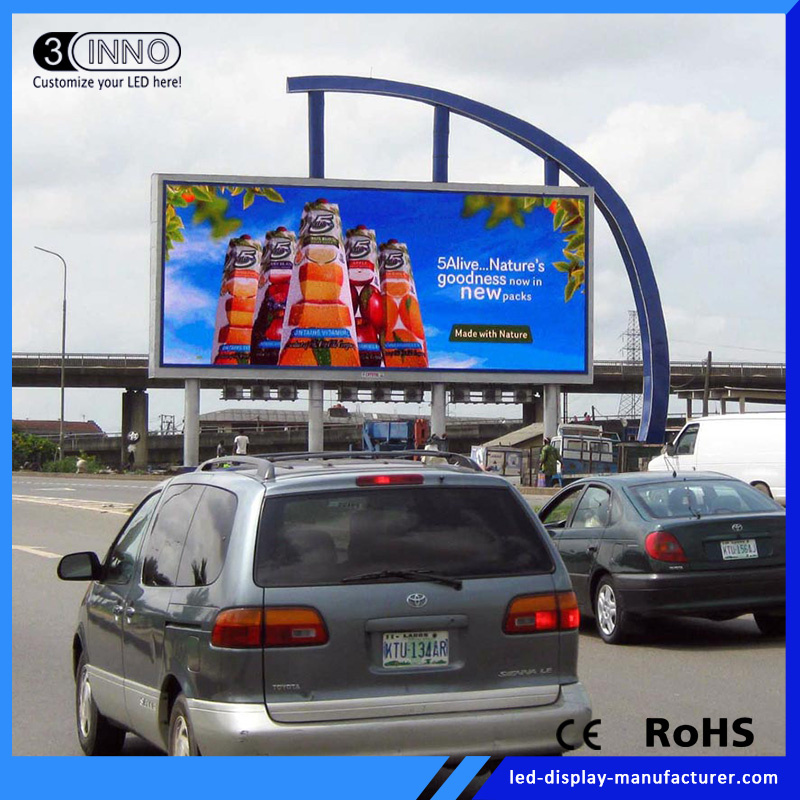

| Application | - | outdoor |
