P2.9mm P3.91mm P4.81mm Outdoor SMD Mobile Waterproof Advertising 1g1r1b LED Display Screen for Event/Conference/Rental
P2.9mm P3.91mm P4.81mm Outdoor SMD Mobile Waterproof Advertising 1g1r1b LED Display Screen for Event/Conference/RentalHot Sale P3.91 LED Display/ LED Sign with 500mm*500mm /500mm*1000mm1) It is extremely easy to calculate the area of LED screen because it is consist of 500*500mm/500mm*1000mm cabinet......
Send Inquiry
Product Description
P2.9mm P3.91mm P4.81mm Outdoor SMD Mobile Waterproof Advertising 1g1r1b LED Display Screen for Event/Conference/Rental
Hot Sale P3.91 LED Display/ LED Sign with 500mm*500mm /500mm*1000mm
1) It is extremely easy to calculate the area of LED screen because it is consist of 500*500mm/500mm*1000mm cabinet.
2) 16 bit color, 65536 gray scale, refresh rate over 3840HZ/S so the video or images on the LED screen are very vivid and fresh. People who see it will get shocked by this amazing viewing experience.
3) The appearance is very elegant, it looks very high end. Quality is very stable
4) It is die-casting aluminum cabinet, very strong and precision is very high, tolerance can be controlled in 0.1mm so the surface is very smooth, almost no gap between cabinets
5) The side locks is spring locks, this is unique among all die-casting aluminum cabinets, especially popular in European market and North American market
6) With power and signal connectors, Neutrik or Seetronic brand, very easy to install and dismantle
7) High contrast rate up to 5000:1 by using black LED
8) The new structure design enables diversified installation to meet the hanging-up and stacking requirements.
9) Due to the light weight and low power consumption, it can reduces the labor cost,operating cost and transportation cost
10). Good thermal design, excellent heat dissipation even no fan installation,
11) The same cabinet size can be compatible with different pixel pitches such as P3.91, P4.81,P5.95,P6.25 .If you want to update the product, you only need to change the module.
12).It is low noise, can be installed in office and meeting room.
Technical parameters:

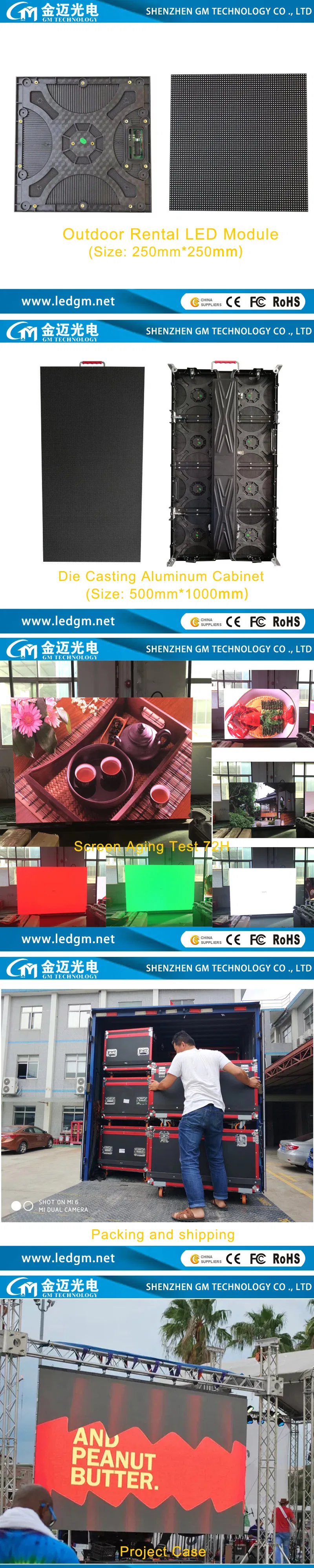

Product detailed information:
Company introduce: Shenzhen GM Technology Co., Ltd
1. Competitive Price
We are middle-sized Chinese local factory, maybe you can see that from our so Chinese name of "(GM) Meaning:Manufacturing golden quality , Towards the world ", unlike the internationalized name of foreign trade company. Besides, we control our cost very well and don't have huge management cost like top companies, so that we can give the real benefits to our customers.
2. Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top led display factory since 2006, we have very close and strategic relationship with the raw material providers, which support the stable quality of our products.
3. Quality Control
From raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
4. Professional services
We have 5-6 in the LED display industry more than 12 years of professional and technical personnel, hope to be able to better provide customers with the best solution. Let customers use the rest assured.

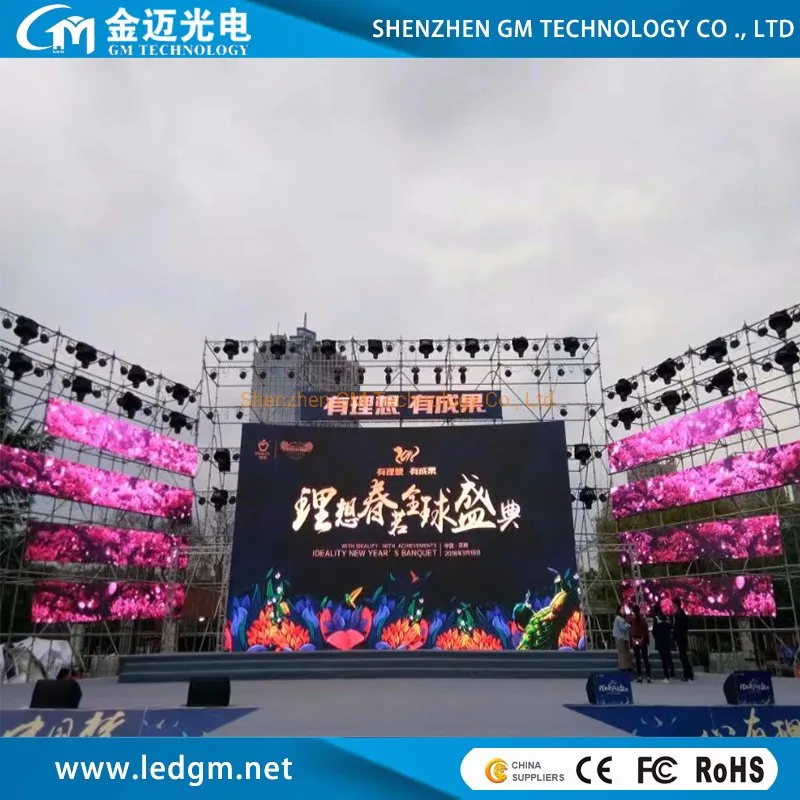

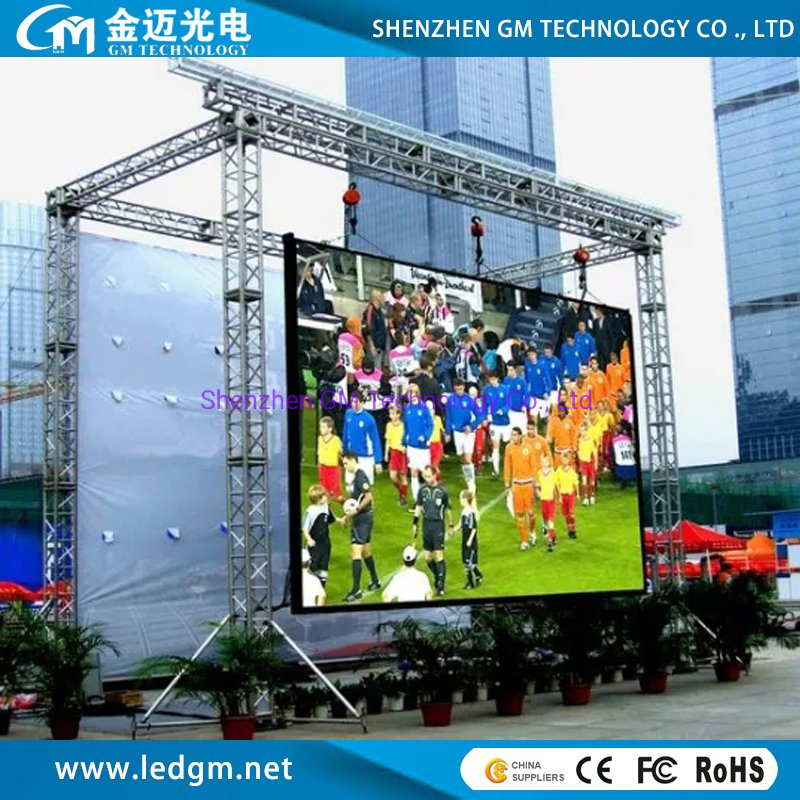

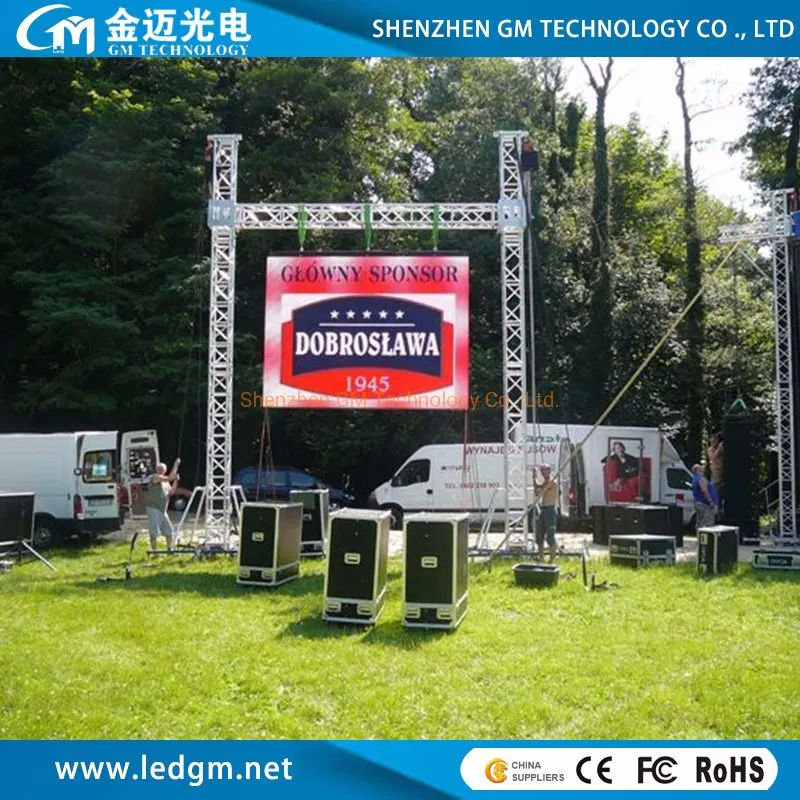

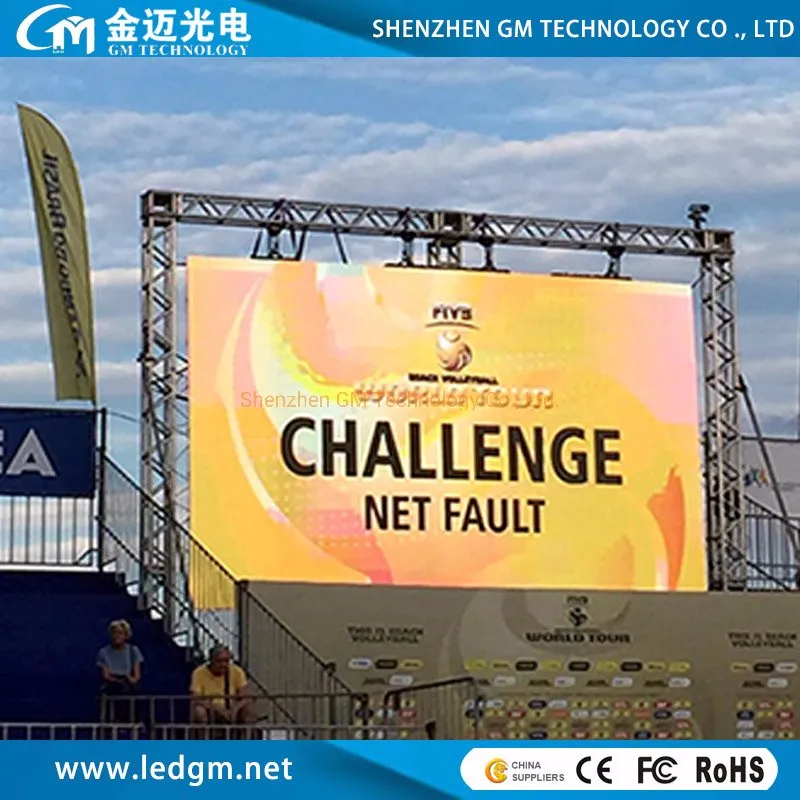

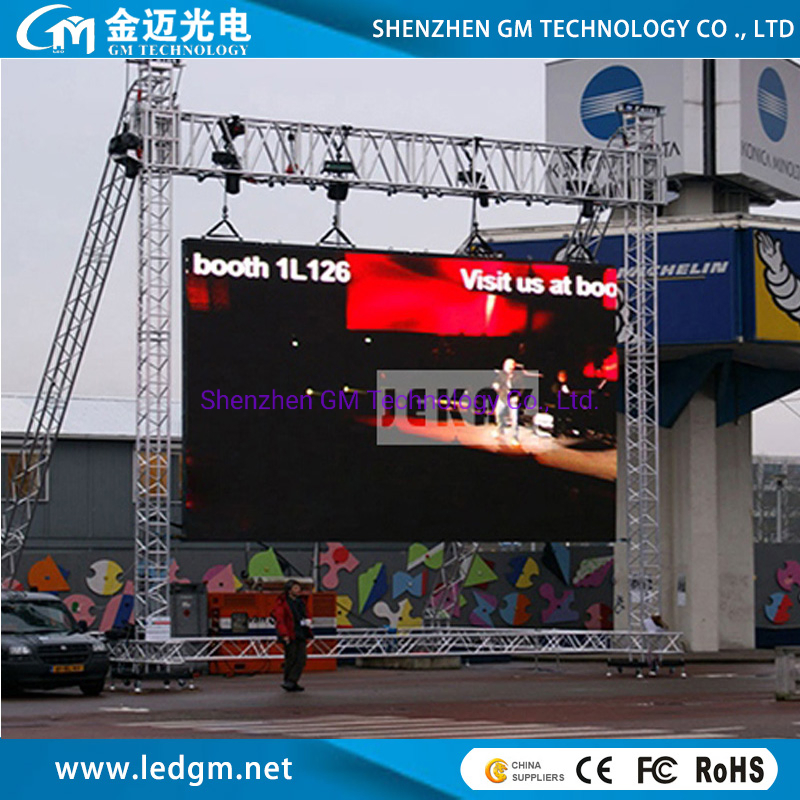

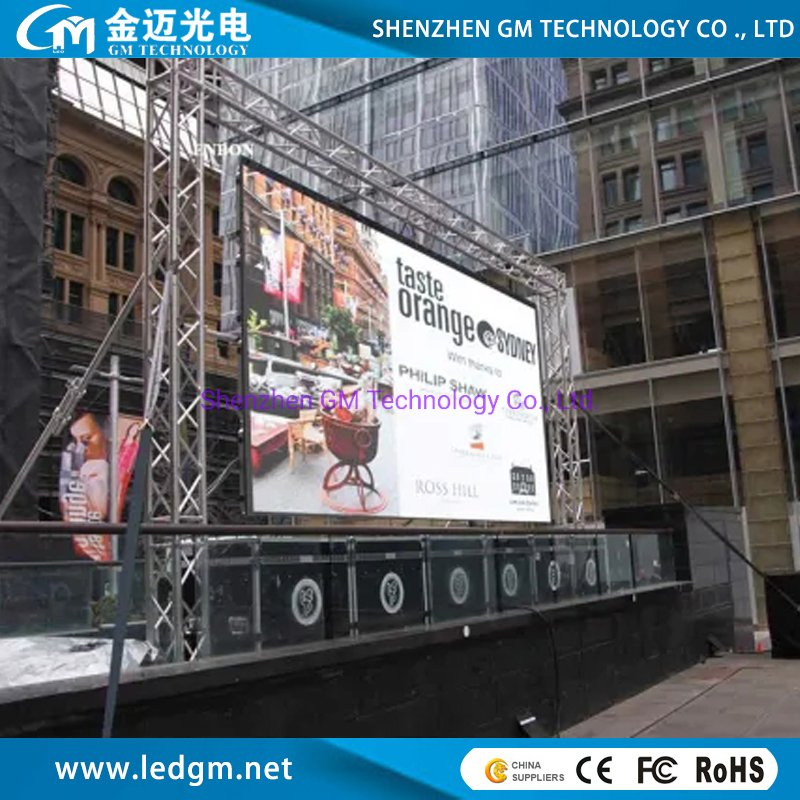

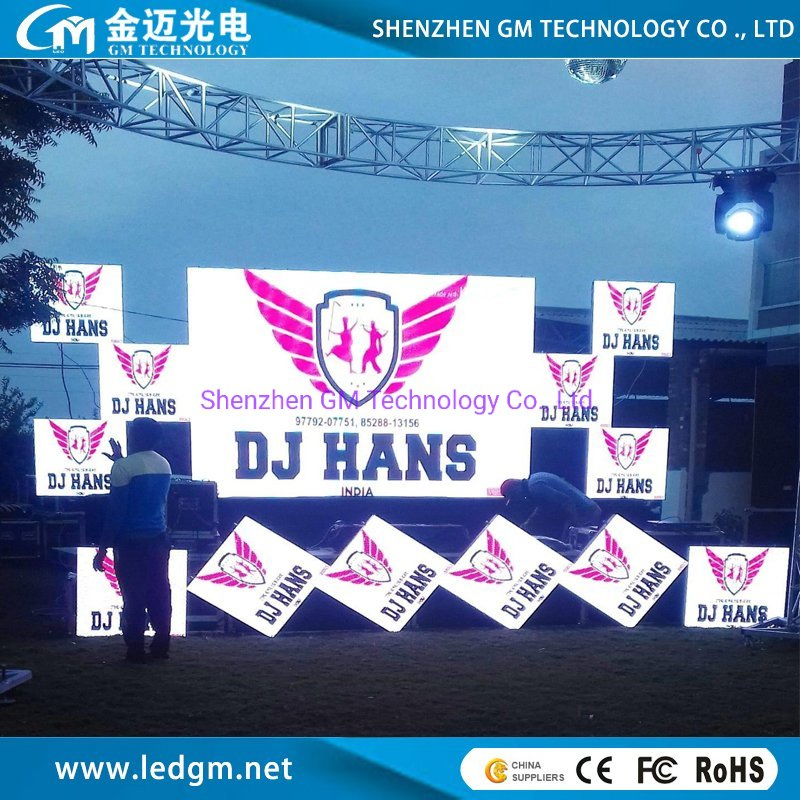

Project Case:
Company other products :
Indoor fixed LED screen: P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P3, P3.9, P4, P4.8, P5, P6
Outdoor fixed LED screen: P5, P6, P8, P10
Outdoor rental LED screen: P3.9, P4.8, P5, P6, P6.25, P8, P10
Small pitch LED screen: P1.6, P1.9
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P8, P10
LED poster player: P2.5,P3, P4, P5, P6, P8, P10
Services:
1.Your inquiry related to our products or price will be replied in 12hrs.
2.OEM&ODM,any your customized lightings we can help you to design and put into product.
3.Distributoership are offered for your unique design and some our current models.
4.Protection of your sales area,ideas of design and all your private information.
5.Best cost performance and perfect service before and after sales.
Packing>>>
For iron cabinet led display screen of indoor or outdoor,we usually use wooden case to packing
For aluminum cabinet of led rental stage display,we usuallu use flight case to packing
One wooden case including 2 cabinets,one flight case including 6 cabinets
Shippment>>>
By air or sea,FOB shenzhen
UPS/DHL/Fedex/Express(door to door)and so on
Delivery time>>>
within 20 days counting from 30% prepayment arrived at GM account.
Payment term>>>
T/T(30% deposit,the remained 70% payment made before factory shipment )
Western union/paypal/L/C and so on
Quality assurance>>>
We offer 5 years warranty,and our products have passd CE,RoHS,FCC certificate ,All products have Age testing,shaking testing,waterproof testing,In generally,Module test is 24h,entire screen test is 72h,A series of testing before delivery can ensure transportation and quality products.
FAQ
1:What is the warranty of your led display?
A:We offer 5 years warranty.and more than 100000 hours screen life span
2:what is your payment term?How long it takes to delivery?
A:We usually accapt the T/T or L/C.both of them will at least 30% deposit in advance,and the rest of 70% will paid before delivery.The lead time is usually 20 day
3:How can you ensure the led display product quality?
A:Before shippment,all the screens have aging test.and then we also have waterproof test and shake test,ensure products can transportation safety and normal use.
4:What is your pre-sale and post-sale service?
A:For pre-sale service,we have professional sales team and technical team,who are willing to answer your question within 24 hours.
For post-sale service,we will instruct you how toinstallation,how to use,how to change the broken moudles,and we can also send the technicals to your country,in general,our led display will not have a big problem,you can rest assured to buy.
Hot Sale P3.91 LED Display/ LED Sign with 500mm*500mm /500mm*1000mm
1) It is extremely easy to calculate the area of LED screen because it is consist of 500*500mm/500mm*1000mm cabinet.
2) 16 bit color, 65536 gray scale, refresh rate over 3840HZ/S so the video or images on the LED screen are very vivid and fresh. People who see it will get shocked by this amazing viewing experience.
3) The appearance is very elegant, it looks very high end. Quality is very stable
4) It is die-casting aluminum cabinet, very strong and precision is very high, tolerance can be controlled in 0.1mm so the surface is very smooth, almost no gap between cabinets
5) The side locks is spring locks, this is unique among all die-casting aluminum cabinets, especially popular in European market and North American market
6) With power and signal connectors, Neutrik or Seetronic brand, very easy to install and dismantle
7) High contrast rate up to 5000:1 by using black LED
8) The new structure design enables diversified installation to meet the hanging-up and stacking requirements.
9) Due to the light weight and low power consumption, it can reduces the labor cost,operating cost and transportation cost
10). Good thermal design, excellent heat dissipation even no fan installation,
11) The same cabinet size can be compatible with different pixel pitches such as P3.91, P4.81,P5.95,P6.25 .If you want to update the product, you only need to change the module.
12).It is low noise, can be installed in office and meeting room.
Technical parameters:
| P3.91 Rental Stage Video LED Display Screen For Outdoor | ||||||||
| S/N | Item | Technical Parameters | ||||||
| LED Parameters | ||||||||
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle | |||
| 2 | Red LED | SMD1921 | 540-702mcd | 620-625nm | 160º/160º | |||
| 3 | Green LED | SMD1921 | 1200-1300mcd | 519-522nm | 160º/160º | |||
| 4 | Blue LED | SMD1921 | 200-260mcd | 462-465nm | 160º/160º | |||
| Module Specification | ||||||||
| 1 | Pixel Pitch | 3.91mm | ||||||
| 2 | Pixel Configuration | 1R1G1B | ||||||
| 3 | Module Resolution | 64 x 64 pixels | ||||||
| 4 | Module Pixles | 4096 pixels | ||||||
| 5 | Module Size | 250mm X 250mm | ||||||
| Cabinet Specification | ||||||||
| 1 | Cabinet Size(W X H X D) | 500mm x 1000mm x 80mm | ||||||
| 2 | Cabinet Resolution(dot) | 128 x 256 pixels | ||||||
| 3 | Module Quanity (pcs) | 8pcs | ||||||
| 4 | Cabinet Pixels | 32768 pixels | ||||||
| 5 | Pixel Density | 65536 pixels/m2 | ||||||
| 6 | Cabinet Materials | Die Casting Aluminum Cabinet for rental purpose | ||||||
| 7 | Cabinet Weight | 10 kg per cabinet | ||||||
| 8 | Packaging | Fly case | ||||||
| 9 | Fly Case Size | 105*65*65CM ( one case for six cabinets )/ 85kg | ||||||
| Whole Screen Specification | ||||||||
| 1 | Screen Brightness | ≥4500cd/m2 | ||||||
| 2 | Driving Method | 1/16 scan | ||||||
| 3 | Best Viewing Distance | 3.91m - 40m | ||||||
| 4 | Max. Power Consumption | 600W/m2 | ||||||
| 5 | Average Power Consumption | 180W/m2 | ||||||
| 6 | Gray Level | 65536 levels(16 bit ) | ||||||
| 7 | Display Color | 16M | ||||||
| 8 | Frame Frequency | ≥60Hz | ||||||
| 9 | Refresh Frequency | ≥1920Hz | ||||||
| 10 | Uninterrupted Working Hours | ≥72 hours | ||||||
| 11 | Screen Life-span | ≥100,000 hours | ||||||
| 12 | MTBF | ≥5,000 hours | ||||||
| 13 | Discrete Blind Spot Rate | <1/10000 | ||||||
| 14 | Continuous Blind Spot Rate | None | ||||||
| 15 | Blind Spot Rate | <1/10000 | ||||||
| 16 | Protective Scale | For indoor use only | ||||||
| 17 | Screen Plainness | <±1mm | ||||||
| 18 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz | ||||||
| 19 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius | ||||||
| Humidity:10%~90% RH | ||||||||
| 20 | Control Mode | Synchronous display with control PC by DVI | ||||||
| 21 | Control System | Linsn, Novastar or as you required. | ||||||
| 22 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. | ||||||
| 23 | Interface | Standard Ethernet | ||||||
| 24 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m | ||||||
| 25 | Certificate | CE, ROHS, FCC | ||||||
Product detailed information:
Company introduce: Shenzhen GM Technology Co., Ltd
1. Competitive Price
We are middle-sized Chinese local factory, maybe you can see that from our so Chinese name of "(GM) Meaning:Manufacturing golden quality , Towards the world ", unlike the internationalized name of foreign trade company. Besides, we control our cost very well and don't have huge management cost like top companies, so that we can give the real benefits to our customers.
2. Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top led display factory since 2006, we have very close and strategic relationship with the raw material providers, which support the stable quality of our products.
3. Quality Control
From raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
4. Professional services
We have 5-6 in the LED display industry more than 12 years of professional and technical personnel, hope to be able to better provide customers with the best solution. Let customers use the rest assured.
Project Case:
Company other products :
Indoor fixed LED screen: P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P3, P3.9, P4, P4.8, P5, P6
Outdoor fixed LED screen: P5, P6, P8, P10
Outdoor rental LED screen: P3.9, P4.8, P5, P6, P6.25, P8, P10
Small pitch LED screen: P1.6, P1.9
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P8, P10
LED poster player: P2.5,P3, P4, P5, P6, P8, P10
Services:
1.Your inquiry related to our products or price will be replied in 12hrs.
2.OEM&ODM,any your customized lightings we can help you to design and put into product.
3.Distributoership are offered for your unique design and some our current models.
4.Protection of your sales area,ideas of design and all your private information.
5.Best cost performance and perfect service before and after sales.
Packing>>>
For iron cabinet led display screen of indoor or outdoor,we usually use wooden case to packing
For aluminum cabinet of led rental stage display,we usuallu use flight case to packing
One wooden case including 2 cabinets,one flight case including 6 cabinets
Shippment>>>
By air or sea,FOB shenzhen
UPS/DHL/Fedex/Express(door to door)and so on
Delivery time>>>
within 20 days counting from 30% prepayment arrived at GM account.
Payment term>>>
T/T(30% deposit,the remained 70% payment made before factory shipment )
Western union/paypal/L/C and so on
Quality assurance>>>
We offer 5 years warranty,and our products have passd CE,RoHS,FCC certificate ,All products have Age testing,shaking testing,waterproof testing,In generally,Module test is 24h,entire screen test is 72h,A series of testing before delivery can ensure transportation and quality products.
FAQ
1:What is the warranty of your led display?
A:We offer 5 years warranty.and more than 100000 hours screen life span
2:what is your payment term?How long it takes to delivery?
A:We usually accapt the T/T or L/C.both of them will at least 30% deposit in advance,and the rest of 70% will paid before delivery.The lead time is usually 20 day
3:How can you ensure the led display product quality?
A:Before shippment,all the screens have aging test.and then we also have waterproof test and shake test,ensure products can transportation safety and normal use.
4:What is your pre-sale and post-sale service?
A:For pre-sale service,we have professional sales team and technical team,who are willing to answer your question within 24 hours.
For post-sale service,we will instruct you how toinstallation,how to use,how to change the broken moudles,and we can also send the technicals to your country,in general,our led display will not have a big problem,you can rest assured to buy.
