P2.9mm/ P3mm LED Display Screen for Indoor Rental/Fixed Installation/ Advertising
FS SERIES PRODUCE FEATURES:. High brightness and good quality by adopting high quality leds.. Modular design, flexible cabinet size to meet up with different requests.. High polymer flexible mask, no mosaic phenomenon ,better contract ratio.. Great uniformity and screen flatness.. Anti-UV module mas......
Send Inquiry
Product Description
FS SERIES PRODUCE FEATURES:
. High brightness and good quality by adopting high quality leds.
. Modular design, flexible cabinet size to meet up with different requests.
. High polymer flexible mask, no mosaic phenomenon ,better contract ratio.
. Great uniformity and screen flatness.
. Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.
PRODUCT SPECIFICATIONS:
| NO. | Item | Parameters | |
| 1 | Pixel Pitch(mm) | 2.976 | |
| 2 | LED Configuration | 1R1G1B | |
| 3 | LED Type | SMD2121 | |
| 4 | Screen Resolution | 112896dots/sqm | |
| 5 | Module size(mm) | 250x250 | |
| 6 | Module resolution(dots) | 84x84 | |
| 7 | Scan method | 1/21 constant current drive | |
| 8 | Cabinet size(mm) | 500x500mm | |
| 9 | Cabinet resolution(dots) | 168x168 | |
| 10 | Cabinet material | die-casting aluminum | |
| 11 | Brightness(cd/sqm) | MAX 1500 | |
| 12 | Viewing angle | H:140°/ V:140° | |
| 13 | Grey Scale | 16bit | |
| 14 | Refresh rate(Hz) | 1920~2880hz | |
| 15 | Ave. power consumption (W/sqm) | 300 | |
| 16 | Max. power consumption(W/sqm) | 900 | |
| 17 | IP grade | IP65 | |
| 18 | controller | Novastar / Linsn | |
| 19 | Maintenance | Rear service/Front Service | |
| 20 | Color(T) | >281 | |
| 22 | Input Voltage(V) | AC 110V-220V +/-10% | |
| 21 | Frame frequency(Hz) | 60 | |
| 22 | Working humidity | 10~95%RH | |
| 23 | Working temperature | -30ºC~70ºC | |
| 24 | Certificates | RoHS / CE / CCC | |

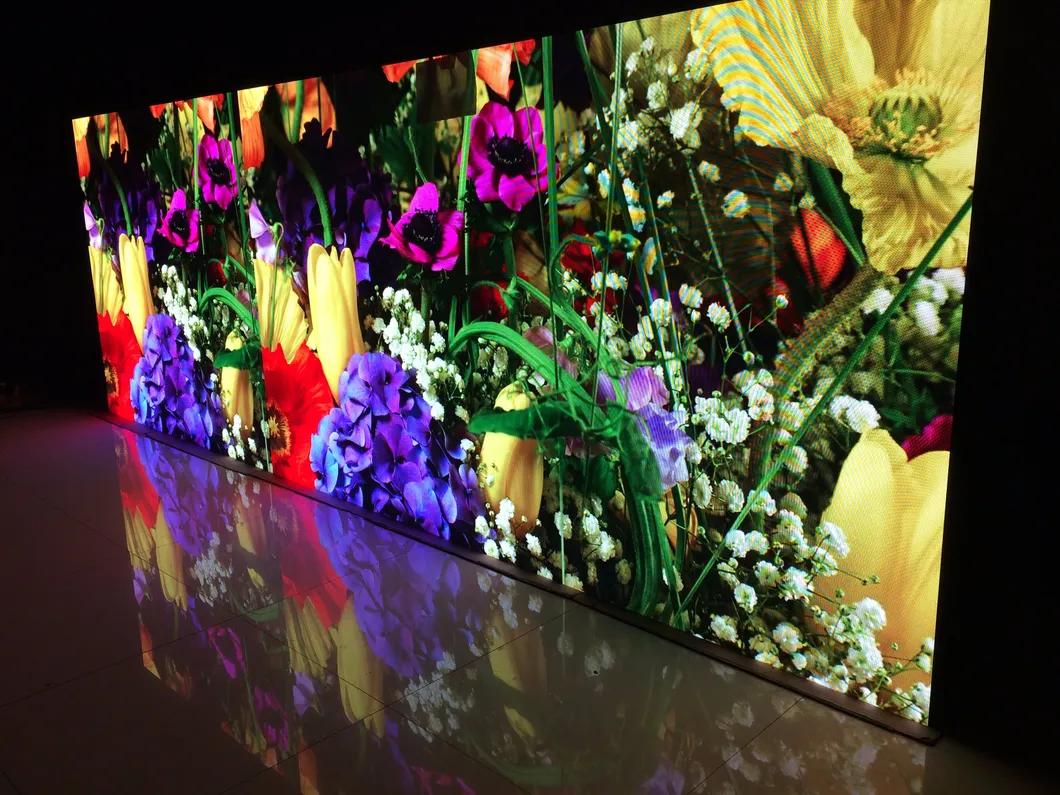

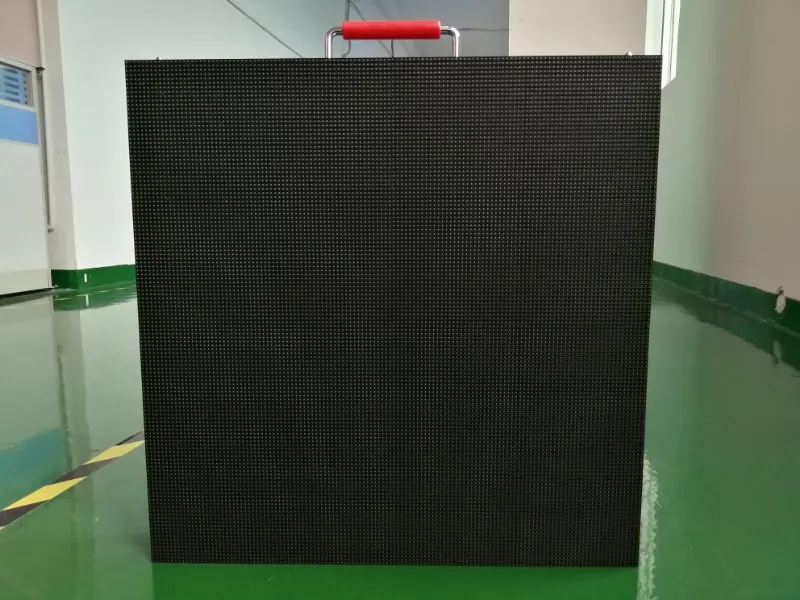

1500CD/m² soft brightness for indoor application
Black faced LED lamps makt it Perfect contrast

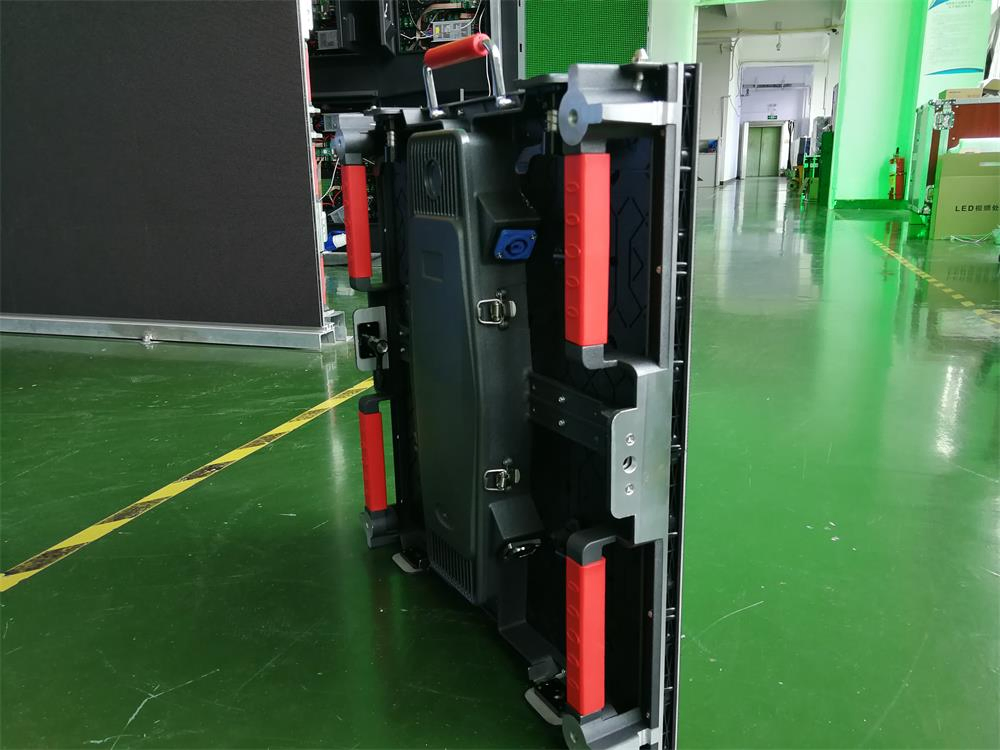

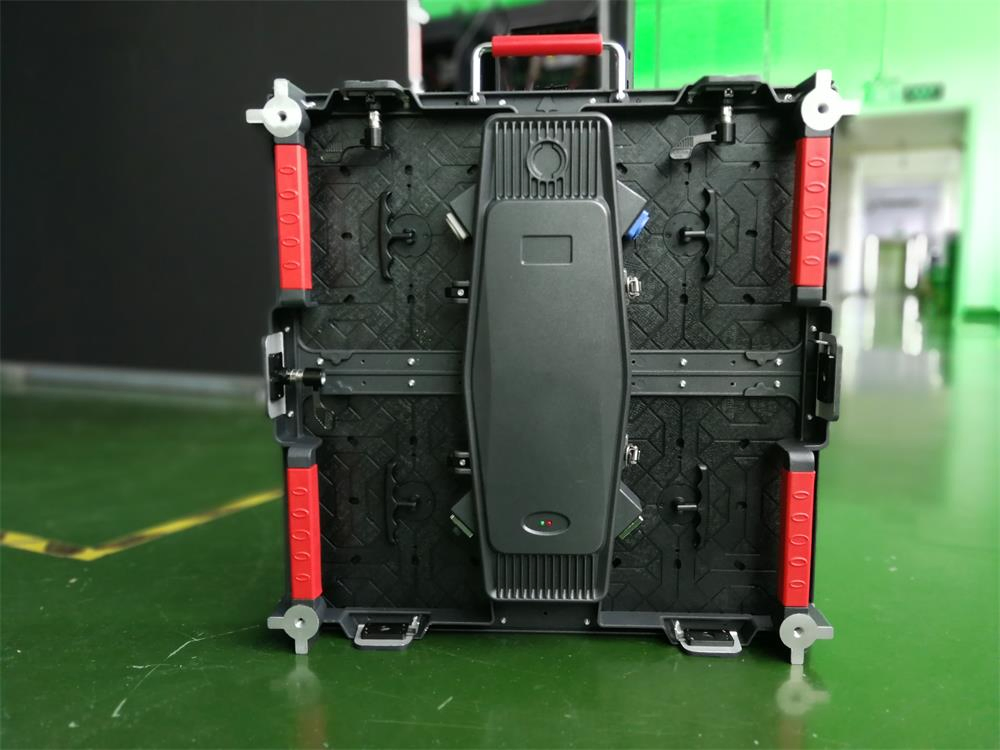

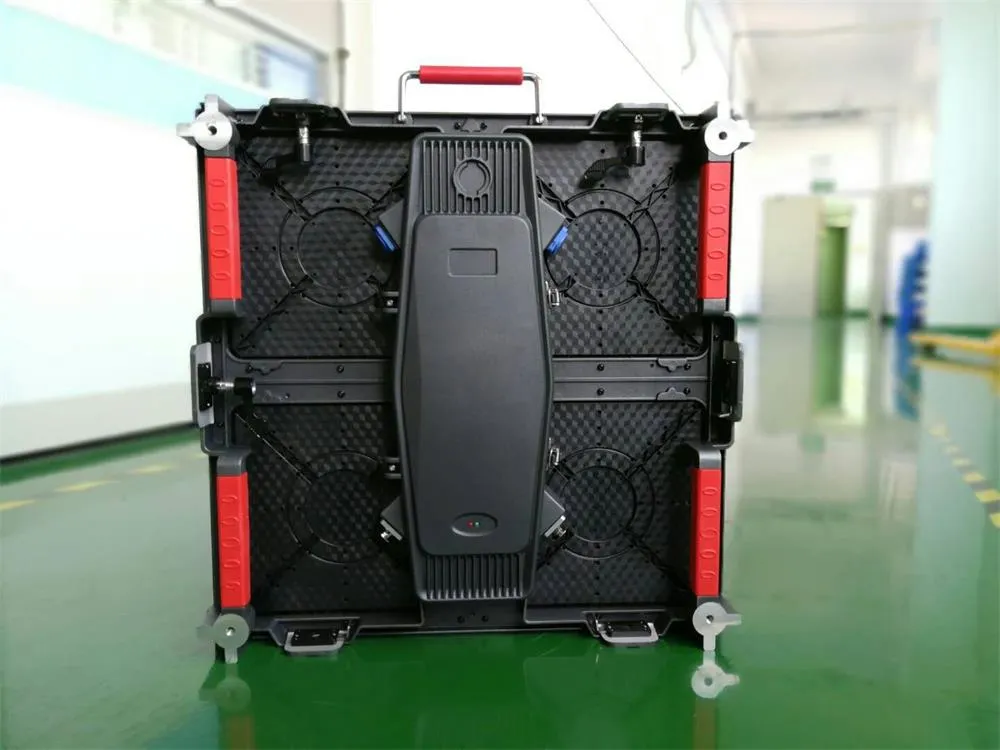

Spring sidelocks to make seamless,
Much convenient to install with power/dota connectors

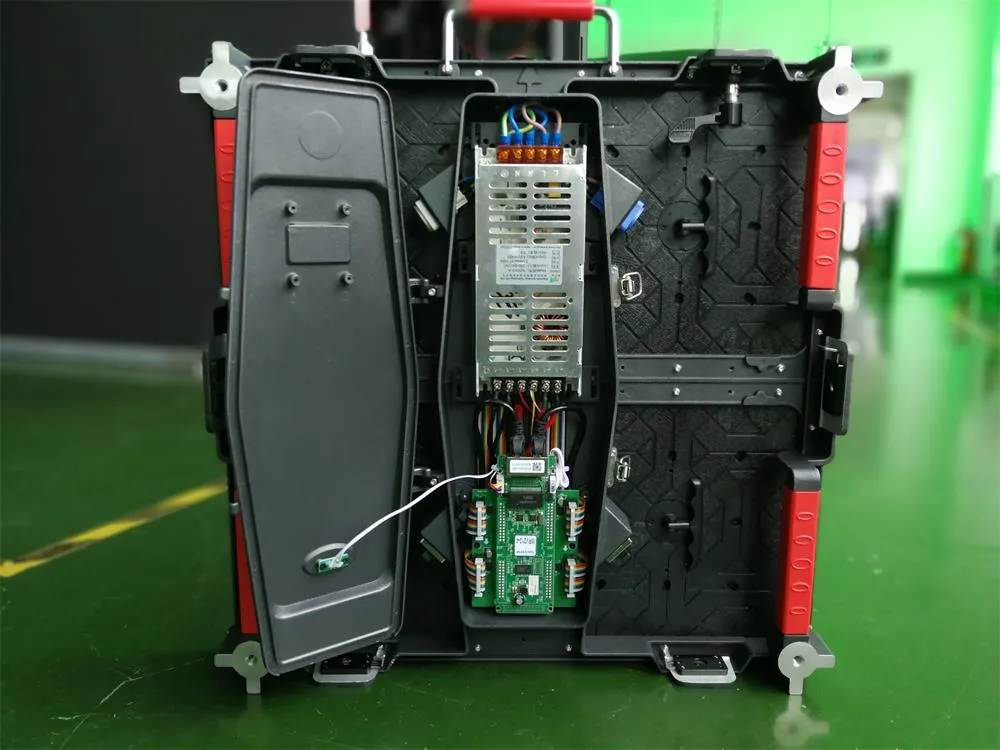

CE&UL certificated PSU and NOVA/ COLORLIGHT controller card

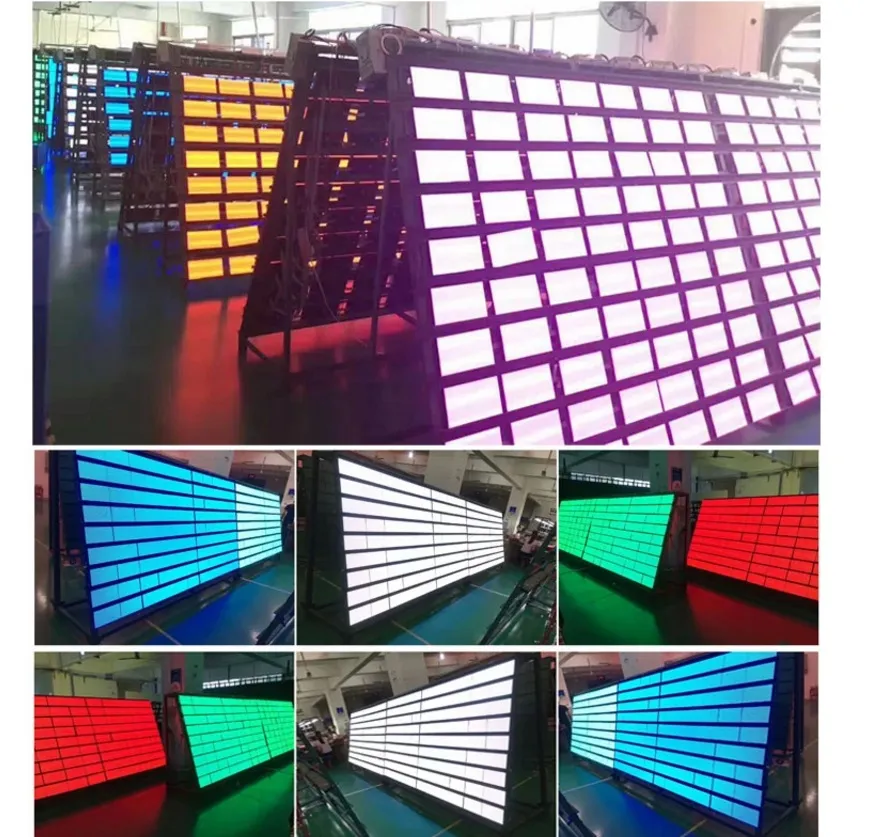

48 hours LED modules Burning Testing:
72 hours whole LED screen testing:

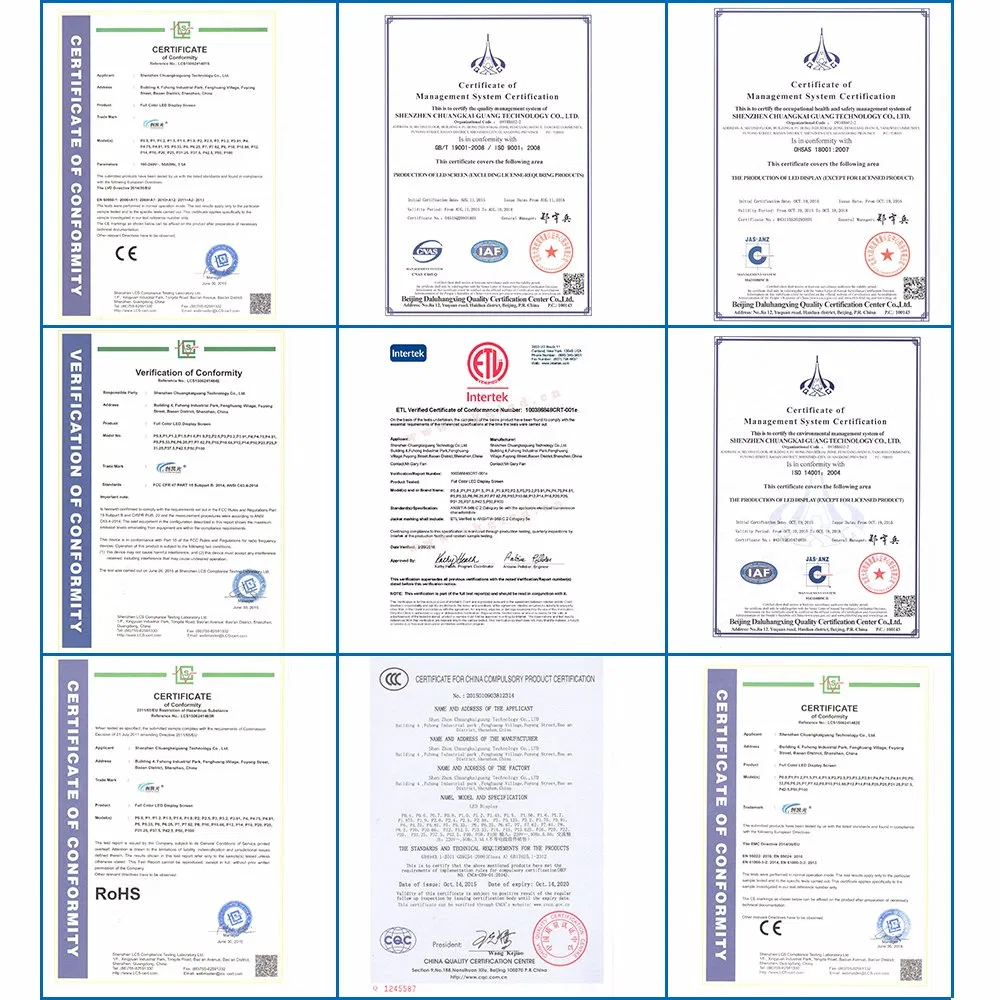

INTERNATIONAL CERTIFICATES

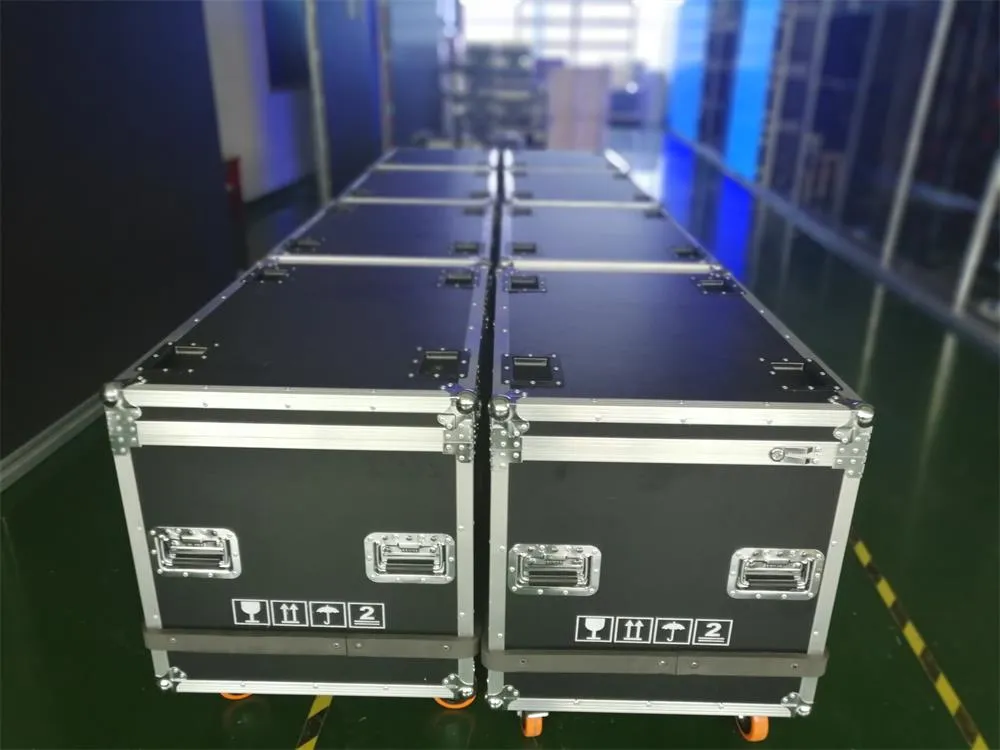

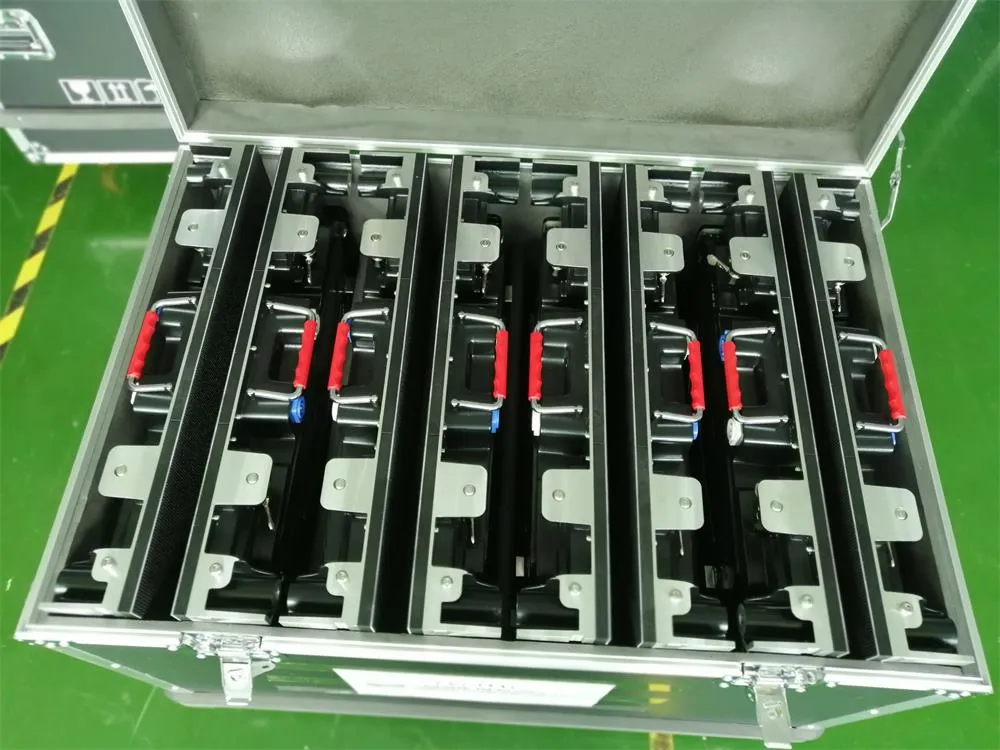

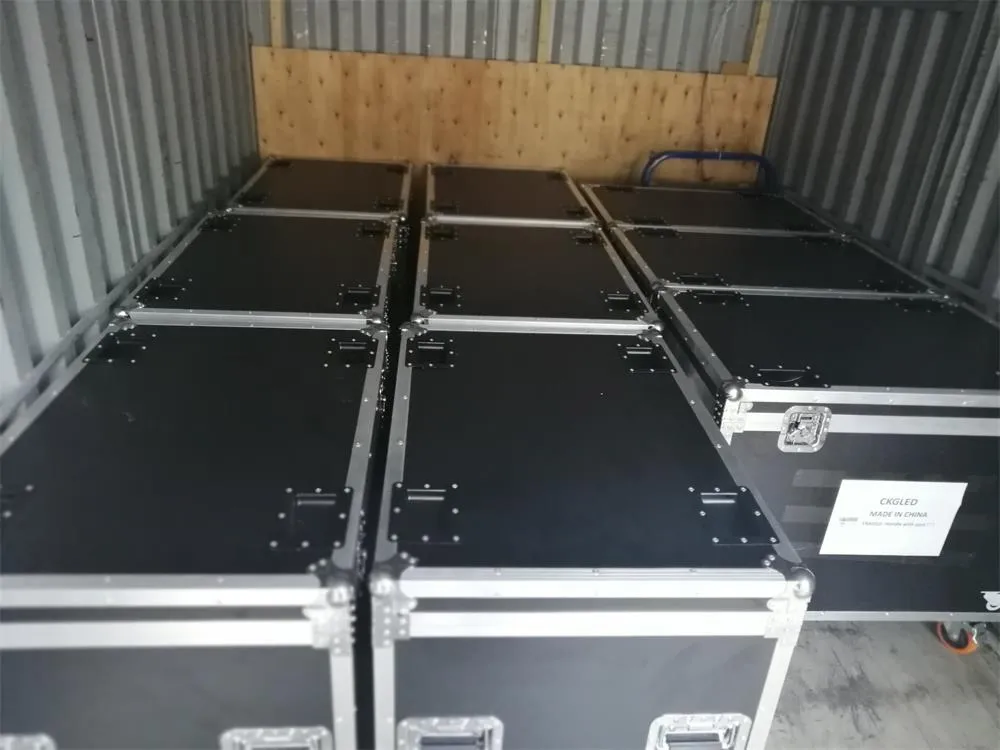

Flight case package:

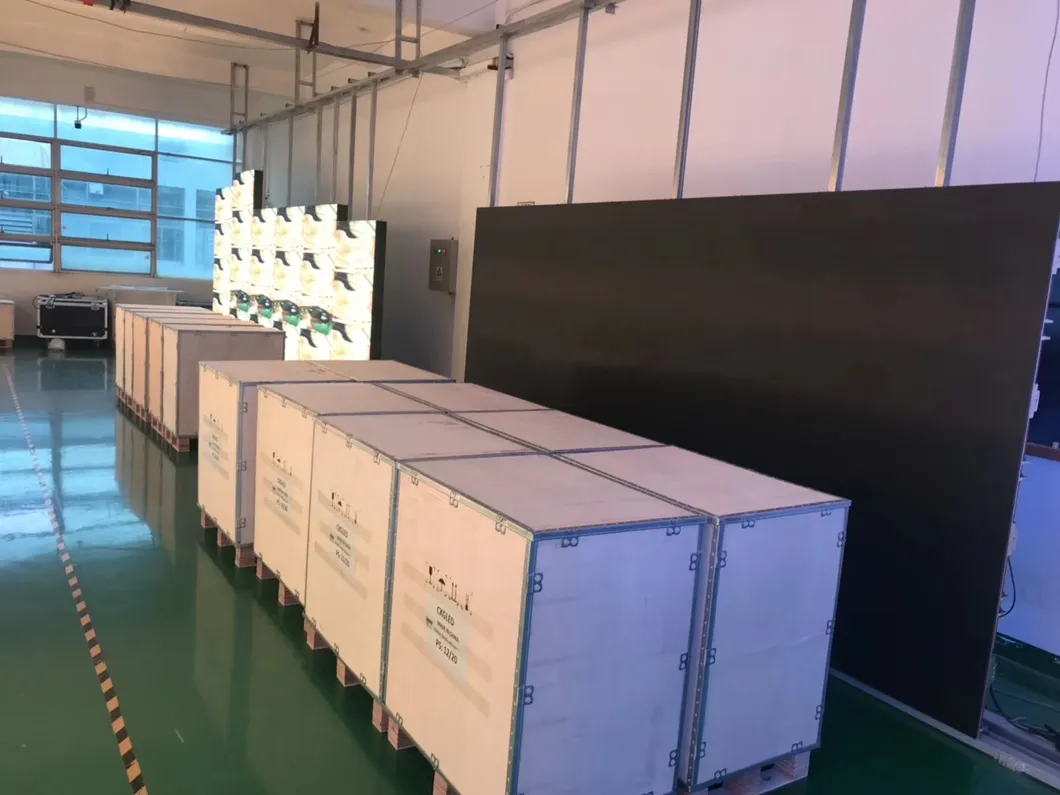

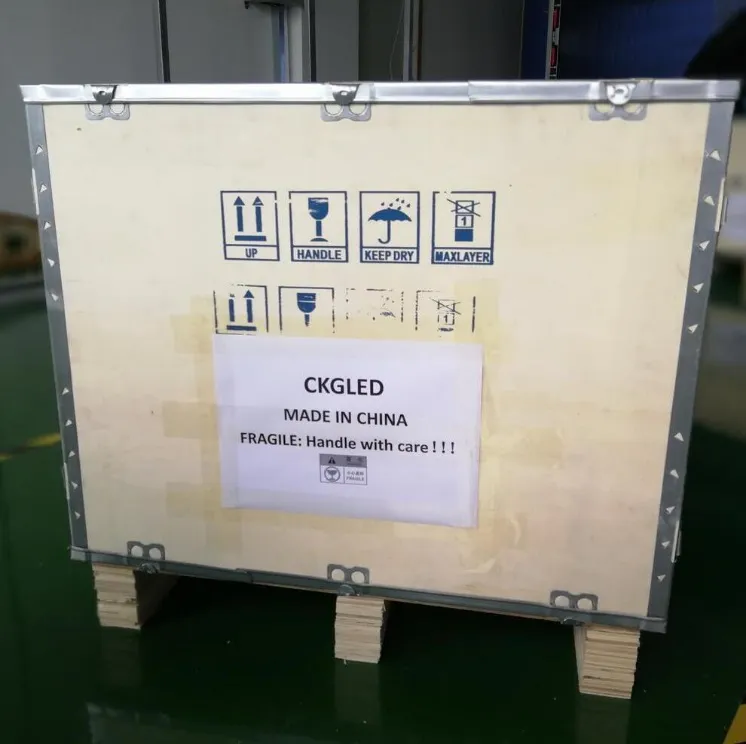

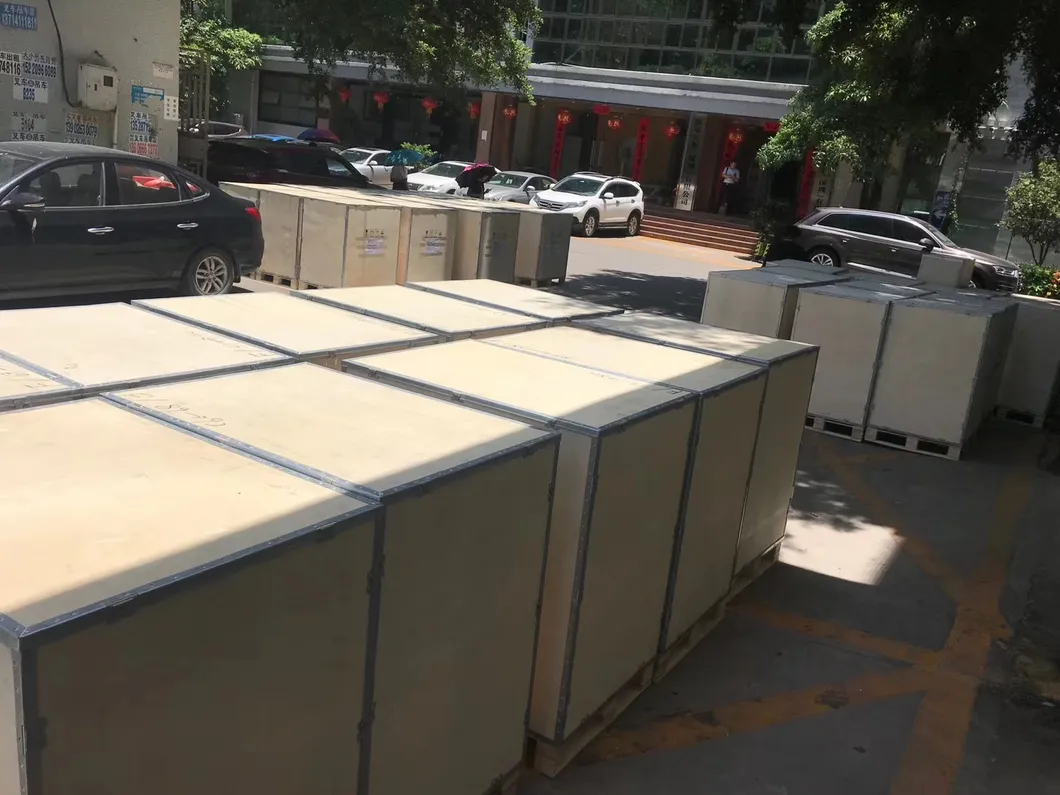

Wooden case Package:
Pre-producing:
1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design
In producing:
1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients
After service:
1. 2 years warranty
2. 1% Free spare will be provided
3. 7 days a week, 24 hours a day on-line service for any technical support for any customers
4. Free training for customers in factory
5. Local Partner Installation Service
