Outdoor Unipole Standing Full Color Waterproof P10 LED Display Panel
F SERIES:. Durable fresh color and high brightness by adopting high quality leds.. Energy-saving 29% by using high efficiency IC driver, high brightness leds and improved PCB.. Great uniformity , contract ratio and screen flatness.. Anti-UV module mask, Anti-Oxidation module frame with protection fr......
Send Inquiry
Product Description
F SERIES:
. Durable fresh color and high brightness by adopting high quality leds.
. Energy-saving 29% by using high efficiency IC driver, high brightness leds and improved PCB.
. Great uniformity , contract ratio and screen flatness.
. Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.
. IP65 protection grade, durable nature enables the screen to work in all outdoor weather conditions.
PRODUCT SPECIFICATIONS:
Module specifications:
Cabinet specifications:
Screen parameters:
LED Display Panel Photos:
LED Display project with CKGLED brand:
Wooden case Package:
Certificates:
. Durable fresh color and high brightness by adopting high quality leds.
. Energy-saving 29% by using high efficiency IC driver, high brightness leds and improved PCB.
. Great uniformity , contract ratio and screen flatness.
. Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.
. IP65 protection grade, durable nature enables the screen to work in all outdoor weather conditions.
PRODUCT SPECIFICATIONS:
Module specifications:
| Pixel pitch | 10mm |
| Module size | 160mm*160mm |
| Module pixel | 16dots*16dots |
| Driving method | static drive |
| Pixel configuration | DIP 1R1G1B |
| Pixel density | 10000 dots/sqm |
| Module resolution | 256dots |
Cabinet specifications:
| Cabinet size | 960mm*960mm*150mm |
| Cabinet resolution | 96dots*96dots |
| Cabinet weight | 50kg |
| Module Qty | 36pcs |
| Cabinet pixel | 9216dots |
| power consumption(w/sqm) | AVE.202 / MAX.599 |
Screen parameters:
| No. | Parameter | Specification |
| 1 | Pixel Pitch | 10mm |
| 2 | Pixel Density | 10000pix/sqm |
| 3 | LED Type | DIP346 |
| 4 | Viewing Angle | (H)120°,(V)60° |
| 5 | Brightness | ≥7500cd/sqm |
| 6 | Drive Method | static drive |
| 7 | Driving IC | MBI5124 |
| 8 | Color Depth | 4096 |
| 9 | Refresh Rate | ≥1920 Hz |
| 10 | Frame Rate | ≥60Hz |
| 11 | Brightness Adjustment | Manual control by software/Auto control |
| 12 | Cabinet Type and Material | Steel Iron |
| 13 | Cabinet Weight | ≤60kg/sqm |
| 14 | Voltage | AC 220/110V±10%,50Hz |
| 15 | Avg. Power Consumption | 220W/sqm |
| 16 | Max. Power Consumption | 650W/sqm |
| 17 | Assembly precision between PCB | ≤1 mm |
| 18 | Service Access | Rear maintenance |
| 19 | Protection Grade | Front IP65,Rear IP54 |
| 20 | Operating Temp/Humidity | -30ºC~60ºC, 10~95%RH |
| 21 | Control mode | synchronization with PC |
| 22 | Operating System | WINDOWS(98/2000/XP/Vista) |
| 24 | Data Transmission | Unshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km |
| 25 | Storage Temp/Humidity | -40ºC~60ºC, 10~95%RH |
| 26 | Input Signal Format | VGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV |
| 27 | MTBF | ≥10000hours |
| 28 | Lifetime(Normal Temp) | ≥100,000Hours |

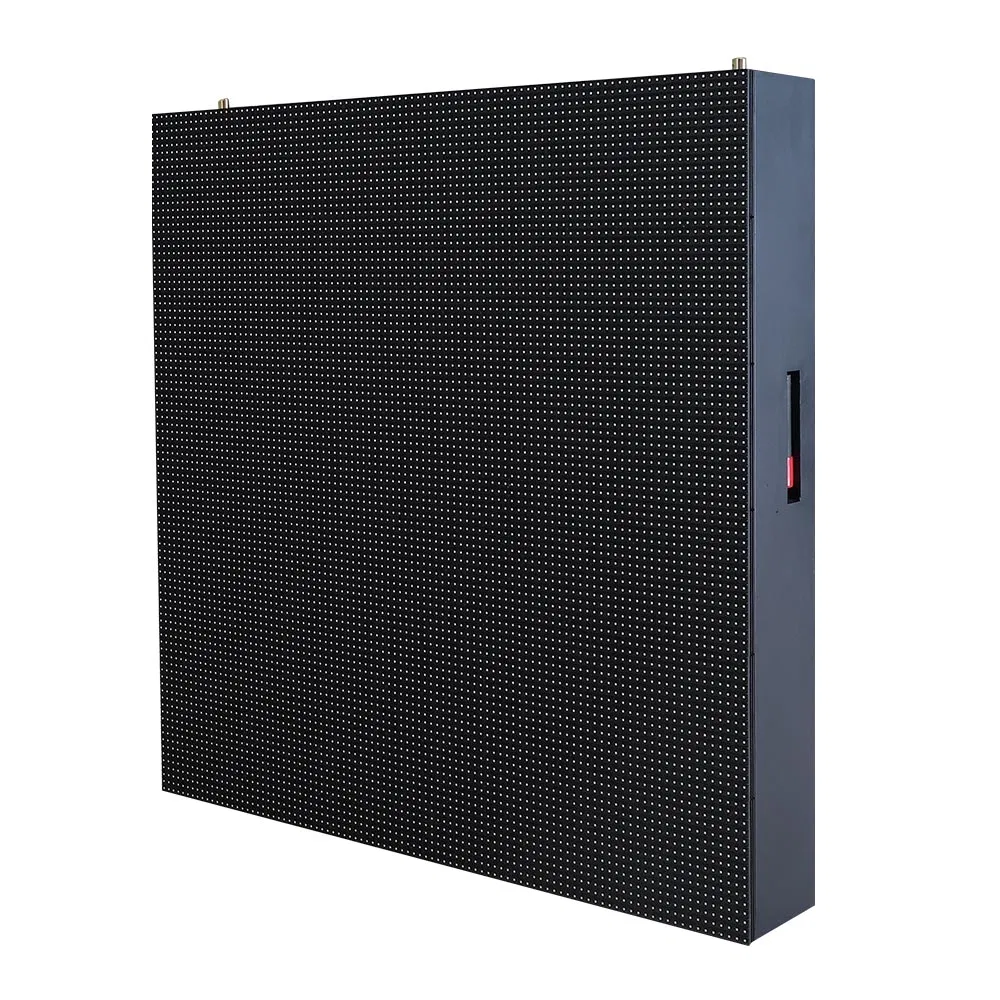

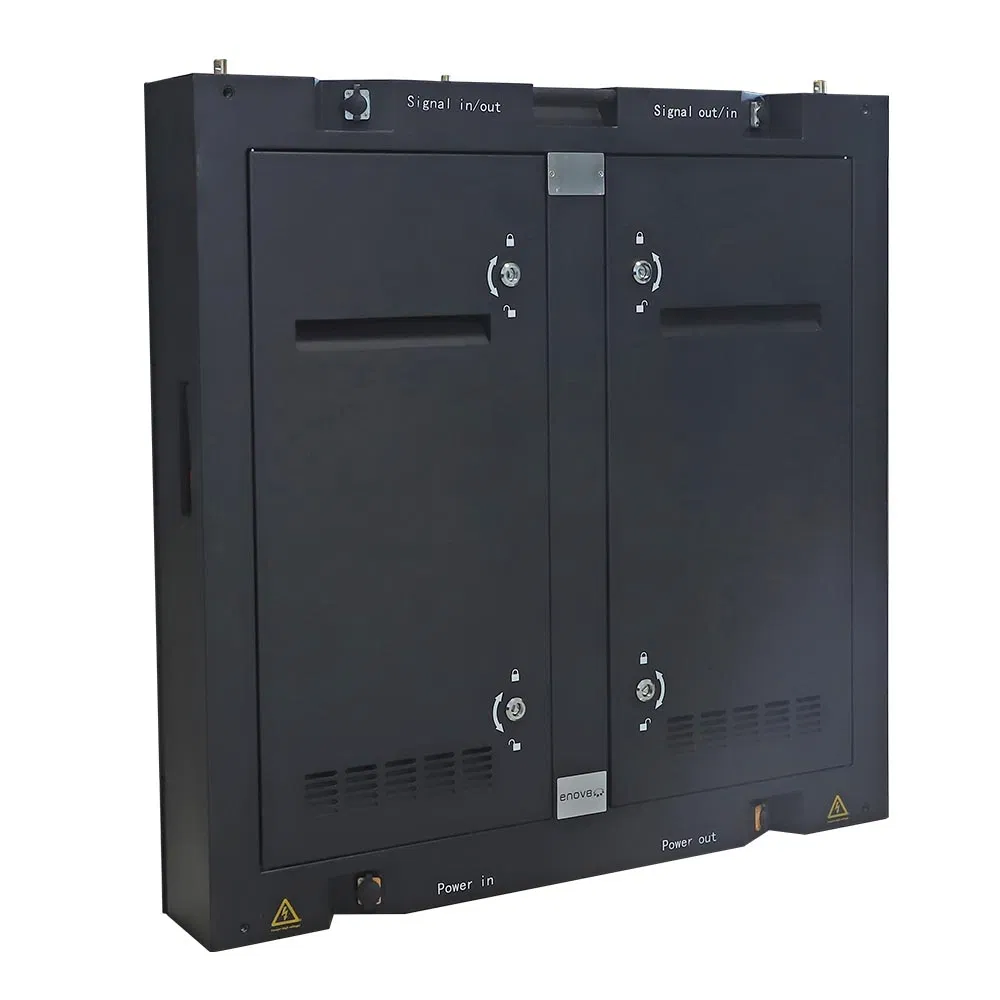

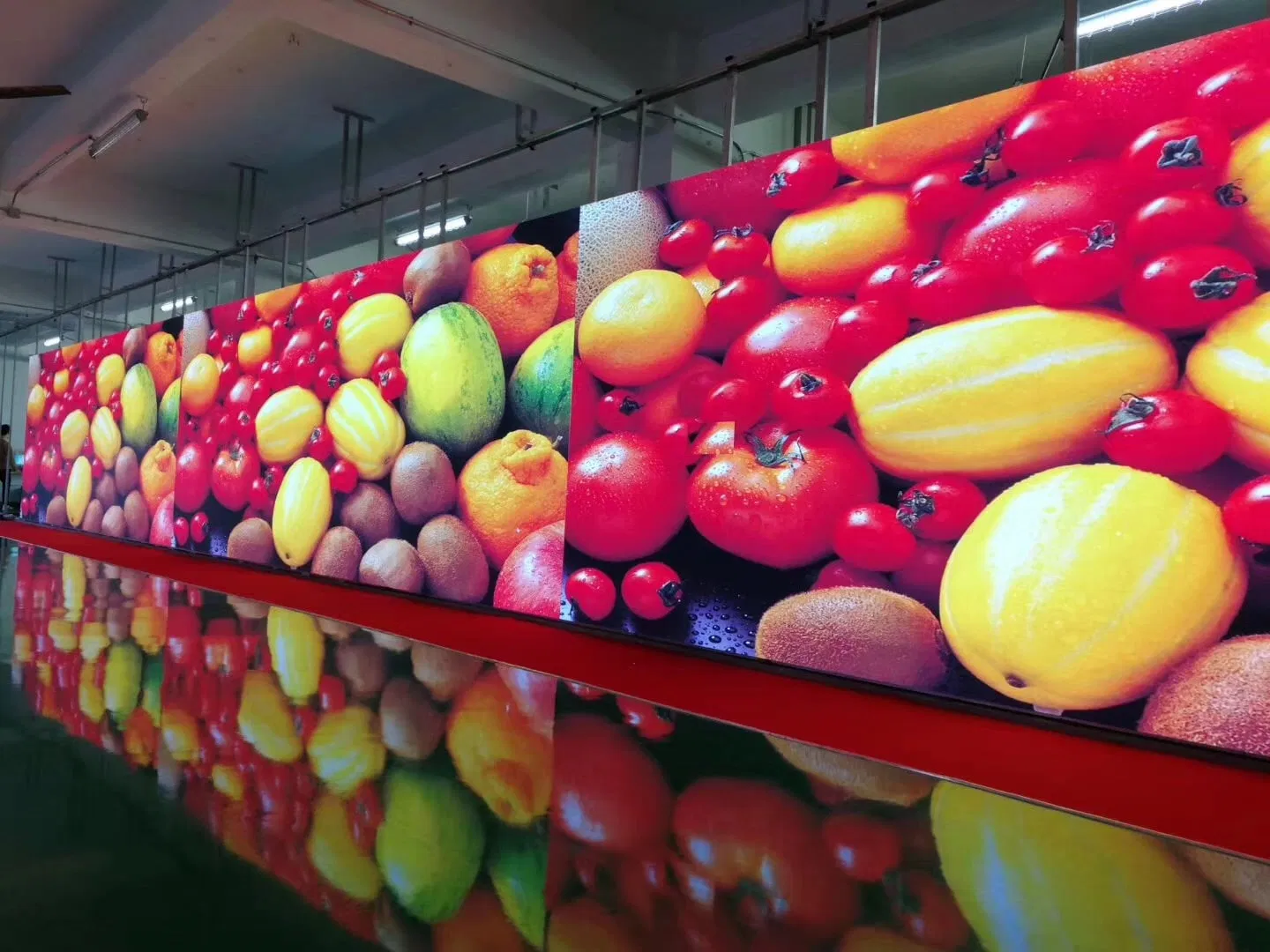

LED Display Panel Photos:

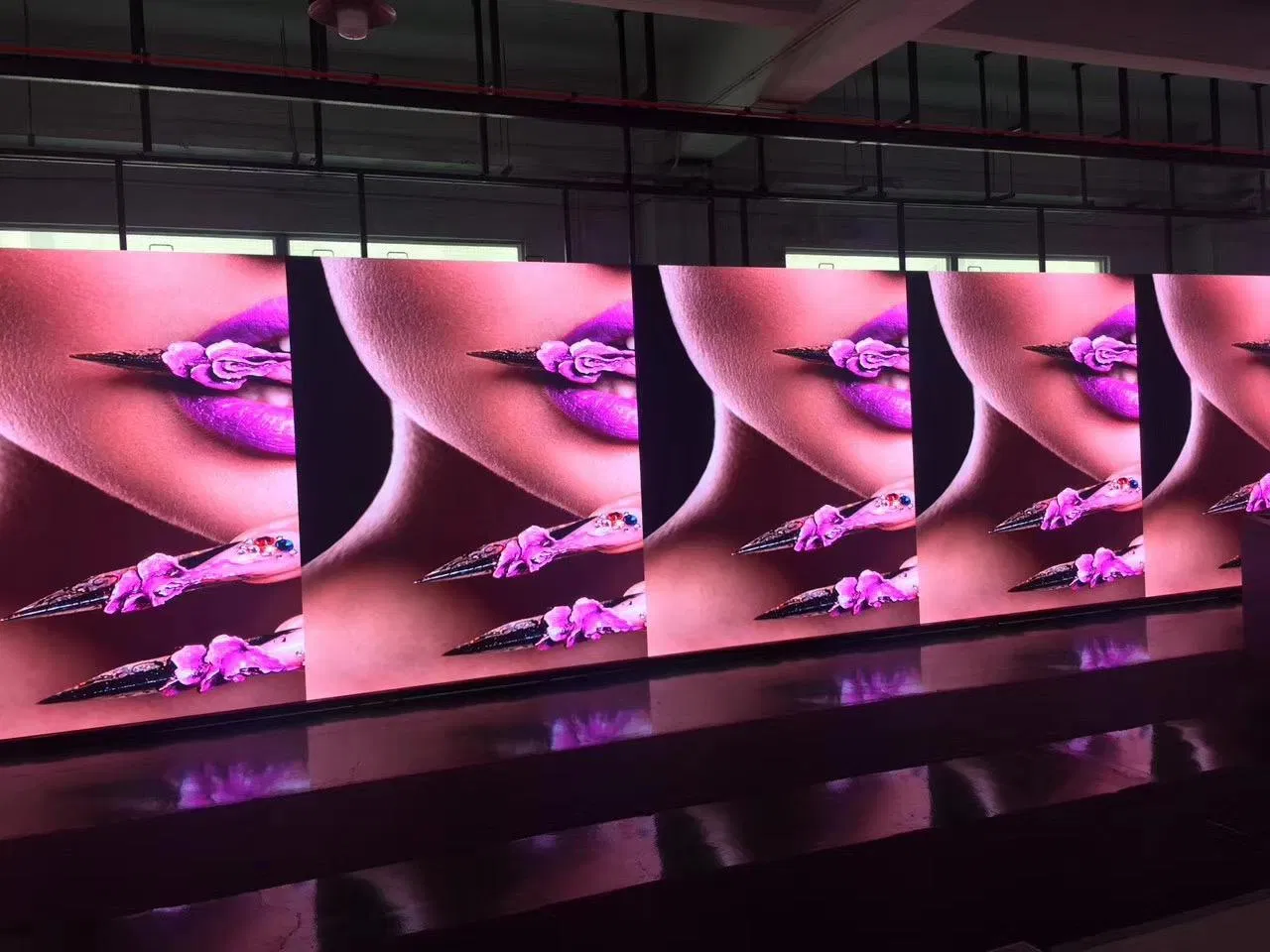

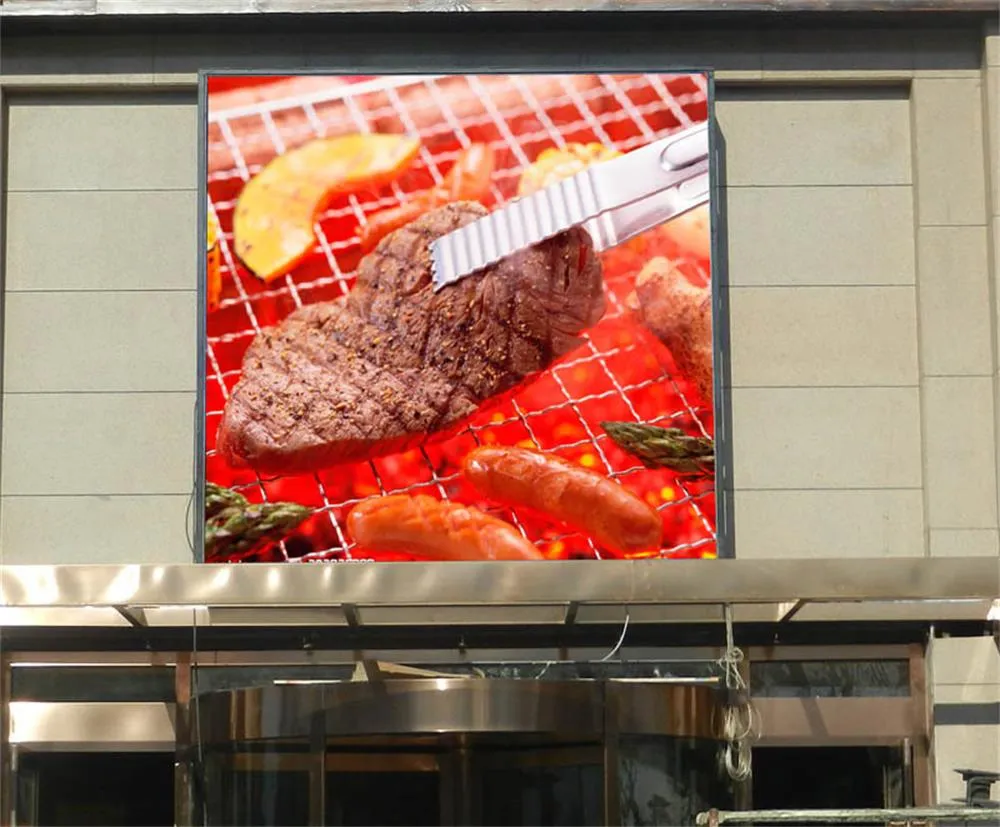

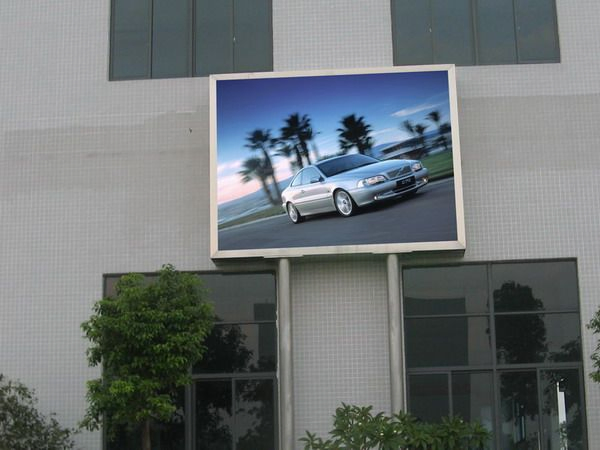

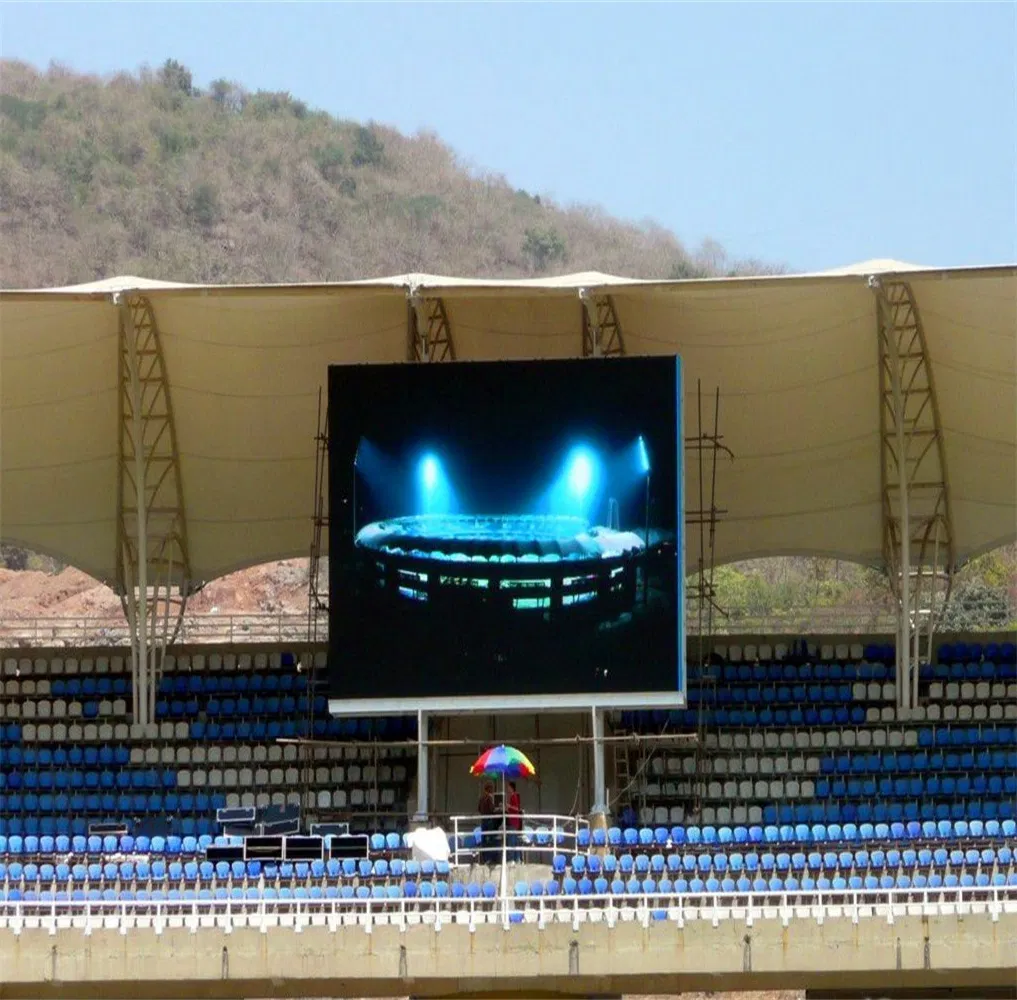

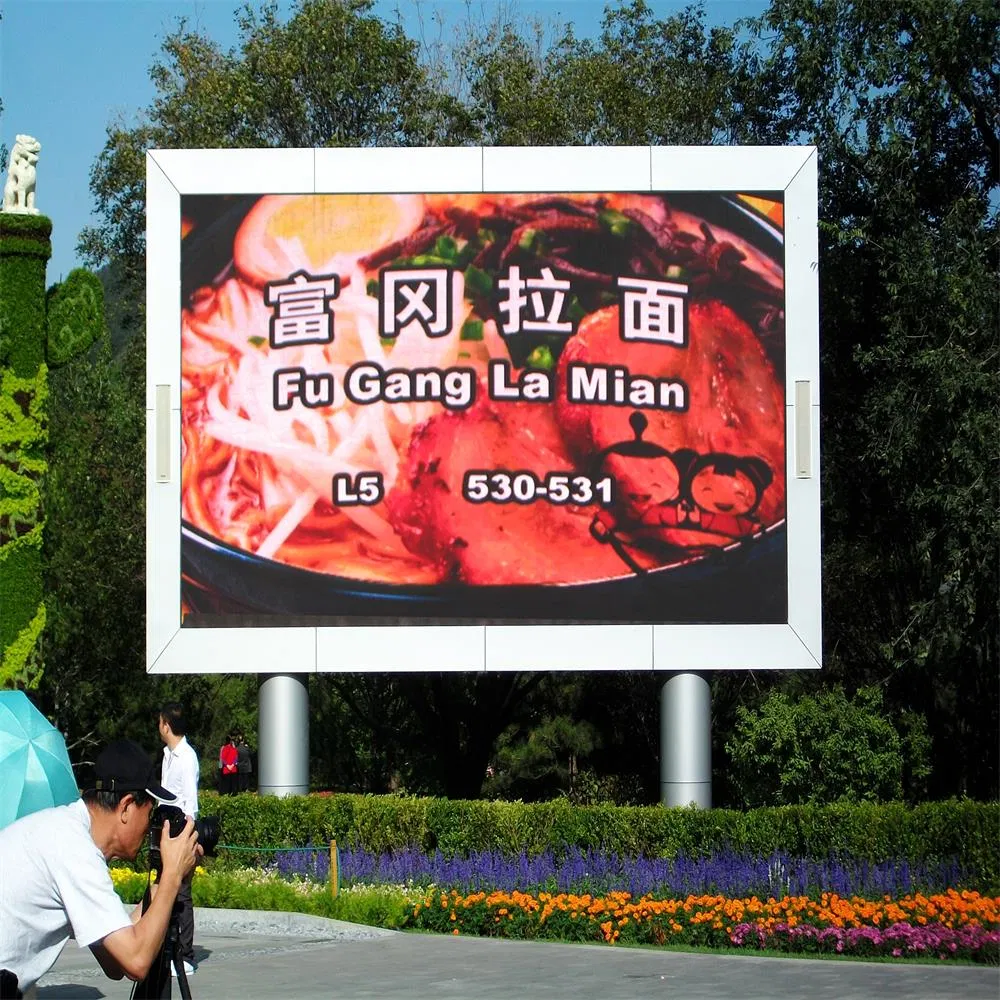

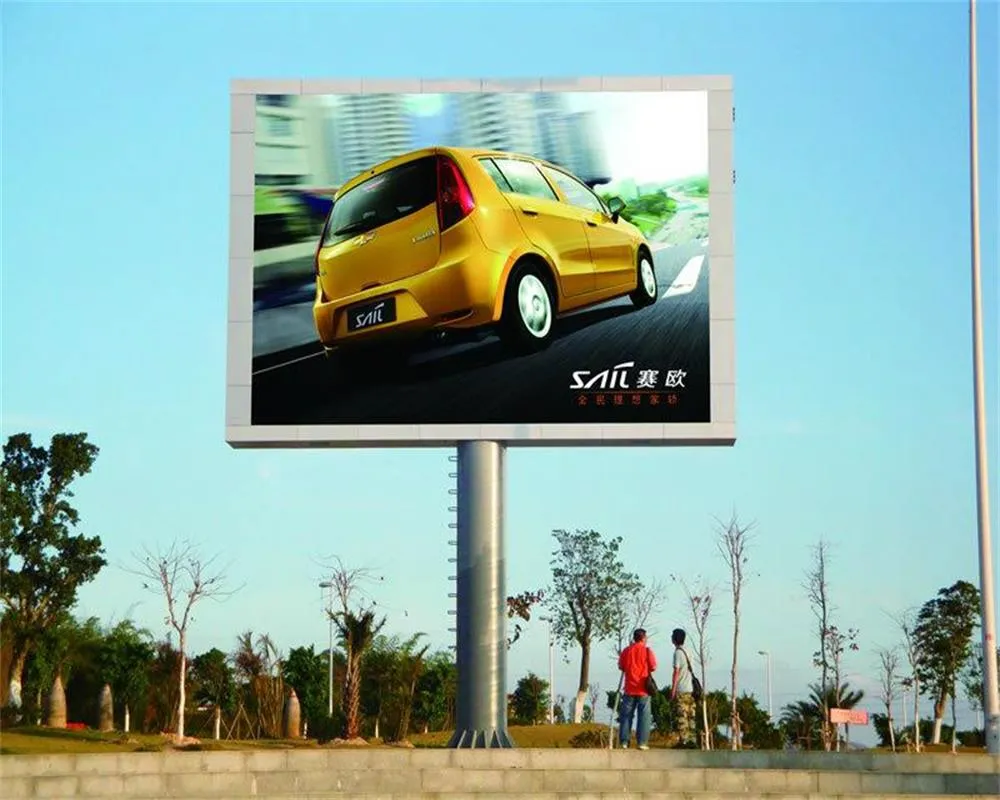

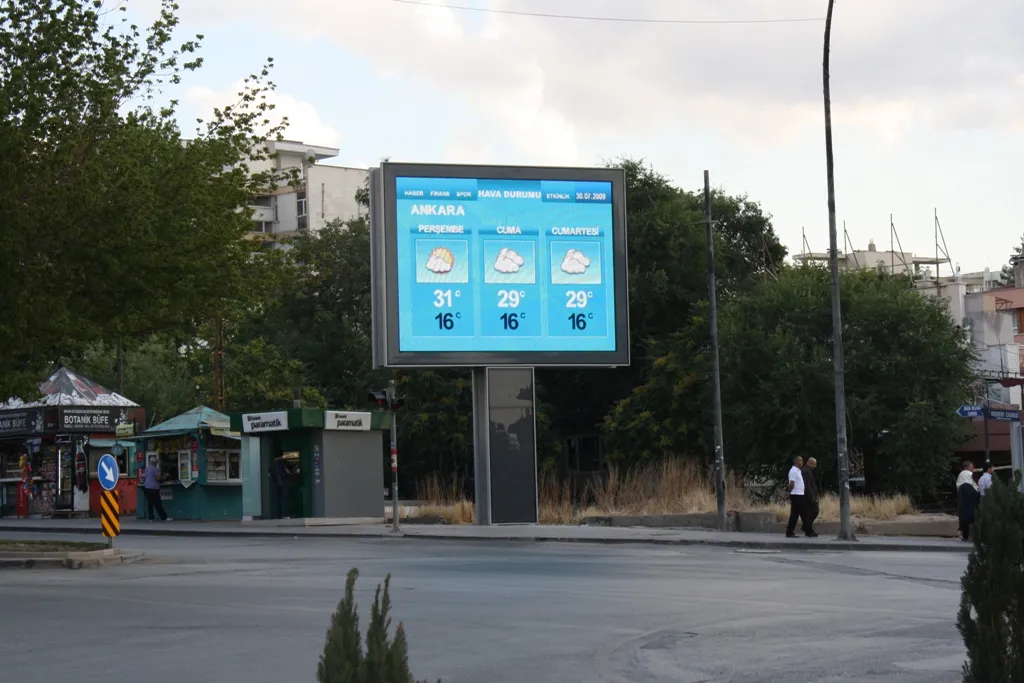

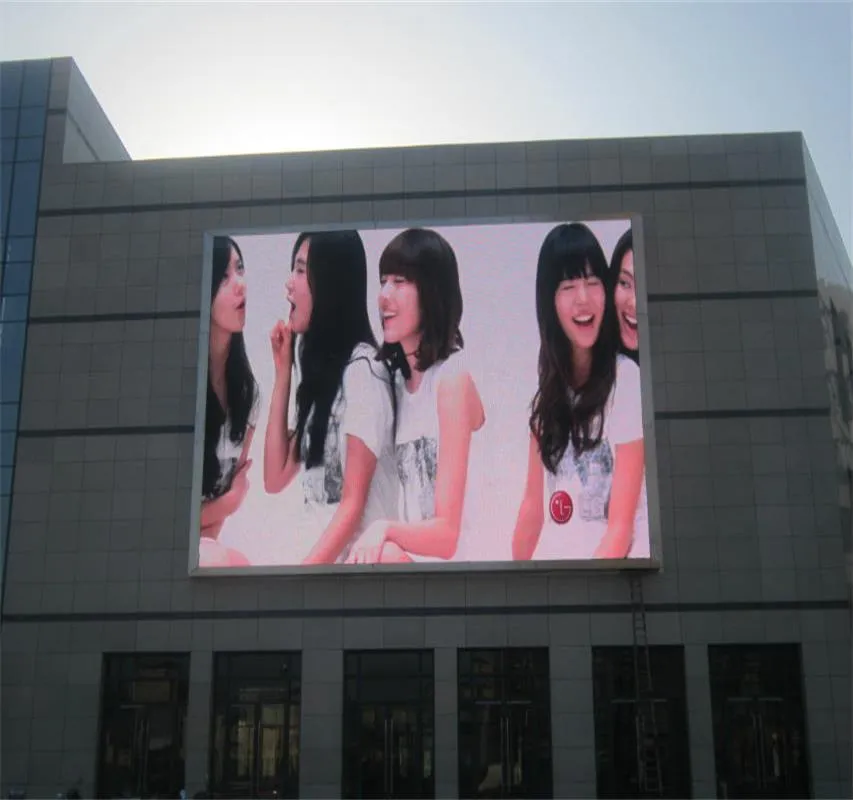

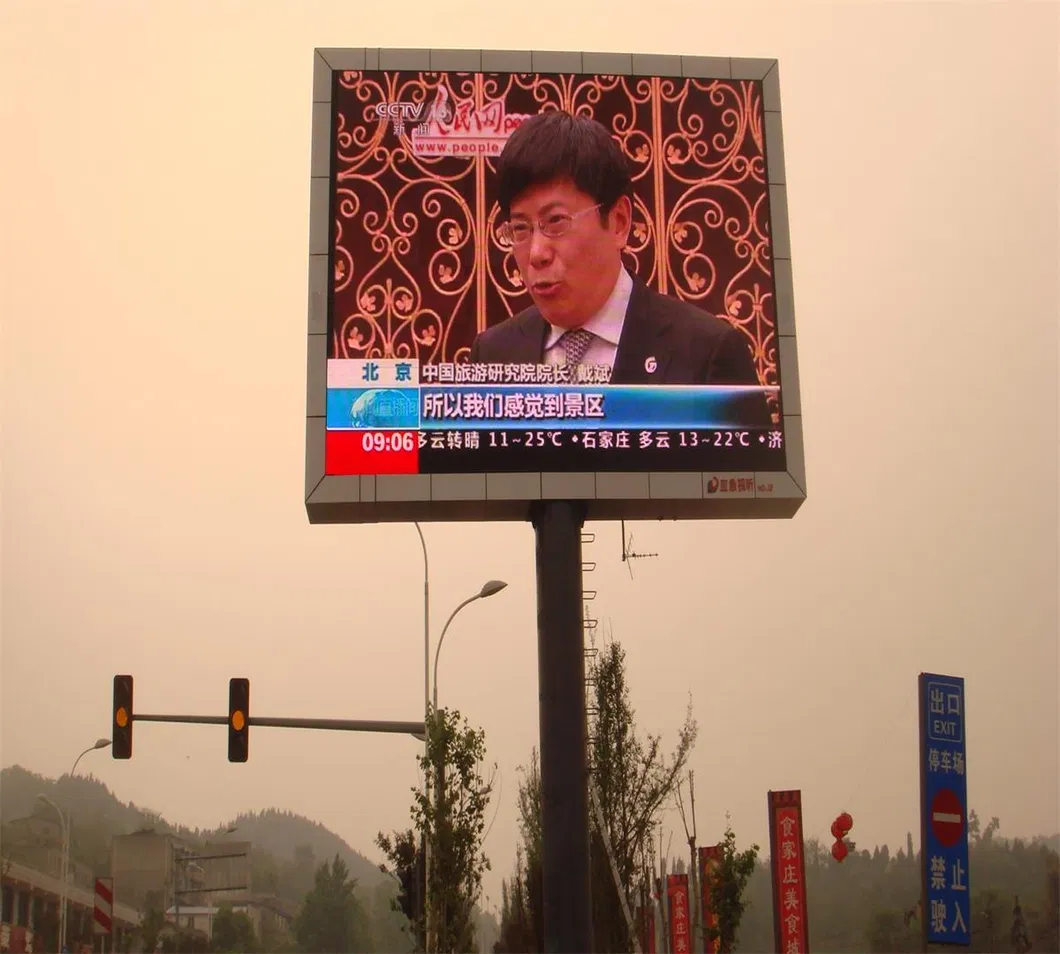

LED Display project with CKGLED brand:

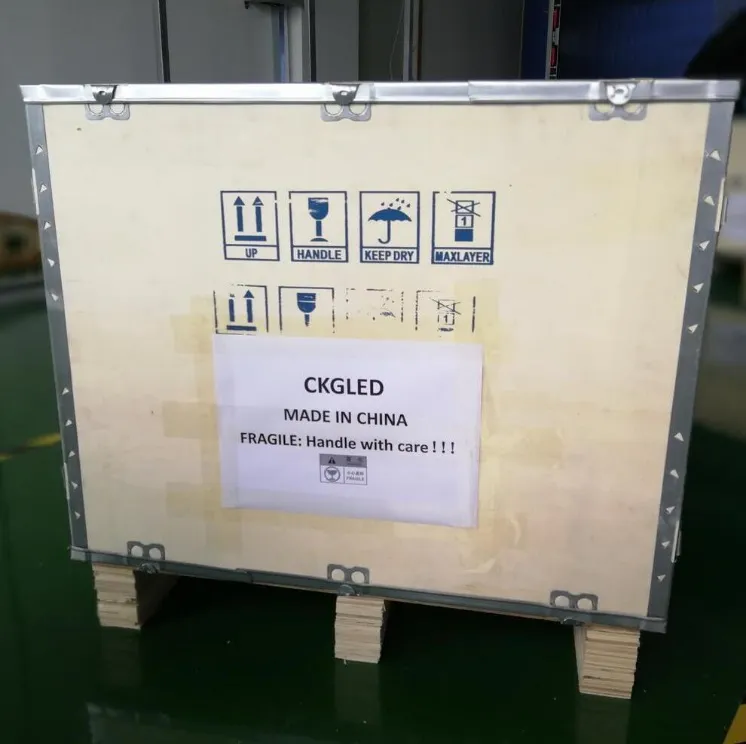

Wooden case Package:
Certificates:
