China Outdoor Fixed HD RGB LED P6 /P8 /P10 LED Display Panel/Billboards

Product Description

FS SERIES PRODUCE FEATURES:

1.Durable fresh color by adopting high quality leds.

2.Energy-saving 29% by using high efficiency IC driver, high brightness leds and improved PCB.

3.Great uniformity , contract ratio and screen flatness.

4.No mosaic display due to excellent flatness and nice uniformity of light-emitting

5.The images display effect will not Change largely in the range.

6.LED Single-lamp maintenance with low cost.

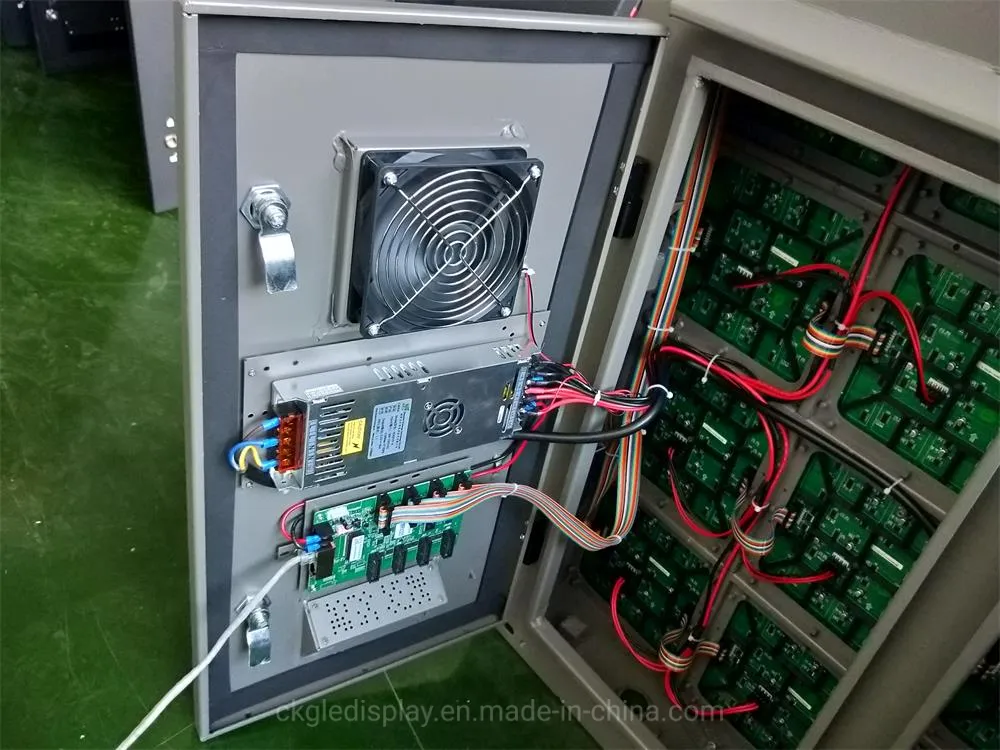

7.Good heat dissipation capability because of the unique design of vent fan.

PRODUCT SPECIFICATIONS:

NO.	Item	Parameters
2	Pixel Pitch(mm)	6
3	LED Configuration	1R1G1B
4	LED Type	SMD3535
5	Screen Resolution	27777dots/sqm

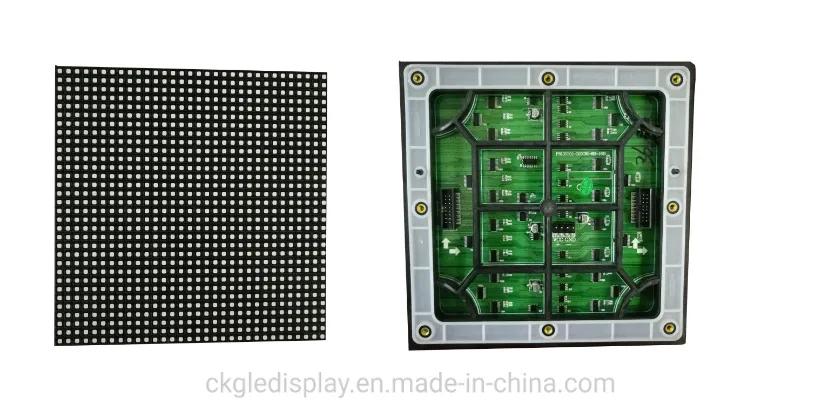

6	Module size(mm)	192x192
7	Module resolution(dots)	64x32
8	Scan method	1/8 constant current drive
9	Cabinet size(mm)	768x768
10	Cabinet resolution(dots)	128x128
11	Cabinet material	Iron / Aluminum
12	Brightness(cd/sqm)	≥6000
13	Viewing angle	H:140°/ V:140°
14	Grey Scale	14bit
15	Refresh rate(Hz)	≥1920
16	Ave.Power consumption (W/sqm)	300
17	Max.Power consumption(W/sqm)	900
18	IP grade	F:IP65 / R:IP54
19	Controller	Novastar / Linsn
20	Maintenance	Rear service
21	Color(T)	>281
22	Input Voltage(V)	AC 110V-220V +/-10%
23	Frame frequency(Hz)	60
24	Working humidity	10~95%RH
25	Working temperature	-30ºC~60ºC
26	Certificates	RoHS / CE / CCC

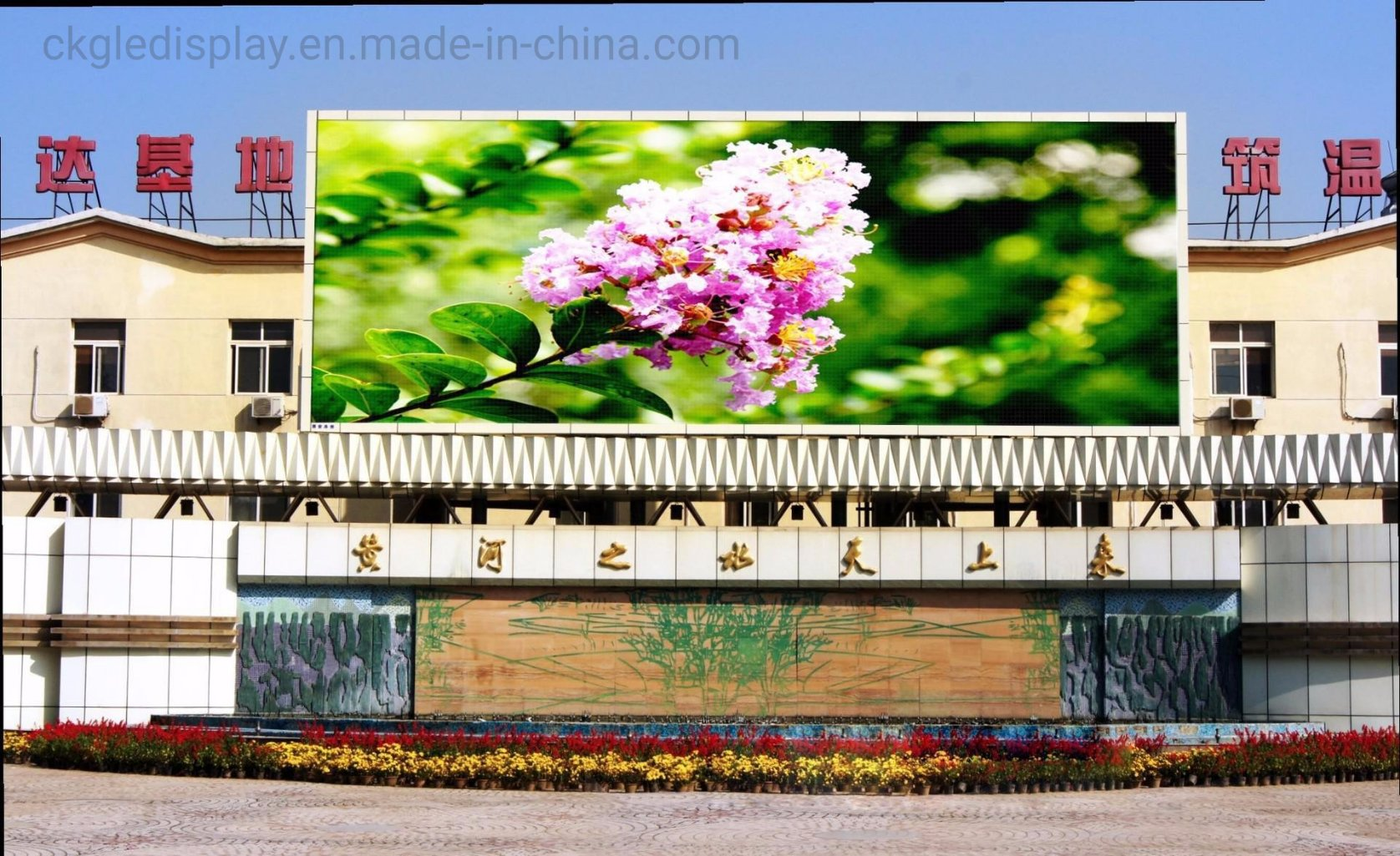

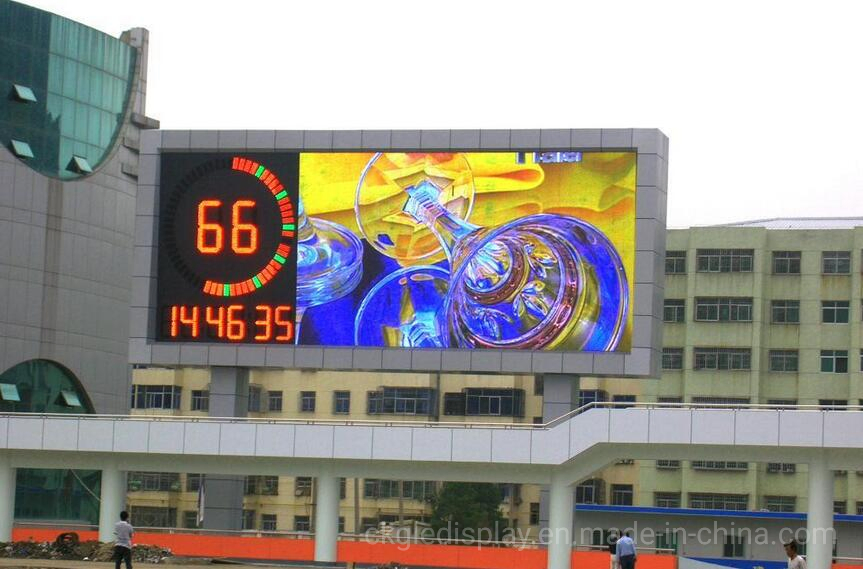

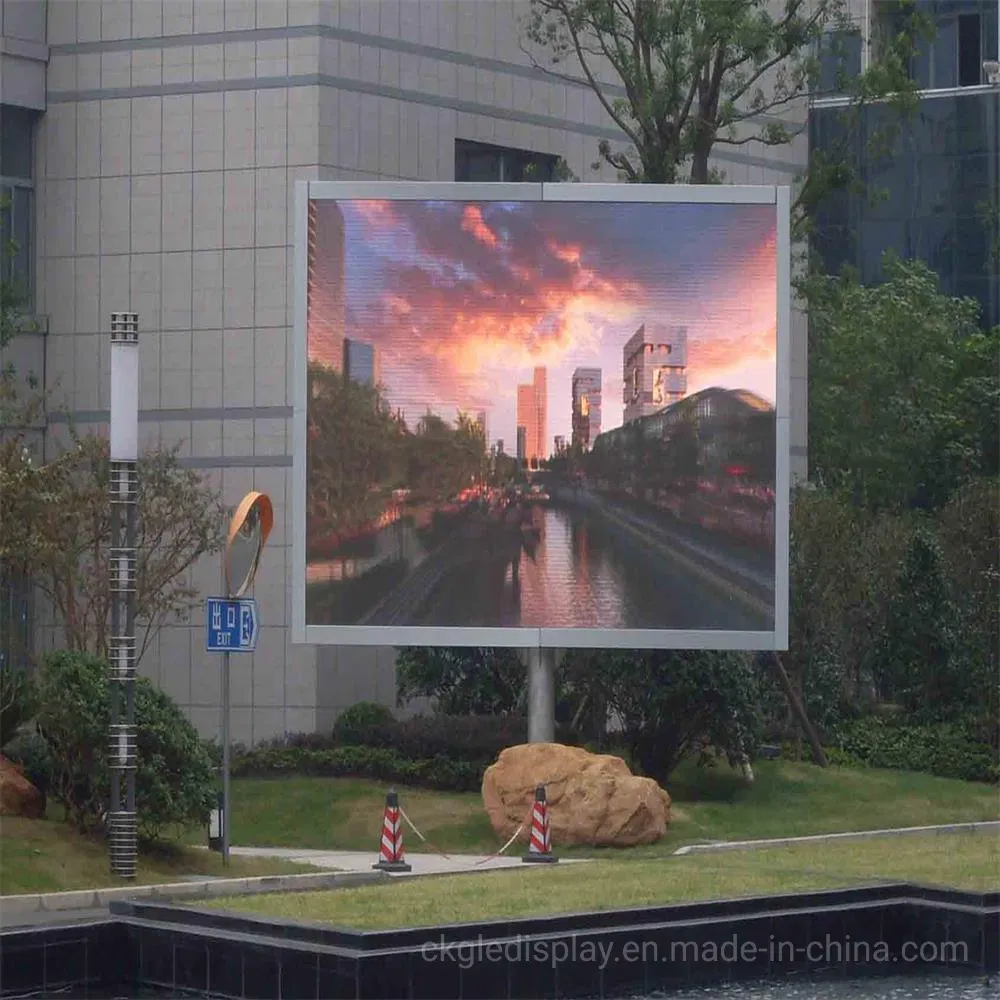

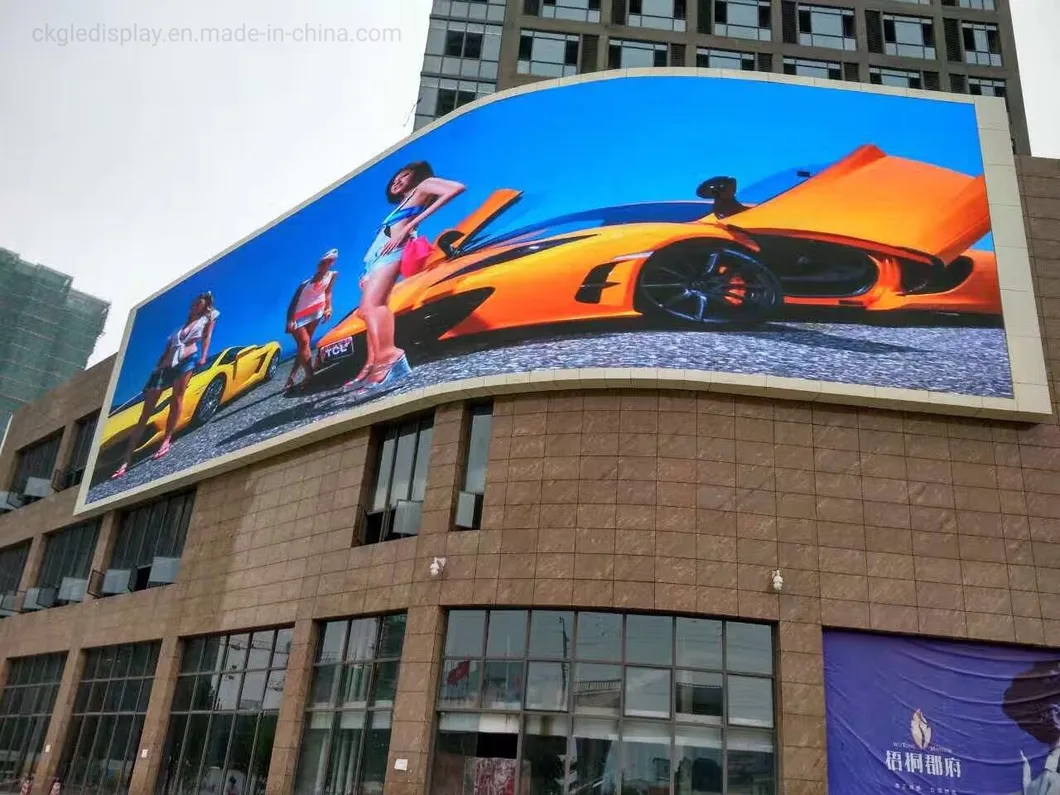

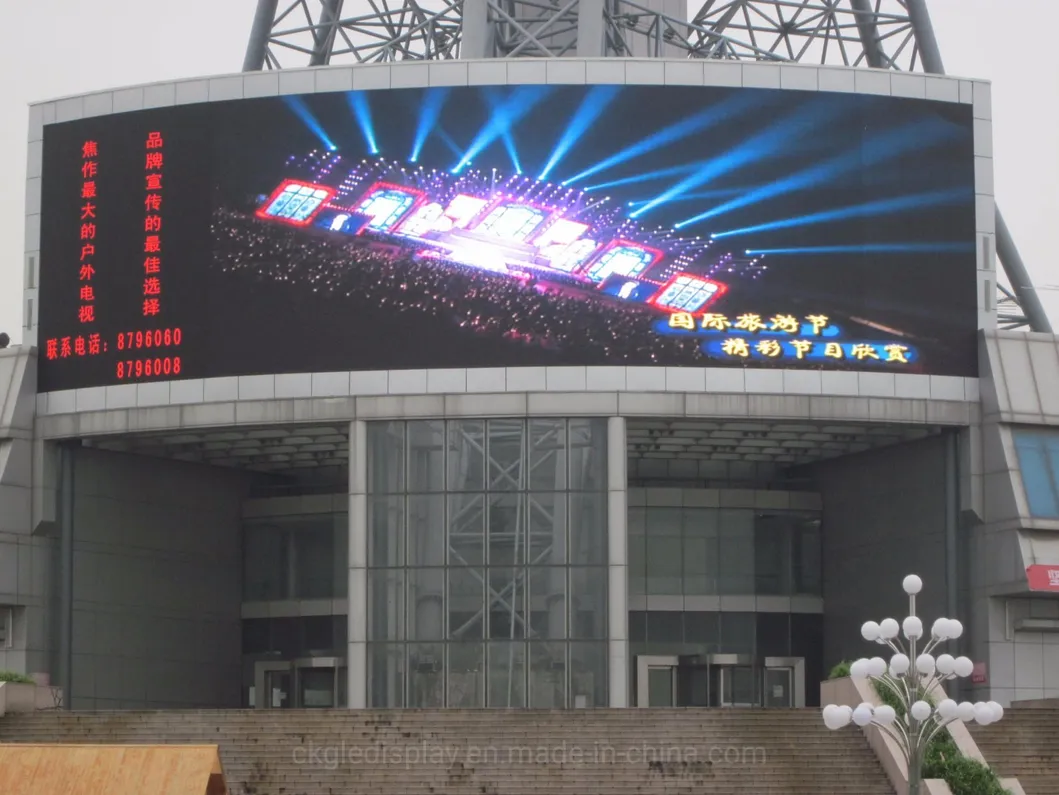

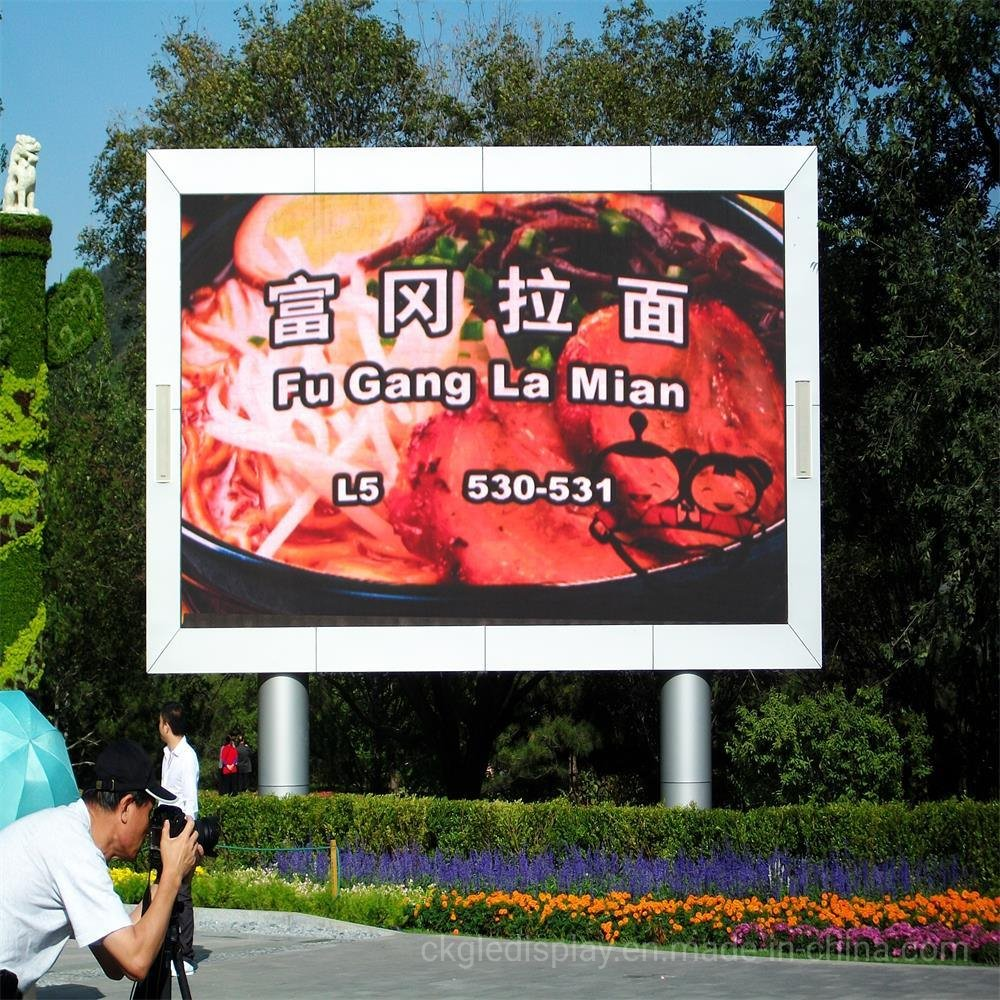

Application case:

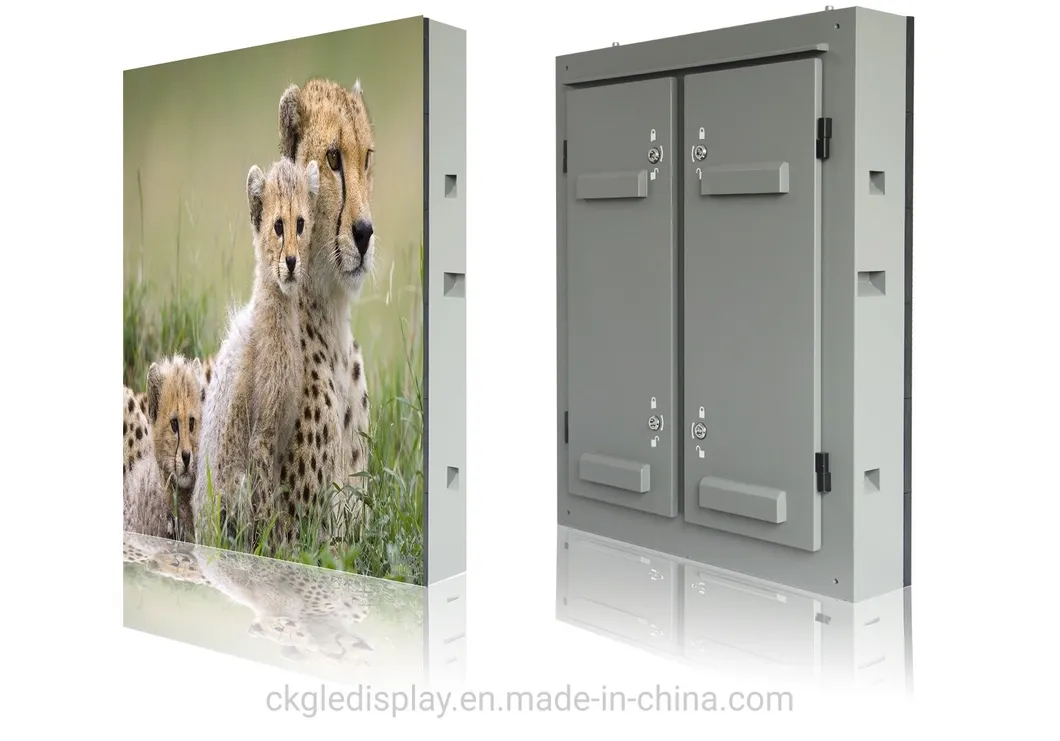

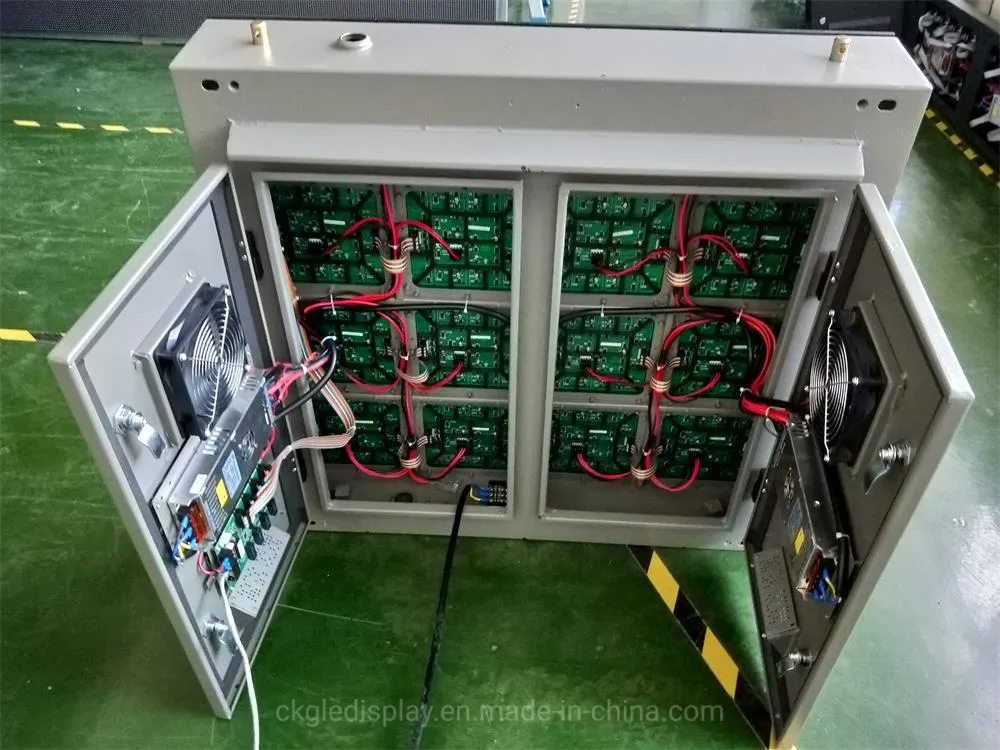

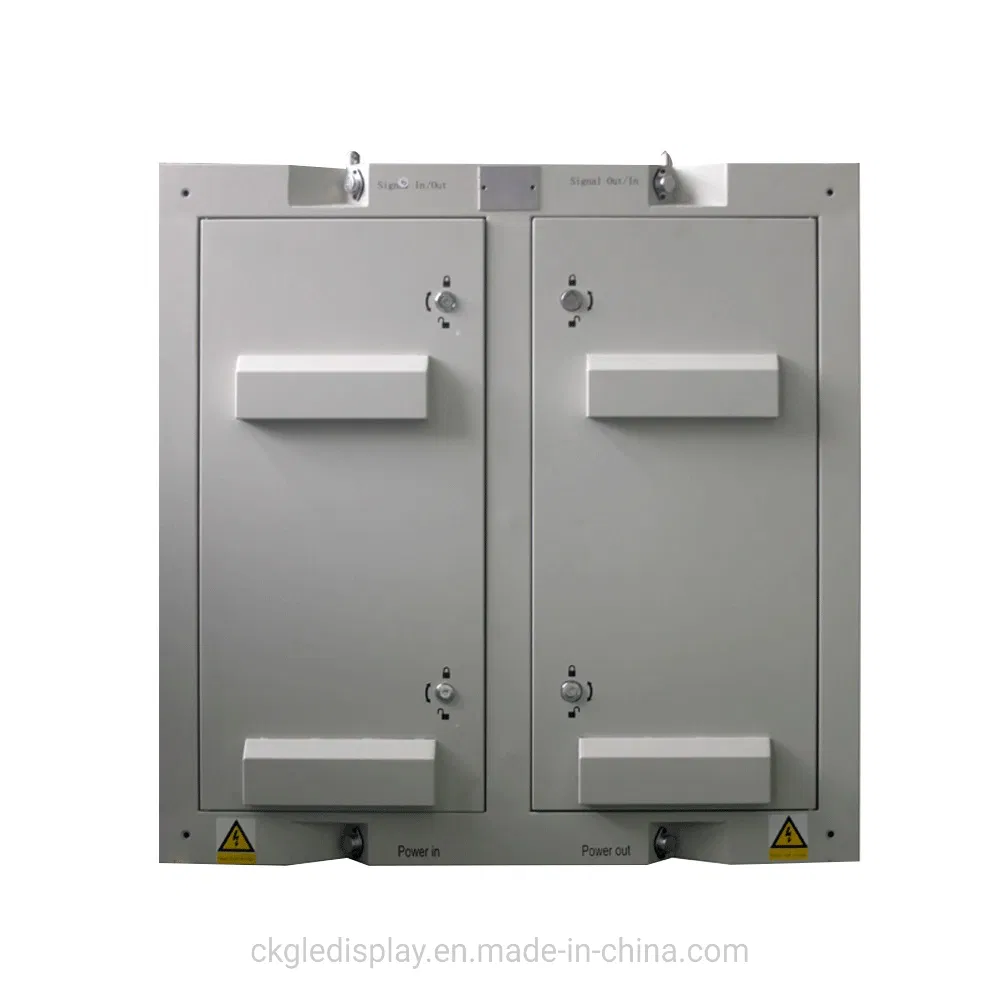

LED Display Panel product:

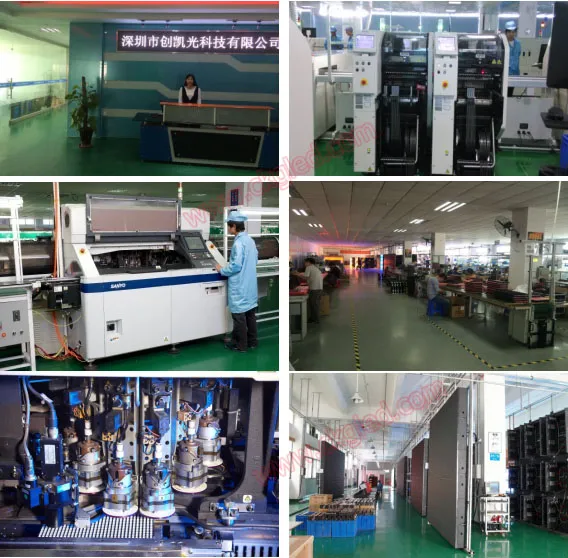

Workshop:

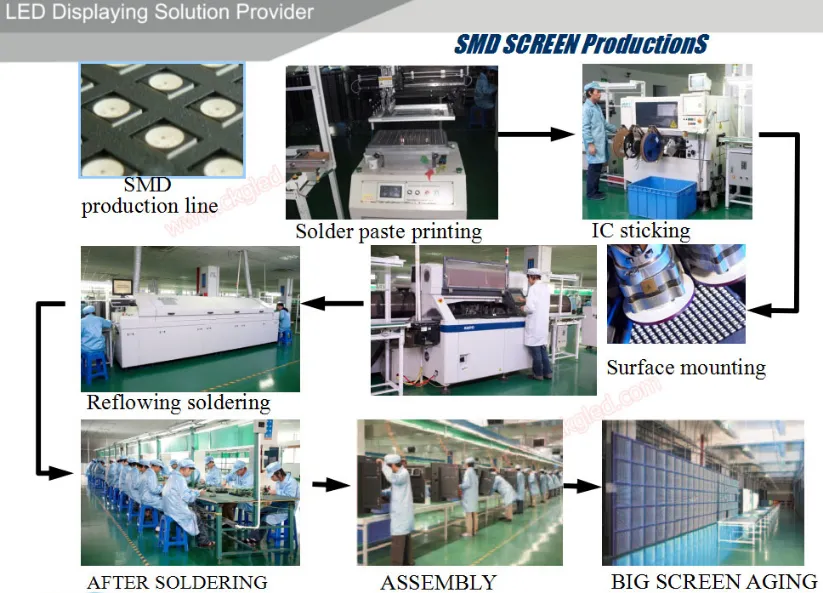

Process:

Package:

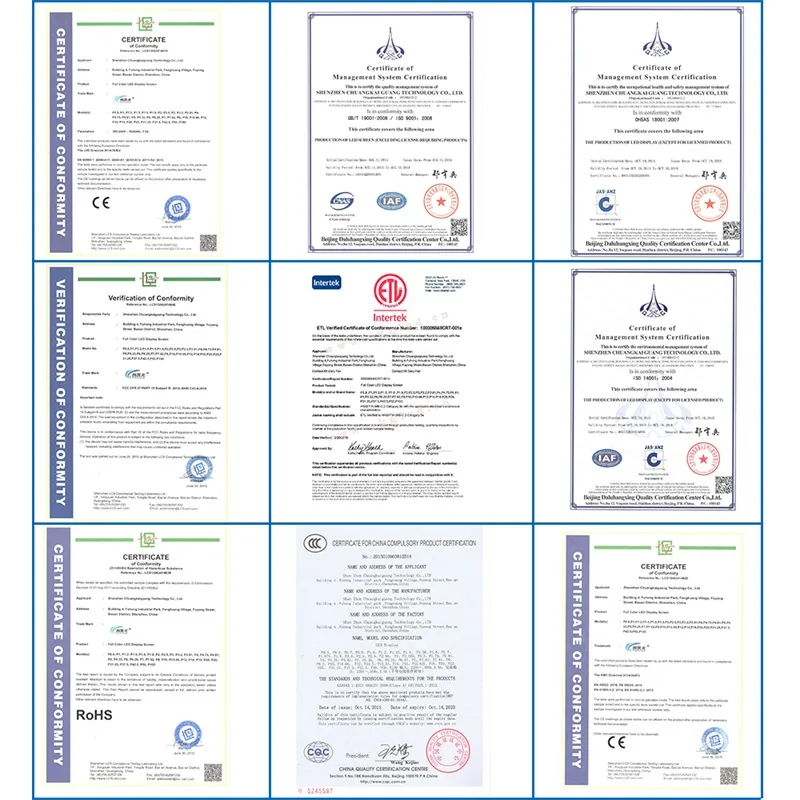

Certificates:

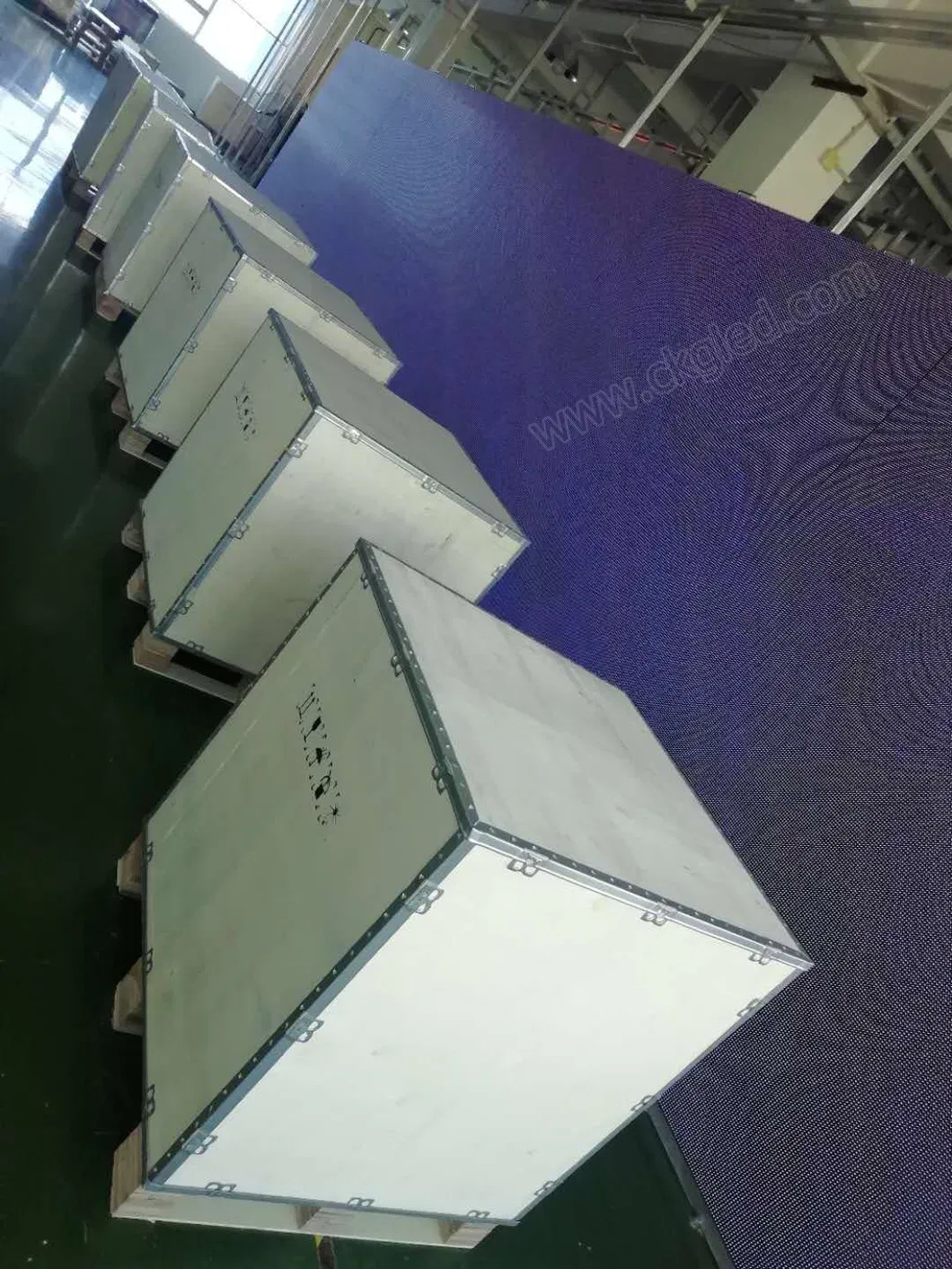

Packing>>>
For iron cabinet LED display screen of indoor or outdoor, we usually use wooden case to packing
For aluminum cabinet of LED rental stage display, we usuallu use flight case to packing
One wooden case including 2 cabinets, one flight case including 6 cabinets
Shippment>>>
By air or sea, FOB shenzhen
UPS/DHL/FedEx/Express(door to door)and so on
Delivery time>>>
Within 15 days counting from 30% prepayment arrived at CKGLED account.
Payment term>>>
T/T(30% deposit, the remained 70% payment made before factory shipment )
Quality assurance>>>
We offer 2 years warranty, and our products have passd CE, RoHS, FCC certificate, All products have Age testing, shaking testing, waterproof testing, In generally, Module test is 24h, entire screen test is 72h, A series of testing before delivery can ensure transportation and quality products.

Pre-Sales  Service
--Provide details about the production procedure
--Assign engineers for installation and testing

Sales  Service
--Customized solution designs
--Product rendering and steel structure drawing
--CKGLED's successful project examples and visits to our production and base

After-Sales  Service
--Two-year quality warranty with lifelong maintenance.
--Free guarantee repair (including labor and material):Free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period.We will never exempt our responsibilities on product owned defects.
--Responding time:Upon receiving user's notification, we ensure 24-hour after-sales technical support.
--Spare parts:Necessary spare parts are provided together with products to customers.
--Free technical training:Integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.
--Telephone investigation:Our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.
--Software upgrade:Lifelong maintenance of controlling system, incessant improvement of the system functions and continuous software upgrades.
