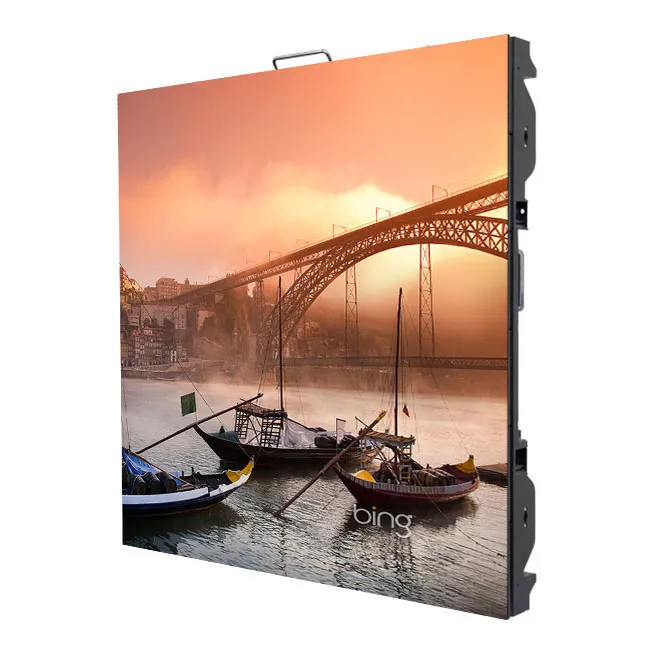

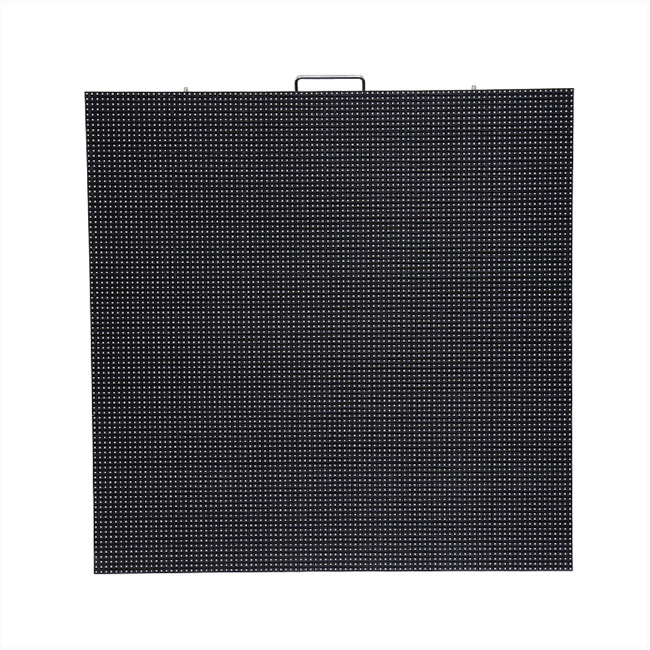

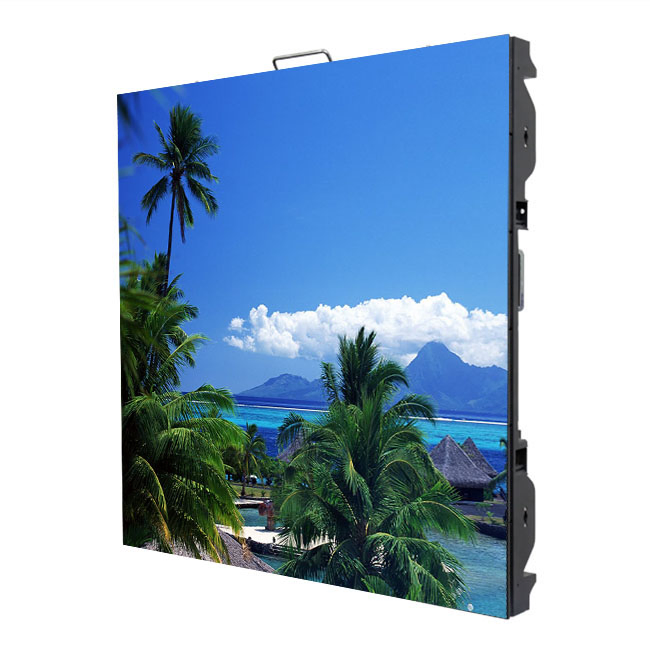

New Images HD Outdoor Full Color Fixed P8 LED Display
Application: 1. It's a kinds of advanced LED screen for outdoor fixed installation.2. It is slim and light weight cabinet design. Product feature:1. We Have Slim and light weight cabinet design, nice cabinet outlook. 2. High brightness. 3. High quality. 4. High waterproof and protection grade.Sp......
Send Inquiry
Product Description

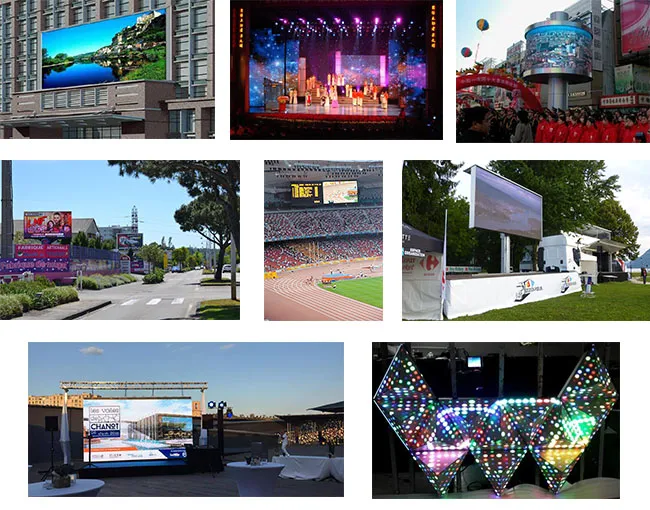

Application:

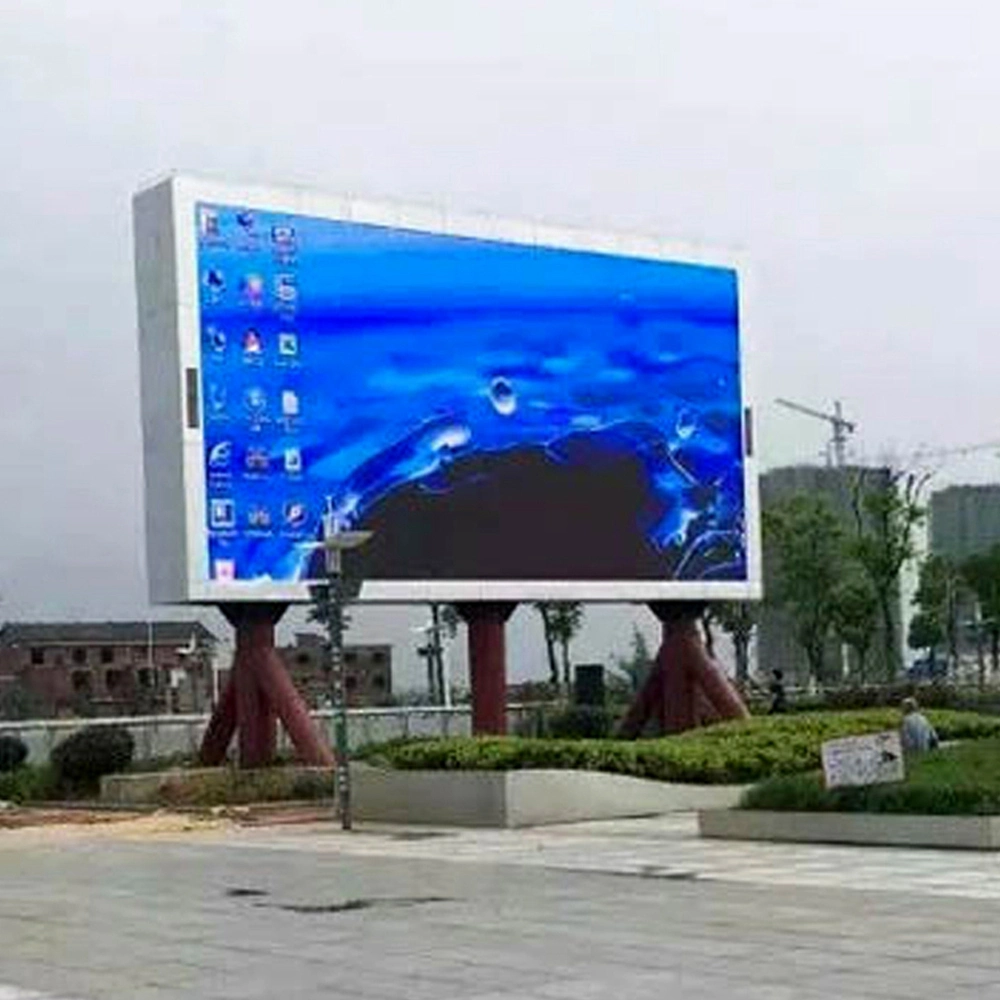

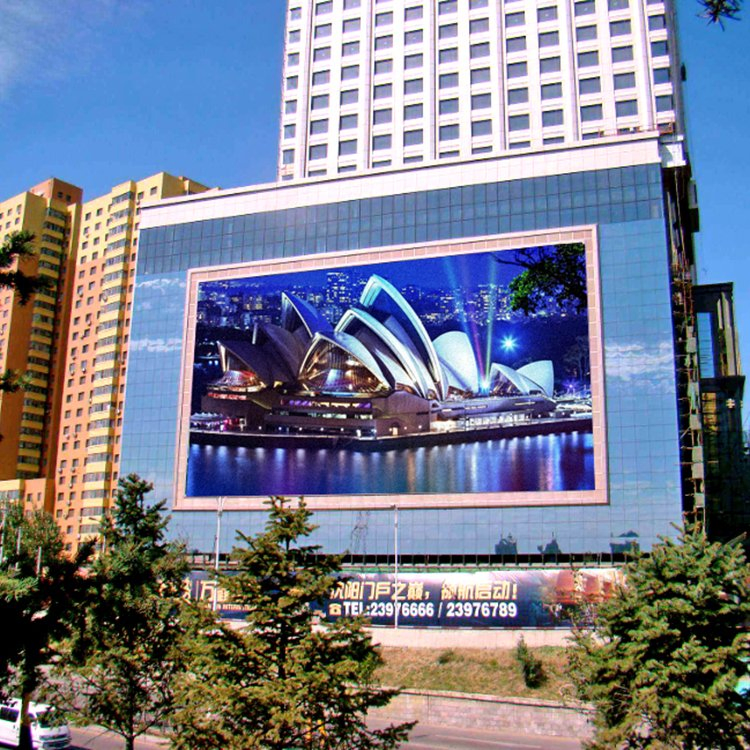

1. It's a kinds of advanced LED screen for outdoor fixed installation.
2. It is slim and light weight cabinet design.
Product feature:
1. We Have Slim and light weight cabinet design, nice cabinet outlook.
2. High brightness.
3. High quality.
4. High waterproof and protection grade.
Specification:
The advantages:
1. Light weight.
2. Easy installation.
3. High brightness.
4. Reliable quality grarantee.
5. Superb ingress protection.
6. The color of the cabinet can be chosen.
About us:
We are a trade factory in Shenzhen with 6 years experience. There are professional develop engineers, experienced sales engineers, and skillful workers.
1. If you want to develop a new design LED screen, please contact us. We can help you.
2. If you have a new project/order but don't know how to process it, please contact us. We can help provide the best solutions/scheme, and guide you.
3. If you are searching for alternative suppliers, please contact us. We are professional.
Factory:
(The pictures below were taken during night, after most of the workers off work)
1. Skillful workers who have worked more than 6 years in our factory.
2. High technology auntomatic machines.
3. Aging test + Grayscale test for each module.
Delivery and payment:
1. Production time for 0-200 m² LED screen is about 25 days. (Including aging test).
2. Payment term: T/T, 30% in advance and 70% before shipping.
3. Trade term: FOB Shenzhen, CIF, DDU, DDP.
4. Plywood case or flight case provided.
1. It's a kinds of advanced LED screen for outdoor fixed installation.
2. It is slim and light weight cabinet design.
Product feature:
1. We Have Slim and light weight cabinet design, nice cabinet outlook.
2. High brightness.
3. High quality.
4. High waterproof and protection grade.
Specification:
| 1 | Model No. | SF08 |
| 2 | Pixel Pitch (mm) | 8 |
| 3 | Module Size (mm) | 320*160 |
| 4 | Module Resolution (pixels) | 40*20 |

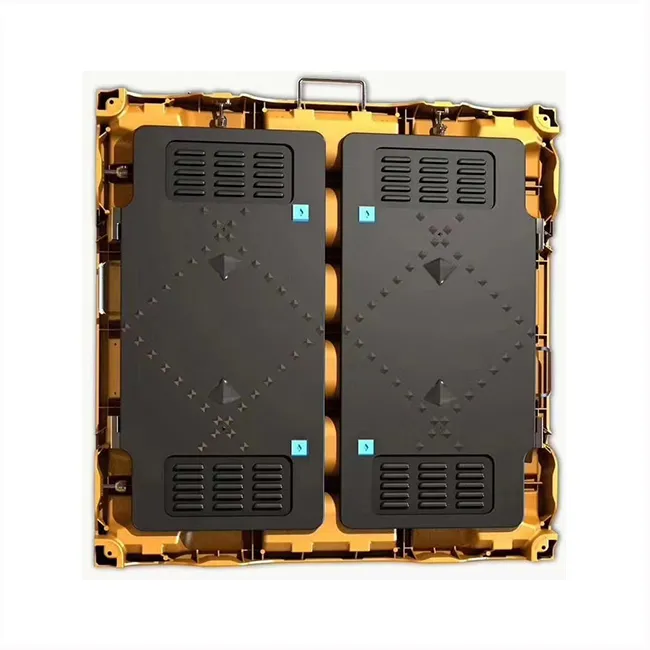

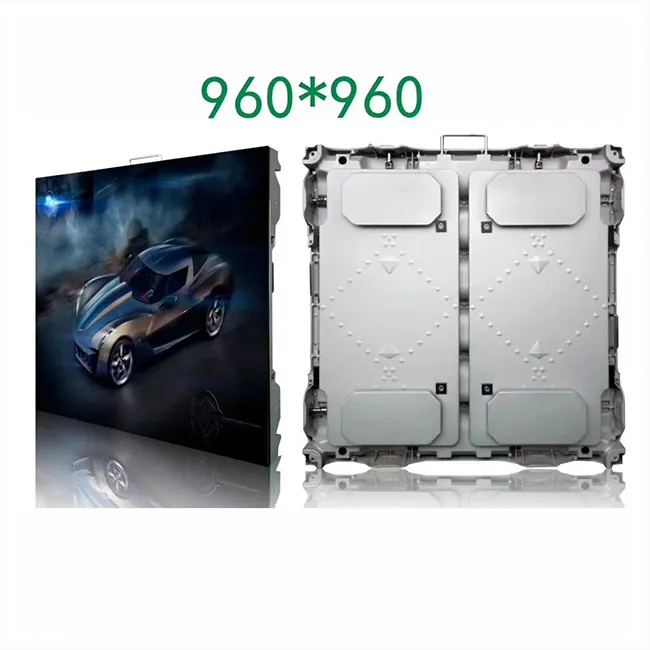

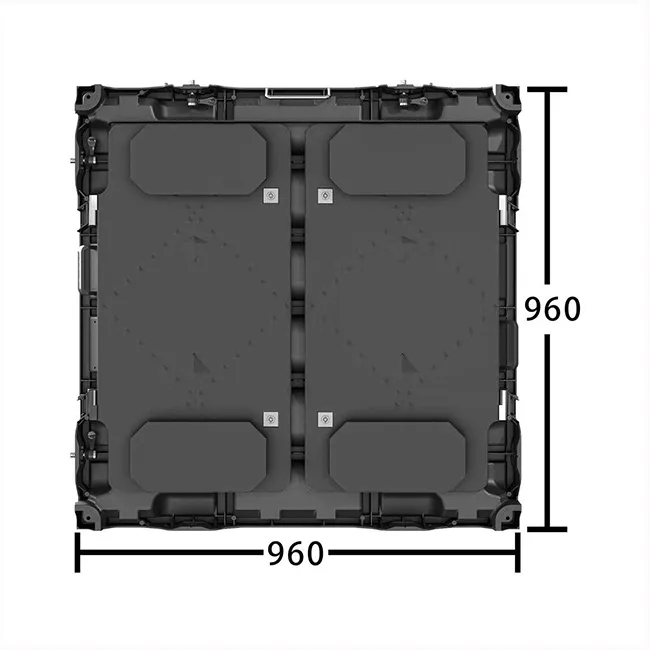

| 5 | Cabinet Size (mm) | 960*960*110 |
| 6 | Cabinet Resolution (pixels) | 120*120 |
| 7 | Pixel configuration | 1R1G1B |
| 8 | LED Encapsulation | SMD2727 NationStar |
| 9 | Work Voltage (DC) | 5V |
| 10 | Driver Mode (Scan) | 1/4 |
| 11 | Cabinet Weight (kg) | 30KG |
| 12 | Physical Density (pixels) | 15625 |
| 13 | Brightness (NIT) | 6300 |
| 14 | Gray Scale (BIT) | 14 |
| 15 | Contrast Ratio | 3000:1 |
| 16 | Refresh Rate (Hz) | 1920 |
| 17 | Viewing Angle (H/V) | ±140°/±140° |
| 18 | Protection Grade | IP65 |
| 19 | MAX Power Consumption (W/m²) | 1000 |
| 20 | Average Power Consumption (W/m²) | 300 |
| 21 | Work Temperature | -20ºC~50ºC |
| 22 | Work Humidity | 10%RH~90%RH |
| 23 | Optimal Viewing Distance | ≥16m |
| 24 | Input AC Power | 110V or 240 V, 50Hz or 60Hz |
The advantages:
1. Light weight.
2. Easy installation.
3. High brightness.
4. Reliable quality grarantee.
5. Superb ingress protection.
6. The color of the cabinet can be chosen.
About us:
We are a trade factory in Shenzhen with 6 years experience. There are professional develop engineers, experienced sales engineers, and skillful workers.
1. If you want to develop a new design LED screen, please contact us. We can help you.
2. If you have a new project/order but don't know how to process it, please contact us. We can help provide the best solutions/scheme, and guide you.
3. If you are searching for alternative suppliers, please contact us. We are professional.
Factory:

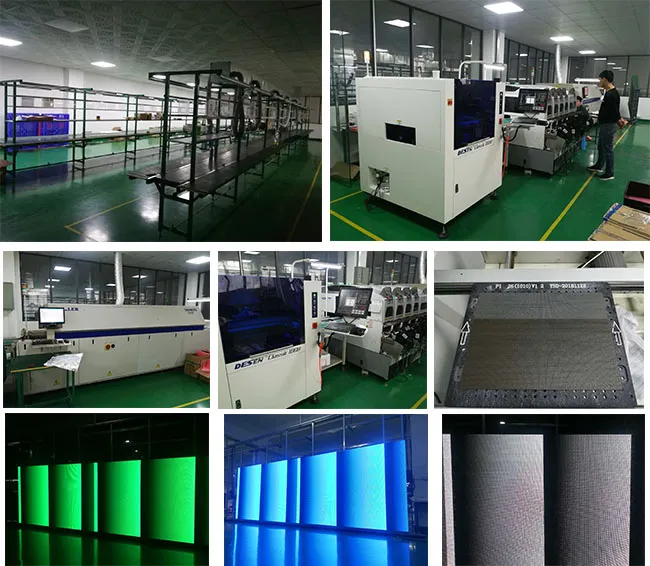

(The pictures below were taken during night, after most of the workers off work)
1. Skillful workers who have worked more than 6 years in our factory.
2. High technology auntomatic machines.
3. Aging test + Grayscale test for each module.
Delivery and payment:
1. Production time for 0-200 m² LED screen is about 25 days. (Including aging test).
2. Payment term: T/T, 30% in advance and 70% before shipping.
3. Trade term: FOB Shenzhen, CIF, DDU, DDP.
4. Plywood case or flight case provided.
