Indoor Full Color Display Video Wall P3.91 LED Module
Indoor Full Color Display Video Wall P3.91 LED ModuleP3.91 led module specification Item Model NO. P3.91 Pixel Pitch 3.91mm Pixel Configuration 1R1G1B Density 65500dots/m2 Brightness1200-1400CD Color Temperature 6500-9500K Scan Method 1/16 Cabinet Size 500x500mm,500*1000mm Module Resolution 64x64 ......
Send Inquiry
Product Description

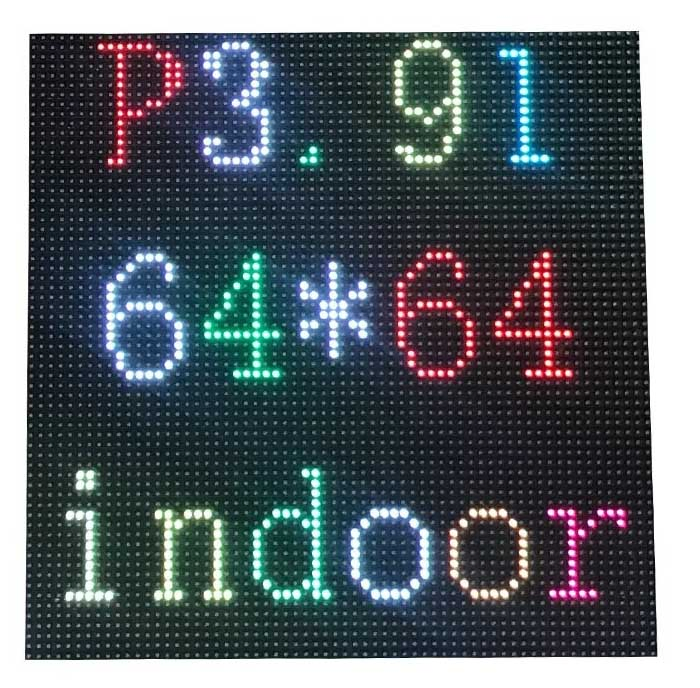

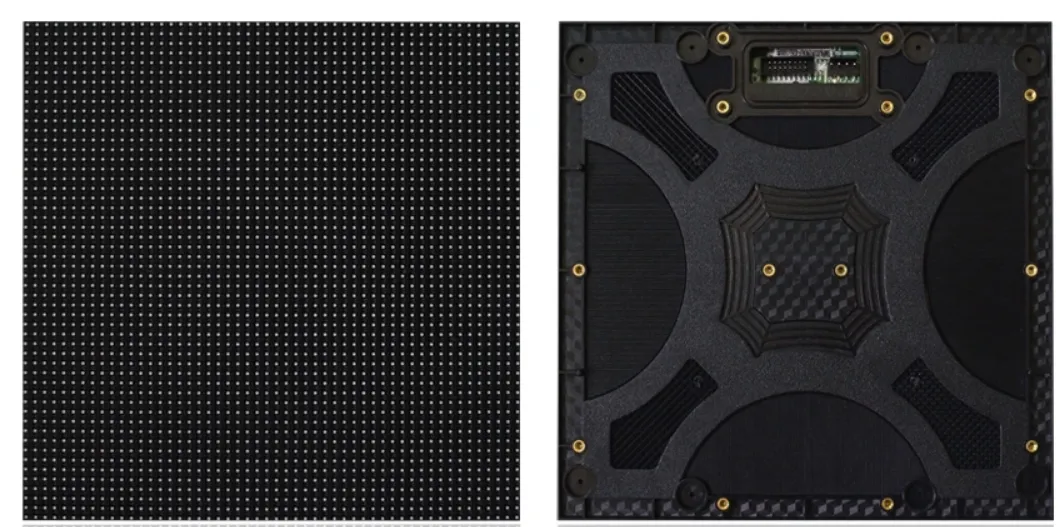

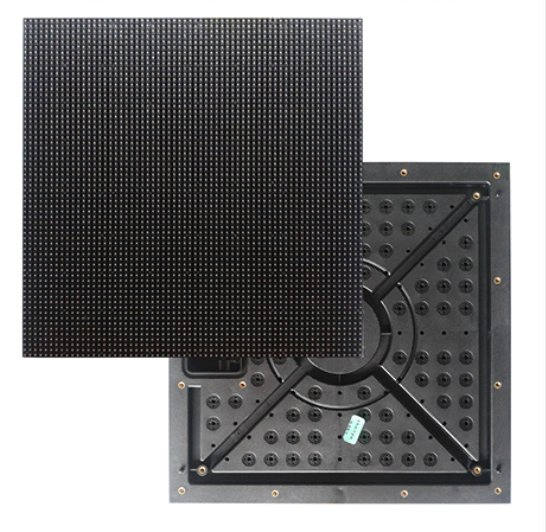

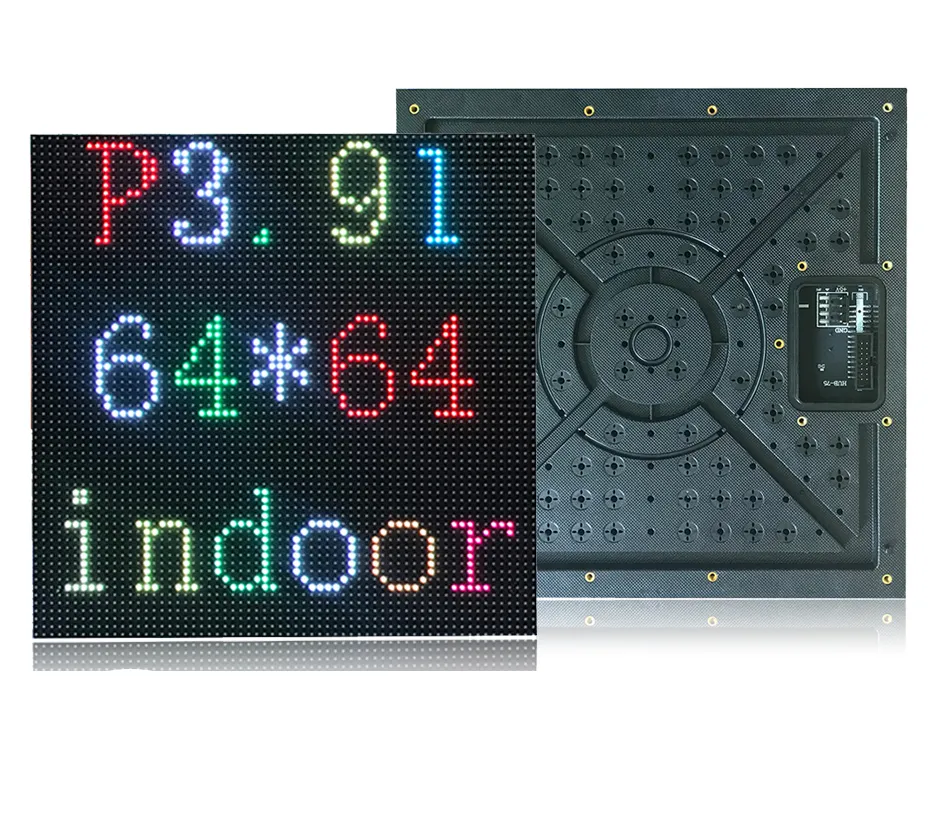

Indoor Full Color Display Video Wall P3.91 LED Module
P3.91 led module specification
| Item | |
| Model NO. | P3.91 |
| Pixel Pitch | 3.91mm |
| Pixel Configuration | 1R1G1B |
| Density | 65500dots/m2 |
| Brightness | 1200-1400CD |
| Color Temperature | 6500-9500K |
| Scan Method | 1/16 |

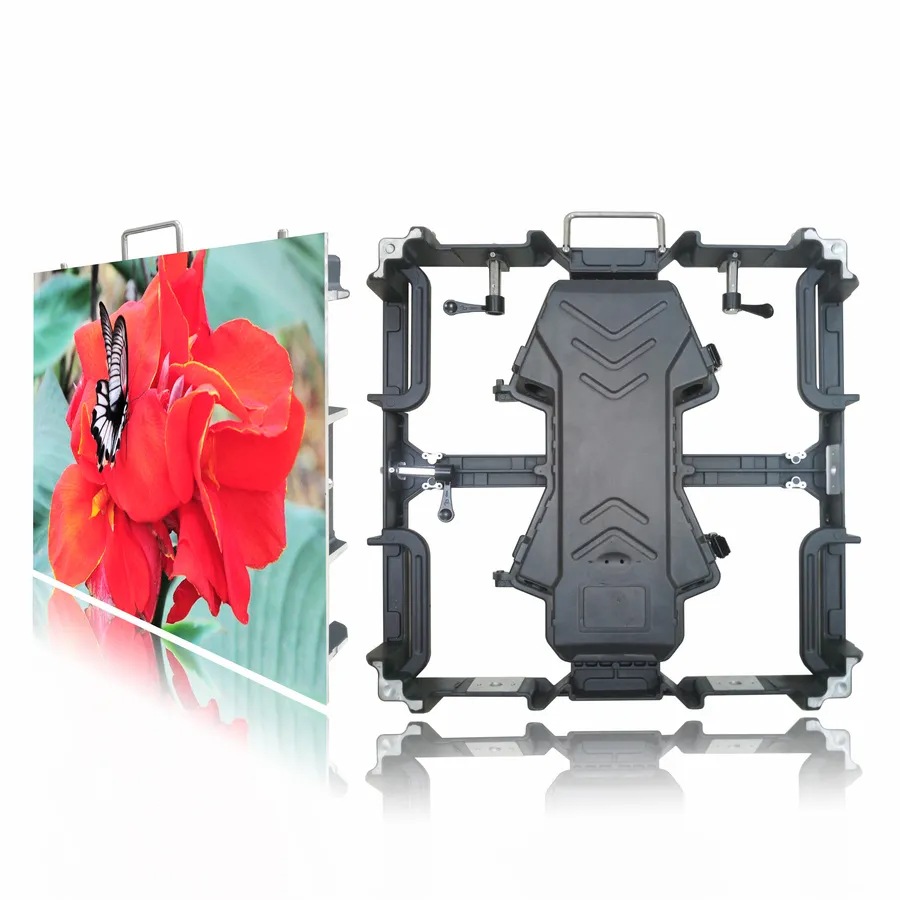

| Cabinet Size | 500x500mm,500*1000mm |
| Module Resolution | 64x64 |
| Cabinet Resolution | 128x128 |
| Cabinet Weight | 7.2Kg/cabinet |
| Max. Power Consumption | 850W/m2 |
| Ave. Power Consumption | 500W/m2 |
| Best View Angle | H:140 Degrees, V:120 degrees |
| Refresh Rate | 1920-3840Hz |
| Gray Scale | 16bit |
| Best View Distance | >3m |
| Protection Level | IP65 |
| Cabinet Material | Die-casting Aluminum |
| Operation Voltage | 110-220V AC 50-60Hz |
| Working Temperature | -25-+55 degrees celsius |
| Working Humidity | 10%-90% |
| Signal Input Source | VGA, DVI, HDMI, SDI, HD-SDI |
| Control Distance | Ethernet cable:100m, Multi-mode optical fiber:500m,singel-mode optical fiber:20Km |
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Jiacai can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Xiamen, China
5. Warranty time: 2years6. Delivery time:3-15 working days

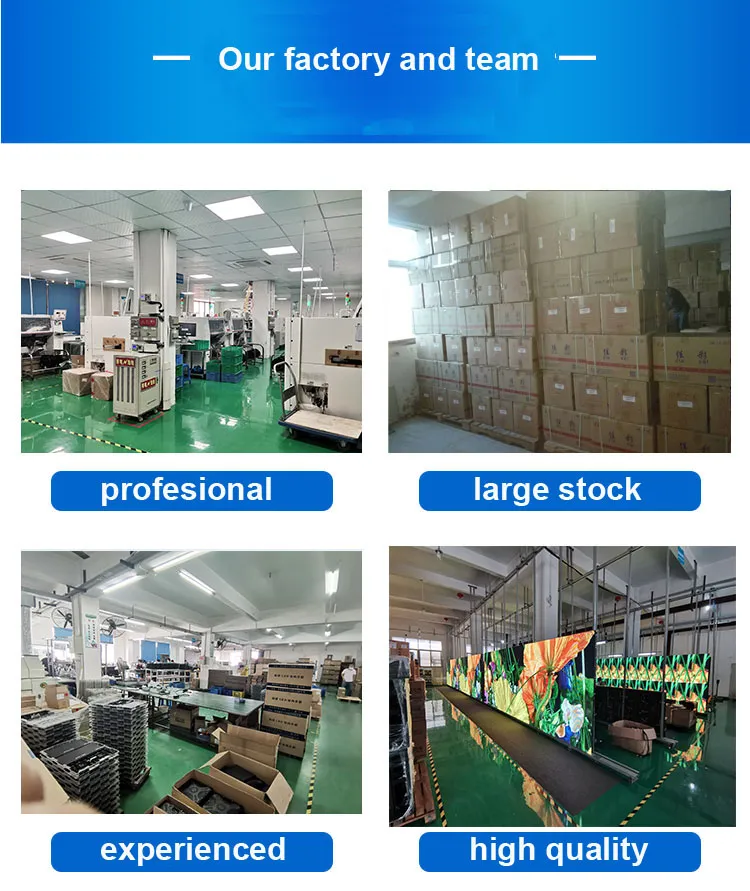

Our company view:
