High Definition P4/P5/P6 SMD Outdoor Full Color RGB LED Video Wall
FS SERIES PRODUCE FEATURES:. High brightness and good quality by adopting high quality leds.. Modular design, flexible cabinet size to meet up with different requests.. High polymer flexible mask, no mosaic phenomenon ,better contract ratio.. Great uniformity and screen flatness.. Anti-UV module mas......
Send Inquiry
Product Description
FS SERIES PRODUCE FEATURES:
. High brightness and good quality by adopting high quality leds.
. Modular design, flexible cabinet size to meet up with different requests.
. High polymer flexible mask, no mosaic phenomenon ,better contract ratio.
. Great uniformity and screen flatness.
. Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.
PRODUCT SPECIFICATIONS:
| NO. | Item | Parameters | |
| 1 | Pixel Pitch(mm) | 4 | |
| 2 | LED Configuration | 1R1G1B | |
| 3 | LED Type | SMD2525 | |
| 4 | Screen Resolution | 62500dots/sqm | |
| 5 | Module size(mm) | 256x128 | |
| 6 | Module resolution(dots) | 64x32 | |
| 7 | Scan method | 1/16 constant current drive | |
| 8 | Cabinet size(mm) | 512x512 | |
| 9 | Cabinet resolution(dots) | 128x128 | |
| 10 | Cabinet material | Iron / Aluminum | |
| 11 | Brightness(cd/sqm) | ≥7000 | |
| 12 | Viewing angle | H:140°/ V:140° | |
| 13 | Grey Scale | 14bit | |
| 14 | Refresh rate(Hz) | ≥1920 | |
| 15 | Ave. power consumption (W/sqm) | 200 | |
| 16 | Max. power consumption(W/sqm) | 600 | |
| 17 | IP grade | F:IP65 / R:IP54 | |
| 18 | controller | Novastar / Linsn | |
| 19 | Maintenance | Rear service/Front Service | |
| 20 | Color(T) | >281 | |
| 21 | Input Voltage(V) | AC 110V-220V +/-10% | |
| 22 | Frame frequency(Hz) | 60 | |
| 23 | Working humidity | 10~95%RH | |
| 24 | Working temperature | -30ºC~60ºC | |
| 25 | Certificates | RoHS / CE / CCC | |

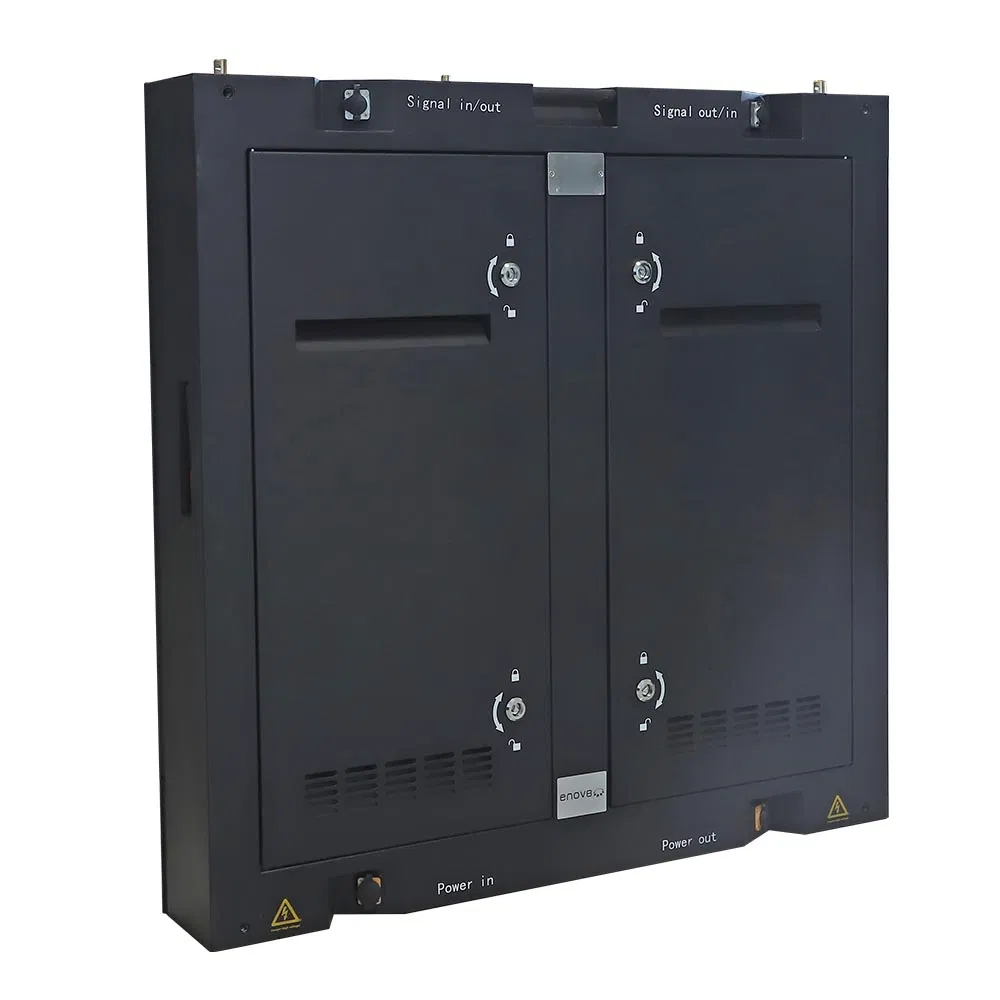

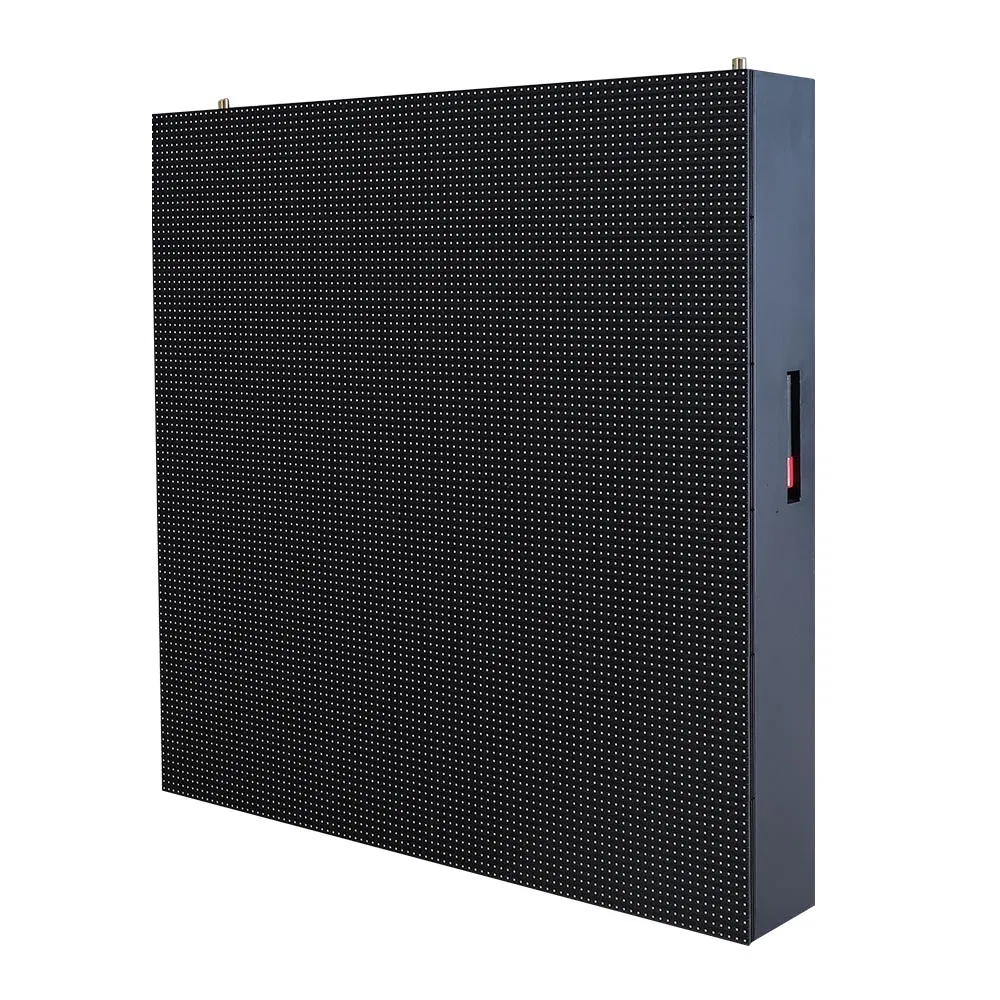

LED PANEL PHOTOS:

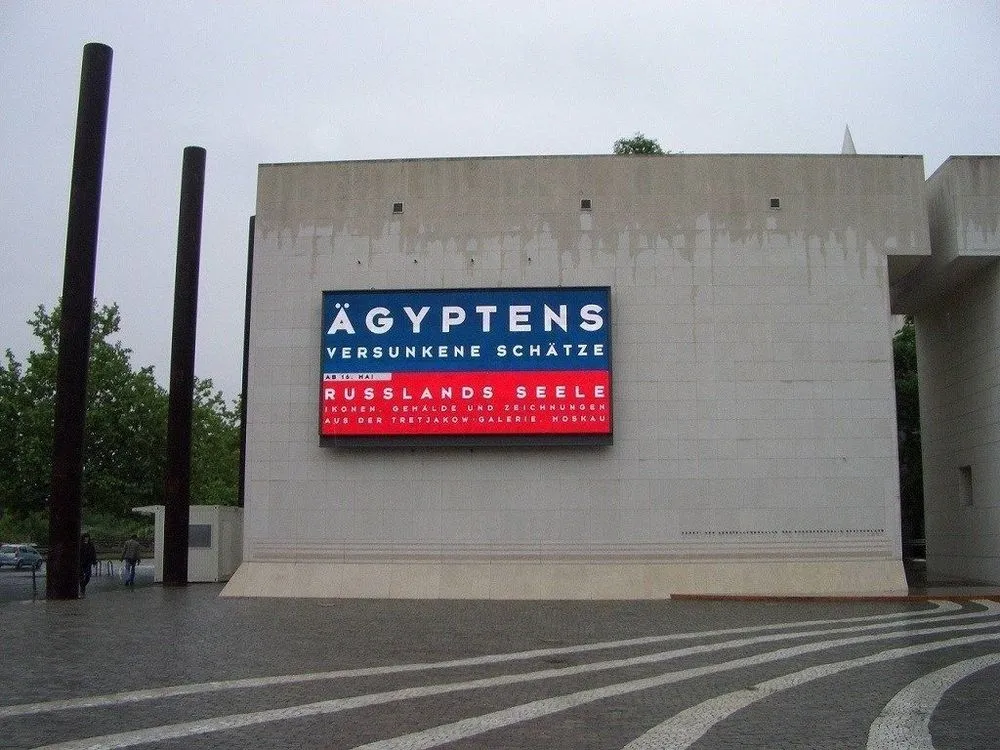

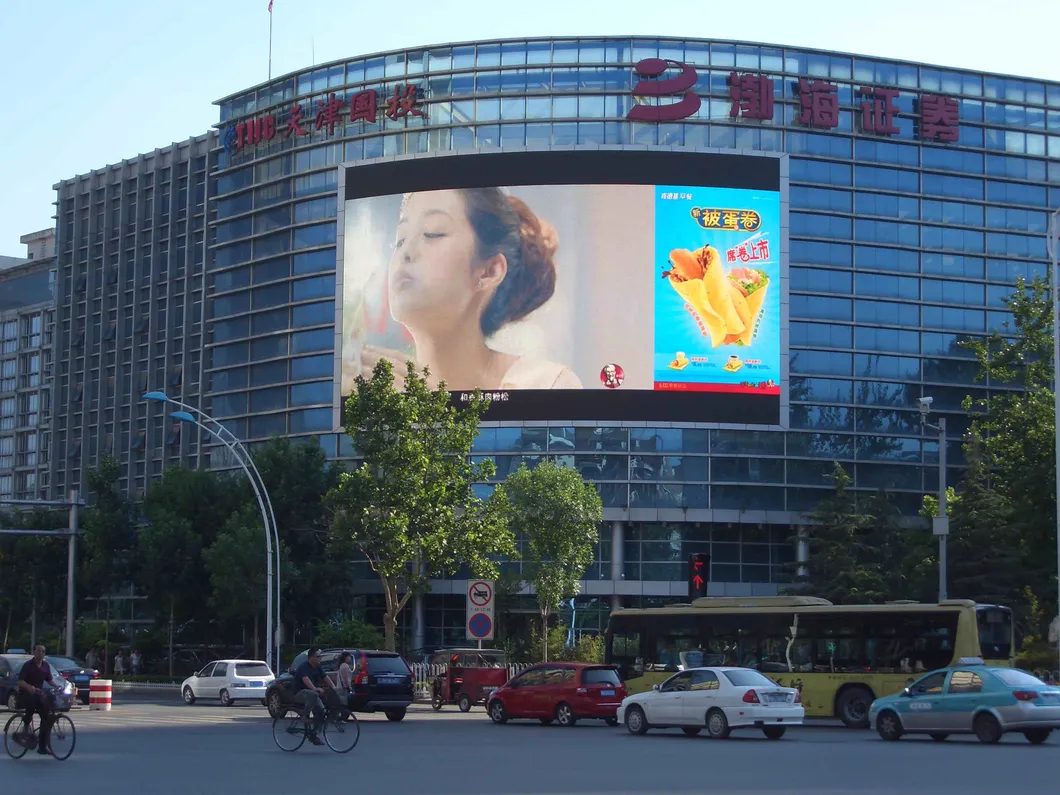

Wall-mounted on the building :

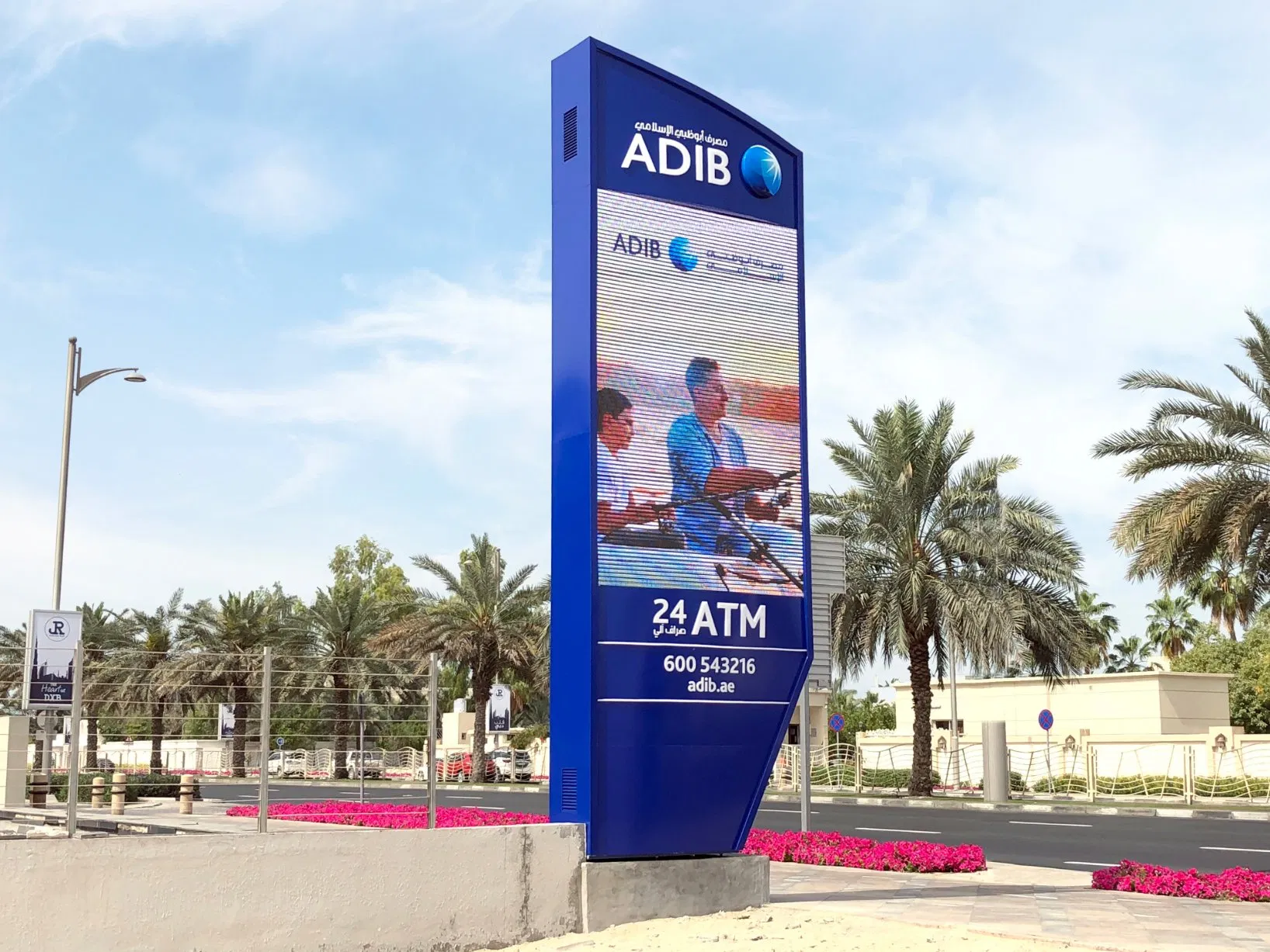

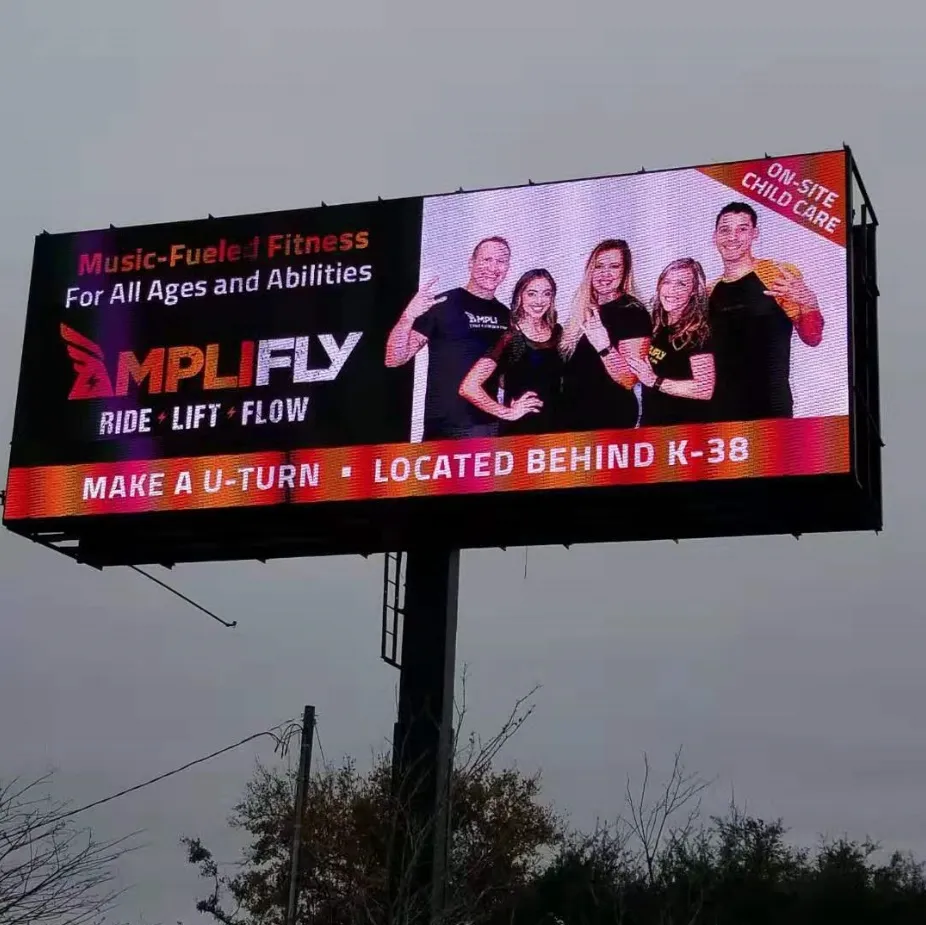

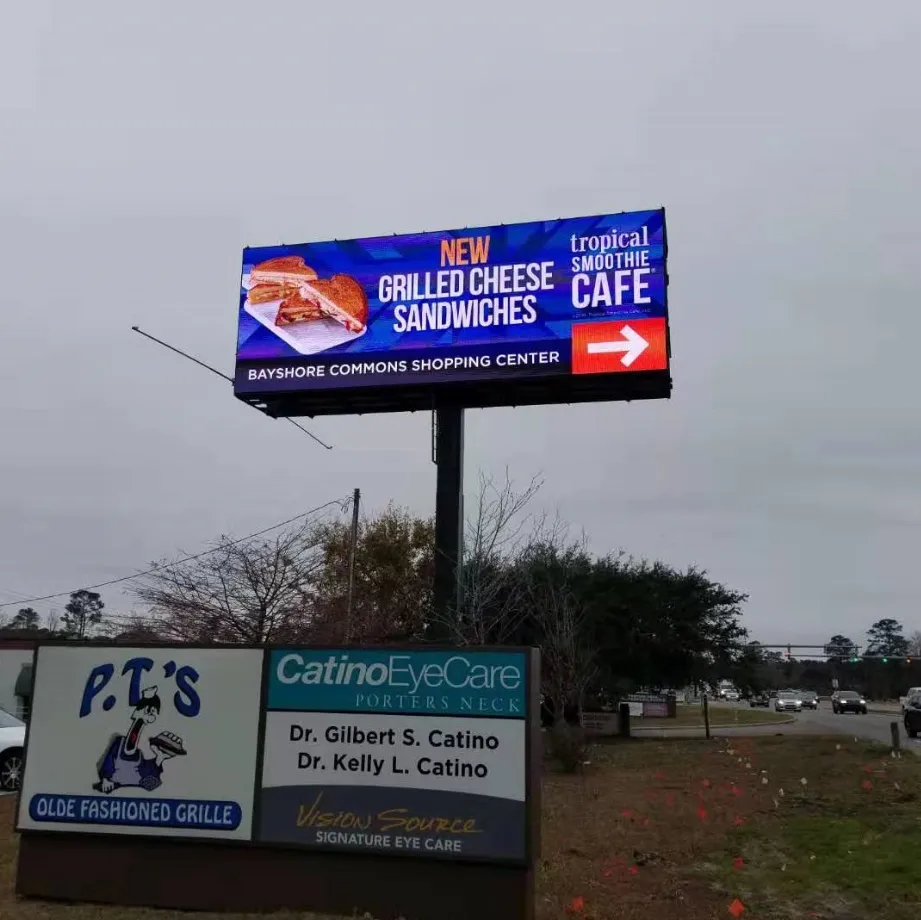

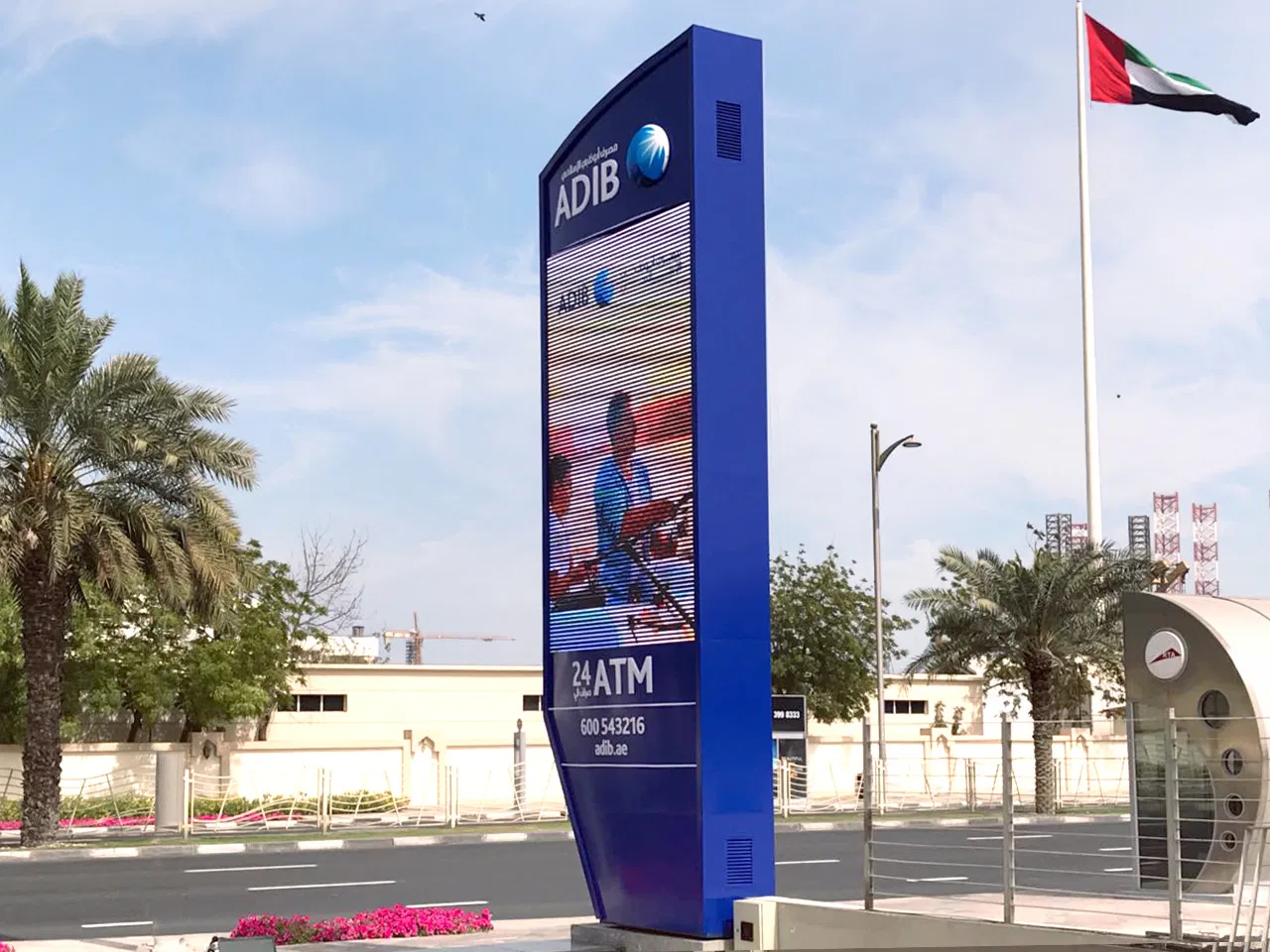

Unipole standing LED screen :

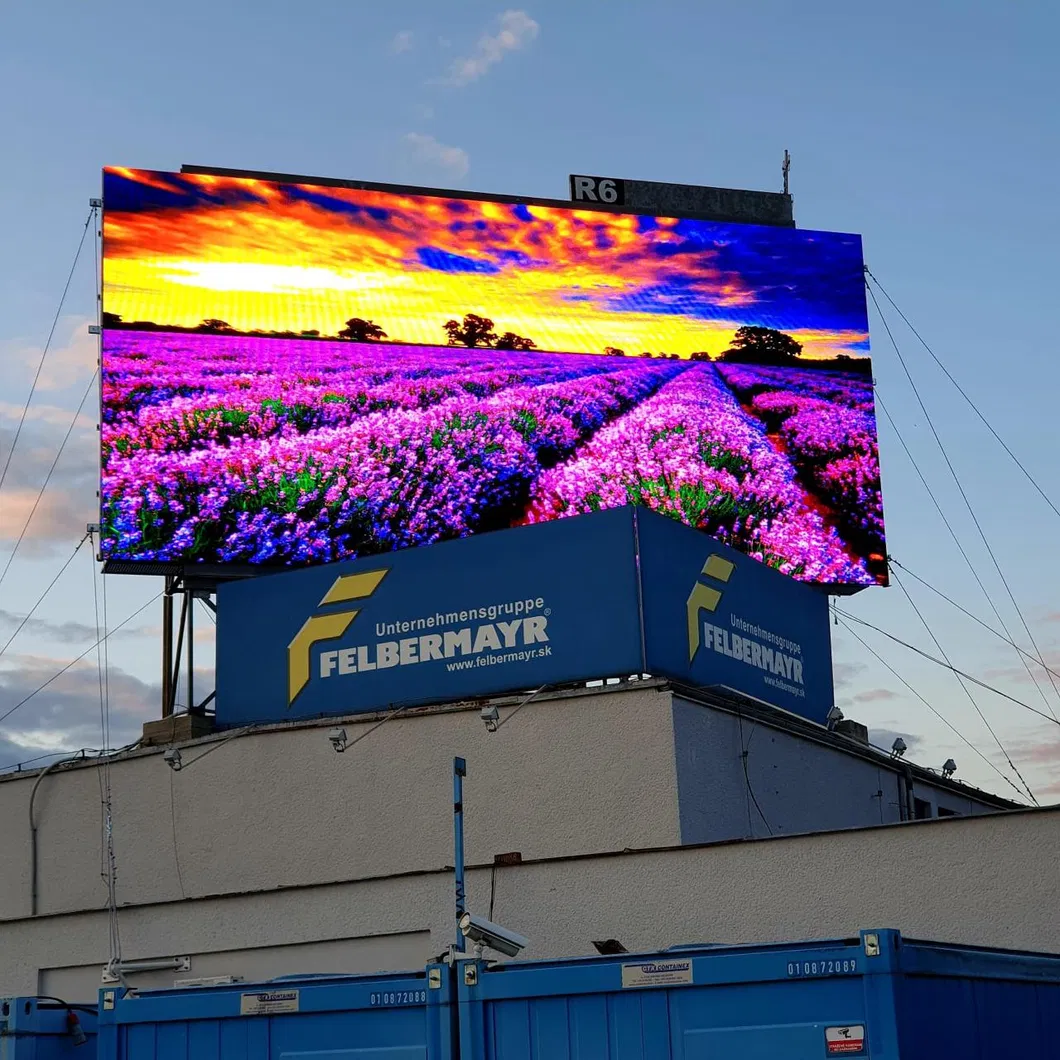

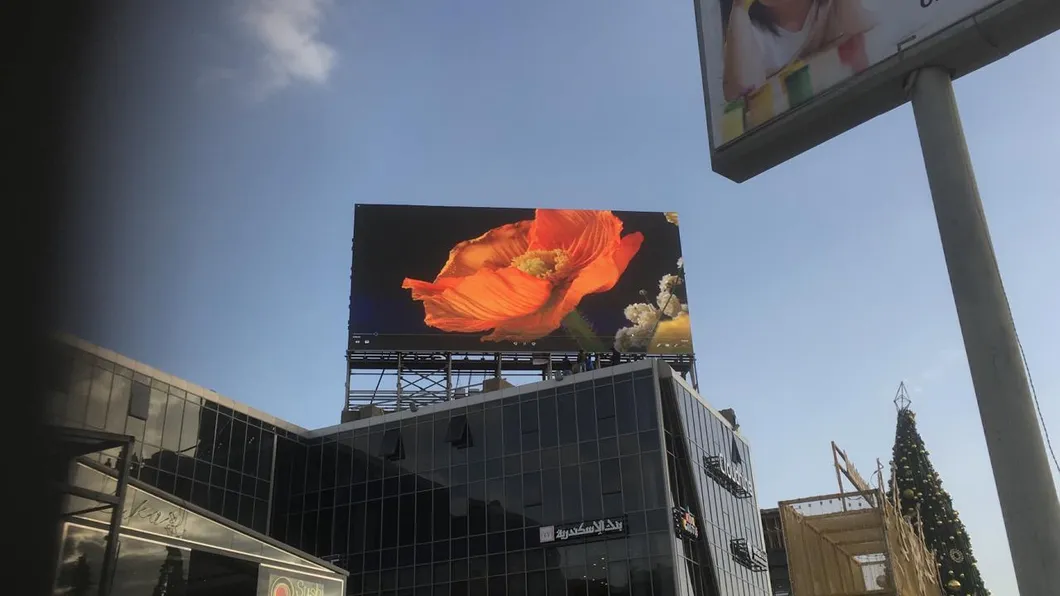

Installed on the roof :

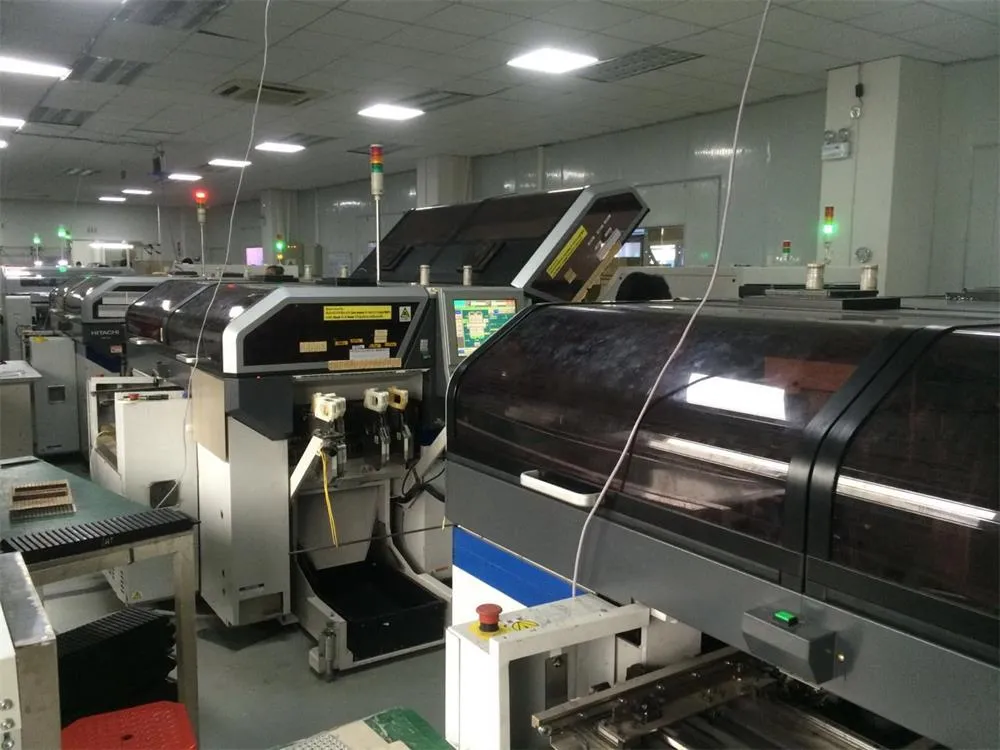

Factory photos:

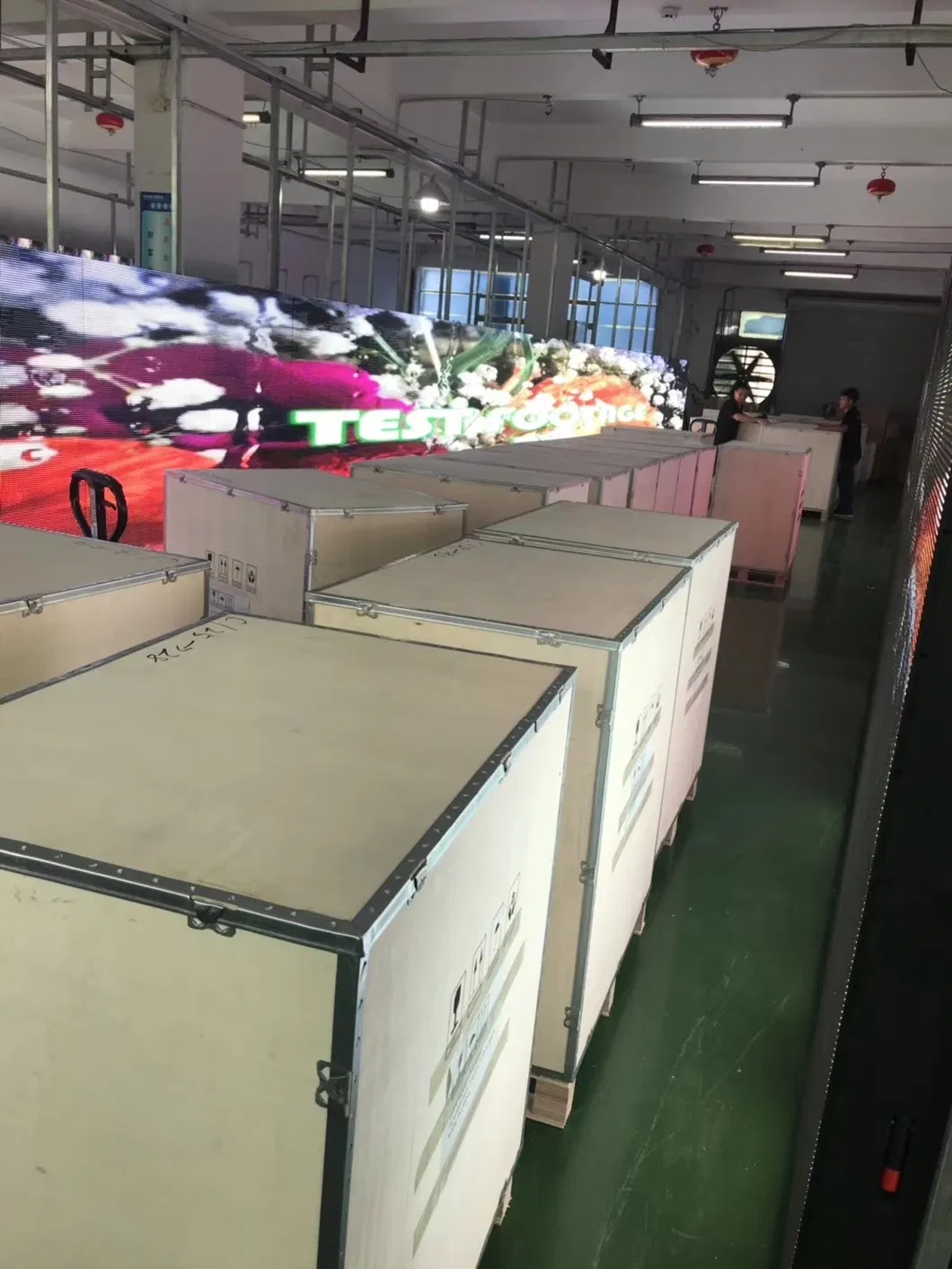

Wooden case Package:
Certificates:
