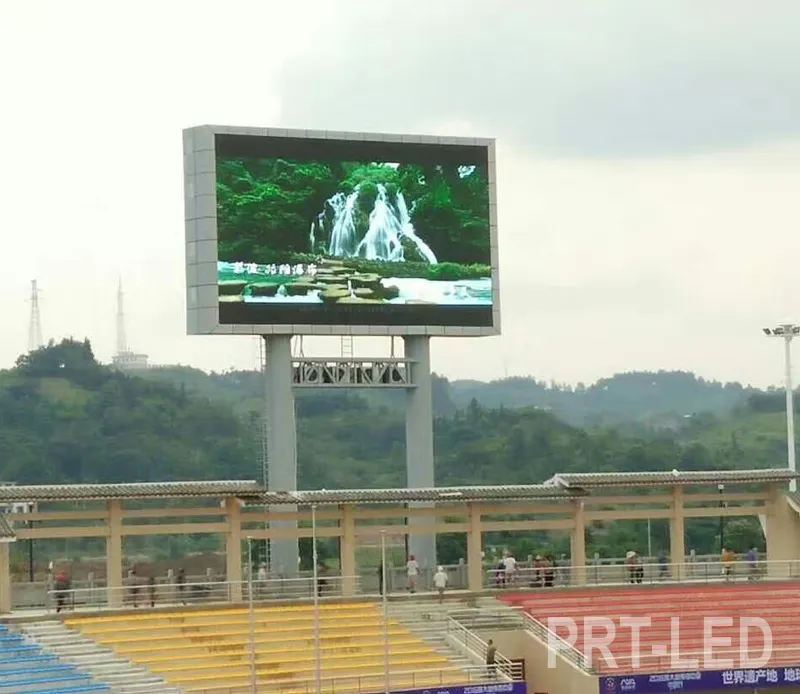

Cheap Cost P10 SMD Full Color Outdoor LED Video Display with High Brightness up 6500 Nits
P10 SMD3535 outdoor full color led billboard fixed on the wall, on the top of building,by roadside for commercial advertising,traffice sign,sport broadcasting,public events,with high definition,high brightness for display, with CE,Rohs,FCC 3C, high quality, 3 years warrantyProduct Features:1.SMD led......
Send Inquiry
Product Description

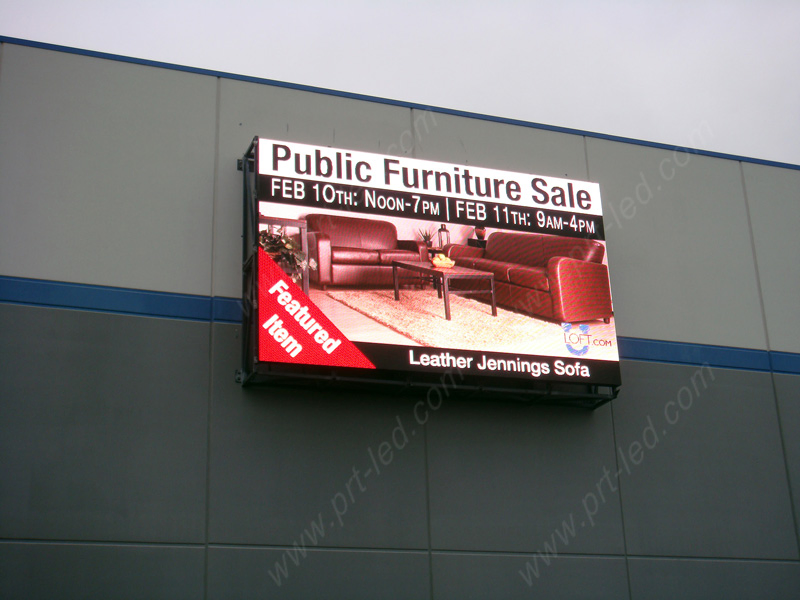

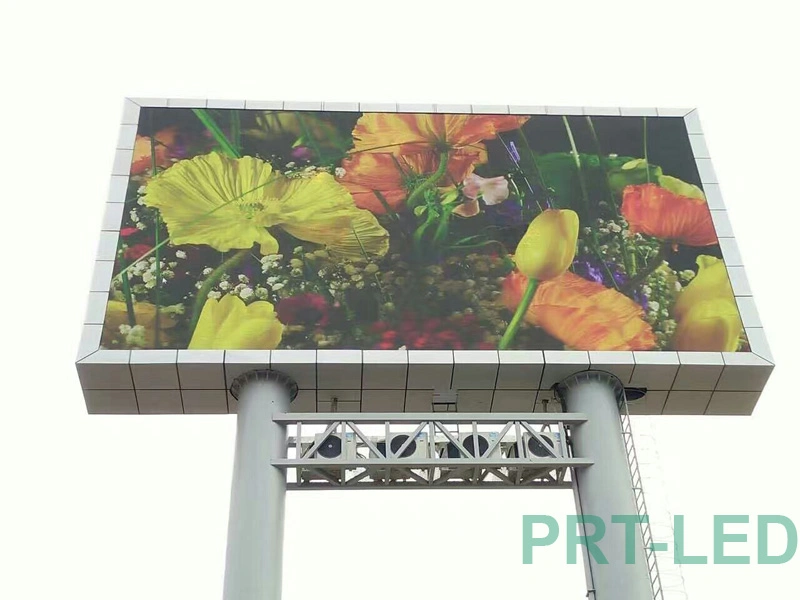

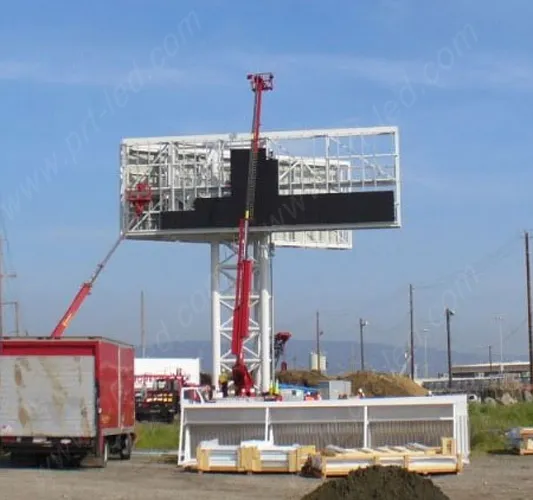

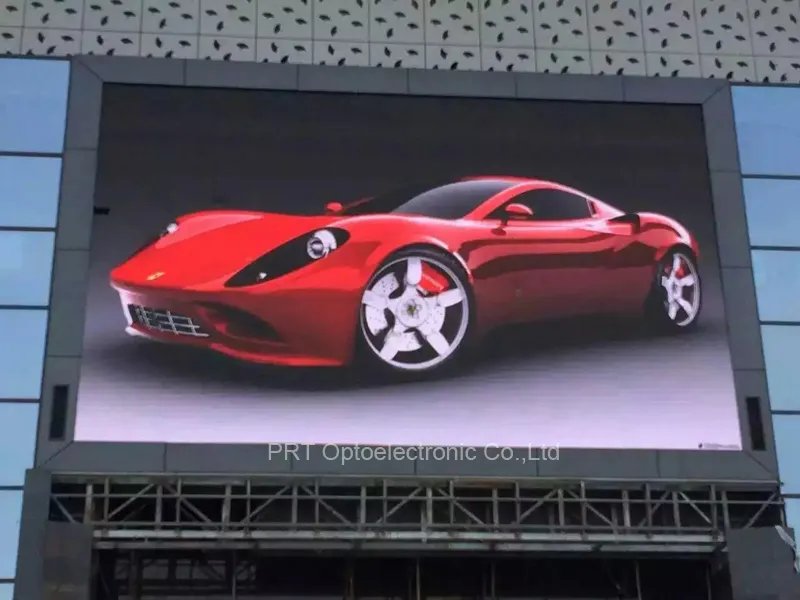

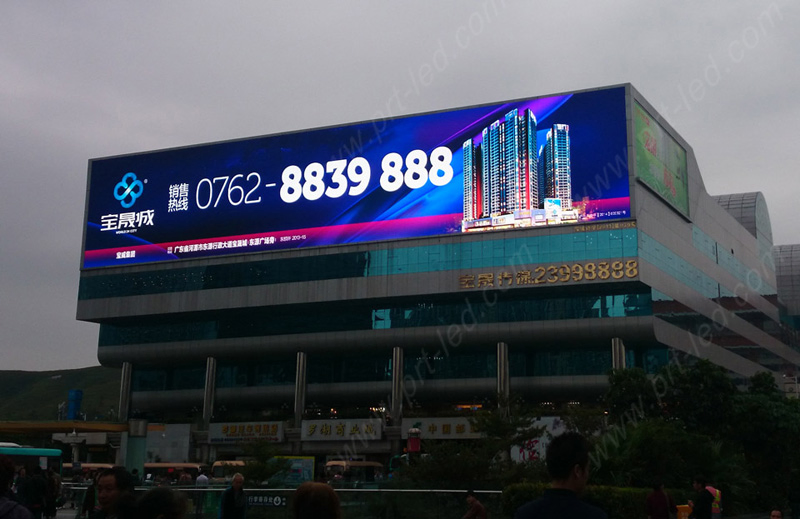

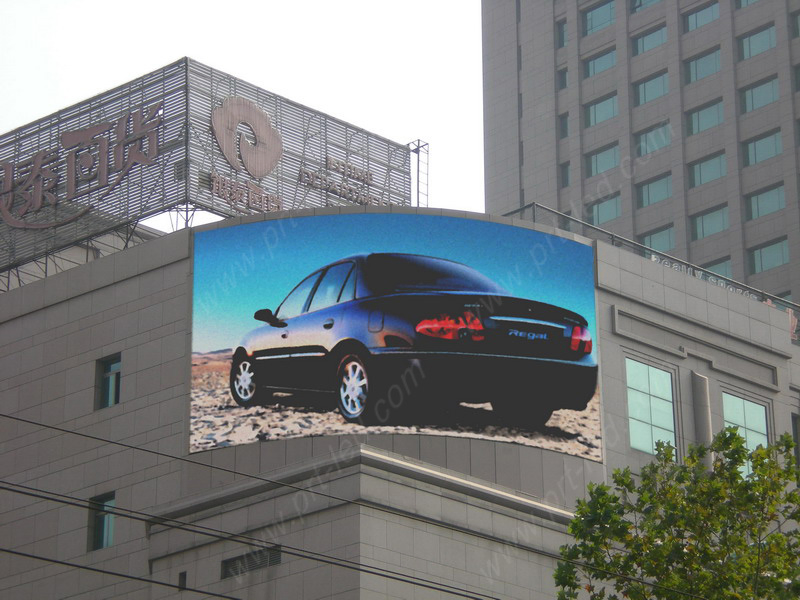

P10 SMD3535 outdoor full color led billboard fixed on the wall, on the top of building,by roadside for commercial advertising,traffice sign,sport broadcasting,public events,with high definition,high brightness for display, with CE,Rohs,FCC 3C, high quality, 3 years warranty
Product Features:
1.SMD led encapsulation confirm wide view angle and good uniformity
2.Good waterproof IP65, long life span>100000hours
3.High brightness up to 6000nits, can be seen from far away up 100M

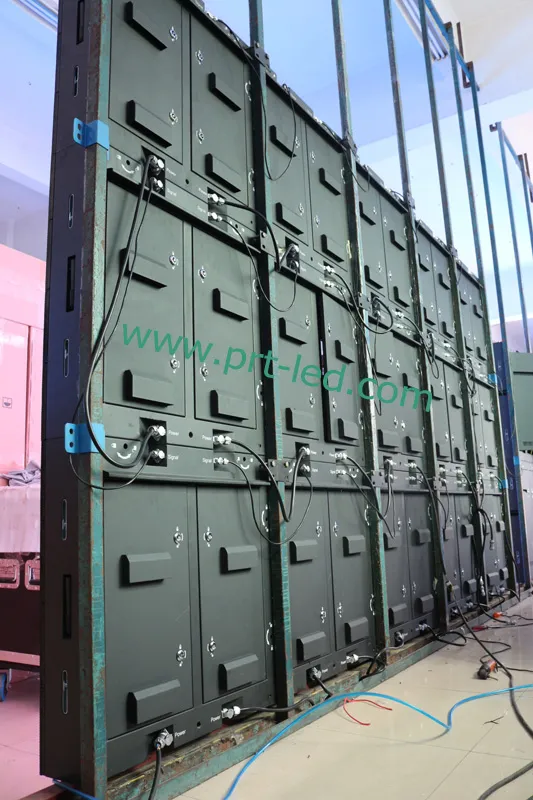

4. With fast locks and aviation plugs, easy and quick to assemble without tools in short time
5. Low power consumption, good heat dissipation, low noise created,
6. Can be controlled by PC, 3G/wifi remote with asynchronous system,change the dispay content as your need
Product Features:
1.SMD led encapsulation confirm wide view angle and good uniformity
2.Good waterproof IP65, long life span>100000hours
3.High brightness up to 6000nits, can be seen from far away up 100M
4. With fast locks and aviation plugs, easy and quick to assemble without tools in short time
5. Low power consumption, good heat dissipation, low noise created,
6. Can be controlled by PC, 3G/wifi remote with asynchronous system,change the dispay content as your need
| P10 Outdoor full Color LED Screen Specification | |
| Pixel pitch | 10mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3535 black |
| Size of module | 320mm x 160mm |
| Resolution of module | 32x16 |
| Size of cabinet | 960mmx 960mm /1280mm x 960mm |
| Resolution of cabinet | 96x96 / 128 x 96 |

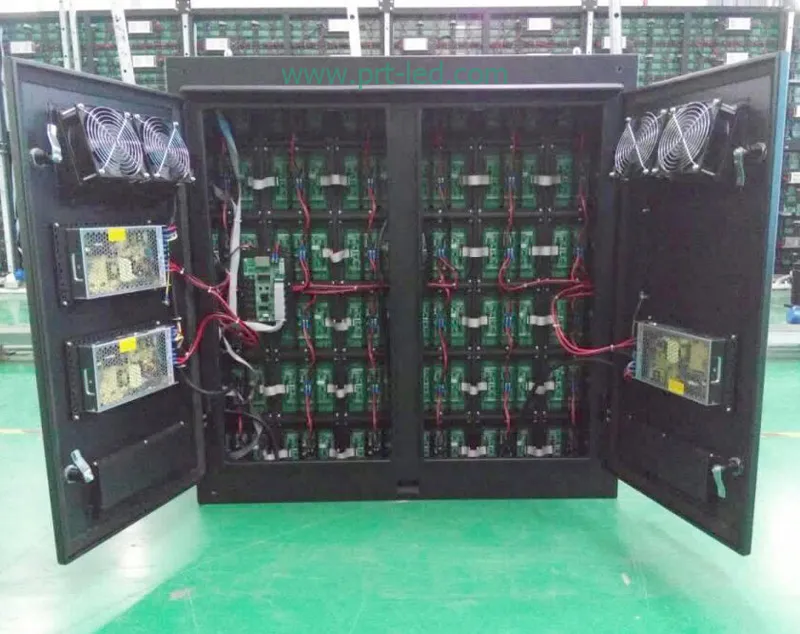

| Material of Cabinet | Iron with back doors |
| Weight of Cabinet | <60KGS |
| Brightness | >7500cd/m2 |
| Density | 10000dots/m2 |
| Best viewing angle | 140 /14 |
| Best viewing distance | 10-150M |
| Maximum power consumption | <800W/m2 |
| Average power consumption | <350W/m2 |
| Driving method | 1/2 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256 x 256 x 256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1800Hz |
| IP grade | IP65 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
| Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
