Ultra HD Indoor LED Video Wall, Full Color LED Display Panel with Front Accessed Board (P1.25, P1.56, P1.8)
Factory P1.25 Indoor Full Color LED Display ScreenFeatures:1. High refresh rate: With NOVA STAR control system, no scanning line when photographed2. High gray level: 256 RGB each ,display 16.7M colors, vivid and perfect video effect 3. High resolution: The most apparent f......
Send Inquiry
Product Description
Factory P1.25 Indoor Full Color LED Display Screen
Features:
Product Details:
Led display = led module + led cabinet + control system + hanging system
LED Module: P1.25 200*150mm
LED Cabinet: 400*300mm
Control system: Sending card + Receiving card + video processor
Spare parts:
Package(Flight case):
Application:
Company Information:
FAQ
Q1: How can I trust your HONGHUI LED factory ?
A1: We specialized in led since 2009, it is over 8 years. In the past near 10 years, we developed from one floor to 3 floors so well.
Our factory and head office are in Shenzhen, China. Also we have a Sales office in Shanghai.
Welcome to visit our factory at any time you want.
Q2: What is the warranty of your led display?
A2: We have warranty of 2-5 years.
Q3: What's your payment term?
A3: We accept T/T, ALIBABA Trade Assurance, Western Union Cash or other Online Bank Payments.
At least 30-50 % deposit in advance, and the balance should be paid before delivery.
Q4: How long is your delivery time ?
A4: 1-12sqm----10-13days;
12-24sqm----13-18days;
≥50sqm----20-27days.
(if order is urgent, it can be arranged before other orders.)
Welcome to visit honghuiled.en.made-in-china.com for further information!
Features:
1. High refresh rate: With NOVA STAR control system, no scanning line when photographed
2. High gray level: 256 RGB each ,display 16.7M colors, vivid and perfect video effect
3. High resolution: The most apparent features of the new generation of LED display
4. Good color uniformity: With brand Lamp Nationstar and high refresh 6153 IC.
5. High Brightness: 1000-1500 cd/m2 ,brightness automatically adjusted
6. High Quality: CE, RoHs, FCC, SGS passed + 96 Hours serious testing time
7. Long life span: over100,000hours, warranty from 2 to 5 years.
8. You need = We design : Provide Personal- Customized led offer.
| Technical Specifications | |||||
| NO | Product name | Indoor P1.25 led display | |||
| 1 | Pixel Pitch(mm) | 1.25mm | |||
| 2 | Pixel configuration | 1R1G1B/ | |||
| 3 | Pixel density | 640000 dots/m2 | |||
| 4 | Brightness | 1200cd/m2 | |||
| 5 | Module size(W*H) | 200mm * 150mm | |||
| 6 | Module Resolution (W*H) | 160dots x 120dots | |||
| 7 | Module weight | 300g | |||
| 8 | Cabinet size (W*H) | 400*300mm | |||
| 9 | Drive IC | 6153 | |||
| 10 | Drive mode | 1/30 scan | |||
| 11 | Viewing Angle(V/H) | 140ºC | |||
| 12 | Grey Scale | 65536 degree | |||
| 13 | Life time | >100,000 Hours (50%) | |||
| 14 | MTBF | >50,000 Hours | |||
| 15 | Operating Voltage | AC110V/220V±10% | |||
| 17 | Screen Power Consumption | Max: 600w/m2; Average:250w/m2 | |||
| 18 | Input Power Frequency | 50/60Hz | |||
| 19 | Operating temperature | -30--60ºC | |||
| 20 | Humidity | 10%-95% | |||
| 21 | Refresh Rate | 3840HZ | |||
| 22 | Control Method | Synchronized with computer monitor | |||
| 23 | Color Temperature | 6500K-9500K | |||
| 24 | LED control system | Nova-star,Colorlight, LINSN, Huidu are selectable | |||
| 25 | Control Distance | 100 m (no repeating); Optical fiber transmission: 500m- 15km | |||
| 26 | Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI | |||
| 27 | Systems Operating Platform | Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 | |||
Product Details:

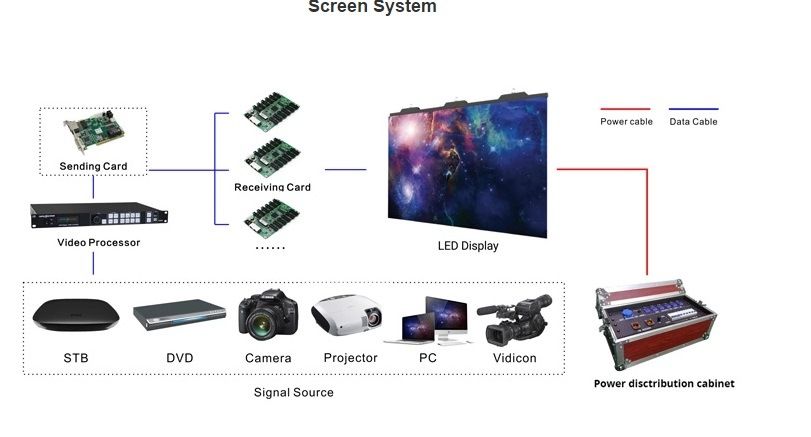

Led display = led module + led cabinet + control system + hanging system

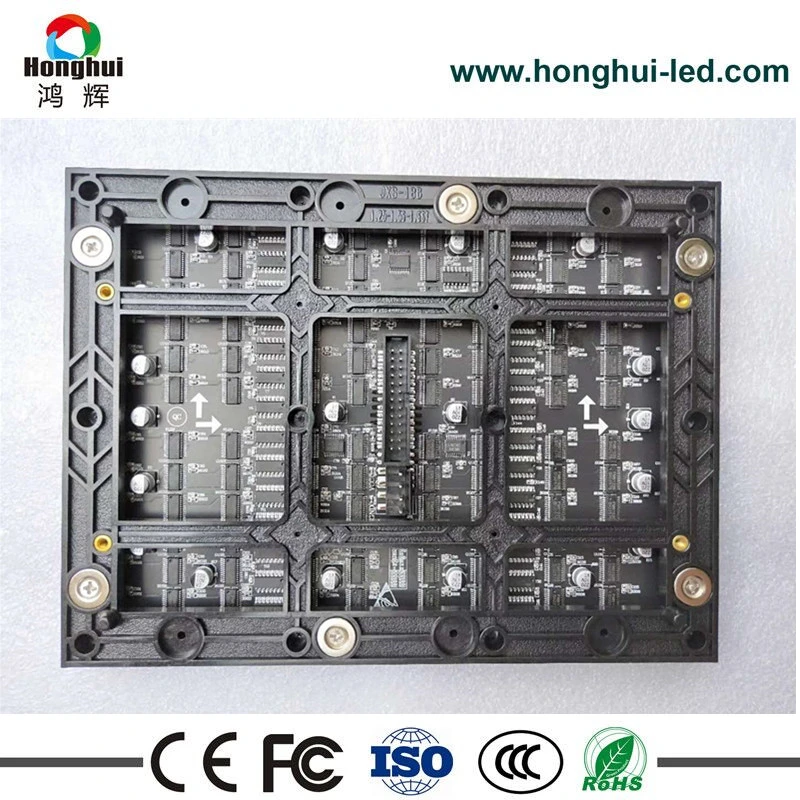

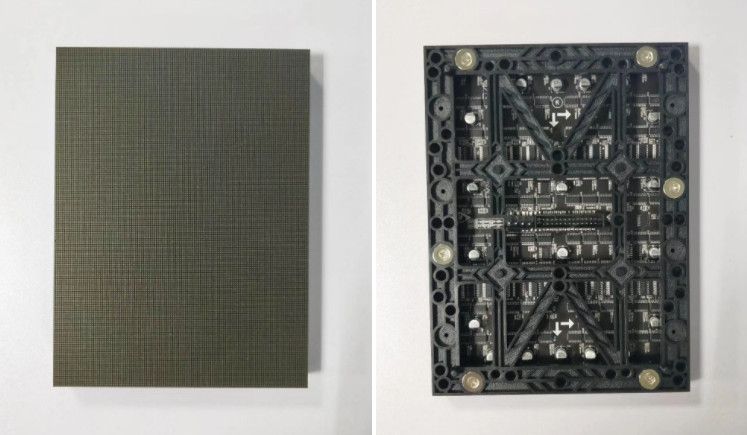

LED Module: P1.25 200*150mm

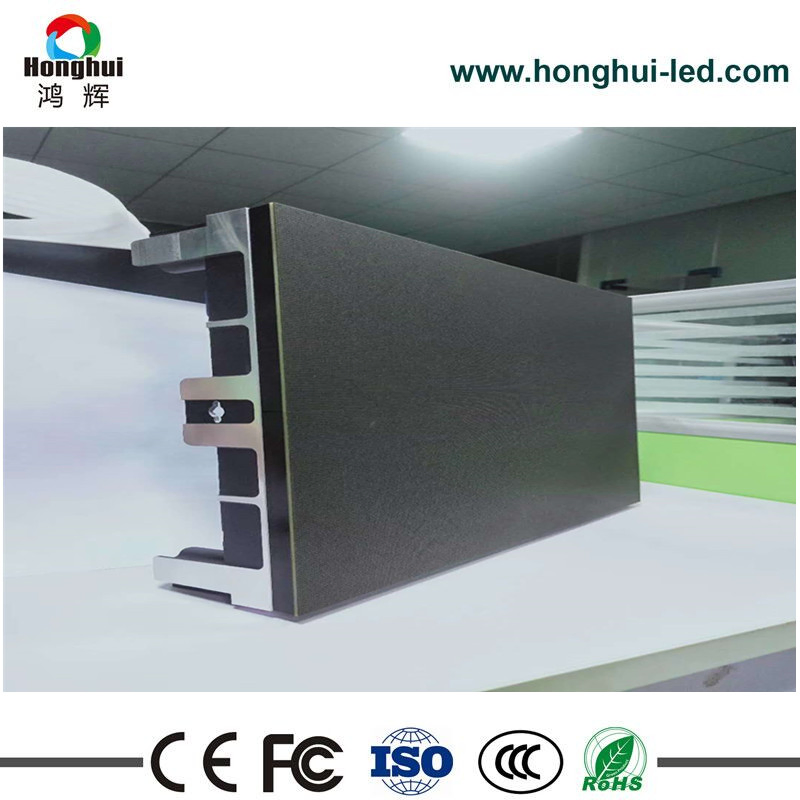

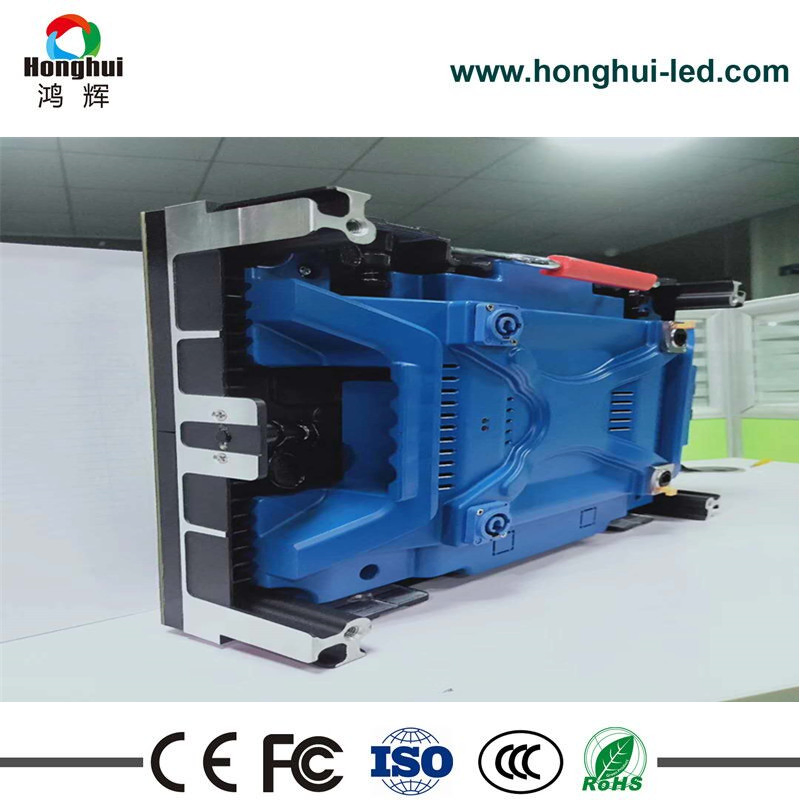

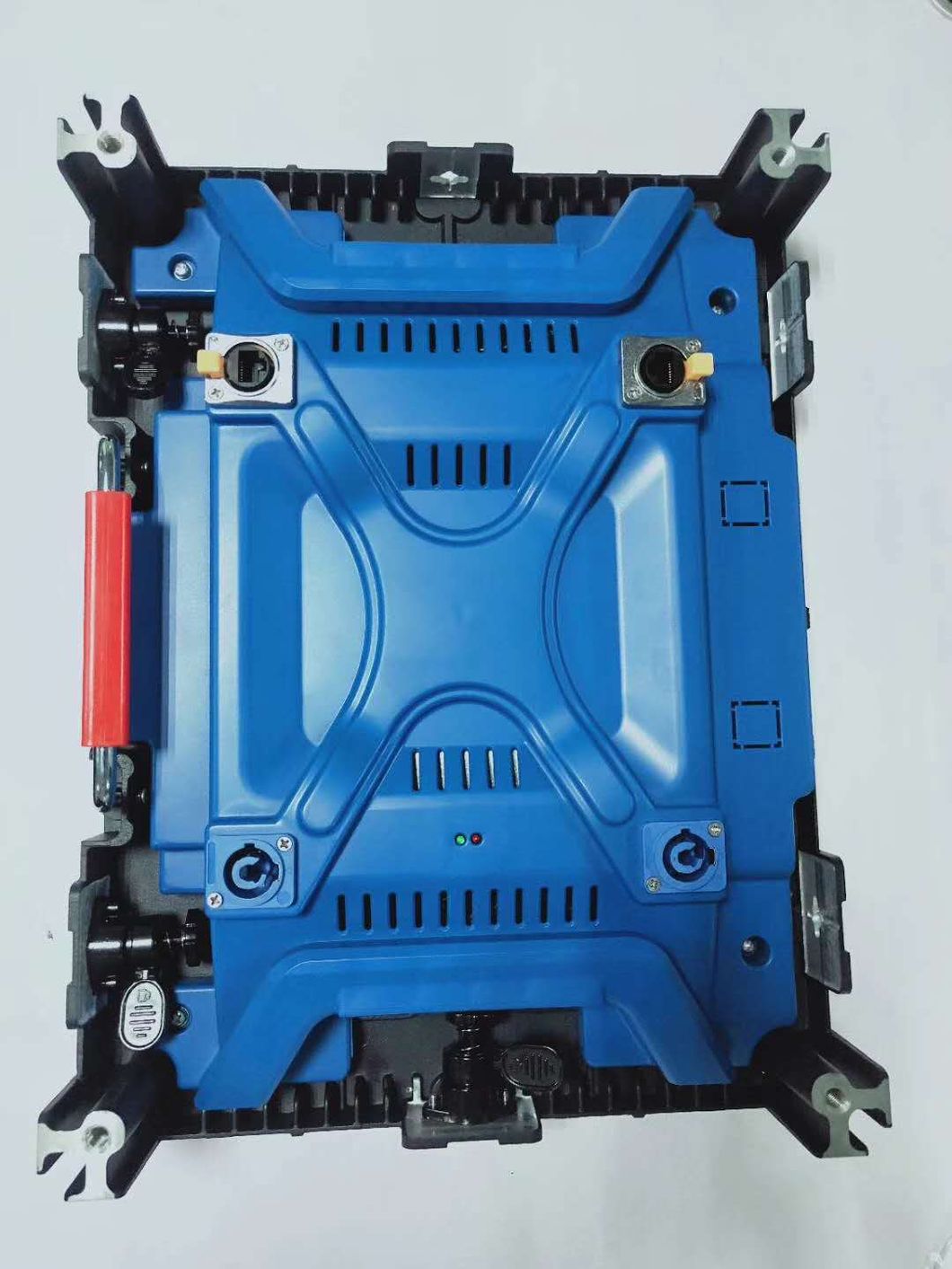

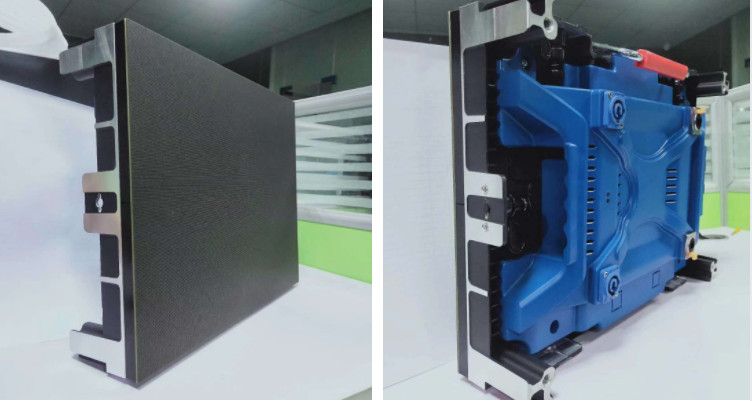

LED Cabinet: 400*300mm

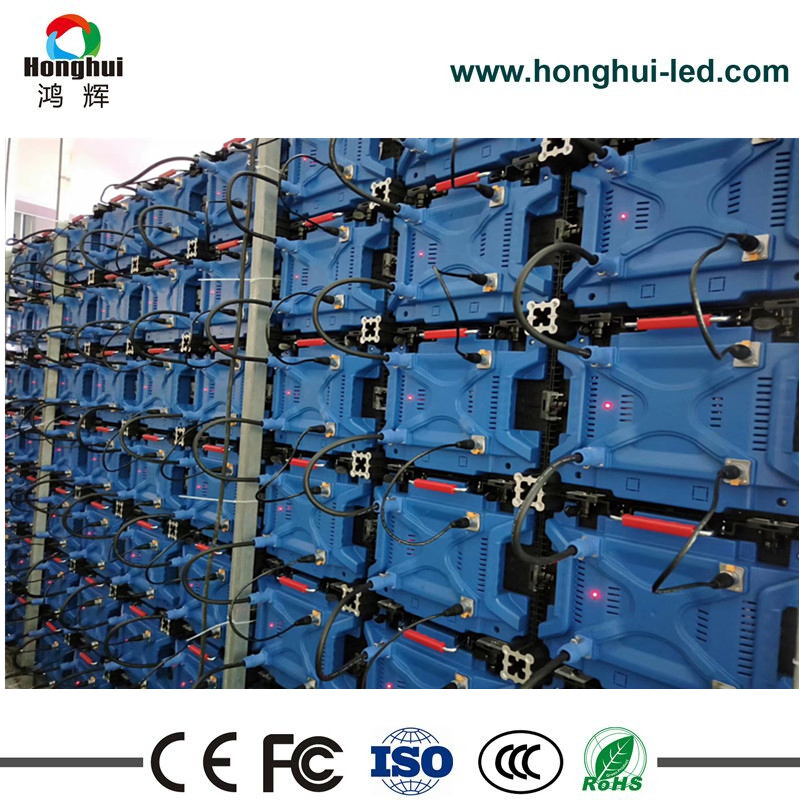

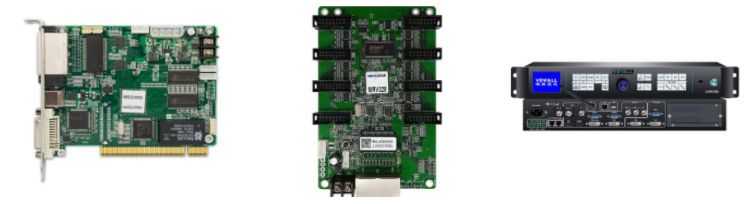

Control system: Sending card + Receiving card + video processor

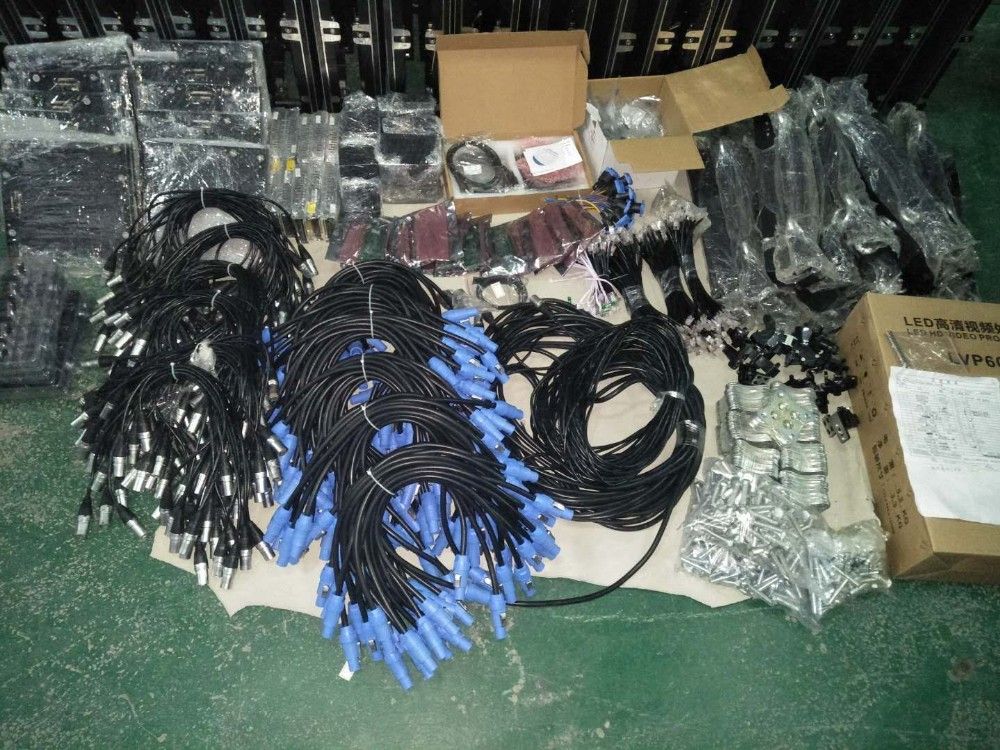

Spare parts:

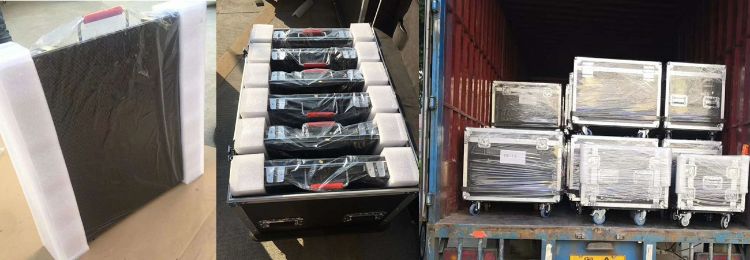

Package(Flight case):

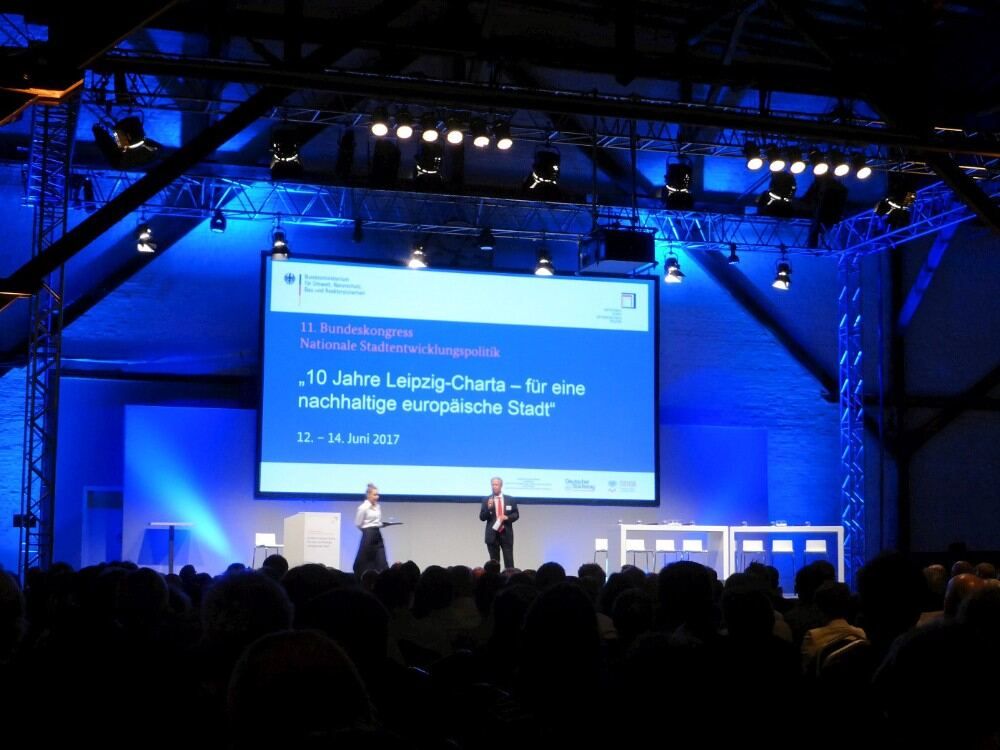

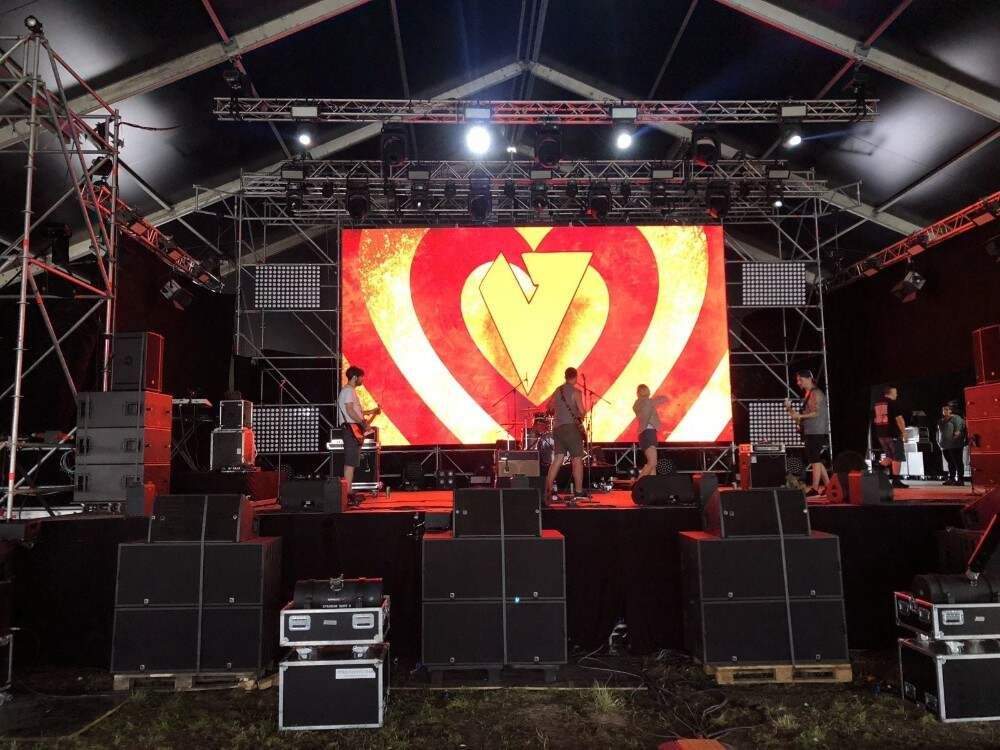

Application:

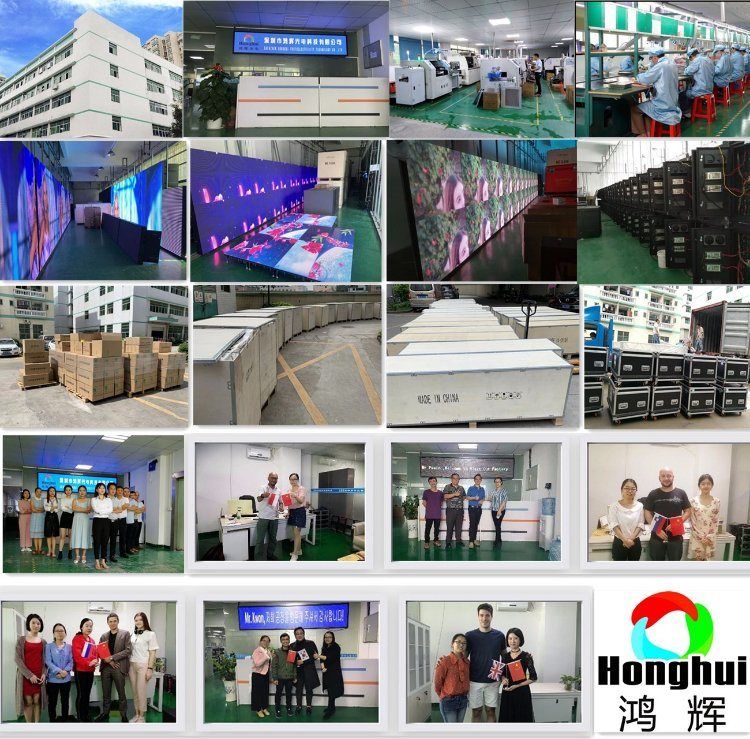

Company Information:
FAQ
Q1: How can I trust your HONGHUI LED factory ?
A1: We specialized in led since 2009, it is over 8 years. In the past near 10 years, we developed from one floor to 3 floors so well.
Our factory and head office are in Shenzhen, China. Also we have a Sales office in Shanghai.
Welcome to visit our factory at any time you want.
Q2: What is the warranty of your led display?
A2: We have warranty of 2-5 years.
Q3: What's your payment term?
A3: We accept T/T, ALIBABA Trade Assurance, Western Union Cash or other Online Bank Payments.
At least 30-50 % deposit in advance, and the balance should be paid before delivery.
Q4: How long is your delivery time ?
A4: 1-12sqm----10-13days;
12-24sqm----13-18days;
≥50sqm----20-27days.
(if order is urgent, it can be arranged before other orders.)
Welcome to visit honghuiled.en.made-in-china.com for further information!
