China Single-Green Color SMD Indoor LED Display/Screen

Product Description

We have excellent research and development department and after sell service workers, and independent design ability.

Our main products include led single color display, indoor full color led display screen, led display, outdoor full-color led to wireless car use screen, etc. Can be used for shopping, banking, bus station, railway stations, urban centers, airports, schools, factories, bus, taxi, and so on.

We have many methods and excellent after sell service to sell our products all over the world. Anywhere, we always take the principle is:Specializing in the production of good quality, good price products market, to provide perfect products and services for our customers.

P10-Single color Technical Parameter
Item	Unit	Parameter
Pixel Pitch	mm	10
Resolution of Module	Dots	32×16
Module Size	mm	320×160mm
Pixel Configuration	W	1
Module Weight	KG	0.59
Pixel Density	dots/sqm	10,000
Brightness (White Balance)	nits(cd/sq.m)	2000
Scan Mode	Scan	1/4
The best viewing distance(m)	M	>=10
The best viewing angle:	deg	110
Module Maximum Power	W	20
Max. Power Consumption	W/sq.m	400
Avg. Power Consumption	W/sq.m	100-250
Working Voltage	V	5
Power Supply	AC 110/220V
Waterproof Grade	IP65
Refresh Rate	Hz/Sqn	300
Frame Rate	Hz/Sqn	≥ 60
Display Function	Texts
Input Signal	RS232/485, USB,Ethernet
Defective Dot Rate	<0.0001
Life Span	hours≥100,000
MTBF	hours≥5,000
Operating Temperature	-20°C~+60°C
Working Humidity	10%-90%RH
Control System	Asynchronous or Synchronous
Warranty	2 Year
Note: The above parameter is just for reference. Changes can be made according to customers' requirements.

SHOW

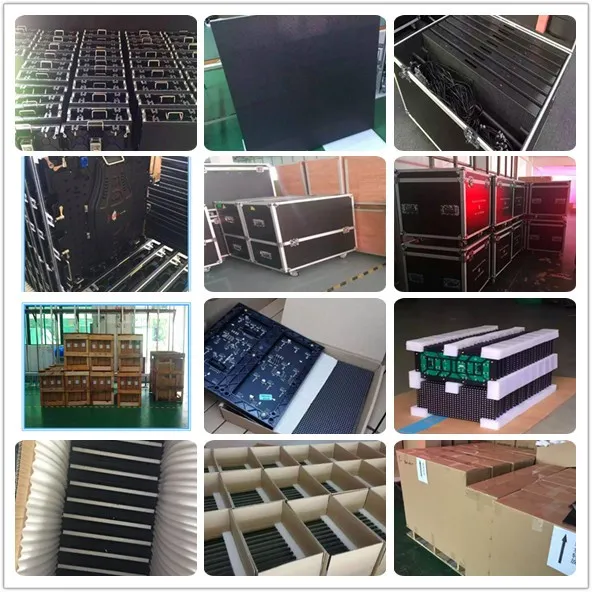

Packaging

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.
