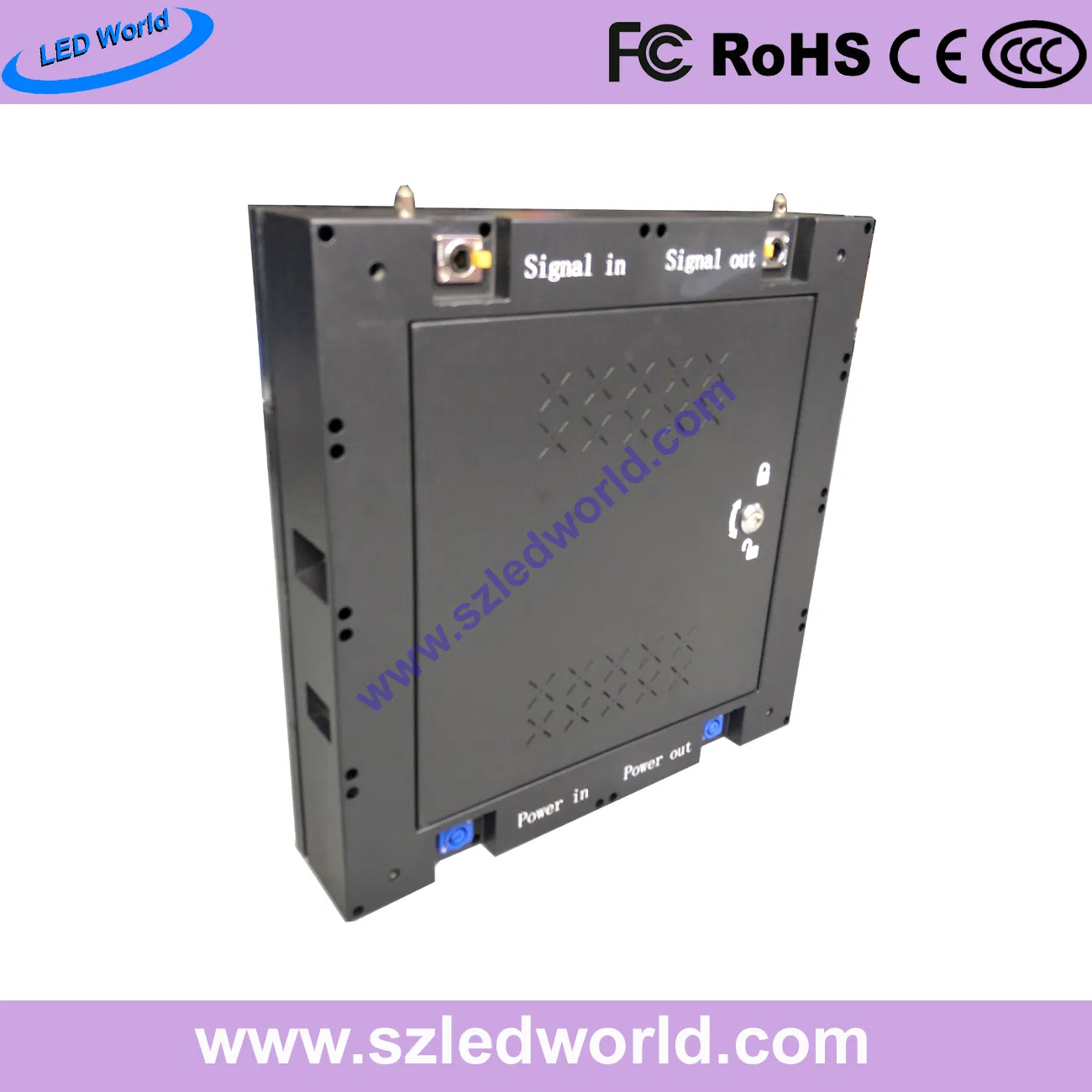

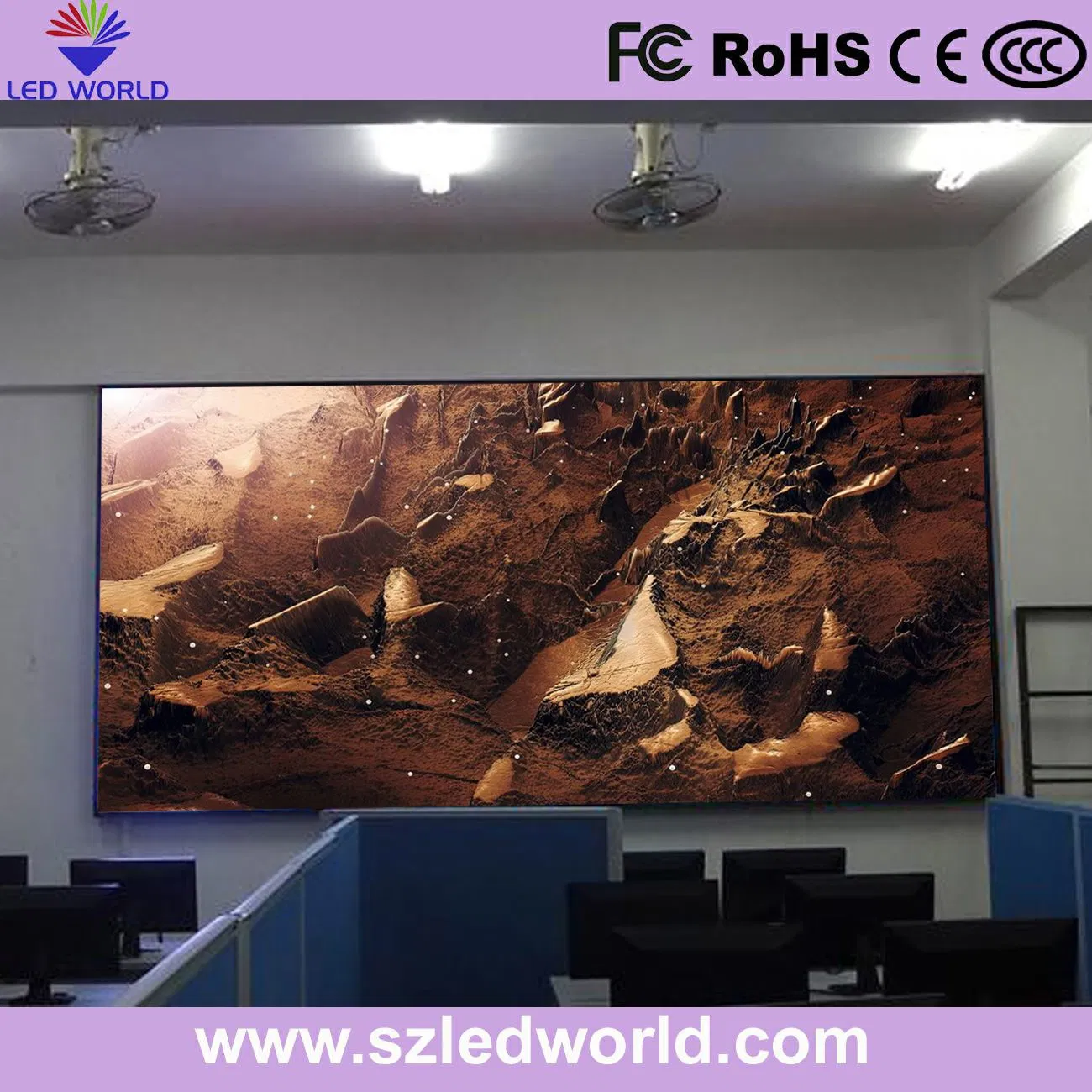

P8 Outdoor LED Video Display Board Text Graph and Video (P2.5 P3 P4 P5 P6 P10)
P8 Outdoor LED Video Display Board Text, Graph and Video(P2.5 P3 P4 P5 P6 P10)Feature:1. With the best LED industrial waterproof and ultraviolet-proof SMD 3 in 1 technology, confirm the super wide view angle and better enness surface and stability;2. Large viewing angle,160 degree Horinzontally and ......
Send Inquiry
Product Description
P8 Outdoor LED Video Display Board Text, Graph and Video(P2.5 P3 P4 P5 P6 P10)
Feature:
1. With the best LED industrial waterproof and ultraviolet-proof SMD 3 in 1 technology, confirm the super wide view angle and better enness surface and stability;

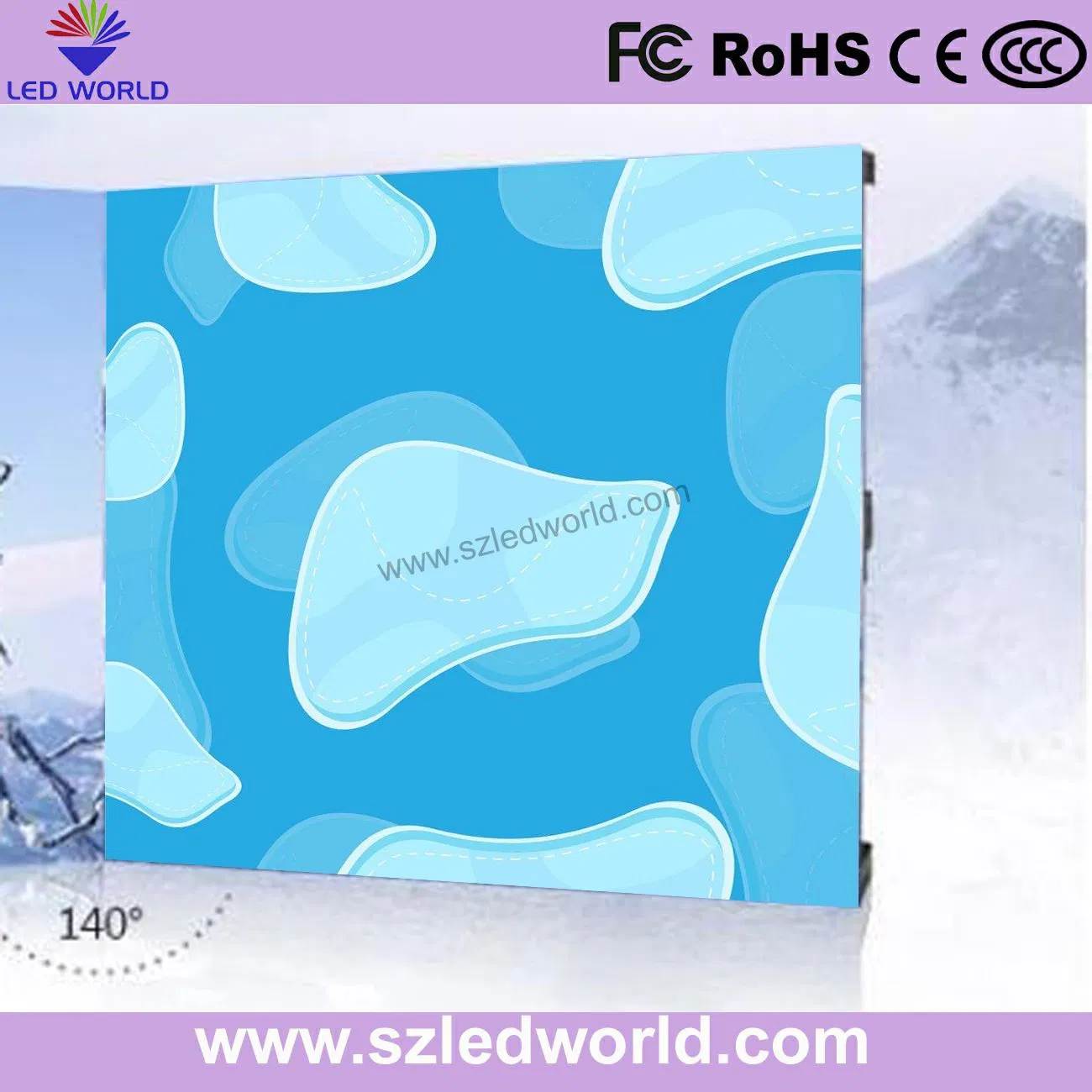

2. Large viewing angle,160 degree Horinzontally and 140 degree vertically by using our specially designed mask;
3. Excellent heat dissipation and noiselessness with ultra-quite fan;
4. Delicated image, wide horizon viewing angle at 140 degree to provide better viewing experience with optimal refresh rate (2000Hz), high grey level (14 bits) and high contrast ratio (2000:1);
5. Rental / Fixed: Easy to install and disassemble;
6. SMD led encapsulation ensure good heat dissipation and low power consumption;
Parameter:
Our Company:
Shenzhen LED World co.,ltd was founded in 2007, which is a national high-tech enterprises specialized in LED display products R&D, production, sale and engineering services.
The products we can offer you, besides outdoor full color P10 led display for advertising, also include:
1. P1.92\P1.2\P2.5\P3\P4\P5\P6...Indoor full color led display;
2. P5\P6\P6.25\P6.67\P8\P10/P12/P12.5/P16/P20/P25...Outdoor full color led screen;
3. Indoor/outdoor/semi-outdoor single/dual color led panel etc.
Through our efforts, our products have been sold well in Europe, North/South America, Australia, the Middle East and Southeast Asia. Welcome to contact Shenzhen LED World today!
Our project:
Our features
1. Good quality and price
The price is 10% lower than the market because of the introduction of full automatic production line with the characteristics of reducing the cost of labor and management;
2. Lightweight with no rust
It can use aluminum cabinet greatly saving fright cost and conveniently installing;
3. Stable performance
our most basic guarantee: the aging time exceeding 24 hours. Malfunction dot rate less than 0.0001. MTBF more than 1000 hours;
4. Best quality LED chip tube
the GREE, SILAN, OPTO, EPISTAR assuring high brightness and long lifespan;
5. Supporting different formats of images and videos
Flash, WAV/MIDI, Videos from TV and other equipments.
Our factory:
Applications:
Control system:
Installation:
Steel structure:
Certification:
Why Choose Us:
1. Full automatic production to control our high quality, best color consistency and get better performance.;
2. We have professional sales engineer TEAM, which can offer you project solution and also help to solve problem at once.
3. Top quality + reasonable price + patient after-sales service;
4. 24/7 after-sale service
5. Fast locks and assembling pins, flatness and seamless are greatly increased, less than 0.01mm , easy to install and dismantle .Seamless connection, less than 0.1mm between 2 cabinet ;
Feature:
1. With the best LED industrial waterproof and ultraviolet-proof SMD 3 in 1 technology, confirm the super wide view angle and better enness surface and stability;
2. Large viewing angle,160 degree Horinzontally and 140 degree vertically by using our specially designed mask;
3. Excellent heat dissipation and noiselessness with ultra-quite fan;
4. Delicated image, wide horizon viewing angle at 140 degree to provide better viewing experience with optimal refresh rate (2000Hz), high grey level (14 bits) and high contrast ratio (2000:1);
5. Rental / Fixed: Easy to install and disassemble;
6. SMD led encapsulation ensure good heat dissipation and low power consumption;
Parameter:
| Items | P2.5mm | P3mm | P4mm | P5mm | P6mm | P10mm |
| Pixel | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Configuration | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 |
| Pixel Pitch | 2.5mm | 3mm | 4mm | 5mm | 6mm | 10mm |
| Pixel Density | 160,000 | 111,111 | 62,500 | 40,000 | 27,777 | 10,000 |
| Module Size(mm) | 160x160 | 192x192or 192x96 | 256x128 | 160x160or 320x160 | 192x192 or 384x192 | 320x160 |
| Pixels/Module | 64x64 | 64x64or 64x32 | 64x32 | 32x32or 64x32 | 32x32or 64x32 | 32x16 |
| Cabinet Size(mm) | 960x960 | 960x960 | 1024x1024 | 960x960 | 960x960 | 960x960 |
| Pixels/Cabinet | 384x384 | 320x320 | 256x256 | 192x192 | 160x160 | 96x96 |
| Cabinet Weight | 37KG | 37KG | 42KG | 37KG | 37KG | 37KG |
| Brightness | 1300cd/m2 | 1300cd/m2 | 1300cd/m2 | 1300cd/m2 | 1300cd/m2 | 1000cd/m2 |
| Viewing Distance | >2.5m | >3m | >4m | >5m | >6m | >10m |
| Power Consumption | Max: 800 | Max: 800 | Max: 650 | Max: 400 | Max: 400 | Max: 300 |
| (W/m2) | Ave: 240 | Ave: 240 | Ave: 195 | Ave: 120 | Ave: 120 | Ave: 100 |
| Driver Mode | 1/32 scan | 1/16 scan | 1/16 scan | 1/16 scan | 1/16 scan | 1/8 scan |
| Cabinet Material | Cold Rolled Steel | |||||
| Refresh Rate | 300-3000HZ adjustable | |||||
| LED Life | 100,000 hours | |||||
| Supply Voltage | AC220V/50HZ; AC110V/60HZ | |||||
| Operating Temperature | -20ºC ~ +40ºC | |||||
| Operating Humidity | 10% - 90% | |||||
| Viewing Angle | H: 120°; V: 120° | |||||
| Gray Scale | Red, Green and Blue each 16K | |||||
| Display Color | 4096 Billion | |||||
| IP Rating | IP20 | |||||
| Display Capability | Text, Graph and Video | |||||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||||||
Our Company:
Shenzhen LED World co.,ltd was founded in 2007, which is a national high-tech enterprises specialized in LED display products R&D, production, sale and engineering services.
The products we can offer you, besides outdoor full color P10 led display for advertising, also include:
1. P1.92\P1.2\P2.5\P3\P4\P5\P6...Indoor full color led display;
2. P5\P6\P6.25\P6.67\P8\P10/P12/P12.5/P16/P20/P25...Outdoor full color led screen;
3. Indoor/outdoor/semi-outdoor single/dual color led panel etc.
Through our efforts, our products have been sold well in Europe, North/South America, Australia, the Middle East and Southeast Asia. Welcome to contact Shenzhen LED World today!

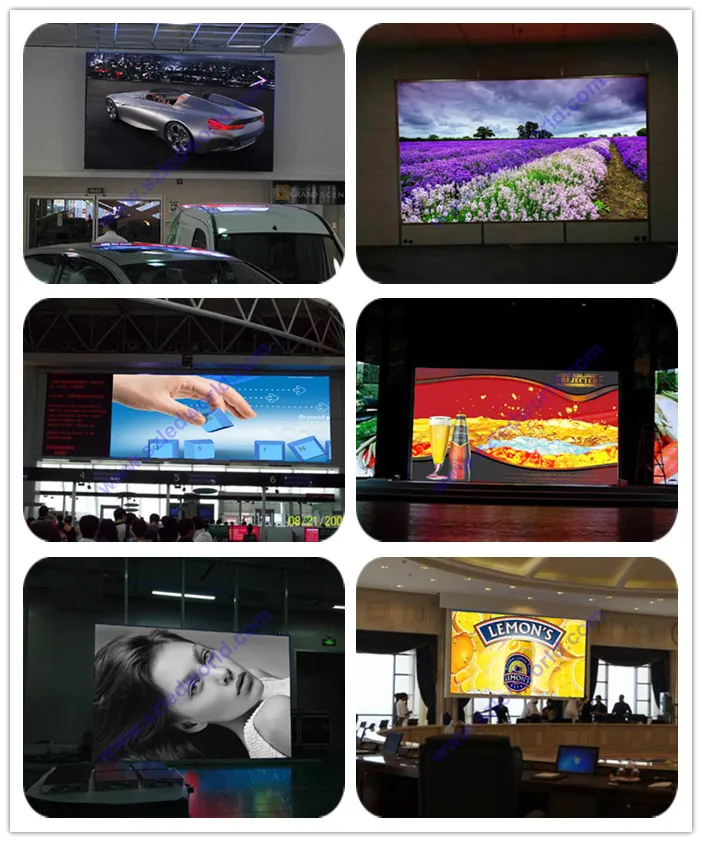

Our project:
Our features
1. Good quality and price
The price is 10% lower than the market because of the introduction of full automatic production line with the characteristics of reducing the cost of labor and management;
2. Lightweight with no rust
It can use aluminum cabinet greatly saving fright cost and conveniently installing;
3. Stable performance
our most basic guarantee: the aging time exceeding 24 hours. Malfunction dot rate less than 0.0001. MTBF more than 1000 hours;
4. Best quality LED chip tube
the GREE, SILAN, OPTO, EPISTAR assuring high brightness and long lifespan;
5. Supporting different formats of images and videos
Flash, WAV/MIDI, Videos from TV and other equipments.

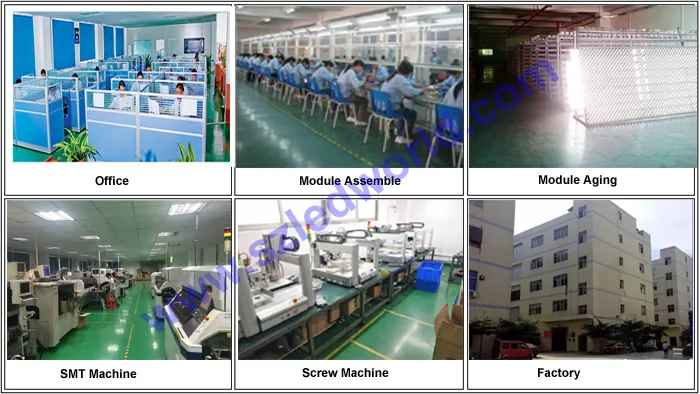

Our factory:
Applications:
| Business Organizations | super market, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc. |
| Financial Organizations | banks, security company, insurance company, post office, hospital, school, etc. |
| Public Places | subway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc. |
| Entertainments | movie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc. |

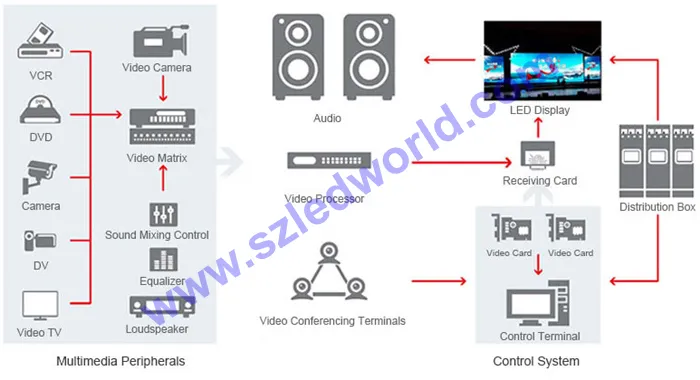

Control system:

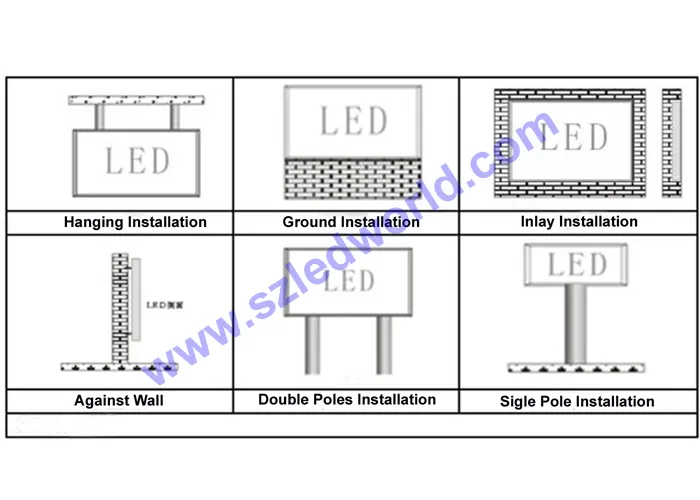

Installation:

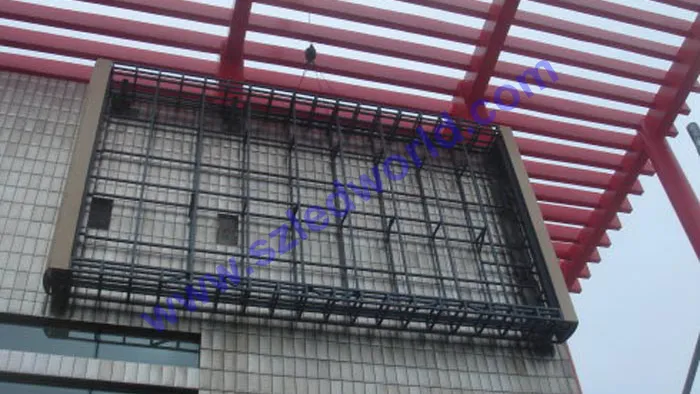

Steel structure:
Certification:
Why Choose Us:
1. Full automatic production to control our high quality, best color consistency and get better performance.;
2. We have professional sales engineer TEAM, which can offer you project solution and also help to solve problem at once.
3. Top quality + reasonable price + patient after-sales service;
4. 24/7 after-sale service
5. Fast locks and assembling pins, flatness and seamless are greatly increased, less than 0.01mm , easy to install and dismantle .Seamless connection, less than 0.1mm between 2 cabinet ;
