P2 P2.5 P5 Indoor Rental Screen LED Display with 480X480 mm Die-Casting Cabinet for Stage
P2, P2.5, P5 indoor rental screen led display with 480x480 mm die-casting cabinet for stage Feature: Pixel Pitch PH2mm PH2.0mm PH5mm Cabinet ; low pixel pitch, high definition and easy installation; Color Uniformity: The LED display would present uniform color at all times with low power consump......
Send Inquiry
Product Description
P2, P2.5, P5 indoor rental screen led display with 480x480 mm die-casting cabinet for stage
Feature:
○ Pixel Pitch PH2mm PH2.0mm PH5mm Cabinet ;
○ low pixel pitch, high definition and easy installation;
○ Color Uniformity: The LED display would present uniform color at all times with low power consumption and low temperature rise;
○ 16:9 Design and Good Uniformity;
○ Signal backup design and power supply optional;
○ Seamless Splicing panel with seamless splicing technology, uniform video without partition, black line and information
omission;
○ High density,high definition,good uniformity;
○ Module design at 16:9, dot to dot for 720P/1080P/2160P/3840P, easily achieving 4:3 or 16:9 universal ratio, module can be
arranged randomly, saving much cost on splicing;
○ Ultra Light & Slim,Lowest weight in its class, only 11.5 kg per panel (500 mm x 1000 mm x 90 mm;
○ High definition,43402 Pixels/sqm,can show extremely clear and vivid video,images and texts,looking very high end;
○ have high refresh and grey scale, hd picture is exquisite, quality and stability;
Parameter:
Project case:
Package:
Applications:
Packaging & Shipping
Standard Package: Veneer Case(Usually 4 cabinets in 1 veneer case)
Delivery time: 10-25 days after receiving the deposit
Steel structure:
Our Services:
Pre-sales support:
1. We offered technical advice to you before buying our products.
2. Help you to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our your specific usage.
After- sales service:
1. We promise you more than just two years warranty service!
2.We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.
3. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.

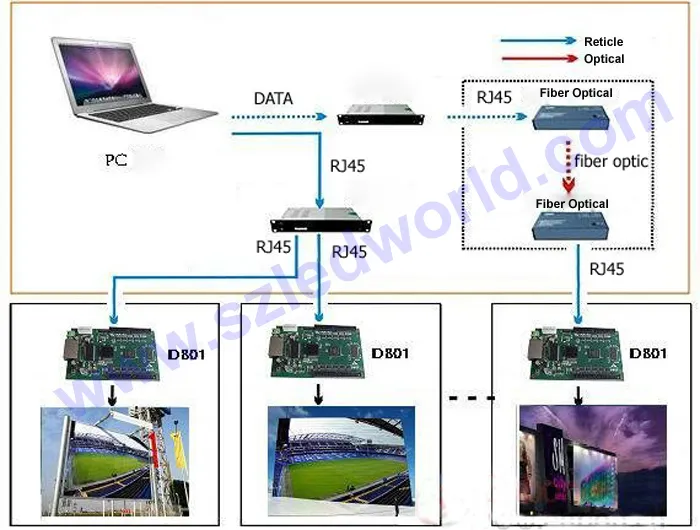

Signal diagram:
Package:
Products related:
LED Display /LED display screen/LED sign/LED video wall
1. Model No.: P1.56,P1.66,P1.9,P2.0, P2.5, P3, P4, P5, P6, P7.62, P8, P10, P12, P12.5, P13.33, P16, P20, P25 etc
2. Display Color: 256*256*256
3. LED Chips: Opto, Epistar, Silan, Huacan, Sanan
4. Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5. Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, special cabinet with Southco Lock, for hung and rental and etc.
6. Package: Flight case, wooden box package & carton box and etc.
7. Guarantee: 2 year
Feature:
○ Pixel Pitch PH2mm PH2.0mm PH5mm Cabinet ;
○ low pixel pitch, high definition and easy installation;
○ Color Uniformity: The LED display would present uniform color at all times with low power consumption and low temperature rise;
○ 16:9 Design and Good Uniformity;
○ Signal backup design and power supply optional;
○ Seamless Splicing panel with seamless splicing technology, uniform video without partition, black line and information
omission;
○ High density,high definition,good uniformity;
○ Module design at 16:9, dot to dot for 720P/1080P/2160P/3840P, easily achieving 4:3 or 16:9 universal ratio, module can be
arranged randomly, saving much cost on splicing;
○ Ultra Light & Slim,Lowest weight in its class, only 11.5 kg per panel (500 mm x 1000 mm x 90 mm;
○ High definition,43402 Pixels/sqm,can show extremely clear and vivid video,images and texts,looking very high end;
○ have high refresh and grey scale, hd picture is exquisite, quality and stability;
Parameter:
| Pixel pitch | 2.0mm | 2.5mm | 5.0mm |
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| LED component | SMD1010 | SMD2121 | SMD3528 |
| Size of module | 160mm x 160mm | 160mm x 160mm | 160mm x 160mm |
| Resolution of module | 80x80 | 64x64 | 32x32 |
| Size of cabinet | 480mm x 480mm x 78mm | 480mm x 480mm x 78mm | 480mm x 480mm x 78mm |
| Resolution of cabinet | 240x240 | 192x192 | 96x96 |
| Material of Cabinet | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Weight of Cabinet | about 7KG/cabinet | about 7KG/cabinet | about 7KG/cabinet |
| Brightness | >1000cd/sq.m | >1200cd/sq.m | >1300cd/sq.m |
| Density | 250000dots/sq.m | 160000dots/sq.m | 40000dots/sq.m |
| Best viewing angle | 140 /140 | 140 /140 | 120 /120 |
| Best viewing distance | 1.5-20M | 2-30M | 5-15M |
| Maximum power consumption | 600W/sq.m | 600W/sq.m | 600W/sq.m |
| Average power consumption | 300W/sq.m | 300W/sq.m | 300W/sq.m |
| Driving method | 1/16 scan | 1/32 scan | 1/16 scan or 1/8 scan |
| Control method | Synchronization | Synchronization | Synchronization |
| Gray scale | 65536 | 65536 | 4096 |
| Colors | 256*256*256 | 256*256*256 | 256*256*256 |
| Working voltage | AC220V/110V±10% | ||
| Working temperature | -20ºC~+50ºC±10% | ||
| Working humidity | 10% ~ 90% | ||
| MTBF | 10,000 hours | ||
| Frame frequence | 50/60Hz | ||
| Refresh frequence | >3000Hz | ||
| IP grade | IP31 | ||
| Life Span | 100,000 hours | ||
| Data transafer method | RJ45 | ||
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. | ||
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development | ||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |||

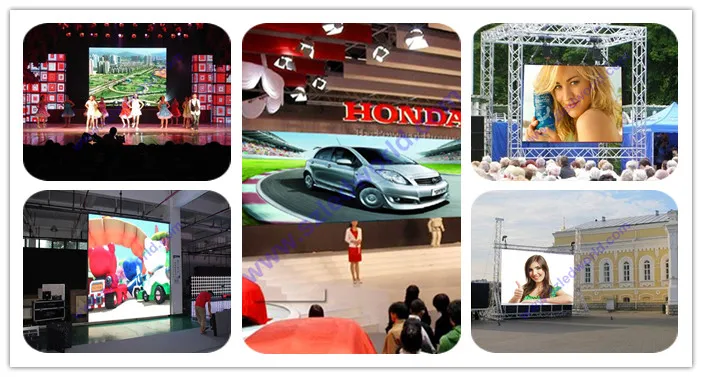

Project case:
Package:
Applications:
| Business Organizations | super market, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc. |
| Financial Organizations | banks, security company, insurance company, post office, hospital, school, etc. |
| Public Places | subway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc. |
| Entertainments | movie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc. |
Standard Package: Veneer Case(Usually 4 cabinets in 1 veneer case)
Delivery time: 10-25 days after receiving the deposit

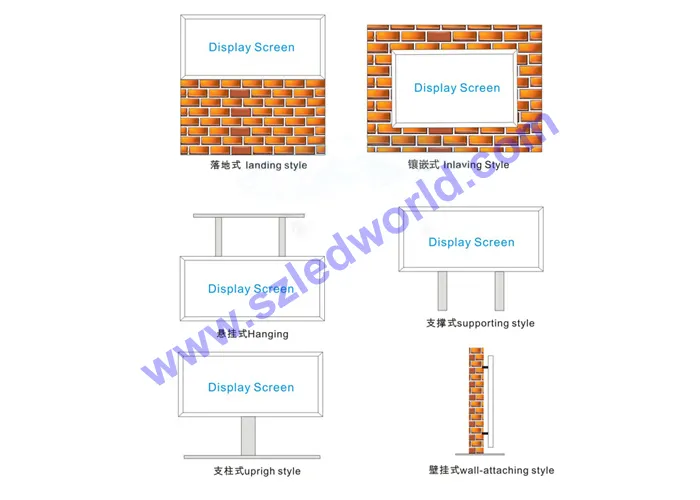

Steel structure:
Our Services:
Pre-sales support:
1. We offered technical advice to you before buying our products.
2. Help you to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our your specific usage.
After- sales service:
1. We promise you more than just two years warranty service!
2.We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.
3. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.
Signal diagram:
Package:
Products related:
LED Display /LED display screen/LED sign/LED video wall
1. Model No.: P1.56,P1.66,P1.9,P2.0, P2.5, P3, P4, P5, P6, P7.62, P8, P10, P12, P12.5, P13.33, P16, P20, P25 etc
2. Display Color: 256*256*256
3. LED Chips: Opto, Epistar, Silan, Huacan, Sanan
4. Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5. Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, special cabinet with Southco Lock, for hung and rental and etc.
6. Package: Flight case, wooden box package & carton box and etc.
7. Guarantee: 2 year
