P2 P2.5 P3 Full Color Advertising Mirror Display LED Poster Screen
P2 P2.5 P3 Full Color Advertising Mirror Display LED Poster screen Technical SpecificationsIndoor LED poster screen displayPixel Pitch(mm)P 2.5MMP3MMLED typeSMD 2020SMD 2020Module Size(mm)160*160192*192Module Resolution(dot)64*6464*64Pixel Density(dot/M2)160000111111Best View distance2.5-10m3-10m......
Send Inquiry
Product Description
P2 P2.5 P3 Full Color Advertising Mirror Display LED Poster screen
| Indoor LED poster screen display | ||
| Pixel Pitch(mm) | P 2.5MM | P3MM |
| LED type | SMD 2020 | SMD 2020 |
| Module Size(mm) | 160*160 | 192*192 |
| Module Resolution(dot) | 64*64 | 64*64 |
| Pixel Density(dot/M2) | 160000 | 111111 |
| Best View distance | 2.5-10m | 3-10m |

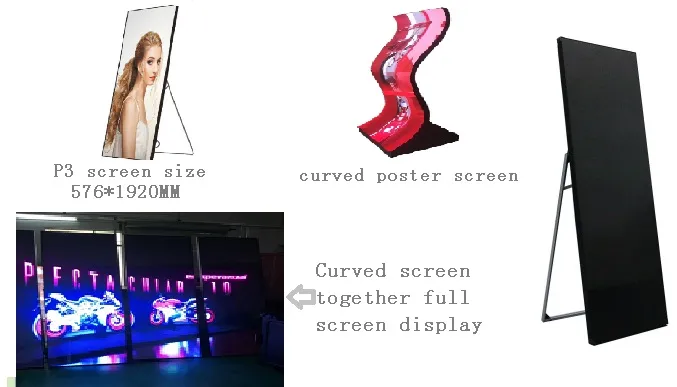

| Screen Size(W*H*T) | 640*1920*56 mm | 576*1920*56 mm |
| Cabinet Resolutiondot) | 256*768 | 192*640 |
| Module Qty.(pcs) | 48 | 30 |
| Screen weight(kg/pcs) | 41KG | 38KG |
| Brightness | 1200cd/m2 | |
| View Angle | H160°,V150° | |
| Refresh Rate | 1920Hz | |
| Driving Mode | 1/32 scan | |
| Input voltage | AC110v~240v/60Hz | |
| Power Consumption(max.) | 780w | |
| Power Consumption(ave.) | 260w | |
| Working Temperature | -20ºC~+60ºC | |
| Storage Temperature | -35ºC~+85ºC | |
| Working Humidity | 10% ~90% | |
| Lifespan | 100,000H | |
| Suitable | Indoor | |
| Cabinet Material | Aluminium+Steel | |

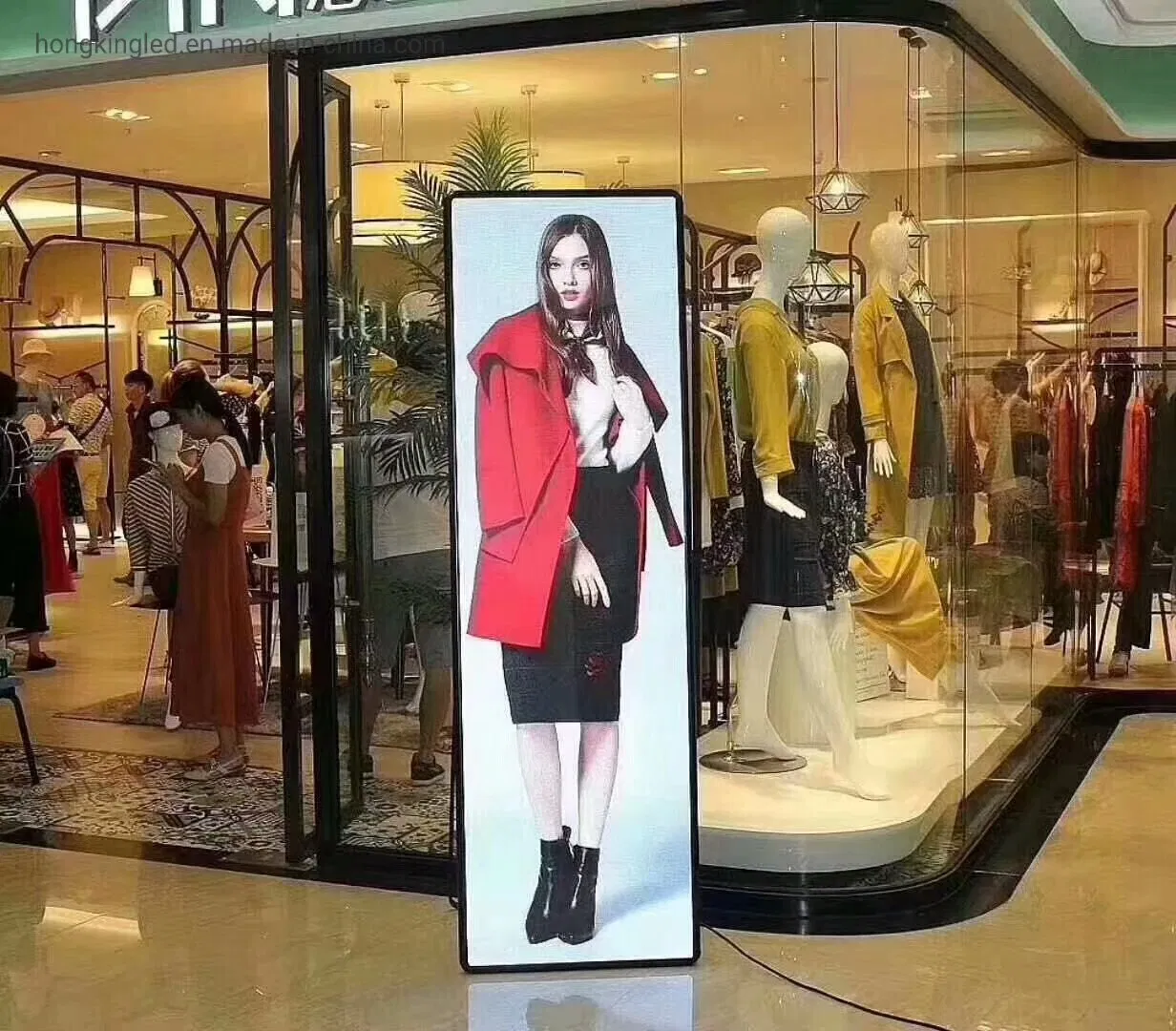

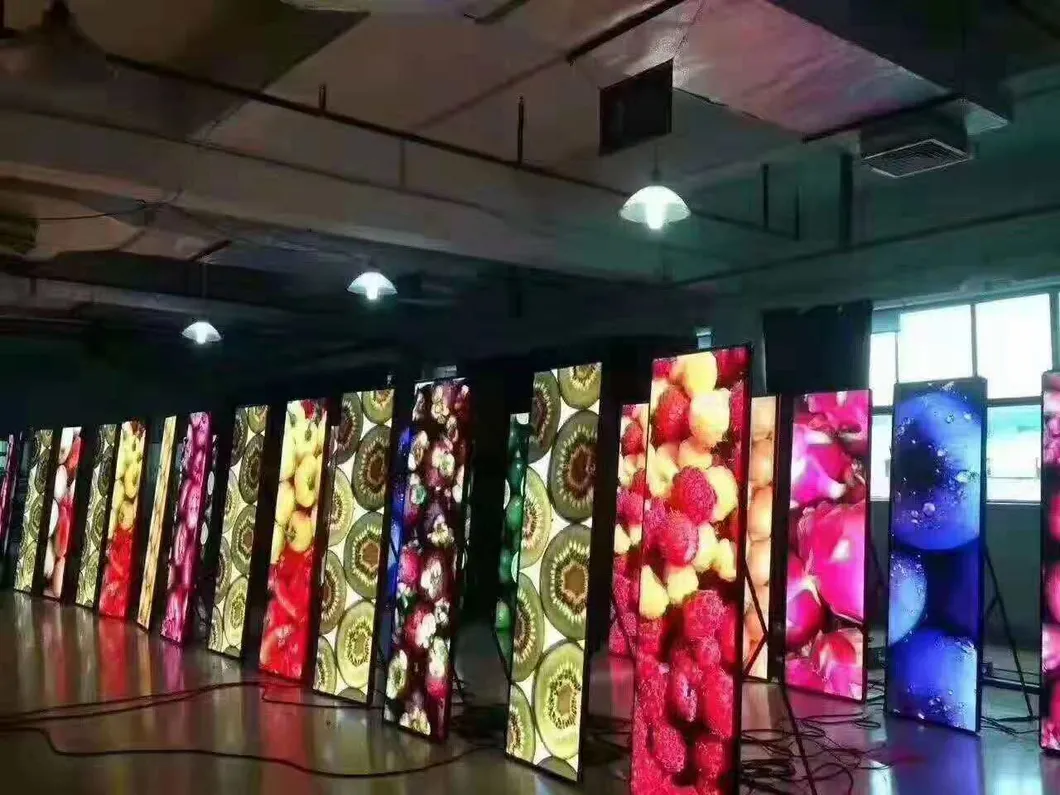

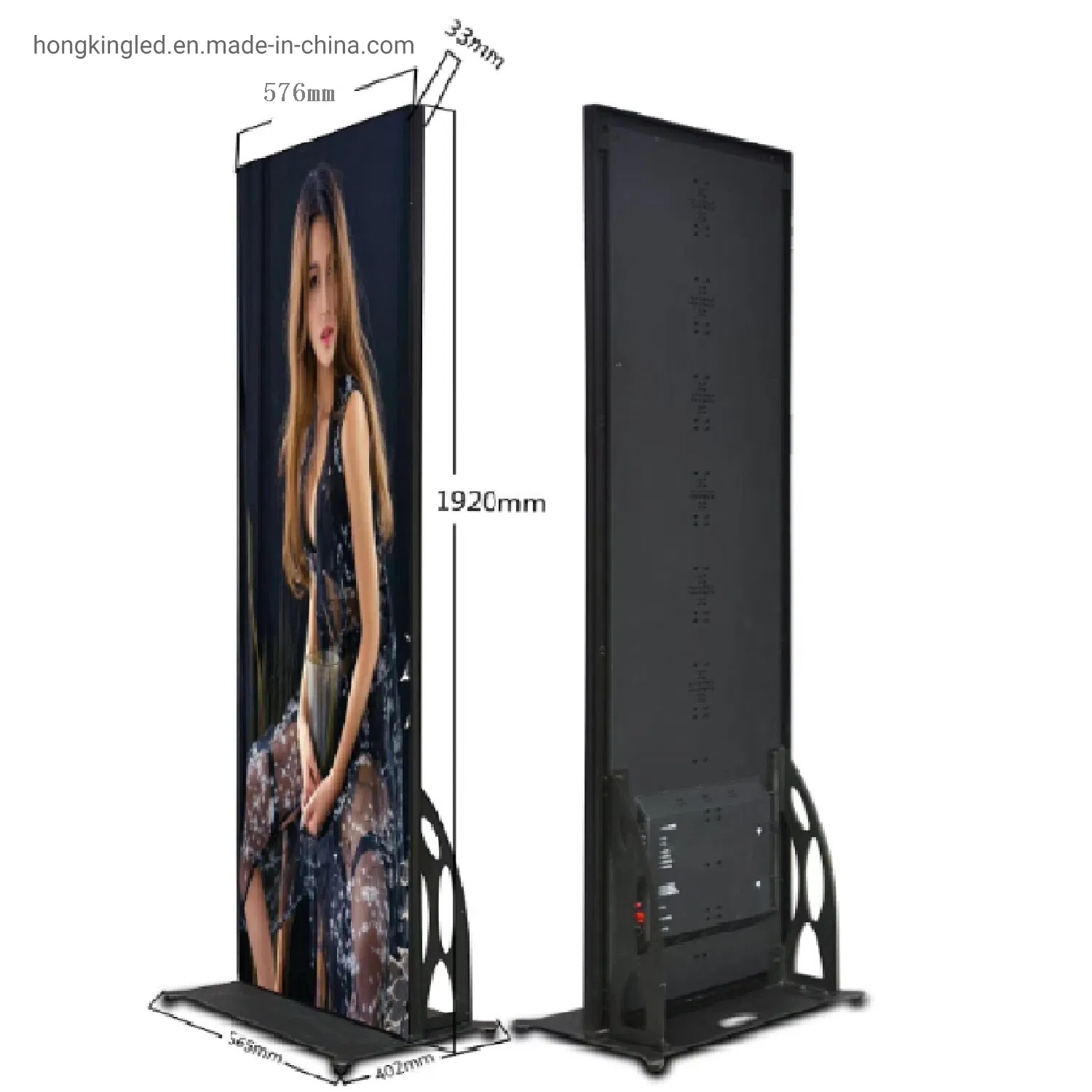

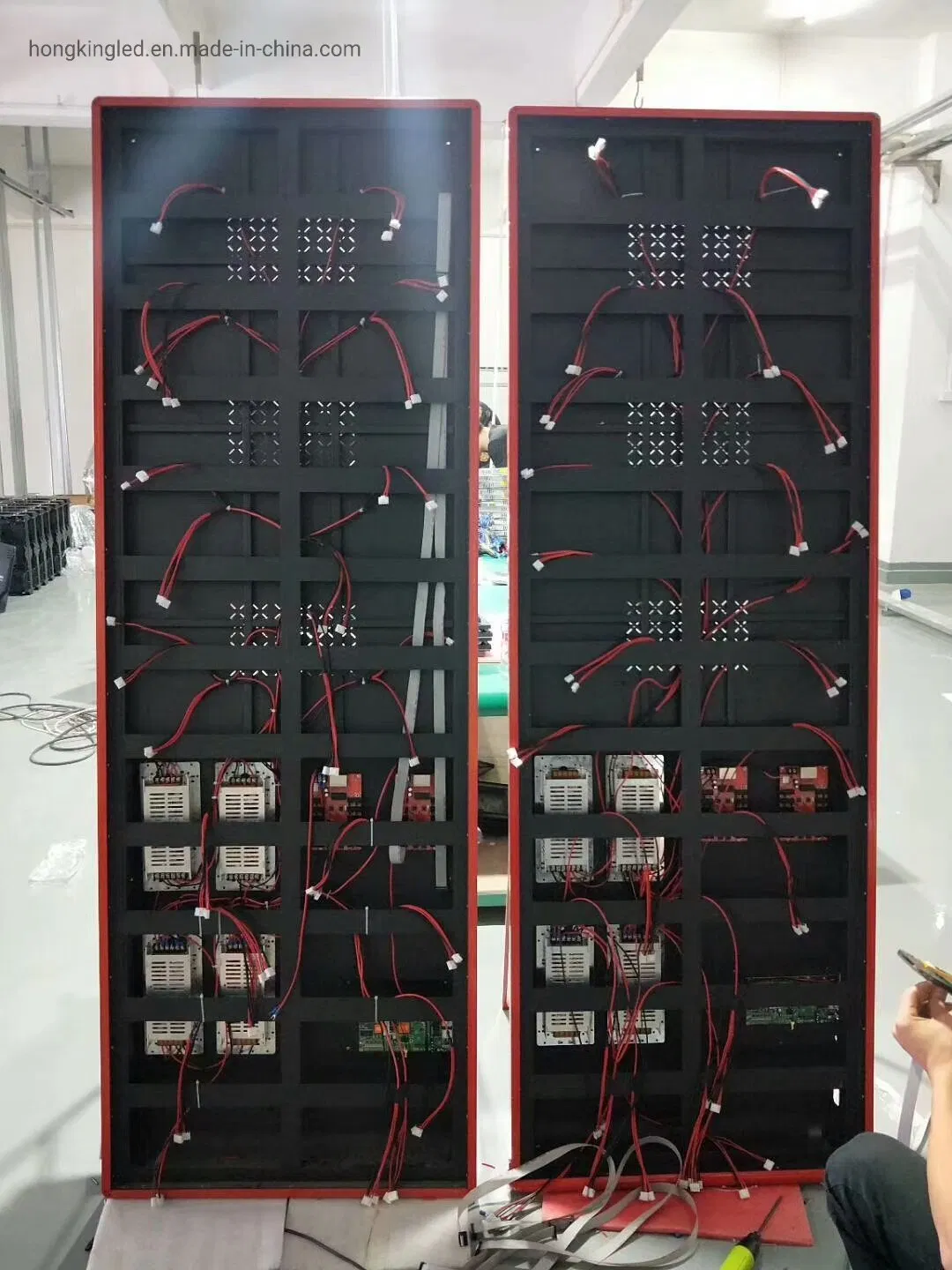

Product Shows:
Request for LED Display Quote
Please provide the following information so we can offer best service for you . After this we will provide details quote to you as soon as possible.
1,Is your LED Display located Indoor, Semi-Outdoor or Outdoor, Mobile or Trailer (required)
()Indoor ()Semi-Outdoor ()Outdoor ()Mobile ()Trailer
2,What is the Length of your LED Display requirement (required)
( )Metres
3,What is the Height of your LED display requirement? (required)
( )Metres
4,What is the Optimal distance viewing to the LED Display? (required)
( )Metres
5,What will be displayed on the LED display? (required)
()Text ()Pictures ()Videos ()TV/Camera
6,I will usually program the LED display with the following frequency:
()Daily/Weekly & Disconnect ()Stream Content Continually Online

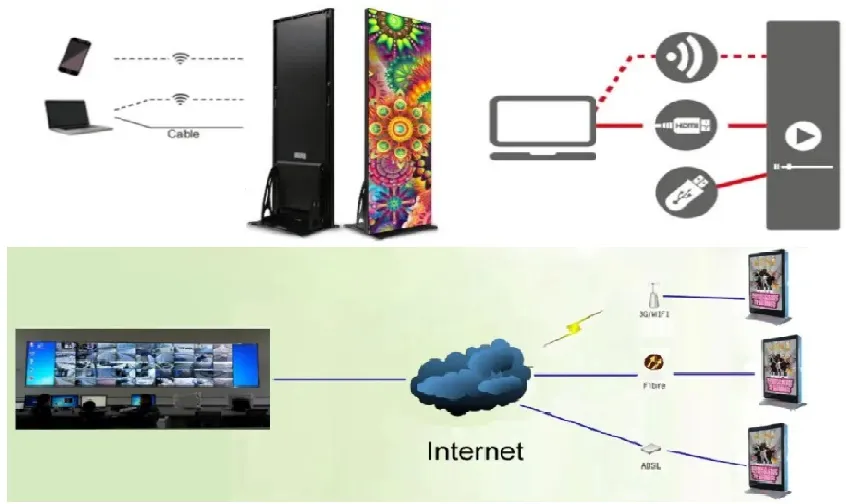

7,I would like to connect to the LED display using: (required)
