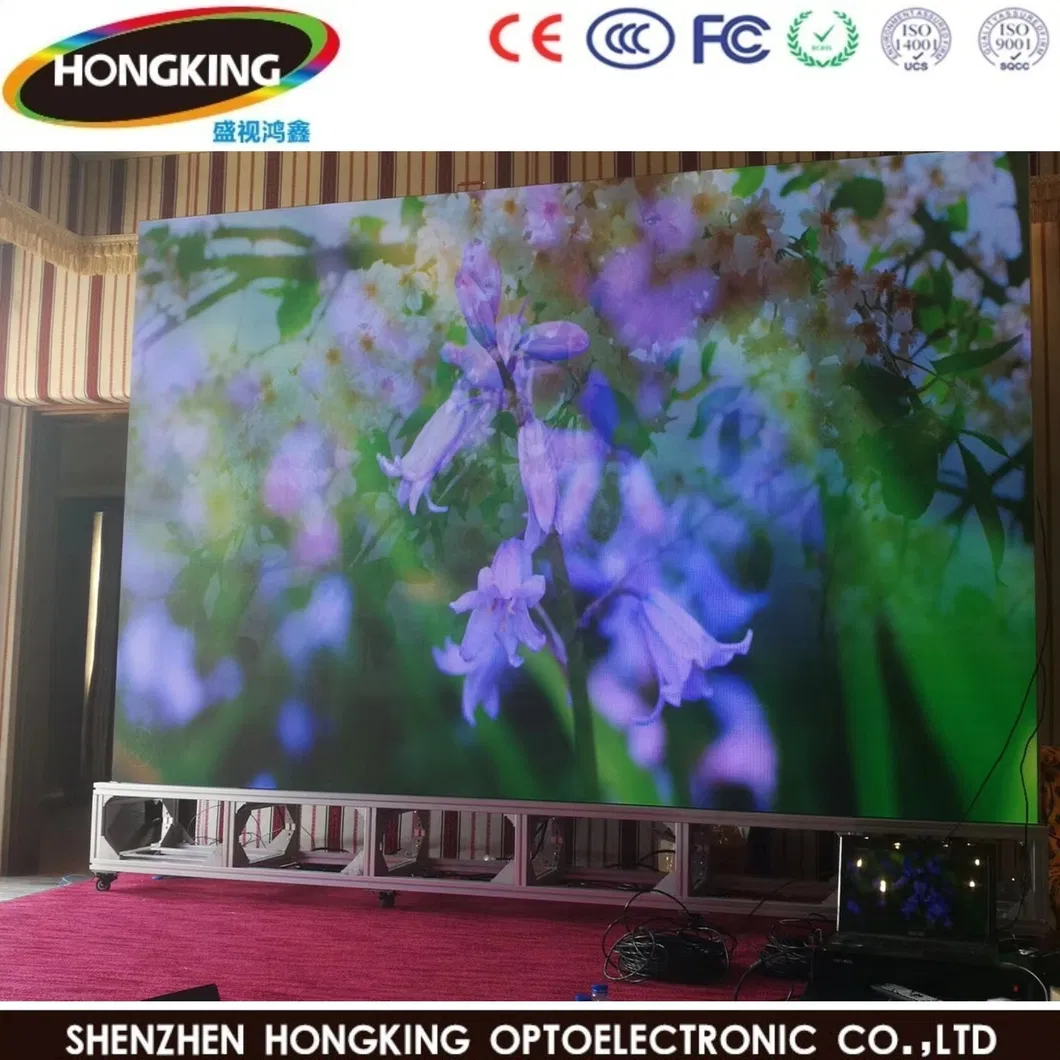

China P1.8 P1.6 P1.5 P1.2 8K UHD LED Display for National Conference Room / Performance Hall / Activity

Product Description

P1.8 P1.6 P1.5 P1.2 8K UHD LED Display for National Conference Room / Performance Hall / activity

Products Feature

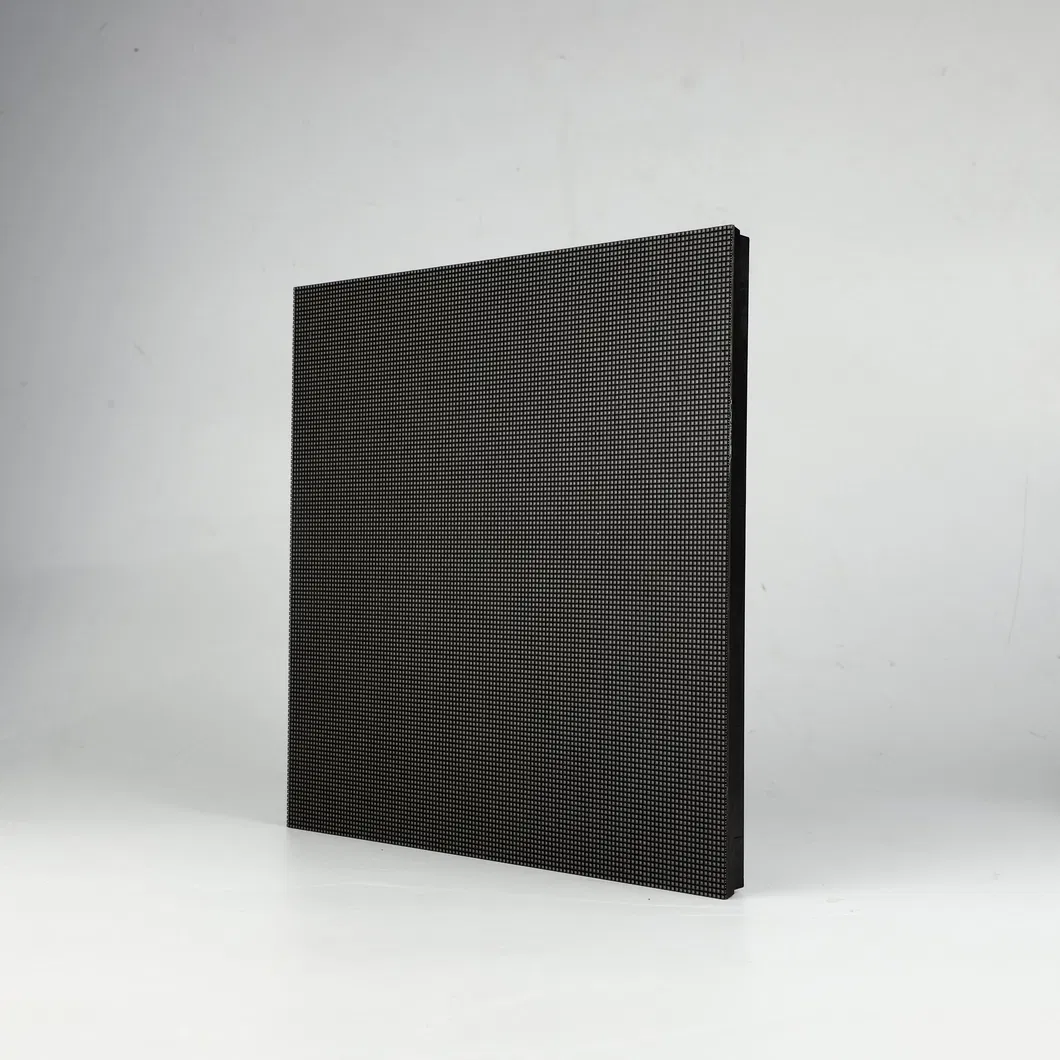

1. Durable, reliable, precisely made Aluminum die-casting, fanless design Small expansion coefficient
2.  Spring locks connect the cabinets vertically,
3. Signal and power indicator & reset button well shows the working condition of the whole screen;
4. Fast spring locks connect the cabinets horizontally, only 10 seconds for per cabinet;
5. Light-weight 4.6kg/pc.  for panel with light-weight sub-frame structure design
6. Nanotechnology and unique positioning system, making the installation and dismantlement in one step;

1.Most of our product use material as follow:
    MBI 5153 IC or ICN2153 Driver IC
    g-energy power supply
    4layer pcb 1.6-2.0mm ,mask and base
    2-3years warranty.

P1.8 P1.6 P1.5 P1.2 8K UHD LED Display for National Conference Room / Performance Hall / Activity

model	p1.25	P1.53	P1.66	P1.86
Pixel Pitch	1.25mm	1.53mm	1.66mm	1.86mm
Unit Size	640mmX480mmX75	640mmX480mmX75	640mmX480mmX75	640mmX480mmX75
LED Type	SMD1010	SMD1212	SMD1212	SMD1515
Pixel / Unit	272*204	384*216	240*180	320*180
Unit Weight	4.6Kg	4.6Kg	4.6kg	4.6kg

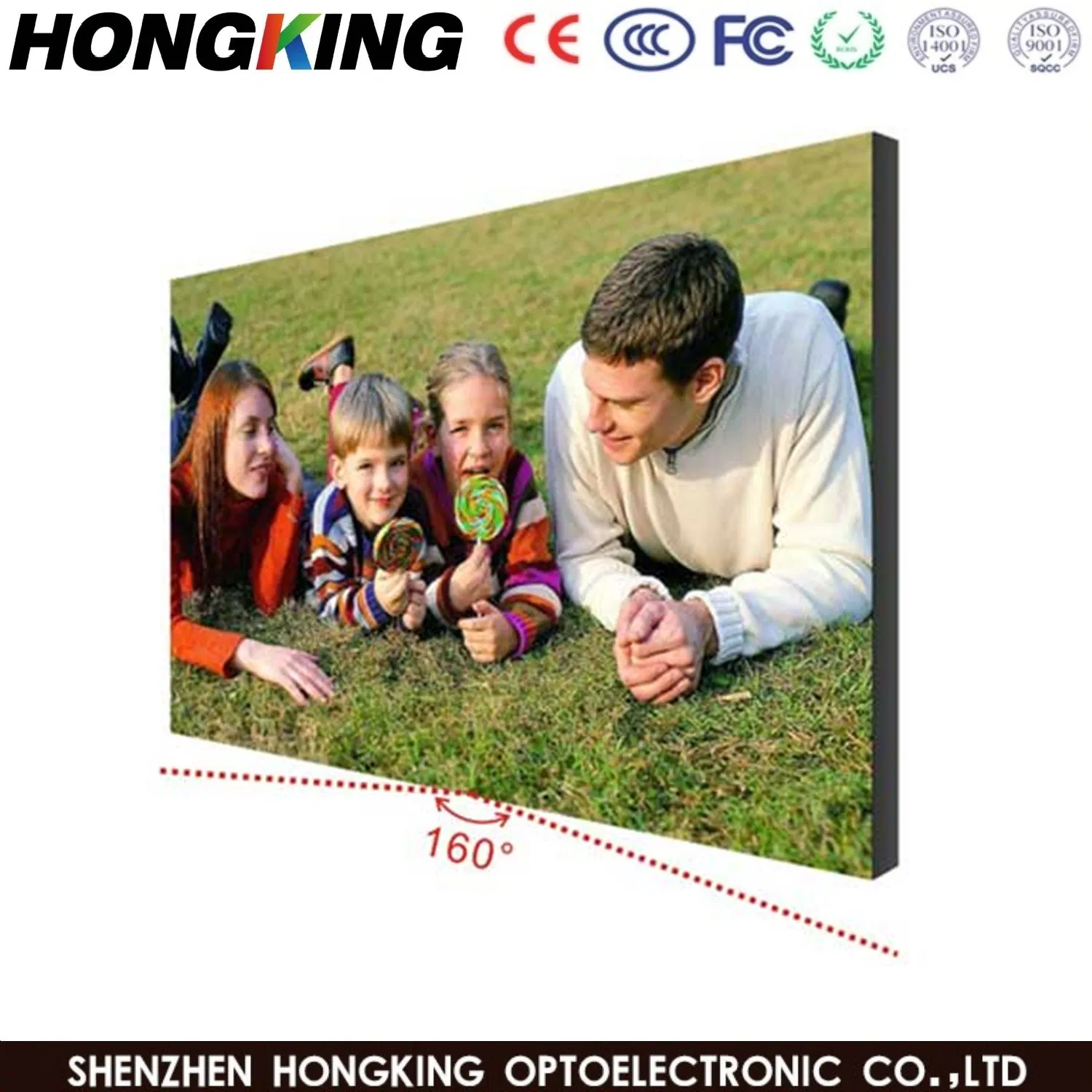

Viewing Angle	H140 degree V140 degree	H140 degree V140 degree	H140 degree V140 degree	H140 degree V140 degree
Application	Storage-40°~60°C,Working-20°~50° C,	Storage-40°~60° C, working-20°~50° C,	Storage-40~60° C, Working-20~50° C	Storage-40~60° C, Working-20~50° C
Protection Level	For indoor use only	For indoor use only	For indoor use only	For indoor use only
Power Consumption	700W/sqm	700W/sqm	750W/sqm	700W/sqm
Driving	1/26 scan	1/32 scan	1/30 Scan	1/30 Scan
Frame Refresh	≥ 60Hz	≥ 60Hz	≥ 60Hz	≥ 60Hz

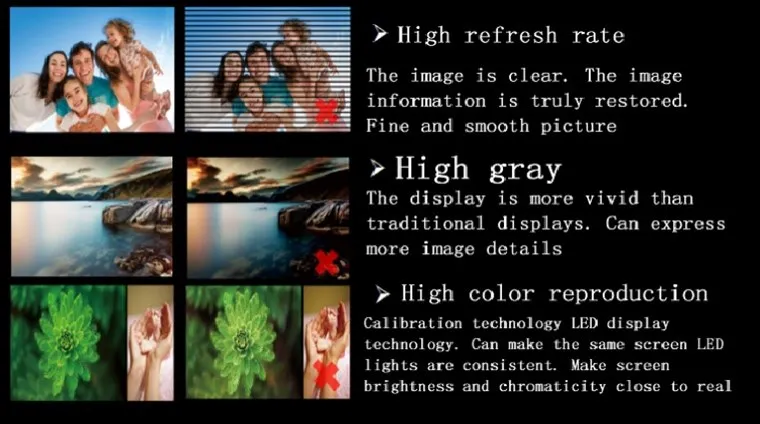

Refresh Rate	>3840Hz	>3840Hz	>3840Hz	>3840Hz
Processing	16bit	16bit	16bit	16bit
Brightness	800nits	800nits	800nits	800nits
Power Supply	AC110/240V, 50~60Hz	AC110/240V, 50~60Hz	AC110/240V, 50~60Hz	AC110/240V, 50~60Hz
MTBF	≥ 1, 000 Hours	≥ 1, 000 Hours	≥ 1, 000 Hours	≥ 1, 000 Hours
Life Span	≥100,000Hours	≥100, 000 Hours	≥ 100, 000 Hours	≥ 100, 000 Hours
Pixel Failure	< 0.0003	< 0.0003	< 0.0003	< 0.0003

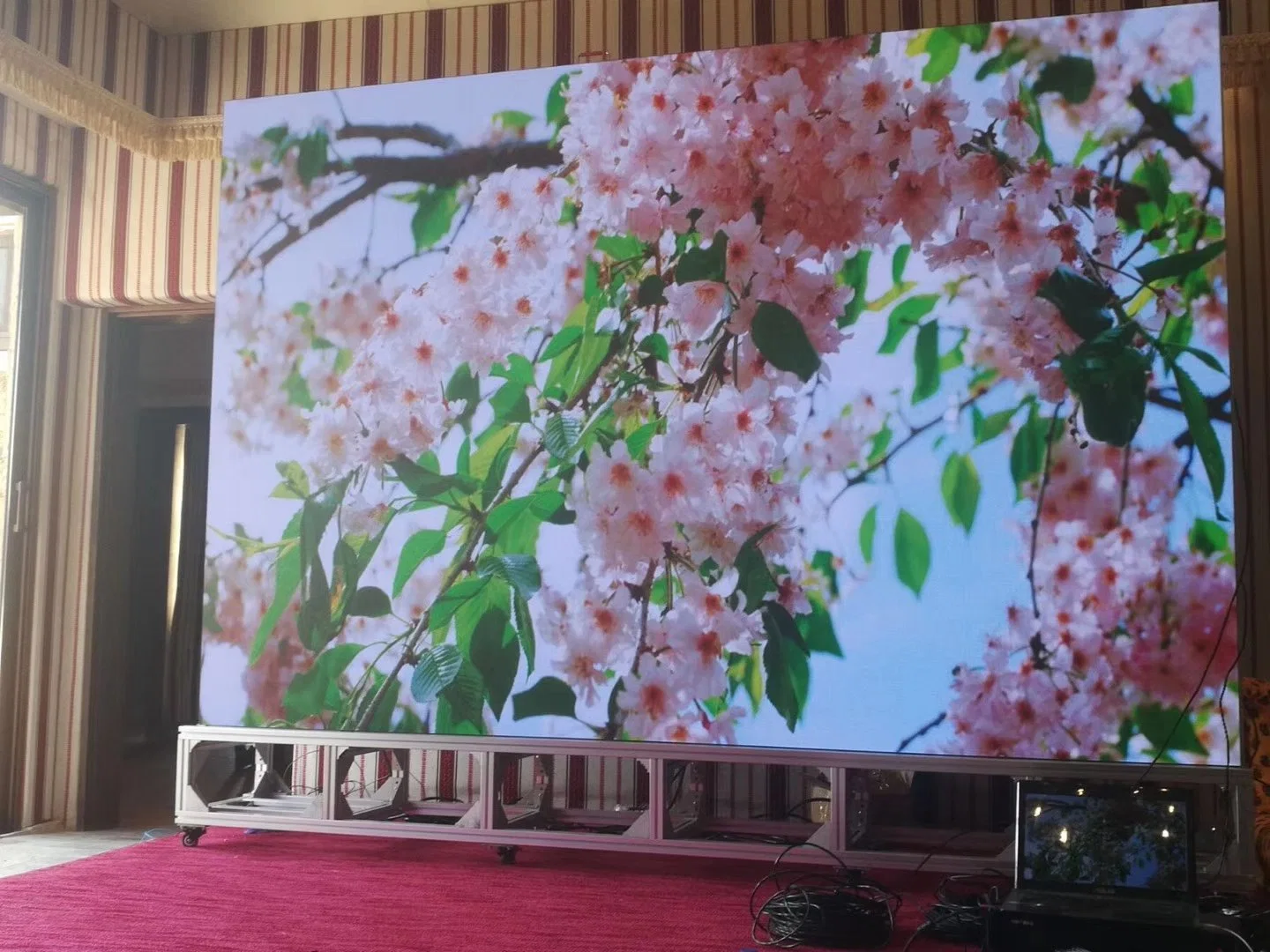

Product Application:

about the installation commissioning

after project confirm ,we will provide detailed construction install drawing
when we finished screen will aging tesing 72 hours ;
you can come and visit make sure quality then we can training
if you wont come we can provide remote control .
if necessary ,we can also appoint engineers to your site ;

Display the installation and debugging, not as difficult as you think;
After the factory production is completed, we will debug the product well,
Send connected pictures and drawings to you at the same time;

Thanks and best regards

Tom xie
