P1.56/ P0.925/ P1.25 HD Ultra Small Pitch Indoor LED Display Screen Fixed Video Wall
PRODUCT FEATURES:. Noiseless design, excellent heat dissipation.. Fast lock design for great consistency and seamless assembly.. Module calibration: calibration data written into the module procedure for uniformity of brightness and color, achieving clear and natural images.. 3840Hz high refresh rat......
Send Inquiry
Product Description
. Noiseless design, excellent heat dissipation.
. Fast lock design for great consistency and seamless assembly.
. Module calibration: calibration data written into the module procedure for uniformity of brightness and color, achieving clear and natural images.
. 3840Hz high refresh rate: Smooth and vivid videos without ripple and blank, clear images restored accurately, bringing to the audience greatest visual enjoy.
. Low brightness with high grey-scale: High grey-scale available even below 100nits brightness, the layering and vividness of the video superior to traditional screens.
PRODUCT SPECIFICATIONS:
| NO. | Item | Parameters |
| 1 | Model | C1.56 |
| 2 | Pixel pitch | 1.56mm |
| 3 | LED Type | SMD1010 |
| 4 | Screen Resolution (dot/sqm) | 409600 |
| 5 | LED Configuration | 1R1G1B |
| 6 | Module Size (mm x mm) | 200x100 |
| 7 | Cabinet Size (mm x mm) | 400*300 |
| 8 | Drive Mode | 1/32 Constant Current Drive |
| 9 | Viewing Angle | H:140°/ V:140° |
| 10 | Brightness (cd/m2) | ≥800 |
| 11 | Grey Scale | 16Bit |
| 12 | Refresh Rate (Hz) | ≥3840 |
| 13 | Power Consumption (W) | Ave.:300 / Max.:600 |
| 14 | Cabinet Weight (Kg) | 6 |
| 15 | Cabinet Thickness (mm) | 40 |
| 16 | Cabinet Material | Die-casting Aluminum |
| 17 | Color (M) | >16.7 |
| 18 | Input Voltage (V) | AC 110V~220V+/-10% |
| 19 | Refresh Frame Frequency (Hz) | 60 |
| 20 | Protection Level | IP43 |
| 21 | Working Environment | Indoor |
| 22 | Working Temperature (ºC) | -30ºC~60ºC |
| 23 | Operation humidity (RH) | 10~95%RH |
| 24 | Certificates | CCC/CE/RoHS/FCC |

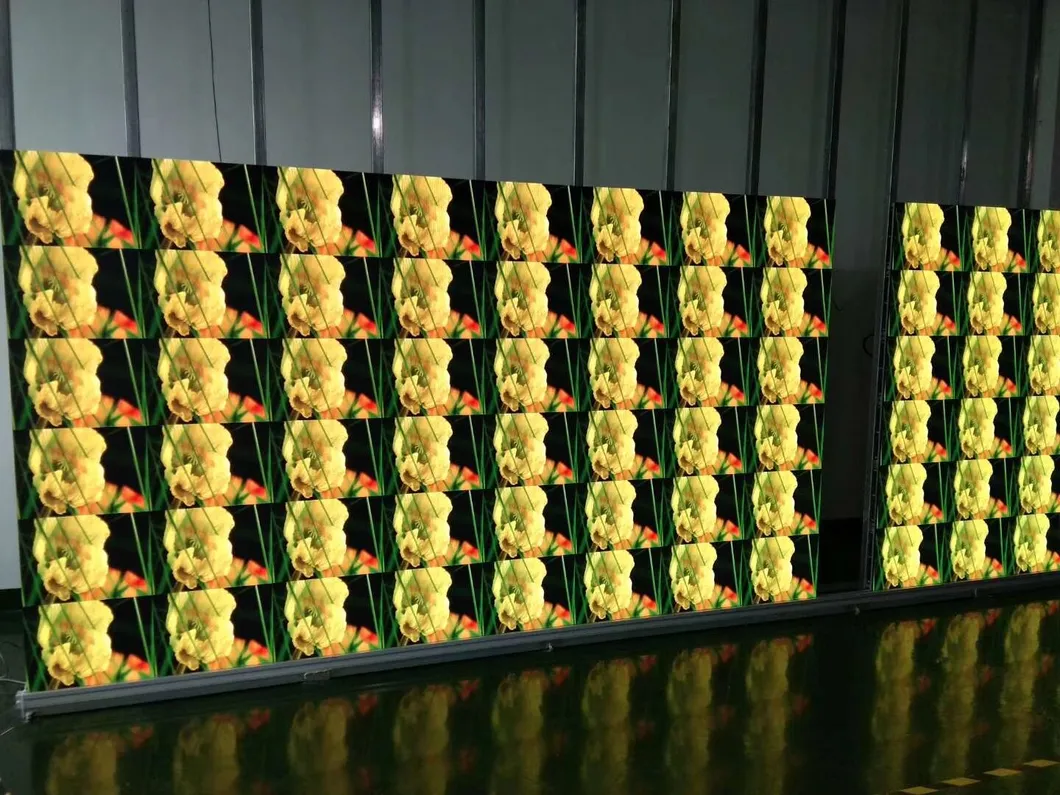

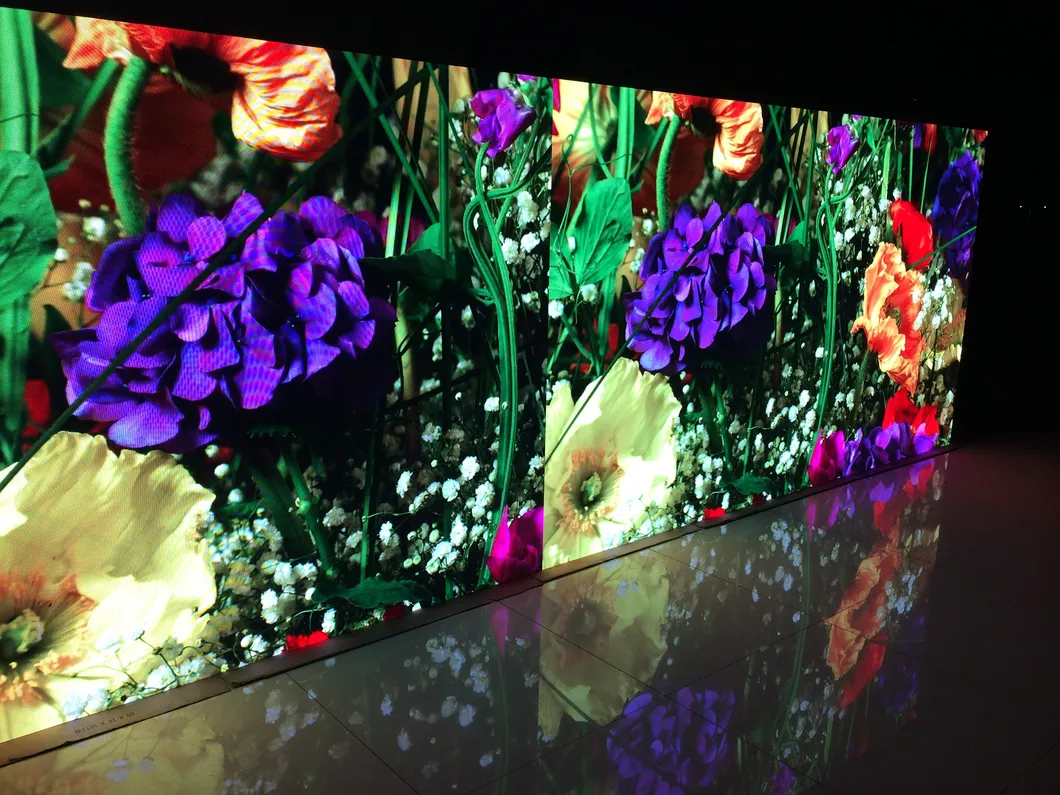

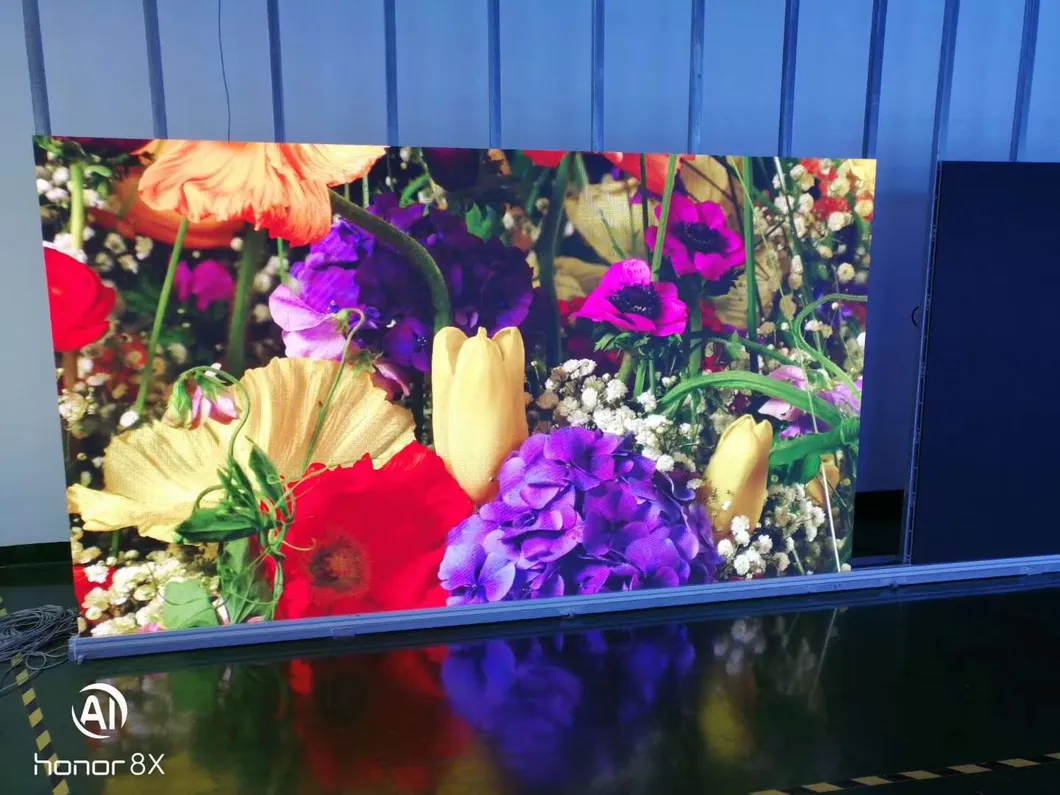

PRODUCT TEST:

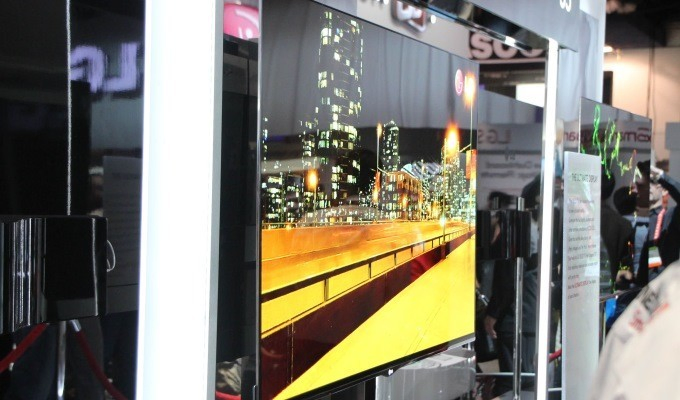

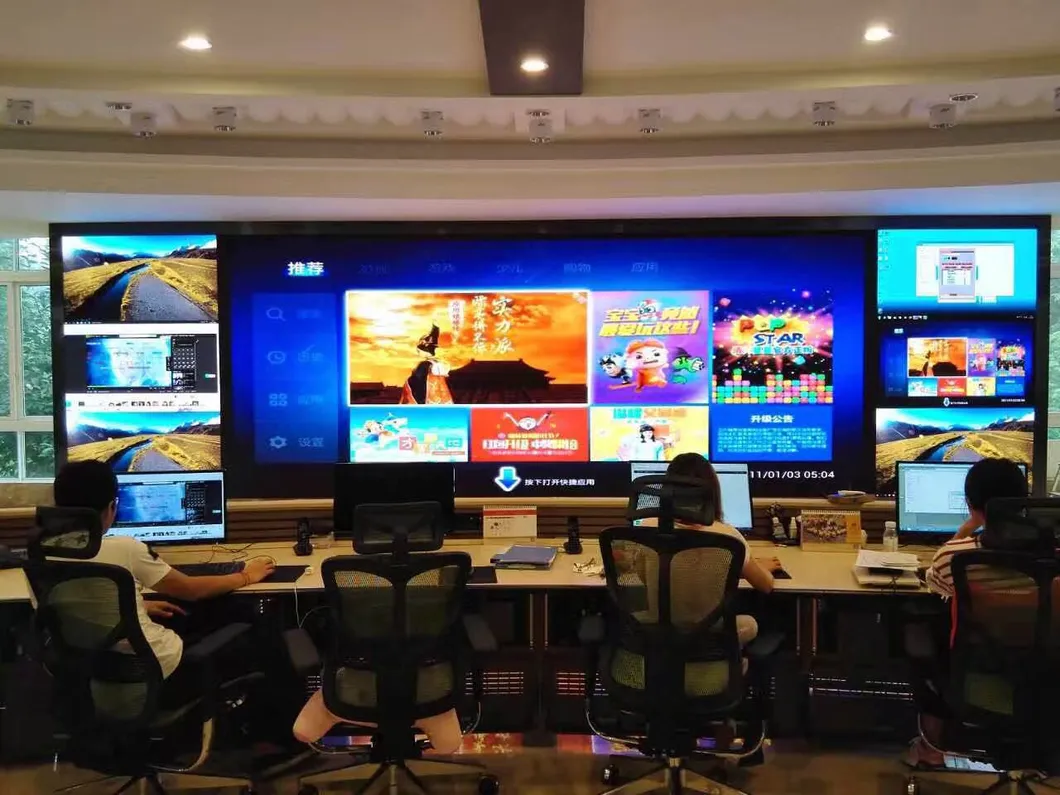

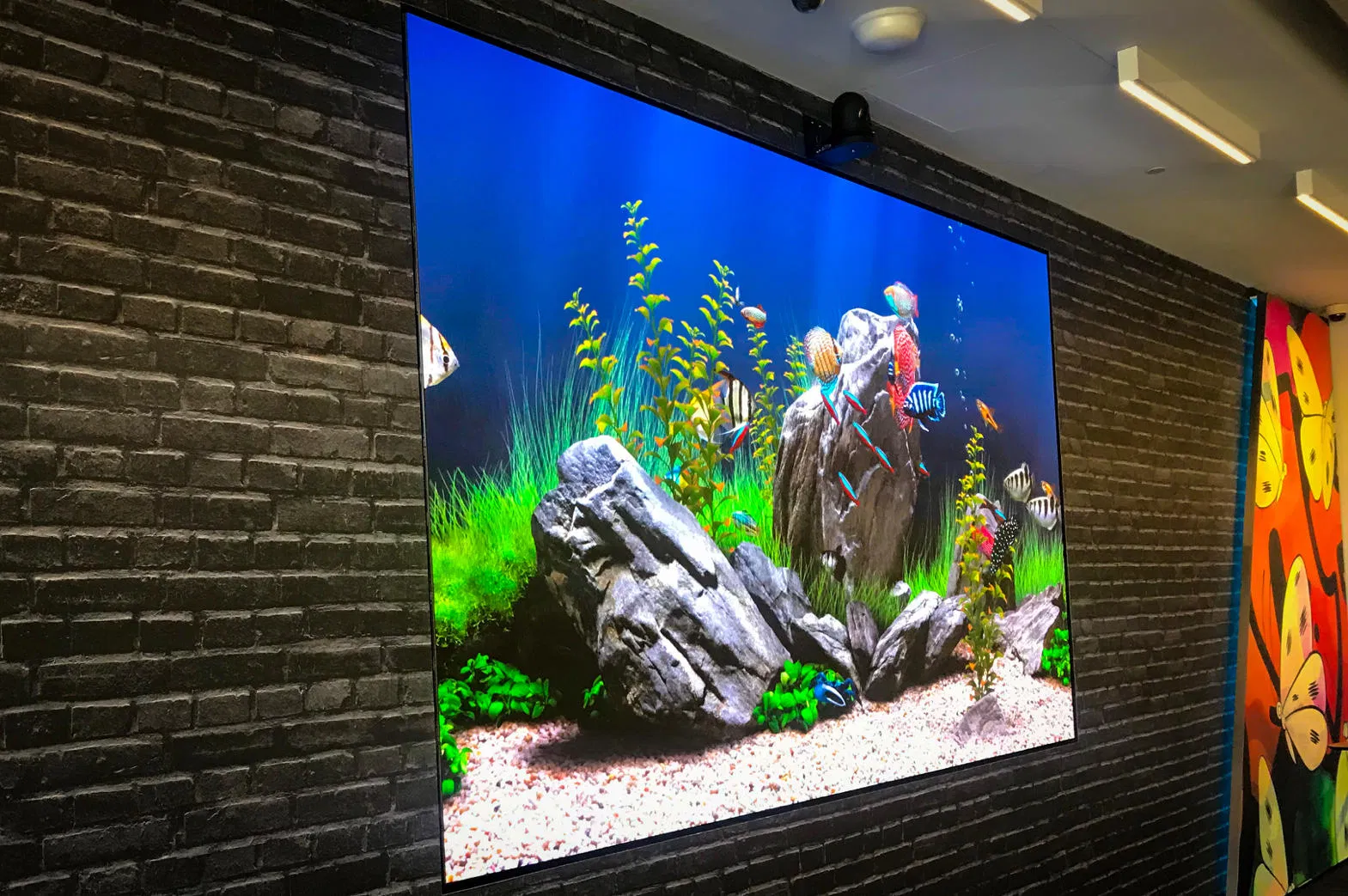

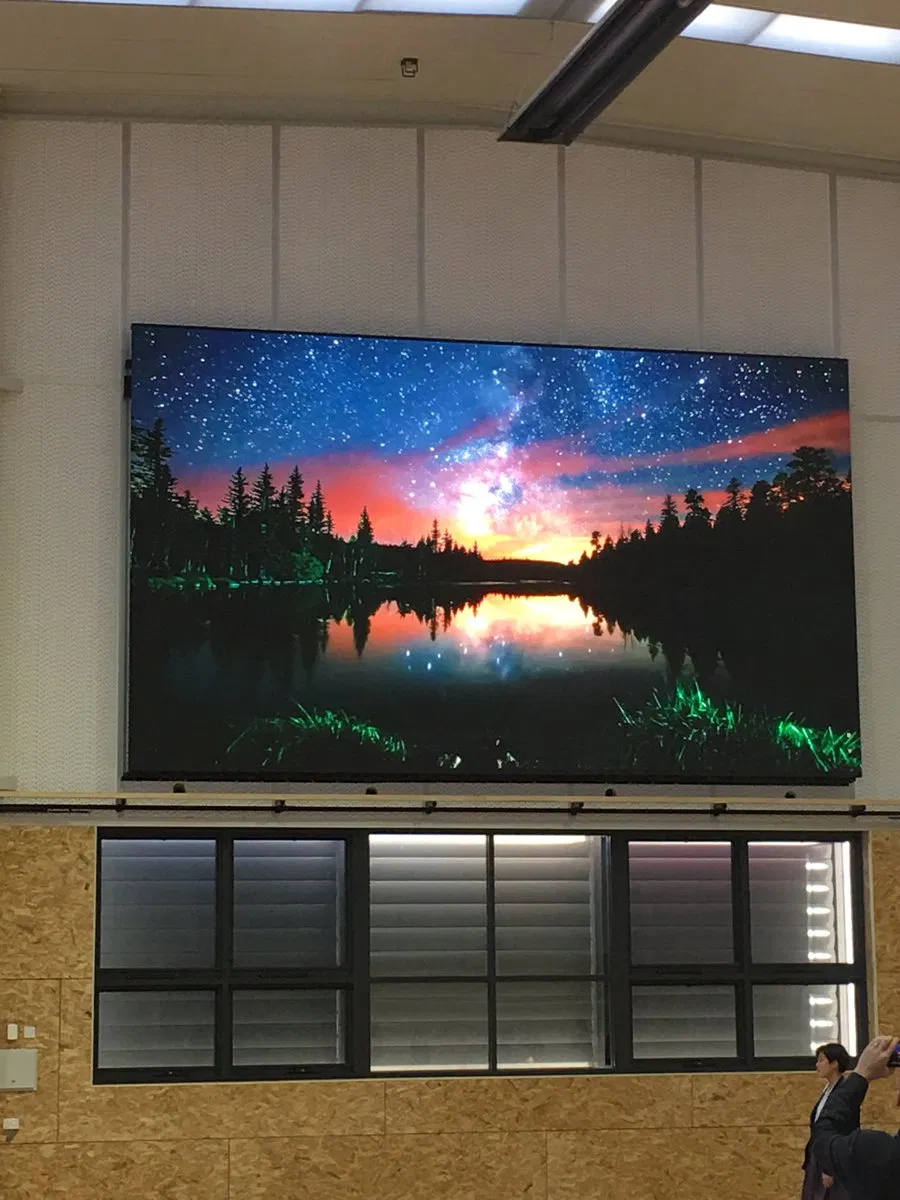

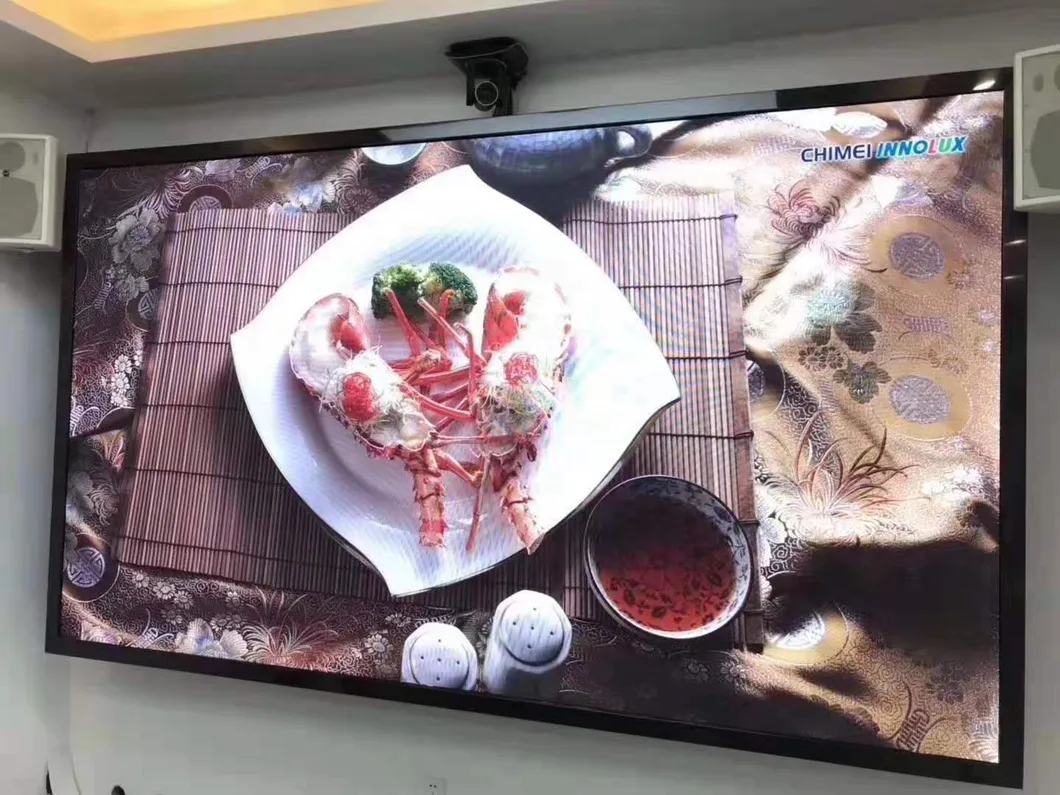

PRODUCT CASES:

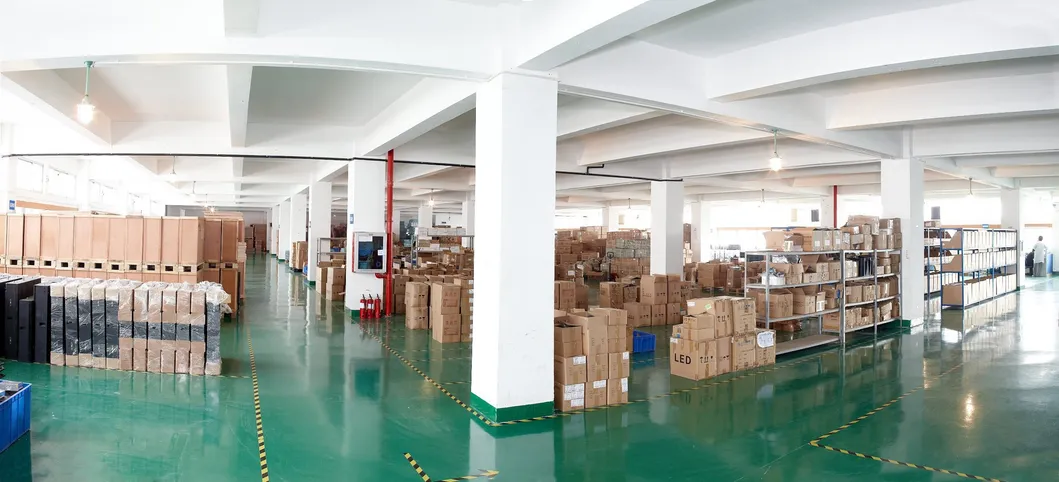

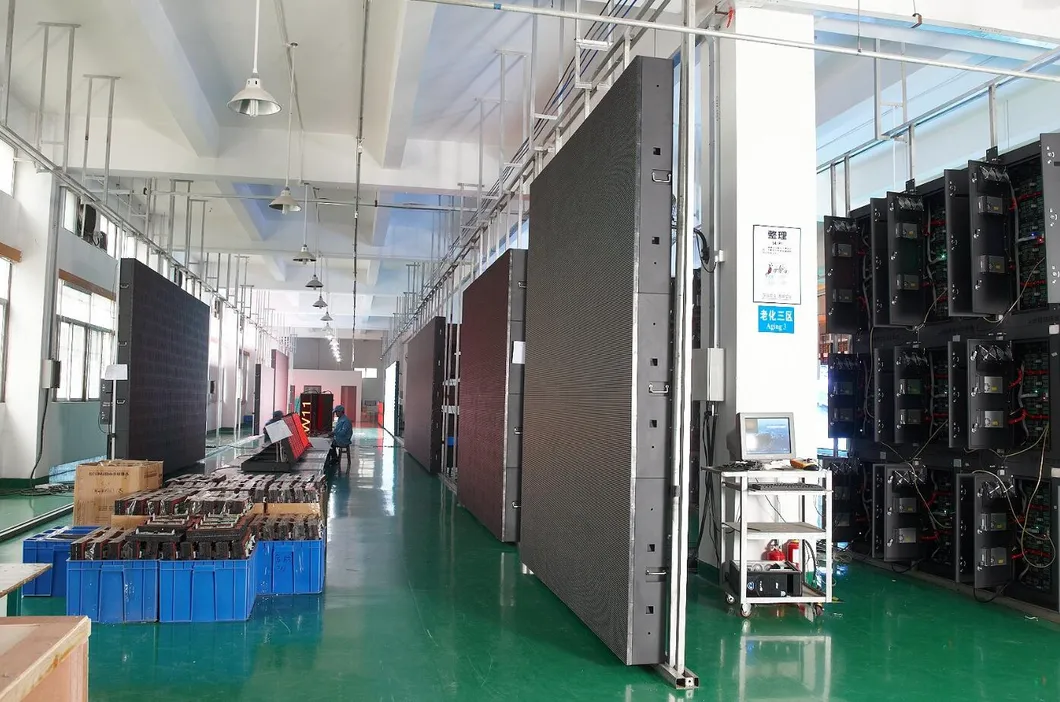

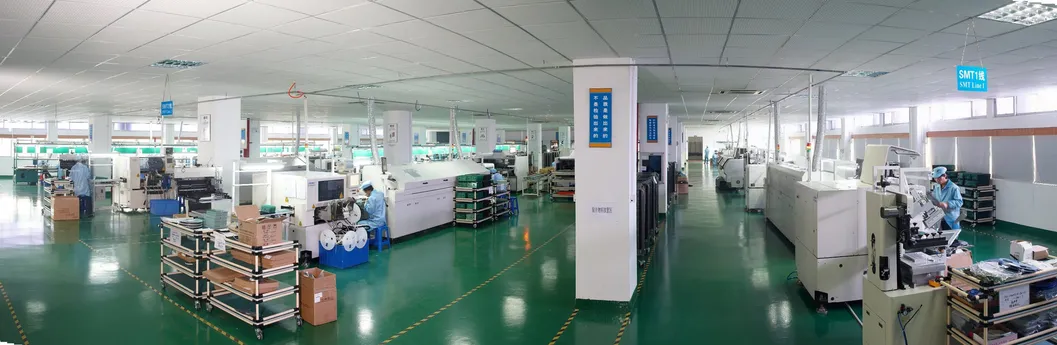

FACTORY WORKSHOP:

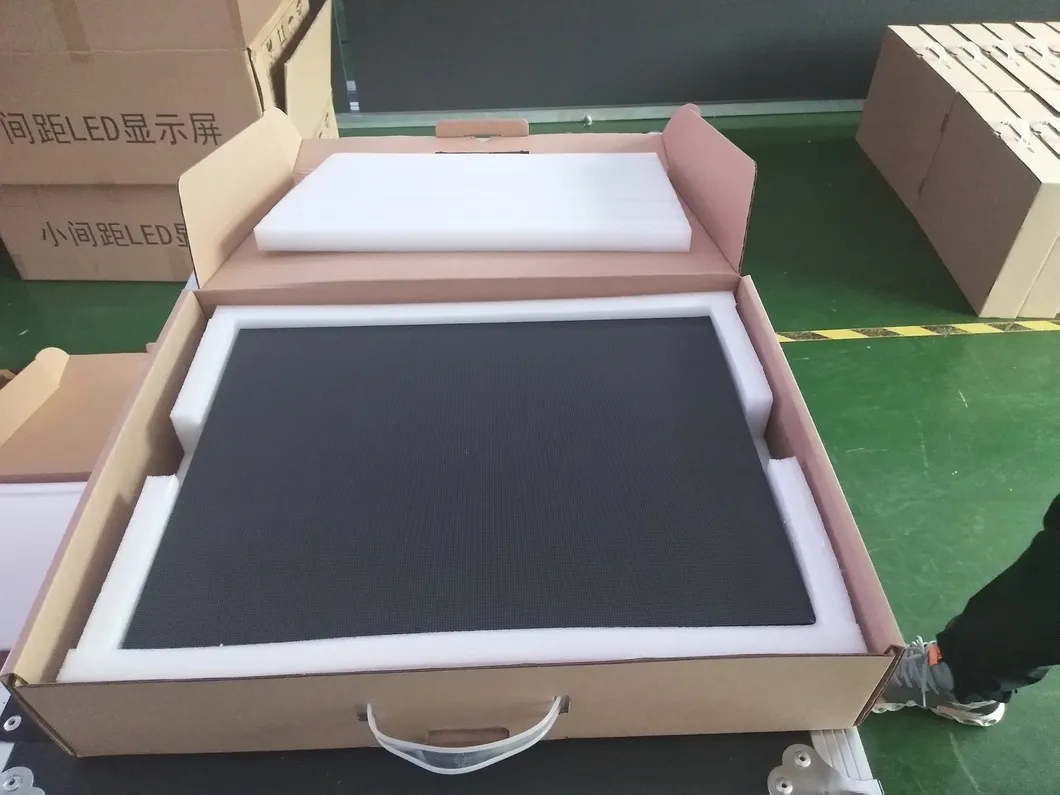

PACKAGE:
Why chooes us?
CKGLED is an large professional full color led display manufacturer in Shenzhen,China. CKGLED owns 2 production bases covering over 20,000sqm with more than 200 employees. We have built solid & good cooperation with all the top brand raw material suppliers in this line of business, and have established long-term business cooperation with customers from more than 150 countries world-widely. We have our distributors in Italy , CZ, Slovakia, Portugal , Spain, Thailand and India. If you need technical support in your country, we could also send our engineers to your site to help.
Our service:
A. Pre-sale service
1. Your inquiry related to our products or price will be replied in 24hrs
2. The size can be change as you give.
3. What we show is some of our current models, welcome to give us your own ideas.
4. Protection of your sales area, ideas of design and all your private information
5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win)
B. In-sale service
1. Tracking report of production.
2. Quality test report for every order.
3. Photos and videos in the production.
C. After-sale service
1. Lifetime maintenance and software upgrade.
2. Complaint respond period not exceed 24 hours, maintenance guidance and problem solution supplied in 48 hours.
3. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system and so on.
Packaging & Shipping
Standard Package: Flight Case & Wood Box
Delivery time: 10-25 days after receiving the deposit
