Interactive Creative Touch LED Video Floor Display

Product Description

High-definition indoor led display interactive floor tile touch screen

Interactive Creative Touch LED Video Floor Display

1.High brightness and good quality by adopting high quality leds.

2.Modular design, flexible cabinet size to meet up with different requests.

3.High polymer flexible mask, no mosaic phenomenon ,better contract ratio.

4.Great uniformity and screen flatness.

5.Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.

P3.91MM LED FLOOR SPECIFICATIONS

MODEL:		PH3.91 led floor, 500x1000mm		VERSION	3.0
DESCRIPTION:		PH3.91 LED VIDEO FLOOR
No.	Parameters		Specifications
1	Pixel Pitch(mm)		3.91
2	Pixel Density		65536pixel/sqm
3	LED Type		SMD1921(3-IN-1)
4	Viewing Angle		H:140°/ V:140°
7	Brightness		≥2500cd/sqm
8	Drive Method		1/16 Scan
9	Driving IC		MBI5124
10	Color Depth		16bit
11	Refresh Rate(Hz)		≥1920
12	Frame Rate(Hz)		≥60
13	Brightness Adjustment		Manual/auto/remote
14	Module Size(mm)		250x250
15	Module Resolution(dots)		64x64
16	Cabinet Size(mm)		500x1000
17	Cabinet Display Resolution(dots)		128x256
18	Cabinet Type and Material		Aluminum+Steel Iron
19	Cabinet Weight(Kg)		22kg
20	Power Supply		5V 60A
21	Voltage(V)		110~220V,±10%
22	Avg. Power Consumption		400W/sqm
23	Max. Power Consumption		800W/sqm
24	Service Access		Front/Rear
25	IP Grade		IP65
26	Operating Temp/Humidity		-30ºC~60ºC, 10~95%RH
27	Storage Temp/Humidity		-40ºC~70ºC, 10~95%RH
28	lifespan (Normal Temp)		≥100,000H
29	System Controlle		CKGLED
30	Compliant Standard		CCC,CE ,RoHS,FCC

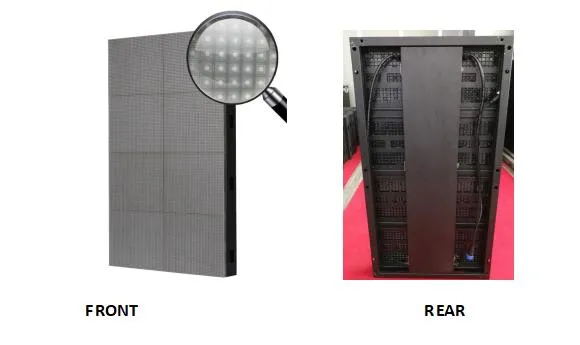

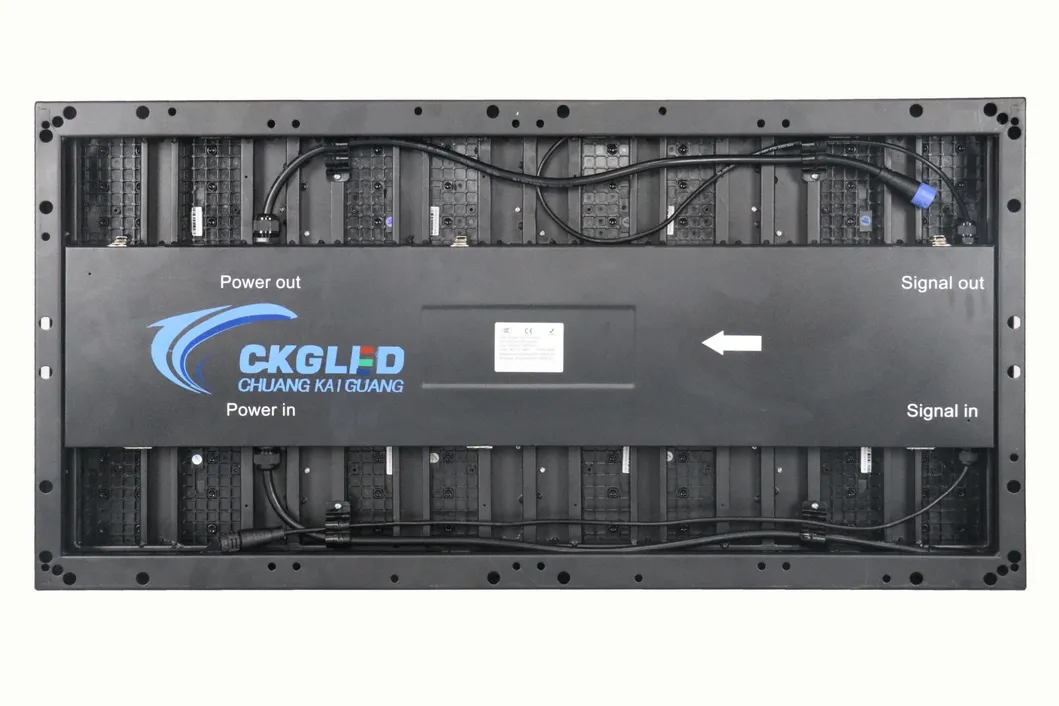

CABINET PHOTOS:

Interactive Creative Touch LED Video Floor Display

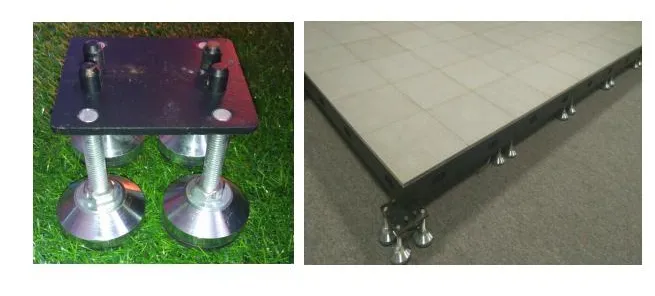

CABINET HOLDER:

Interactive Creative Touch LED Video Floor Display

CAMPANY INTORDUCTION:

CKGLED's product quality management is strictly adhering to the ISO9001: 2008 certifications system and 7S management standards. Thanks to those efforts, our products have passed certificates of CE, RoHS, CCC, FCC, ETL etc.With an outstanding business performance and good social reputation, CKGLED's led displays have been sold all over the world both in and out of China to America, Germany, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Brazil, Spain, Thailand, Dubai, India etc.more than 50different countries

EXHIBITION PHOTOS:

Outdoor P4 Fixed Installation Digital Advertising LED Display Screen

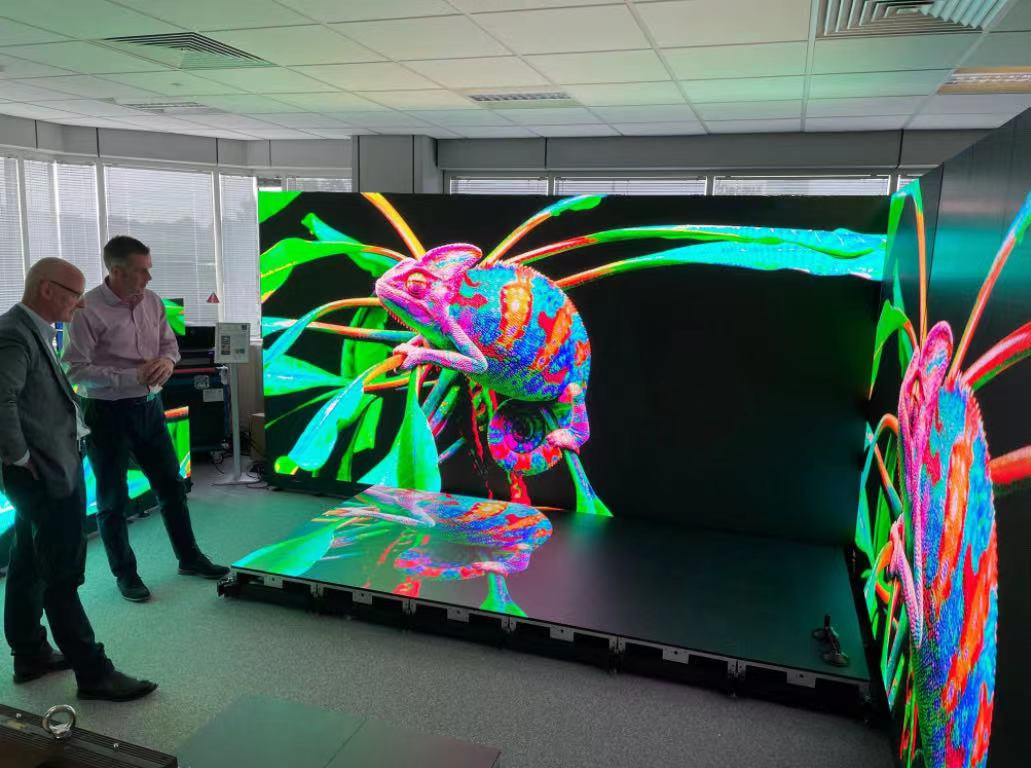

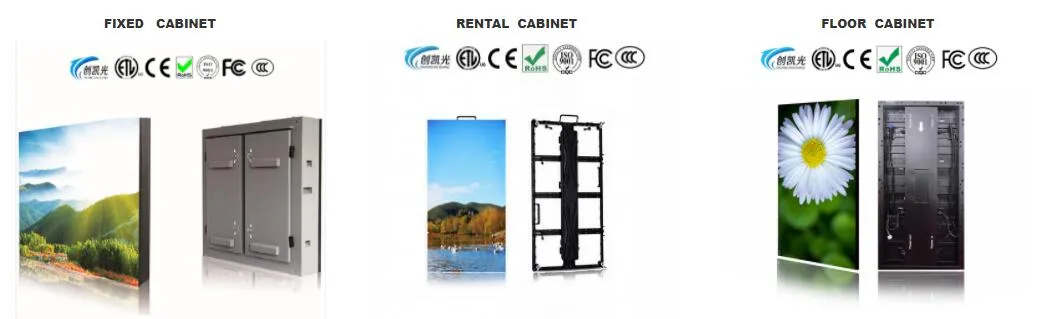

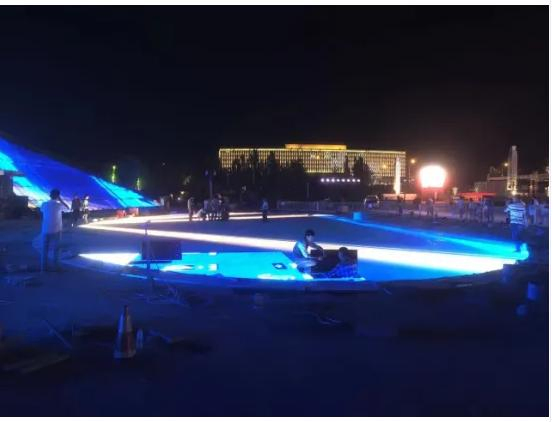

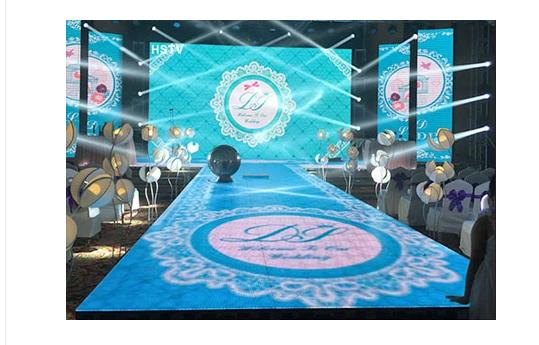

OTHER PROJECT :

COOPERATION BRAND:

PACKING&SHIPPING:

Outdoor P4 Fixed Installation Digital Advertising LED Display Screen

CERTIFICATIONS:

AFTER SALES SERVICE:

Pre-Sales Service

Provide details about the production procedure

Assign engineers for installation and testing

Sales Service

Customized solution designs

Product rendering and steel structure drawing

CKGLED's successful project examples and visits to our production and R&D base

After-Sales Service

Two-year quality warranty with lifelong maintenance.

Free guarantee repair (including labor and material): free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service

after the quality warranty period. We will never exempt our responsibilities on product owned defects.

Responding time: upon receiving user's notification, we ensure 24-hour after-sales technical support.

Spare parts: necessary spare parts are provided together with products to customers.
