Indoor Rental P3.9 Curved LED Video Wall
PRODUCT FEATURES:Cabinet Size: 500*500mm and 500*1000mm two sizes for optionFast locking system : easy and quick to assemble an big led screen, save labor cost and time.3840Hz high refresh rate : Smooth and vivid videos without ripple and blank, clear images restored accurately,bringing to the audi......
Send Inquiry
Product Description

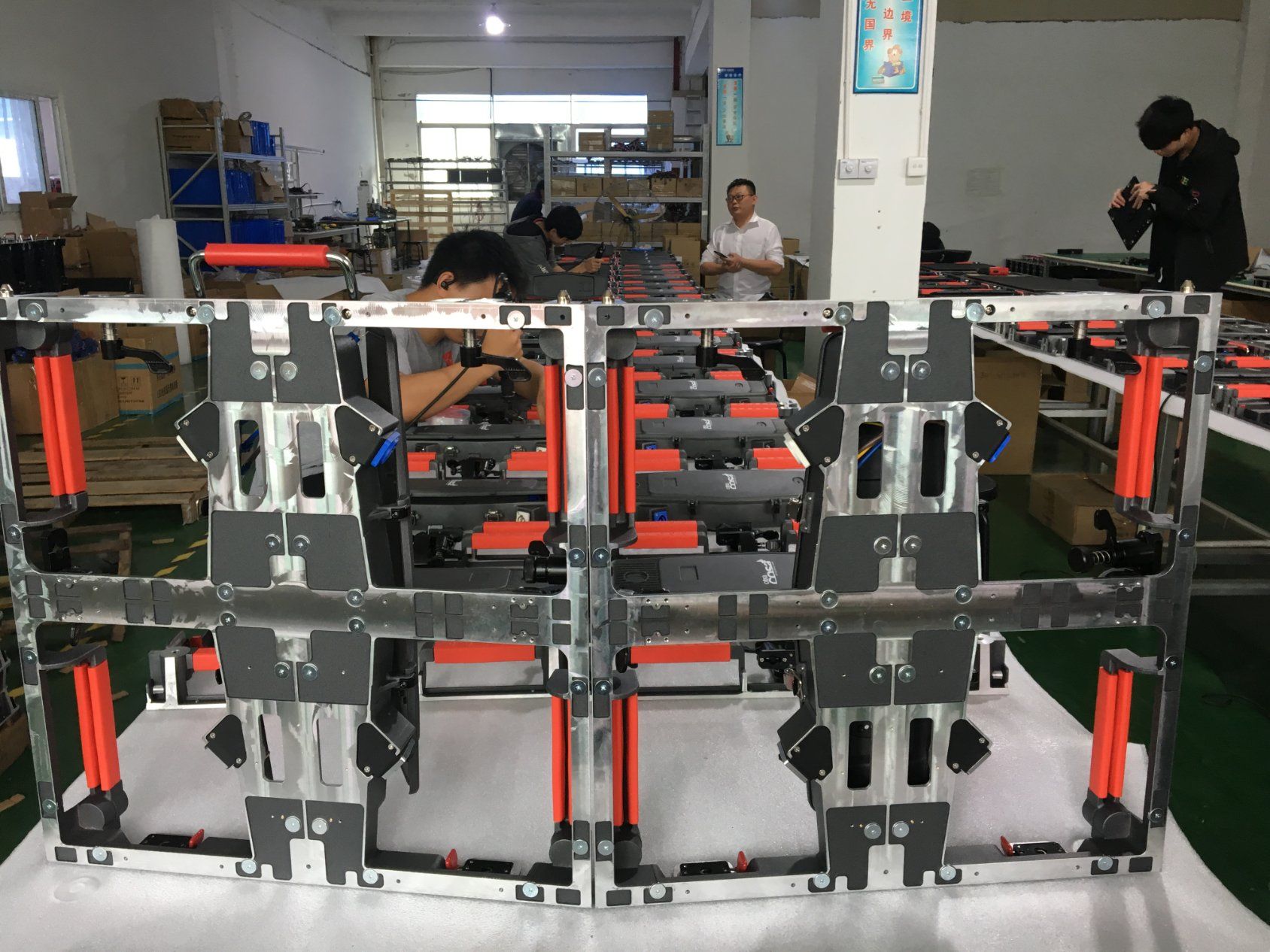

Cabinet Size: 500*500mm and 500*1000mm two sizes for option

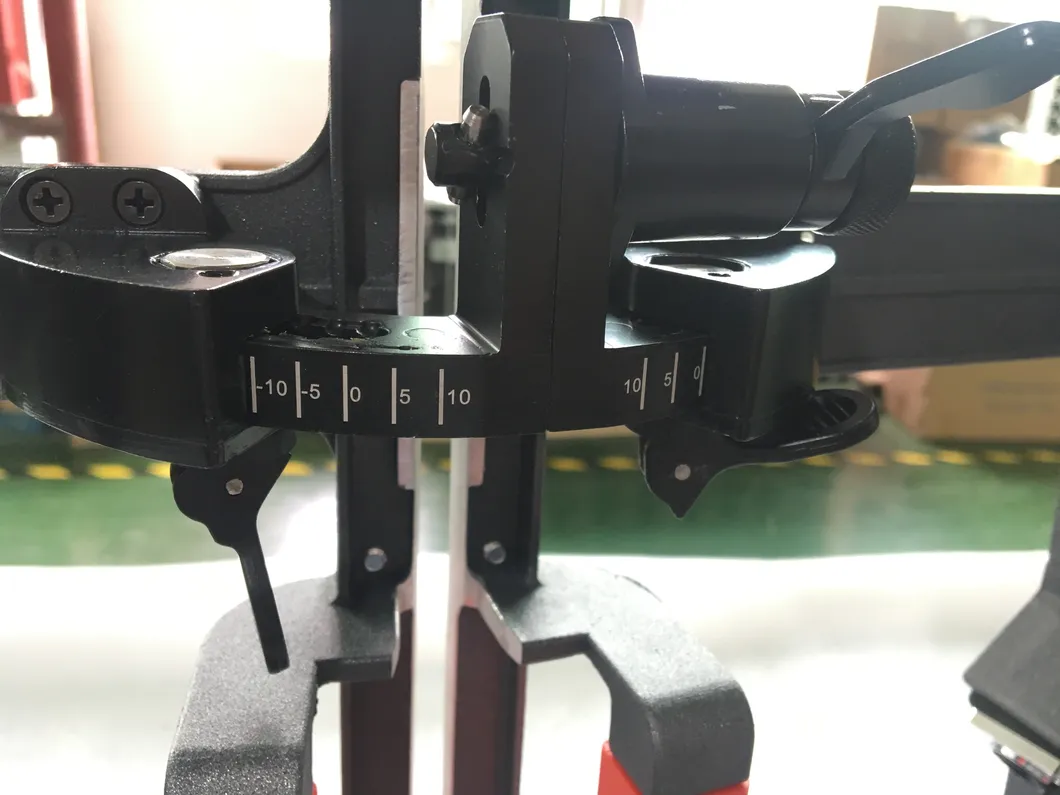

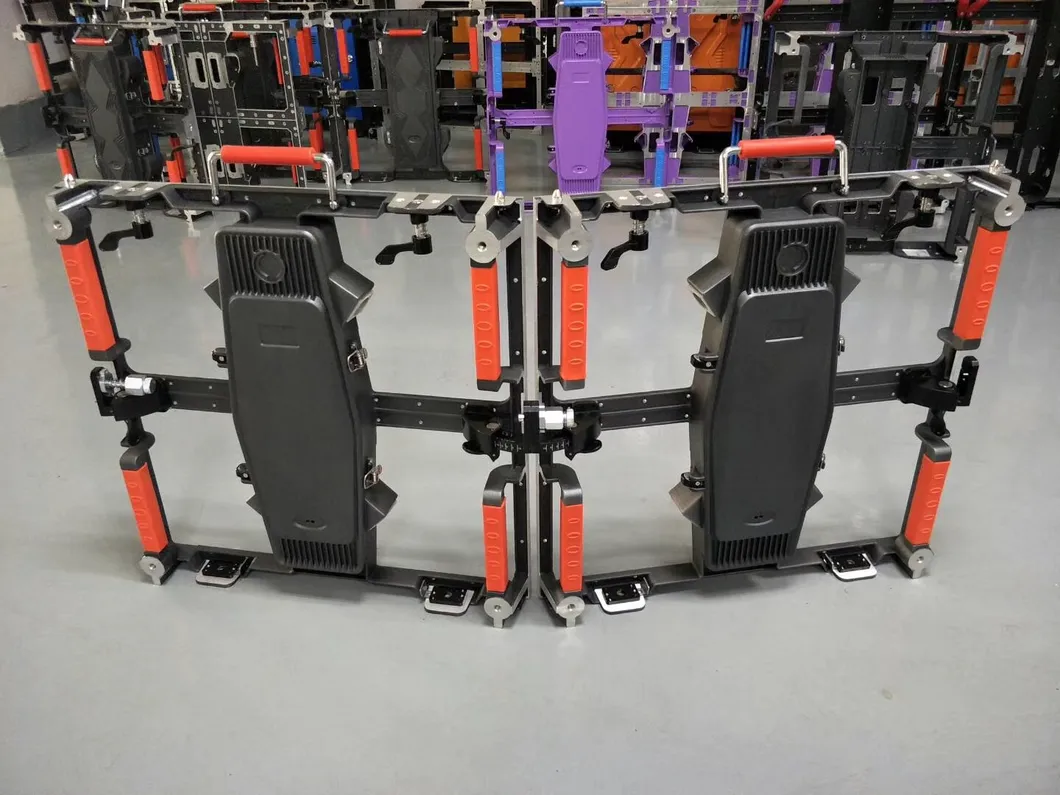

Fast locking system : easy and quick to assemble an big led screen, save labor cost and time.
3840Hz high refresh rate : Smooth and vivid videos without ripple and blank, clear images restored accurately,bringing to the audience greatest visual enjoy.
High grey-scale available even below 100nits brightness, the layering and vividness of the video superior to traditional screens.

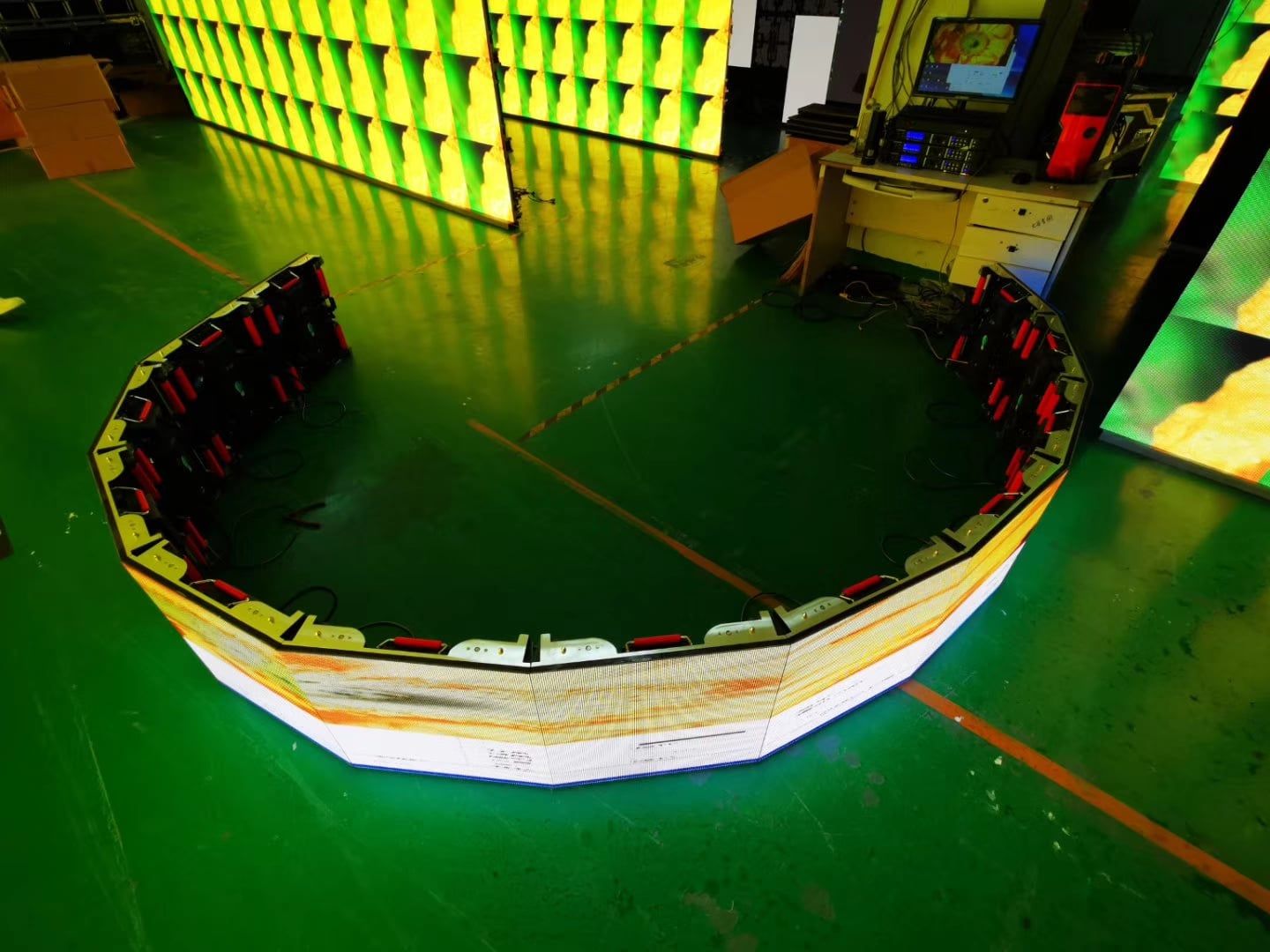

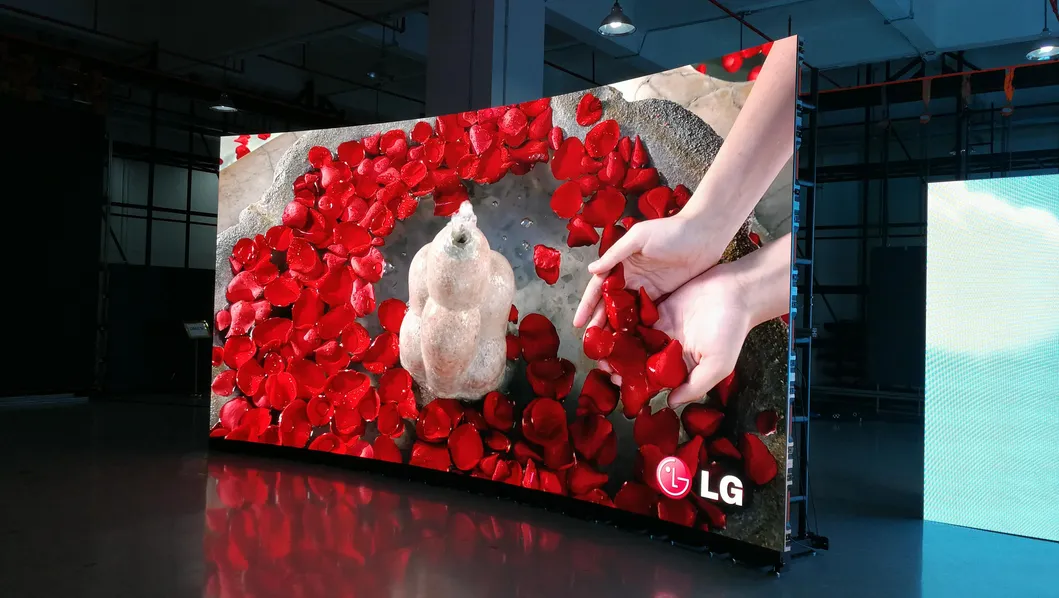

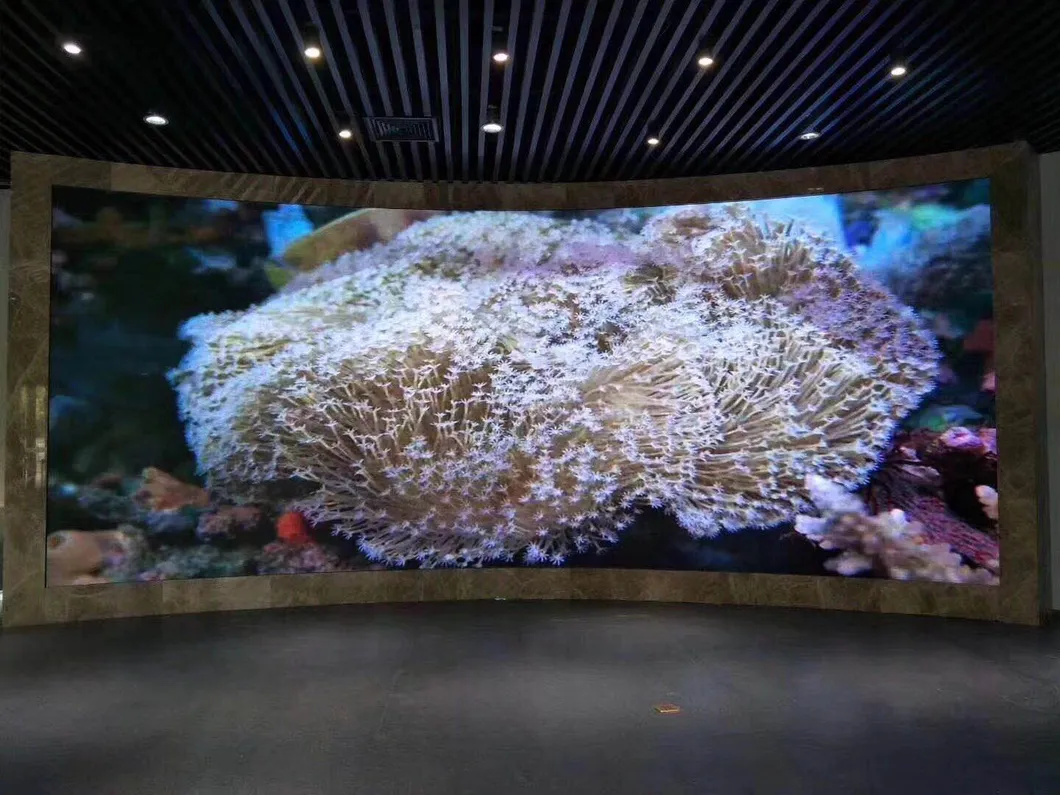

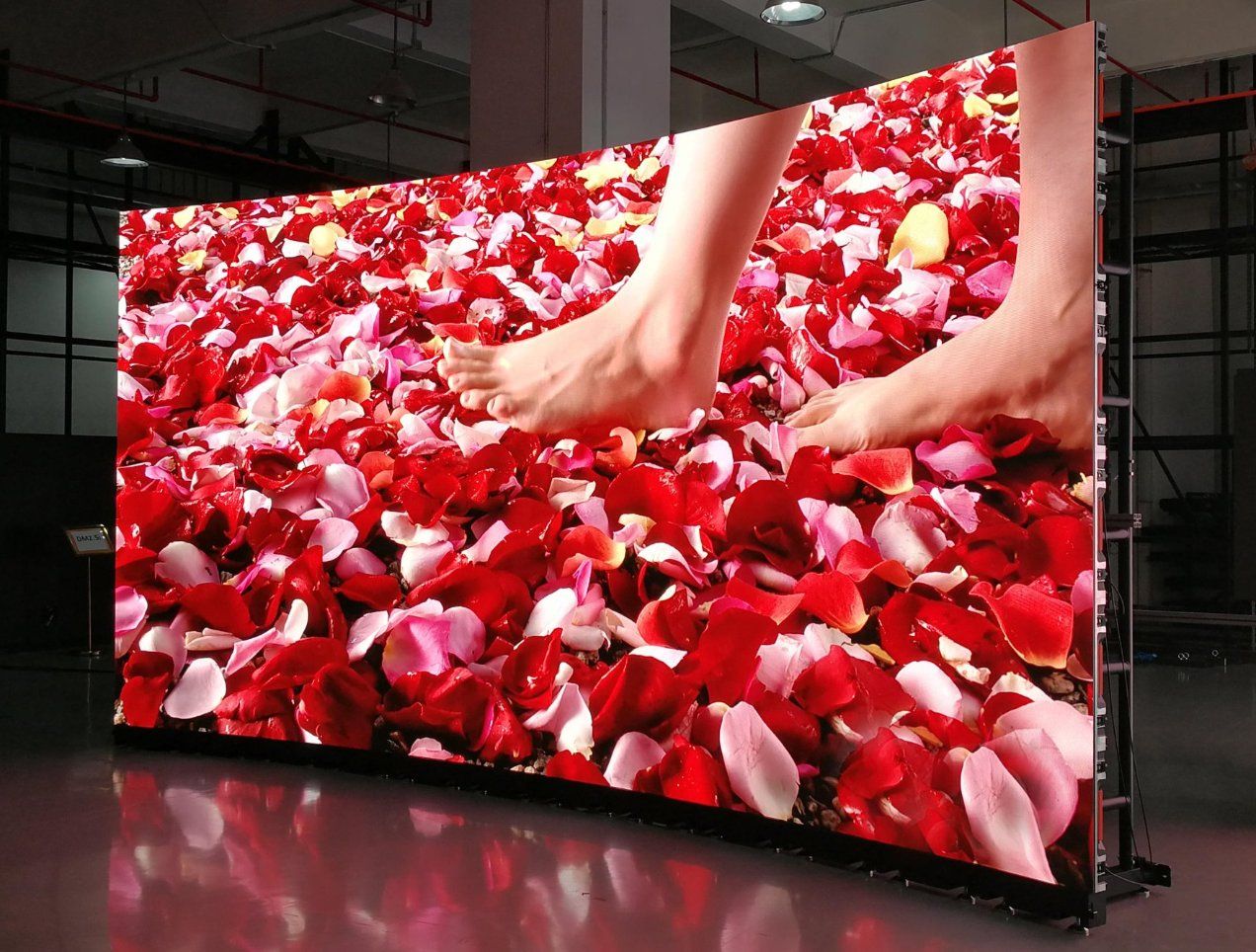

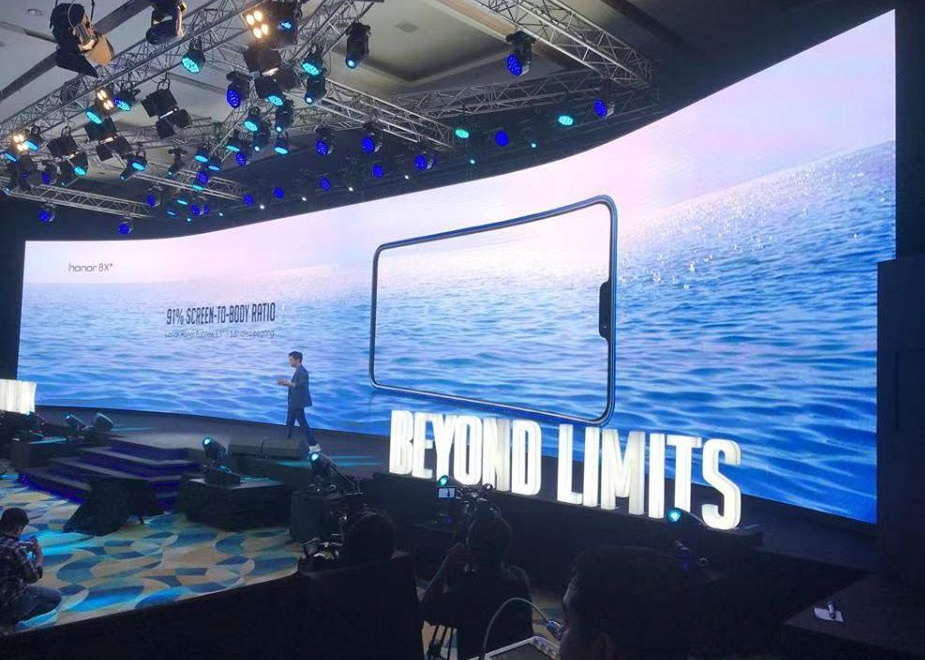

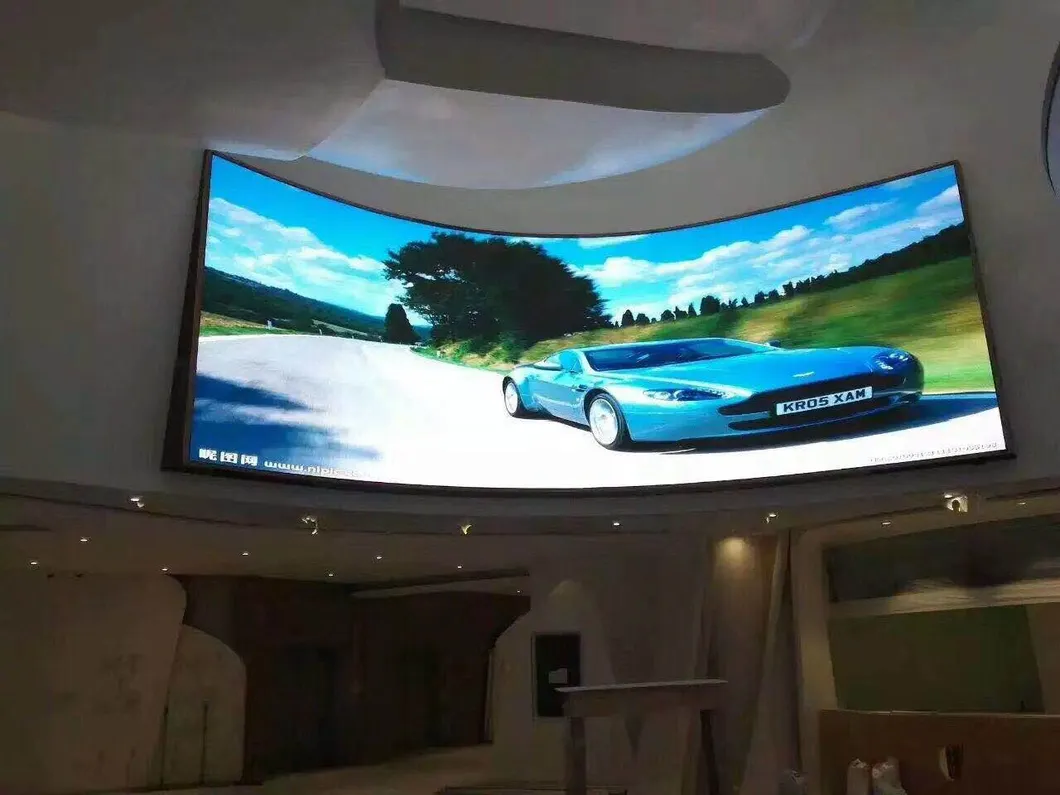

Inner Curved design, bring people a better visual experience
Curved SERIES-P3.91MM TECHNICAL DATAS
| NO. | Parameters | Specifications |
| 1 | Model | XII3 |
| 2 | Pixel Pitch(mm) | 3.91 |
| 3 | LED | SMD2020 |
| 4 | Screen Resolution | 65536dots/sqm |
| 5 | Scan Method | 1/16 |
| 6 | Module size(mm) | 250*250 |
| 7 | Cabinet size(L*H*W mm) | 500x500/500x1000 |
| 8 | Cabinet material | Die-casting Aluminum |
| 9 | Cabinet(Kg) | 7.3 |
| 10 | Viewing angle | H:140°/ V:140° |
| 11 | Grey Scale | 16bit |
| 12 | Refresh rate(Hz) | ≥3840 |
| 13 | Brightness(nits) | ≥1300 |
| 14 | Working Voltage(V) | AC 100~240V |
| 15 | AVE. power consumption (W/m2) | 200 |
| 16 | MAX. power consumption(W/m2) | 600 |
| 17 | IP grade | IP31 |
| 18 | Controller | Novastar |
| 19 | Maintenance | Rear service |
| 20 | Working humidity | 10~90%RH |
| 21 | Working temperature | -20ºC~50ºC |
CKGLED FACTORY WORKSHOP:
In CKGLED factory, there is an QC after every production precedure to guarantee ZERO faulty parts to the next procedure.
(1) Every batch of LED will get a strict testing to exam its performance and quality.
Testing includes:
1. Photometric performance
2. Colorimetric performance
3. Electric performance
(2) For the Printed circuit board (PCB), it will get a high temperature baking after unpacking to drive out moisture.
Baking environment:
130ºC
2 hours
(3)For soldering checking Each PCB in module should go through this scanning, make sure displays get the assured quality
48 hours high brightness aging for the LED module and 72 hours aging for finished displays,
in order to guarantee the final products steady performance and long MTBF.

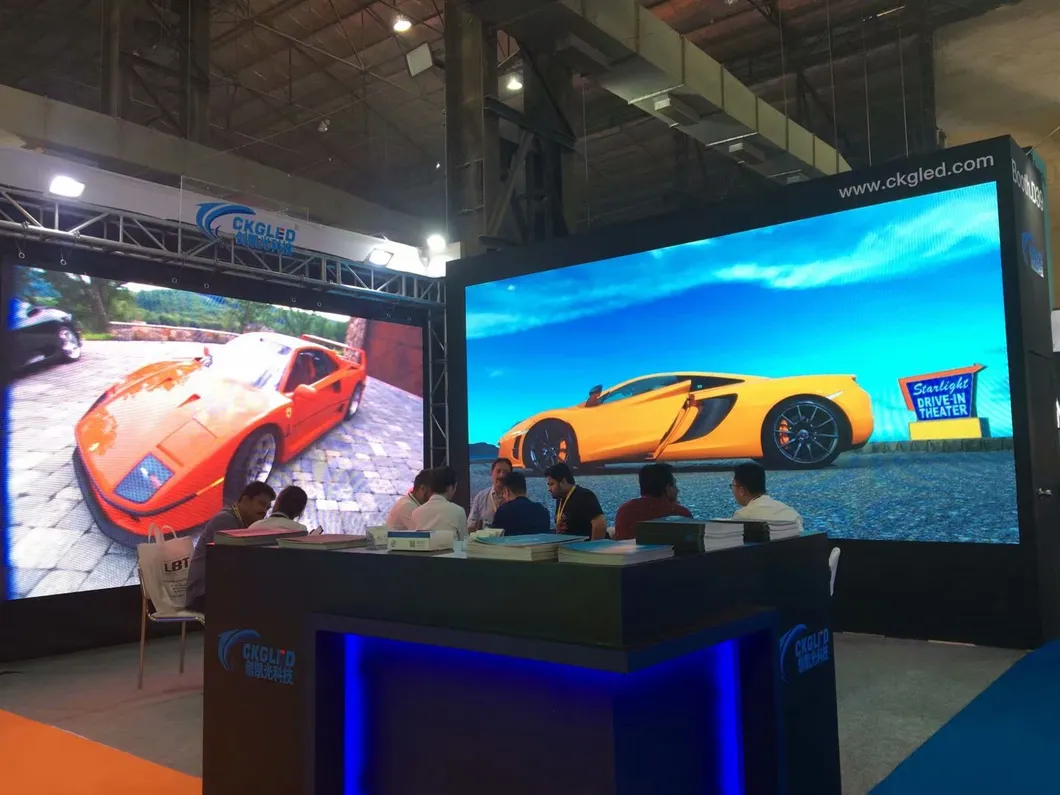

FOREIGN EXHIBITION:
Our service
1. Your inquiry related to our products or price will be replied in 24hrs;
2. OEM&ODM, any your customized ideas we can help you to design and put into product;
3. Distributor-ship are offered for your unique design and some our current models;
4. Protection of your sales area, ideas of design and all your private information;
5. Top quality+Reasonable price+Responsible After Service;
6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms

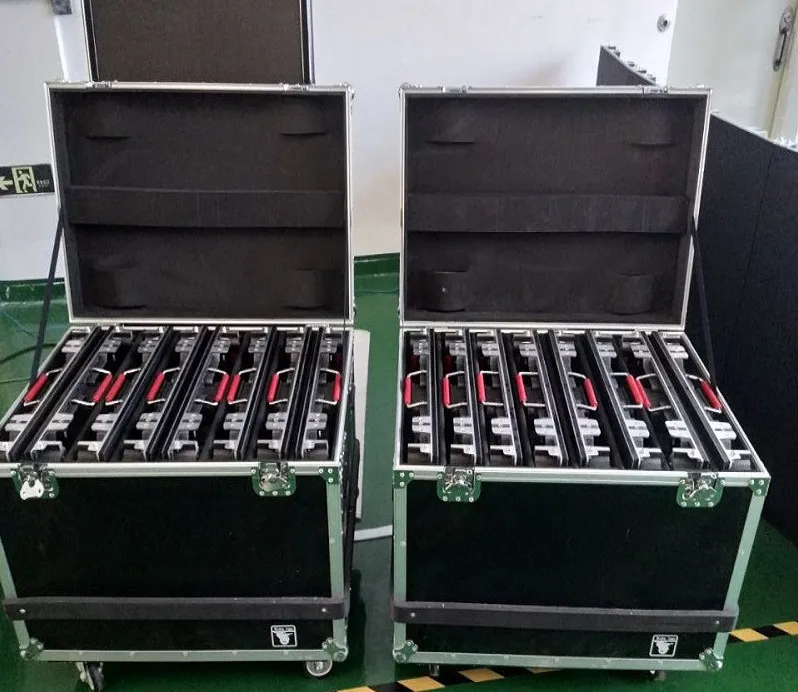

1. Package: Anti-shaking wooden package, Air flight case or Carton package;
2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, China;
5. Warranty time: 2 years
6. Delivery time: 3-15 working days
