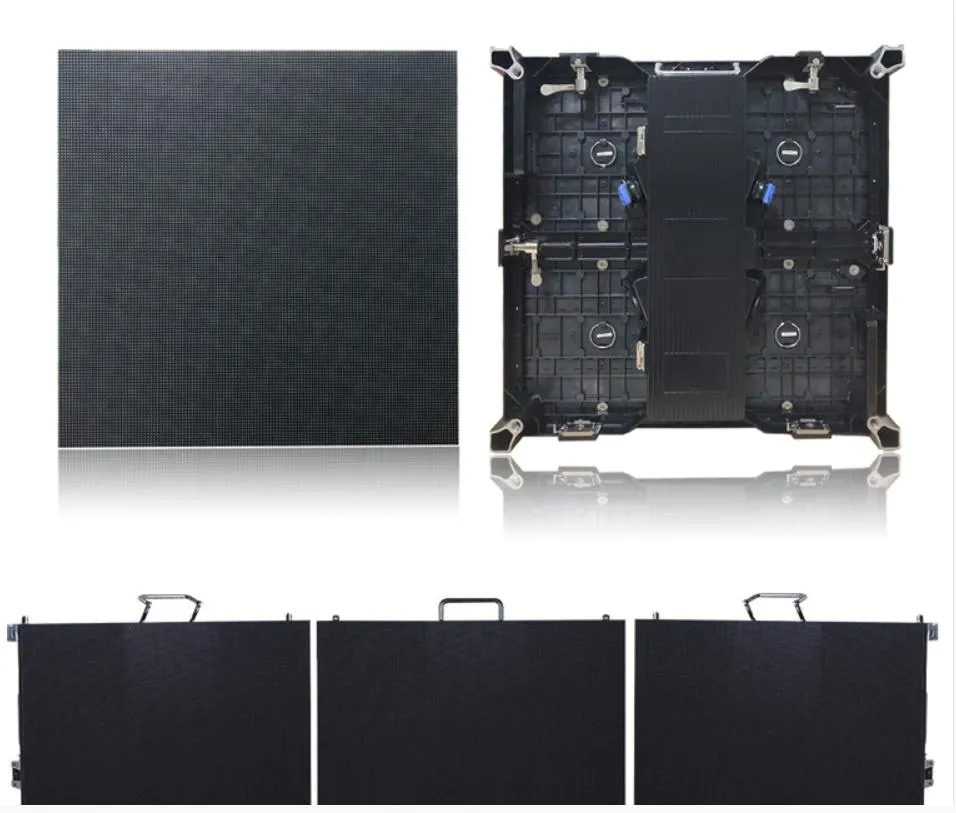

Indoor P3 576mm*576mm Ultra Thin Super Light Front Maintenance High Brightness LED Screen Display Billboard with Hongsheng LEDs with 192mm * 192mm Modules

Product Description

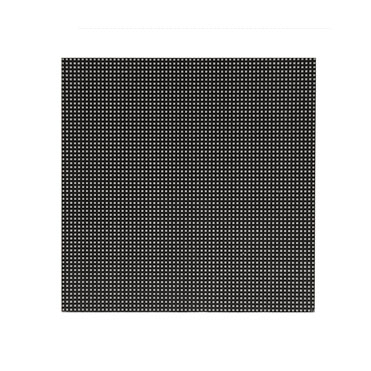

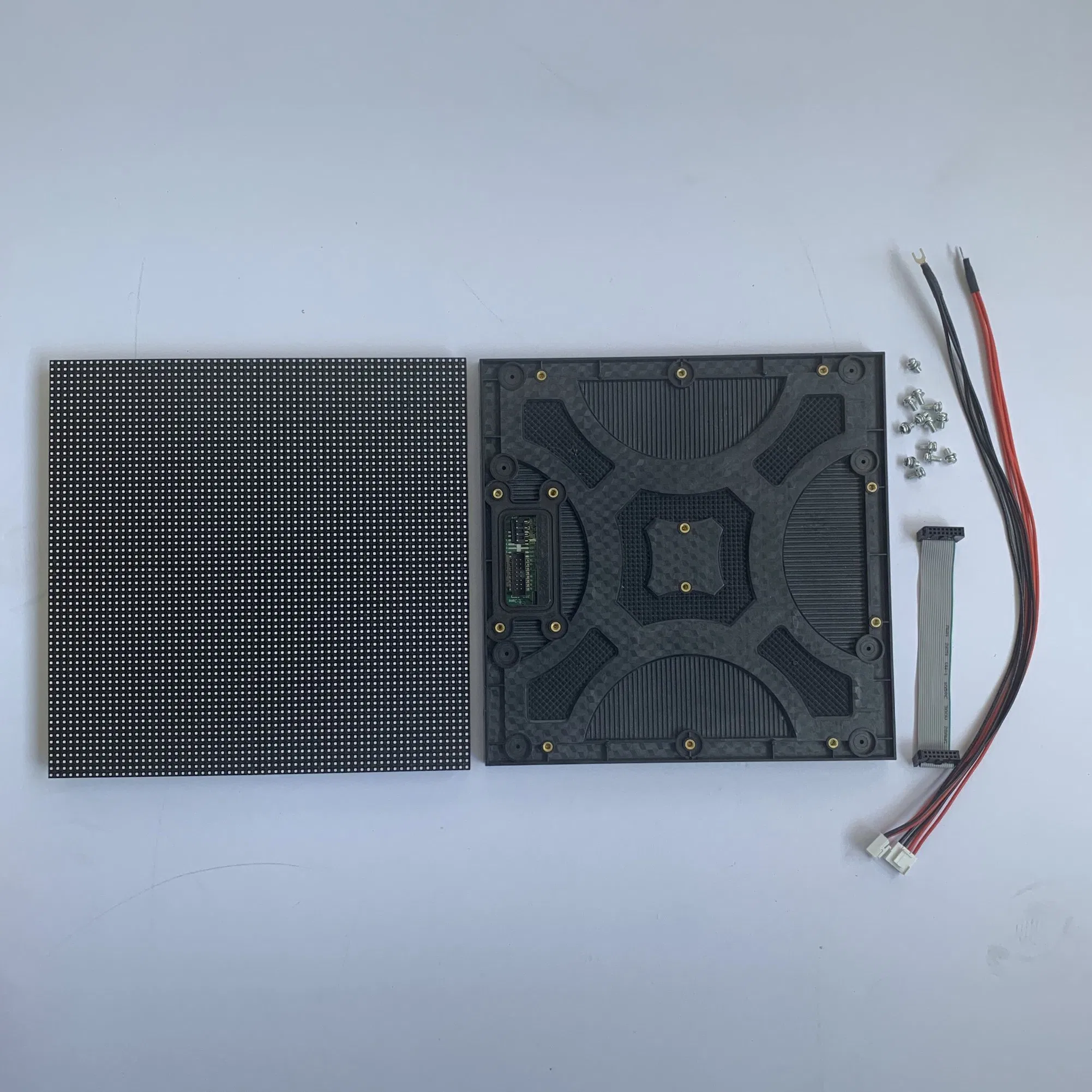

•Standard size LED modules.

P1.25 P1.56 P1.667 P1.86 P1.875 P1.90 P1.923 P2.0 small spacing/P2.5 P3.0 P3.91 P4.0 P4.81 P5 P6 P7.62 normal LED display

with standard 320*160mm module size, easier

upgrading with same cabinets and structures.

•High contrast ratio.

All Modules are inserted pure black LEDs. Up to

8000:1 contrast ratio.

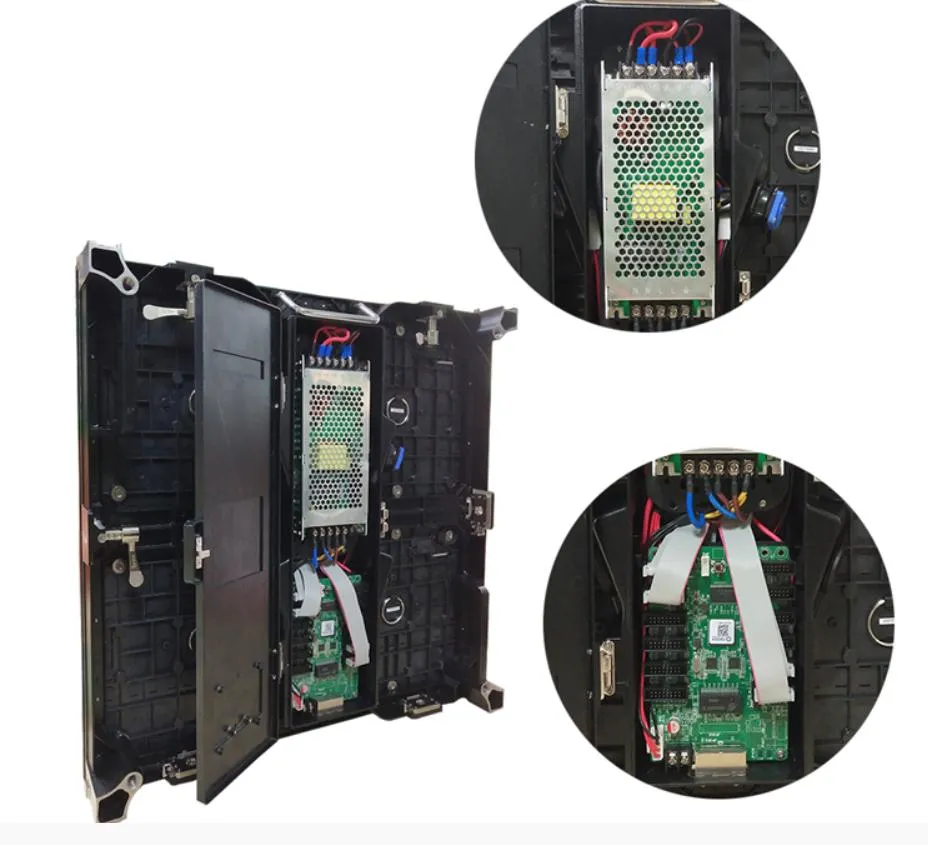

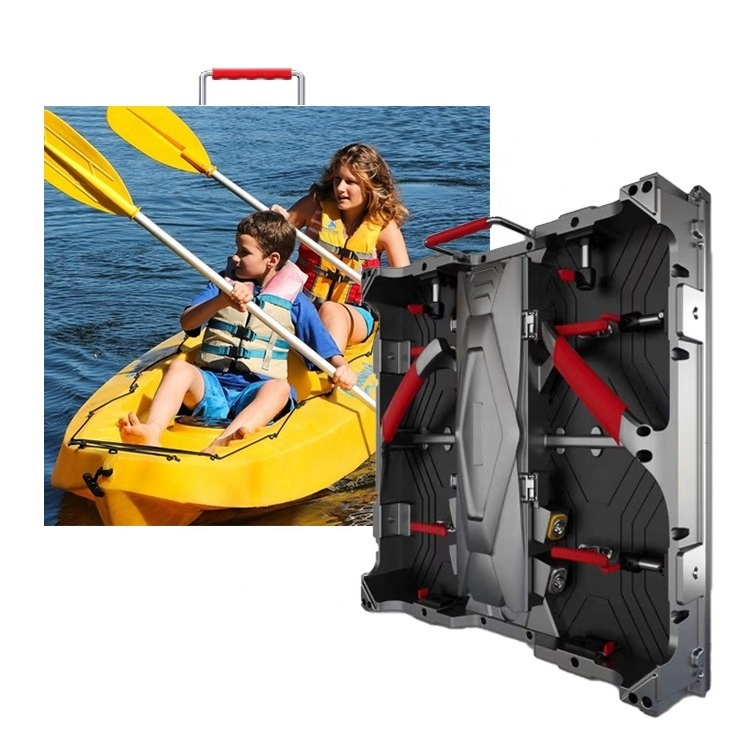

•Front maintainence

Magnet modules makes front maintainence

available.

•Fast installation

Fast lock systems ensure fast installation, saving

labor cost.

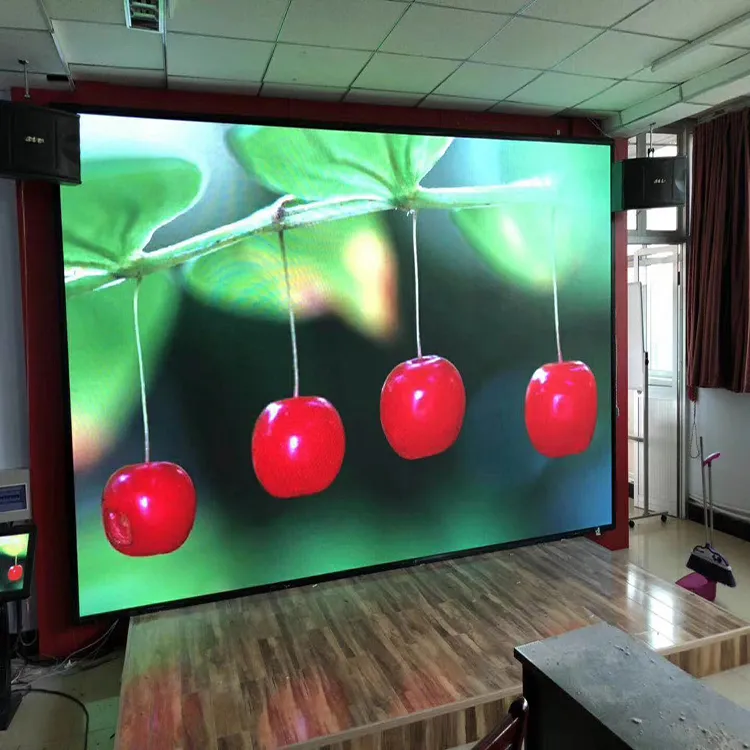

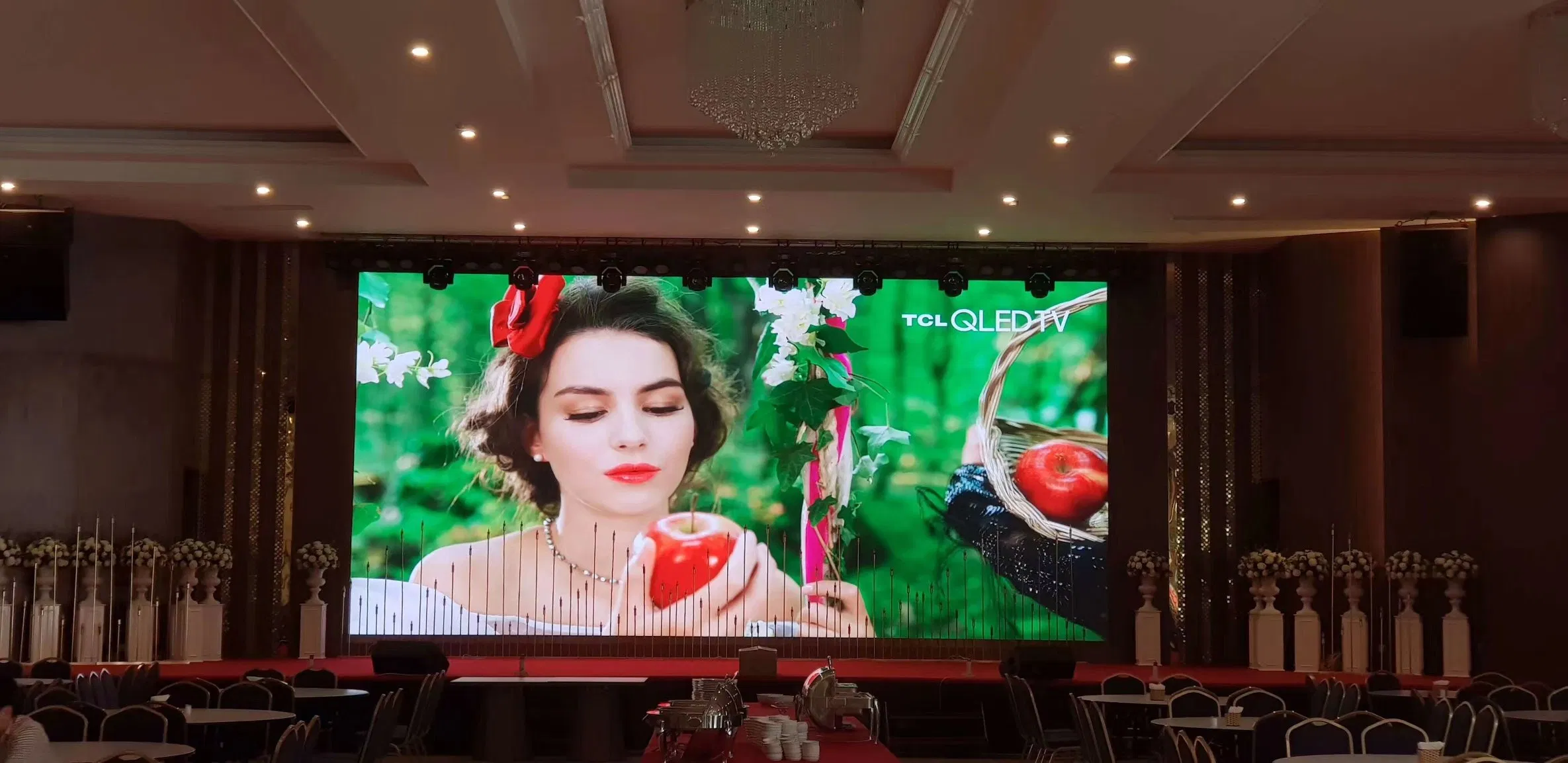

•Multi applications

Indoor billboards, digital signs, shop windows,

bank,

Special designed click lock, make it to be

front&back maintainence easily.

·4:3 ratio designed cabinet.

Easily to make 16:9 HD resolution LED display.

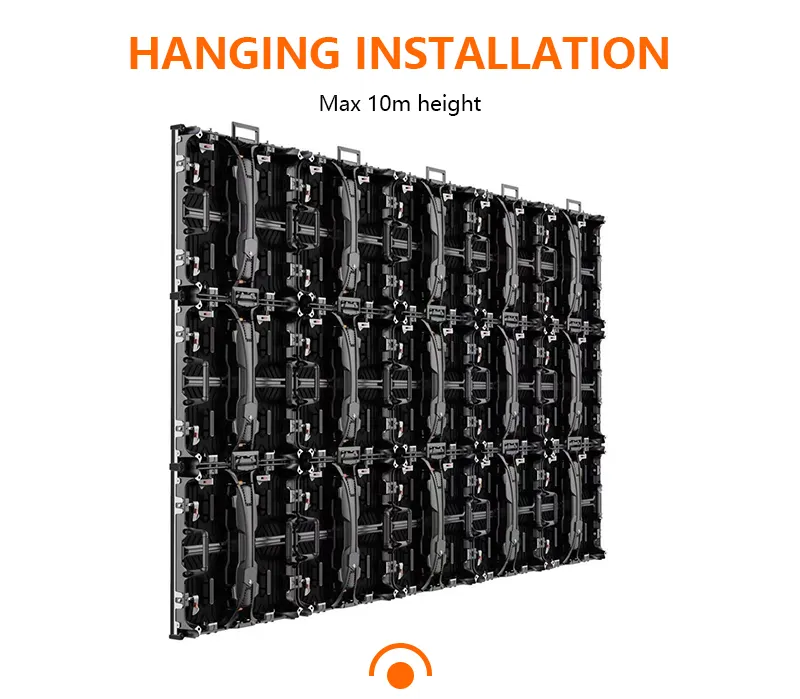

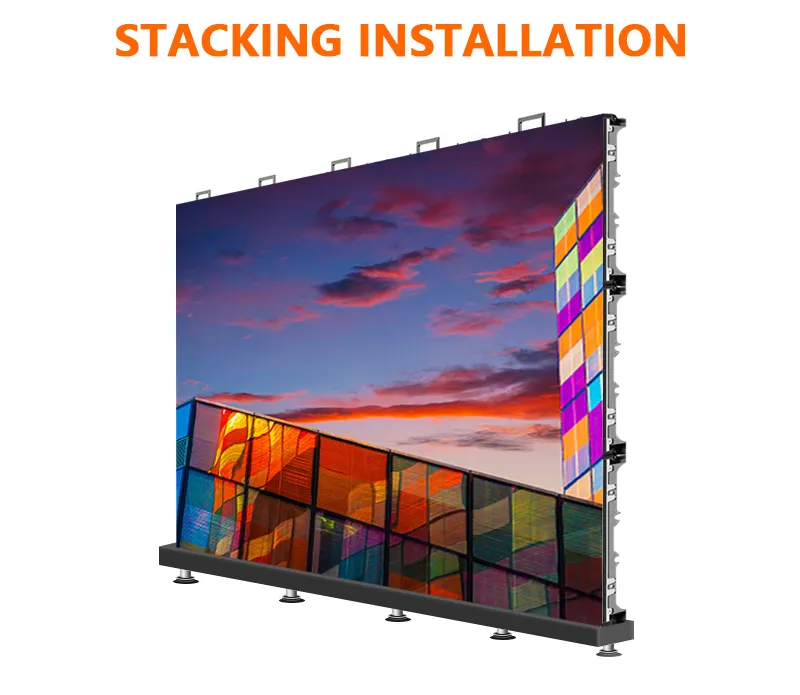

• Multi-installation method

Wall mounted; Hanging;Stacking

Item
Module specifications	Model	P2.0	P2.5	P3.0	P3.91	P4.0	P4.81	P5	P6
	Module size (mm)	256*256	160*160	192*192	250*250	256*256	308*308	320*160	192*192
	Module pixel	128*128	64*64	64*64	64*64	64*64	64*64	64*32	32*32
	Scan	1/32	1/16	1/32	1/32	1/32	1/32	1/16	1/16
	Pixel configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
	LEDs	SMD1515	SMD2121	SMD2121	SMD2121	SMD2121	SMD2121	SMD2121	SMD2121
	Max power consumption	40W	40W	40W	30W	30W	20W	20W	20W
	Mask	have	have	have	have	have	have	have	have
Main Specifications	Cabinet size	500*500	500*500	500*1000	500*500	512*1024	616*616	640*480	768*768
	Cabinet pixel	192*192	128*128	128*256	128*128	128*256	128*128	128*96	128*128
	Density (dot/m2)	147456	65536	65536	65410	62500	43222	40000	17222
	Brightness(cd/m2)	700-1000	700-1000	700-1000	700-1000	700-1000	700-1000	700-1000	700-1000
	Max power consumption (W/piece)	160W	160W	320W	200W	200W	200W	200W	200W
	Avg power consumption (W/piece)	100W	100W	100W	100W	100W	100W	100W	100W
	Cabinet weight(KG)	6KG	6KG	11KG	10KG	10KG	10KG	10KG	10KG
	Cabinet material	Die-cast magnesium aluminum box
	IP grade	IP45
	Gray level	16 bit
	Fresh rate	3840HZ
	Best viewing distance	>=2.0M	>=2.5M	>=3M	>=4M	>=4M	>=5M	>=5M	>=8M
	Power(V)	AC110-220V
	Working temperature	-20ºC-50ºC

Our service

Pre-sale service:
1. Inquiries will be replied within 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other required services such as special packing design, factory visiting and so on.

In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3. Free spare parts provided.

After-sale service:
1. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
2. Warranty: 1year
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
