Indoor LED Display Front Maintenance Column Screen Rubik 's Cube Screen Abnormal Screen P2.5 P3 P4 P5 P6
Soft/ flexible full Color LED Display Module for indoor use, can be fixed with magnets for different curved shaped led screensFeatures:1. Small pixel pitch ensure good vision effect for closed view distance, friednly to eyes, 2. Black led lamp body, high contrast rate, high definition up 1080P3. Wi......
Send Inquiry
Product Description

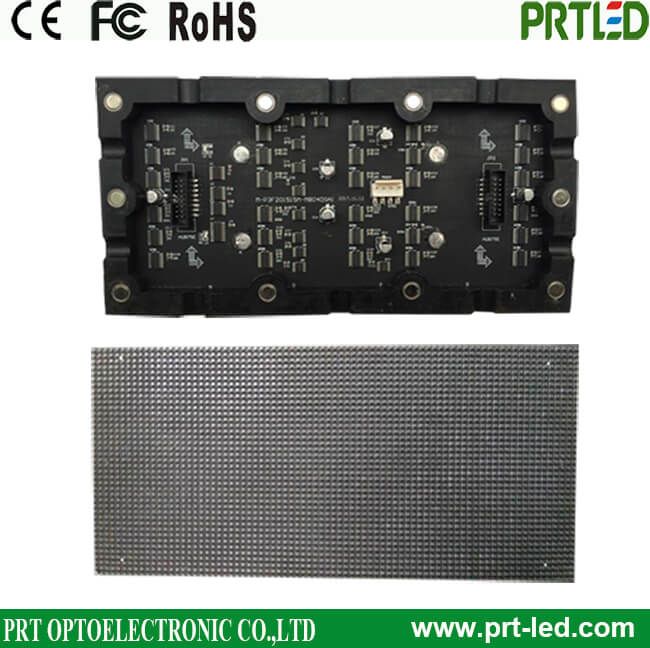

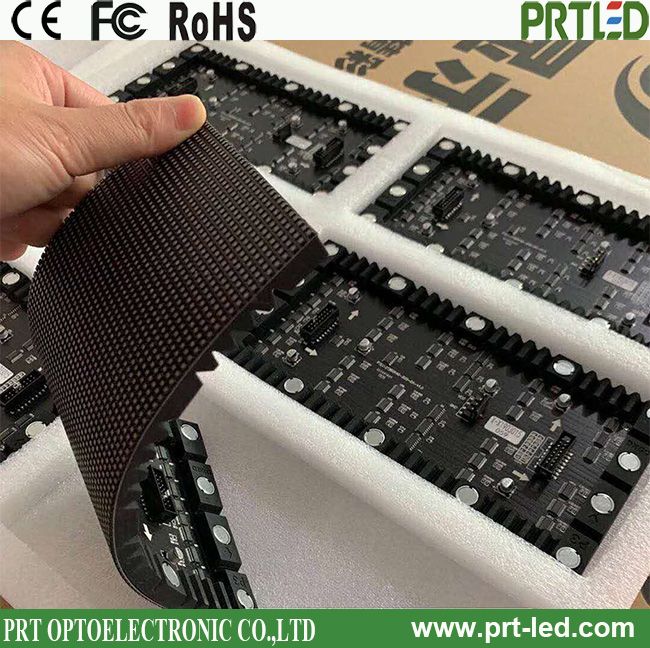

Soft/ flexible full Color LED Display Module for indoor use, can be fixed with magnets for different curved shaped led screens
Features:
1. Small pixel pitch ensure good vision effect for closed view distance, friednly to eyes,
2. Black led lamp body, high contrast rate, high definition up 1080P
3. Wide view angle with 160° for horizontal and 140° for vertical, no strobe,no image distortion and color cast from different angle
4. SMD LED encapsulated technology make slim thickness and good heat dissipation, energy-saving
5. Dot to dot maintain, easy and quick maintenance, save maintenance cost
6. Small module size is easy for different screen sizes,Cylindrical screens with different diameters
7. Modules with magnetics combined for different shaped screens seamlessly

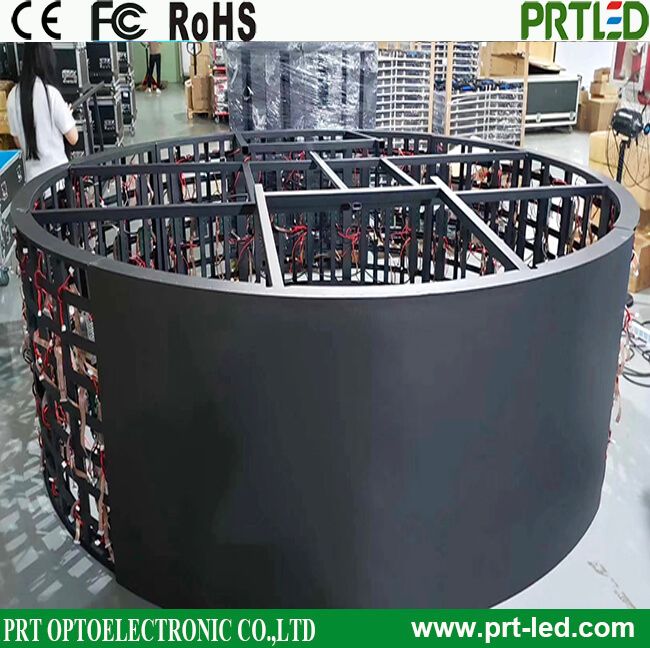

8. Widely used for different curved,Cylindrical screens with different screens as request

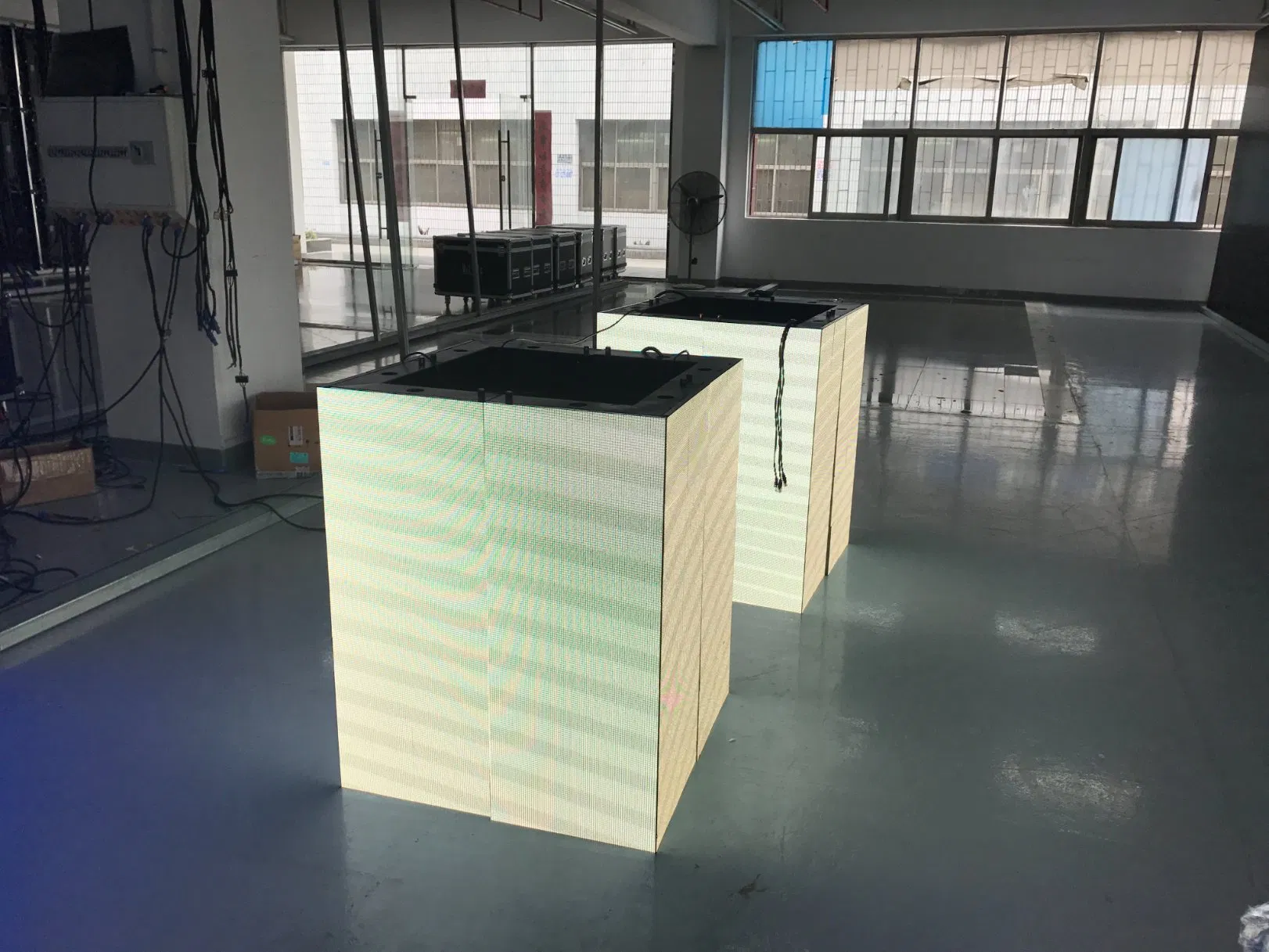

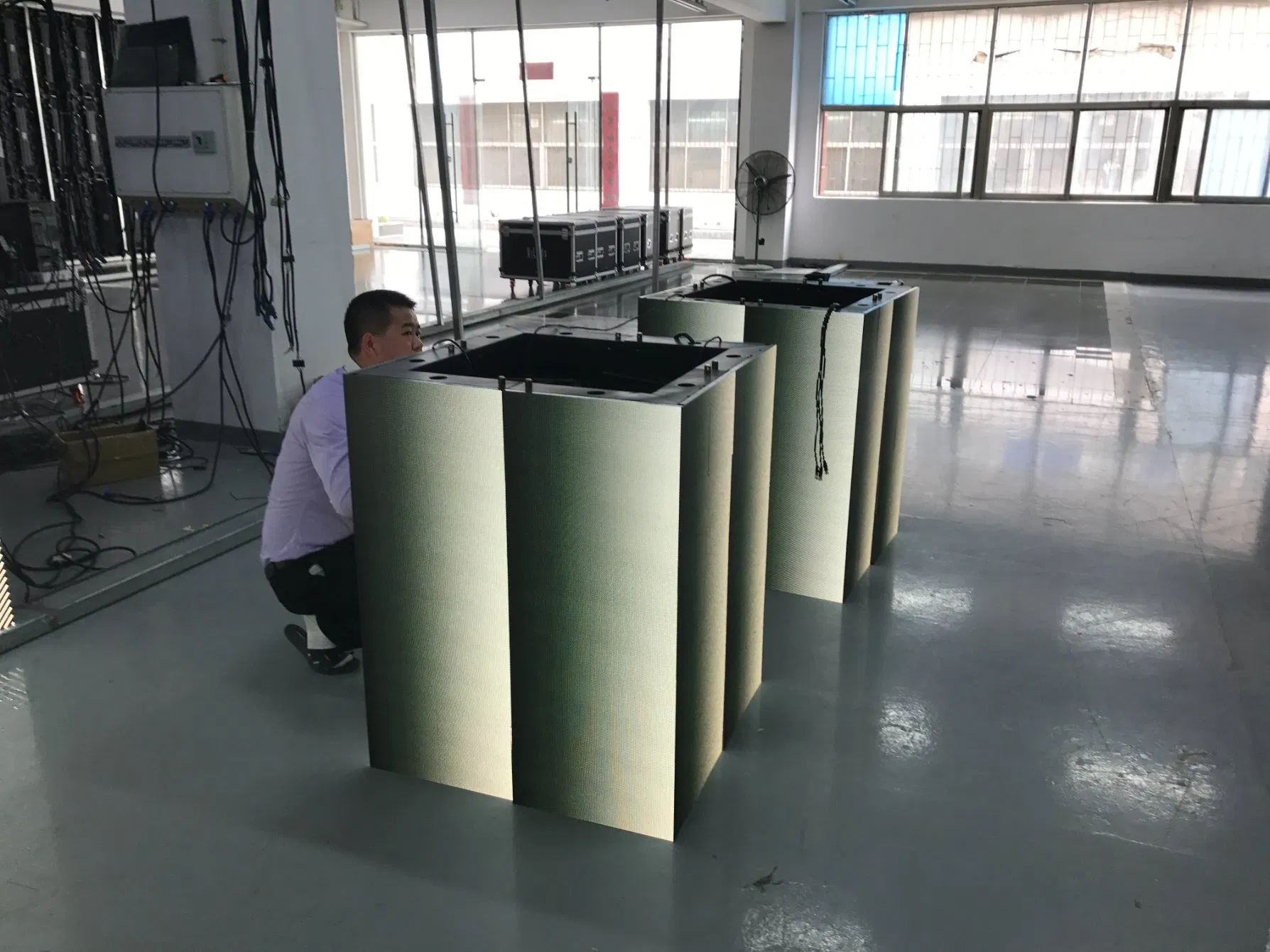

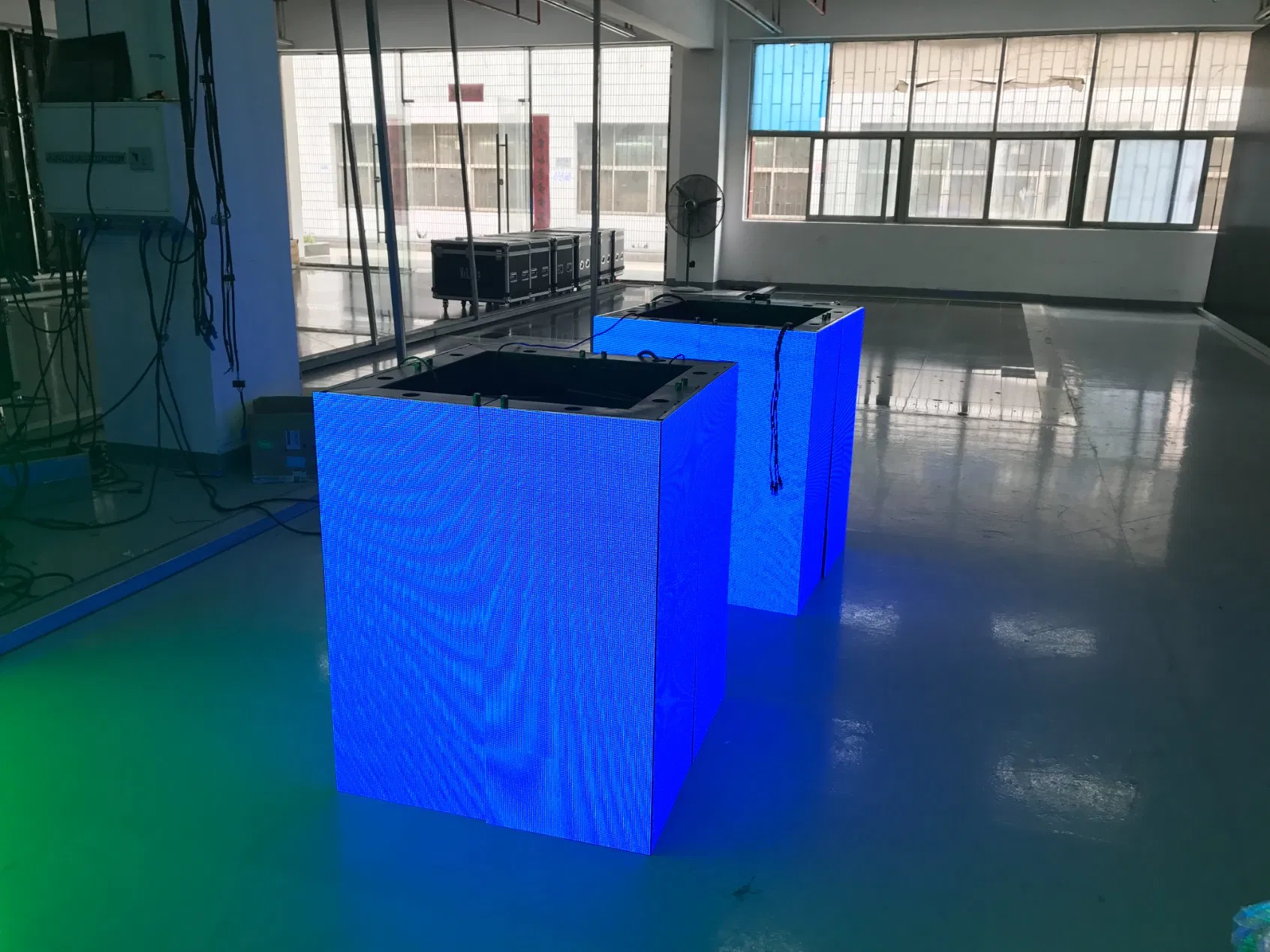

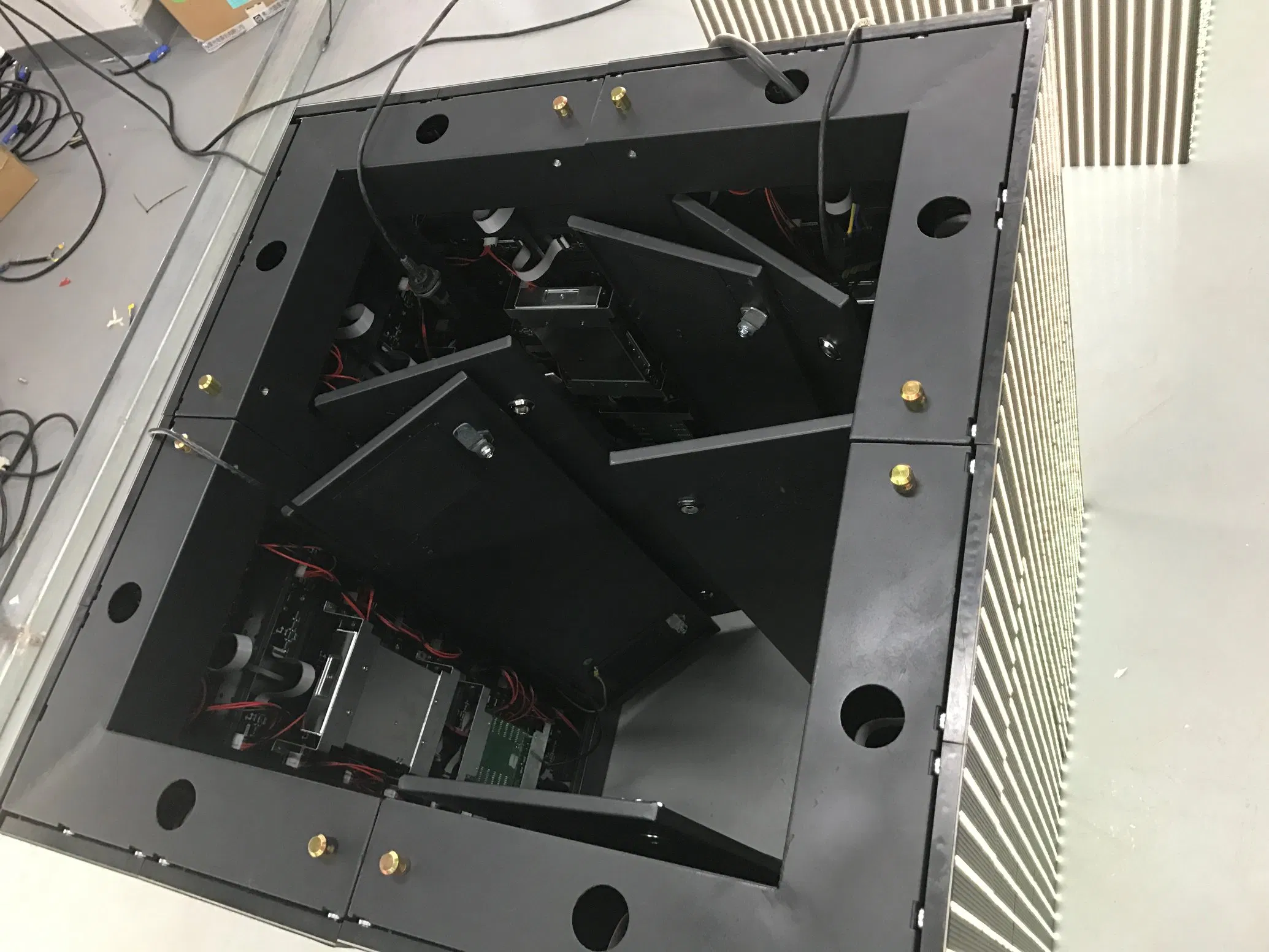

More pictures for reference:
Features:
1. Small pixel pitch ensure good vision effect for closed view distance, friednly to eyes,
2. Black led lamp body, high contrast rate, high definition up 1080P
3. Wide view angle with 160° for horizontal and 140° for vertical, no strobe,no image distortion and color cast from different angle
4. SMD LED encapsulated technology make slim thickness and good heat dissipation, energy-saving
5. Dot to dot maintain, easy and quick maintenance, save maintenance cost
6. Small module size is easy for different screen sizes,Cylindrical screens with different diameters
7. Modules with magnetics combined for different shaped screens seamlessly
8. Widely used for different curved,Cylindrical screens with different screens as request
| P4 SMD2121 Indoor full Color soft LED Module | |
| Pixel pitch | 4.0 mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD2121 |
| Size of module | 240mm x 120mm x 1.6mm (thickness) |
| Resolution of module | 60x30 pixels |
| Brightness | >1000cd/sq.m |
| Density | 62500 dots/sq.m |
| Best viewing angle | 160° /160° |
| Best viewing distance | 2-20M |
| Maximum power consumption | 16W/module |
| Driving method | 1/15 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Color temperature | 3200-14000k |
| Uniformity | 99% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >3840Hz |
| IP grade | IP31 |
| Life Span | 50,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
| Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
More pictures for reference:
