Indoor HD Pixels P1.9 Full Color LED Video Wall
Indoor HD Pixels P1.9 Full Color LED Video WallWe focus on all kinds of led display screen manufacturing included indoor outdoor led display, rental led display, flexible led display, transparent led display, dance floor led series, HD resolution led display, perimeter led display,stadium sport led ......
Send Inquiry
Product Description
Indoor HD Pixels P1.9 Full Color LED Video Wall
We focus on all kinds of led display screen manufacturing included indoor outdoor led display, rental led display, flexible led display, transparent led display, dance floor led series, HD resolution led display, perimeter led display,stadium sport led display screen, led sign, led display board and led billboard.
Part 1: Product Mainly Features
IX Series HD pixel is an improved product from traditional cabinets, using Slim 42mm die casting aluminum cabinets for indoor advertising and windows led screens, it is light weight, easy installation, silence design, Brightness available 1000nits to 4500nits options, viewing effect is very good for windows facing outside, this series is very popular for wall mounted, store windows advertising solutions.
| Pixel Pitch | 1.953mm, 2.604mm, 3.91mm |
| Brightness | 1000-4500nits |
| Cabinet size | 1000x250mm |
| Max. Power consumption | 250W/panel |
| LED Brand | Epistar |
| Driver IC | Constent current |
| PSU | MW |
| Refresh rate | 3840HZ |

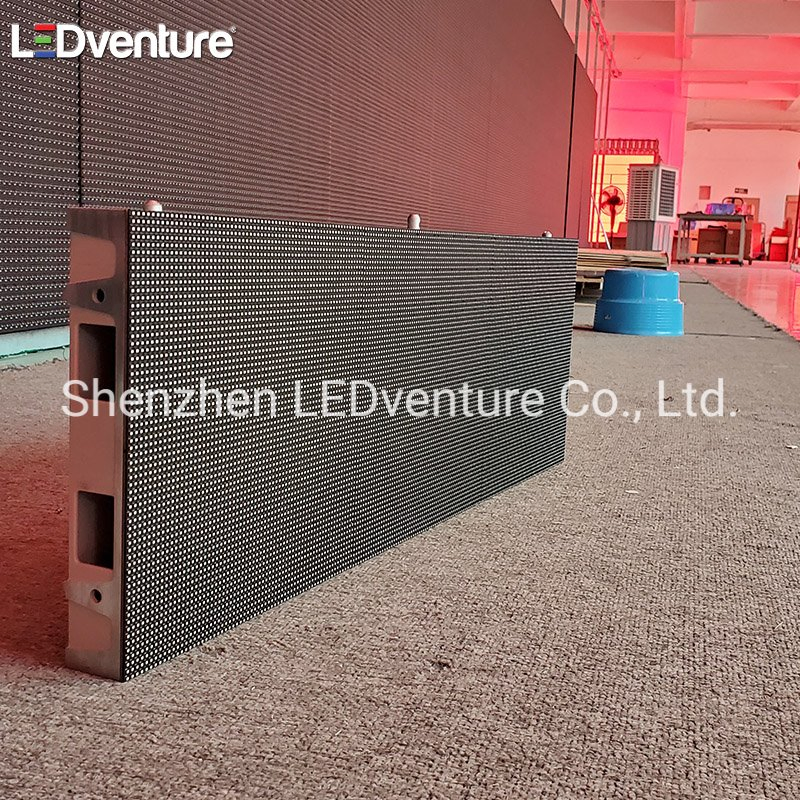

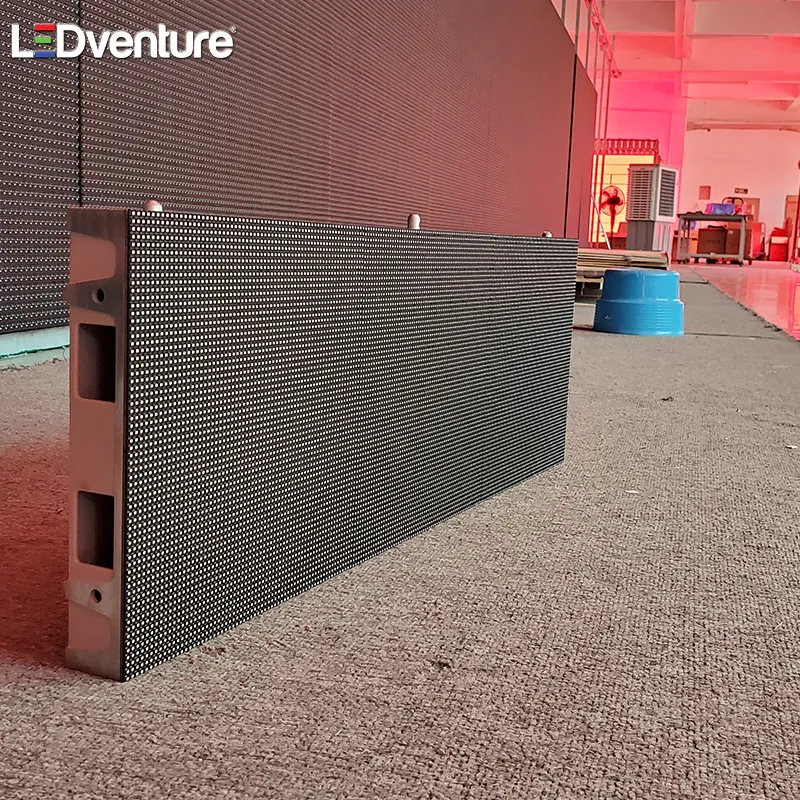

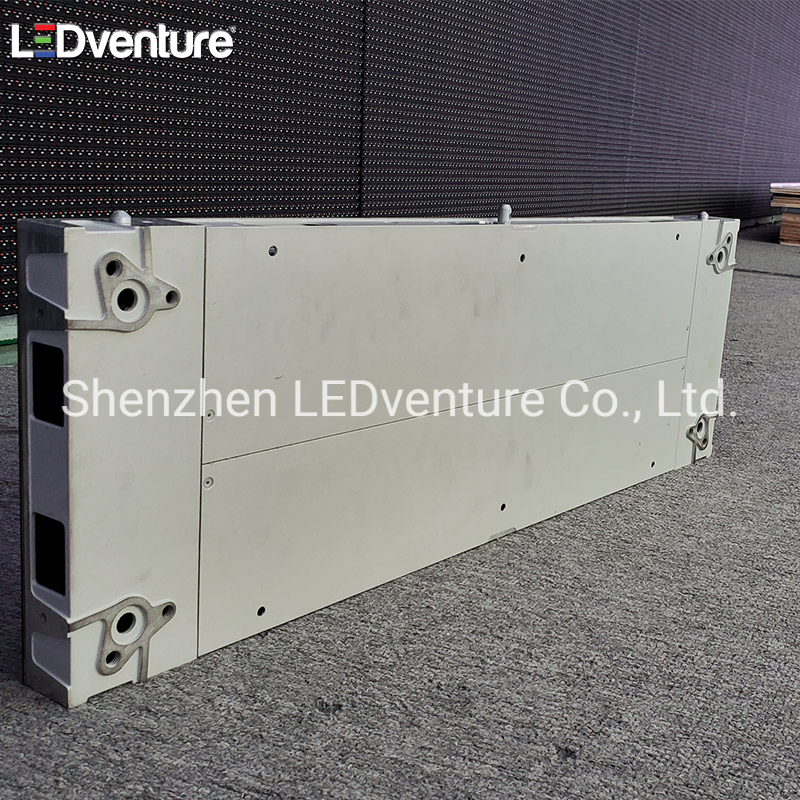

Part 2: Detail Images
Part 3: Material Quality Level
All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.
Part 4: Technical Specification.
Item | Indoor HD Pixels Series Window Advertising LED Video Wall |
Model Number | IX-P1.953S |
Pixel Pitch | 1.953mm |
Pixel Density(pixels/M2) | 262144 pixels |
Pixel Configuration | 1R1G1B |
LED Type | Epistar, SMD |
Module Size(mm) | 250x250mm |
Module Resolution(pixels) | 128*128p |
Min.Viewing Distance(m) | 2 meters |
Brightness(nits) | 1000-4500nits |
Viewing Angle(degree) | ≤140° |
Average Power Consumption(W/M2) | 250W |
Scan Mode | 1/32 Scan |
Protection Level | IP31 |
Cabinet Size(mm) | 1000x250mm(Optional) |
Color Temperature | The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
Input Voltage | AC110-240V, 50Hz/60Hz |
Refresh Rate | 3840hz |
Color | 65535 Levels |
Horizontal/Vertical viewing angle | <140° |
Gray Scale | 16 bits |
Effective Communication Distance(without relay) | <100 meters |
Lifespan | ≥100,000 hours |
Environment Temperature | Storage: -40°C~+85°C , Operation: -20 °C~+45°C |
Blind Spot Rate | <0.0001(led display industry standard is less than 0.0003) |
Control Mode | Video frequency synchronization |

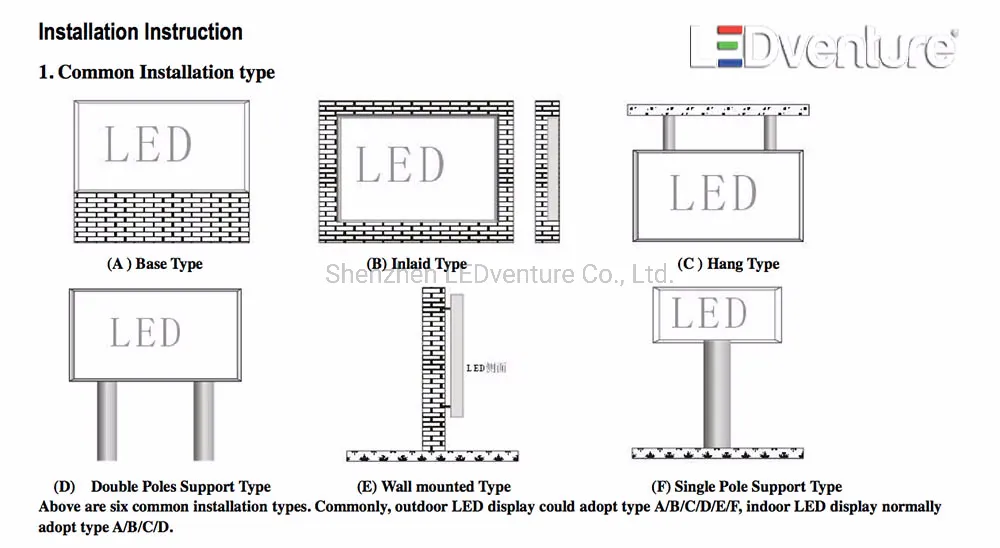

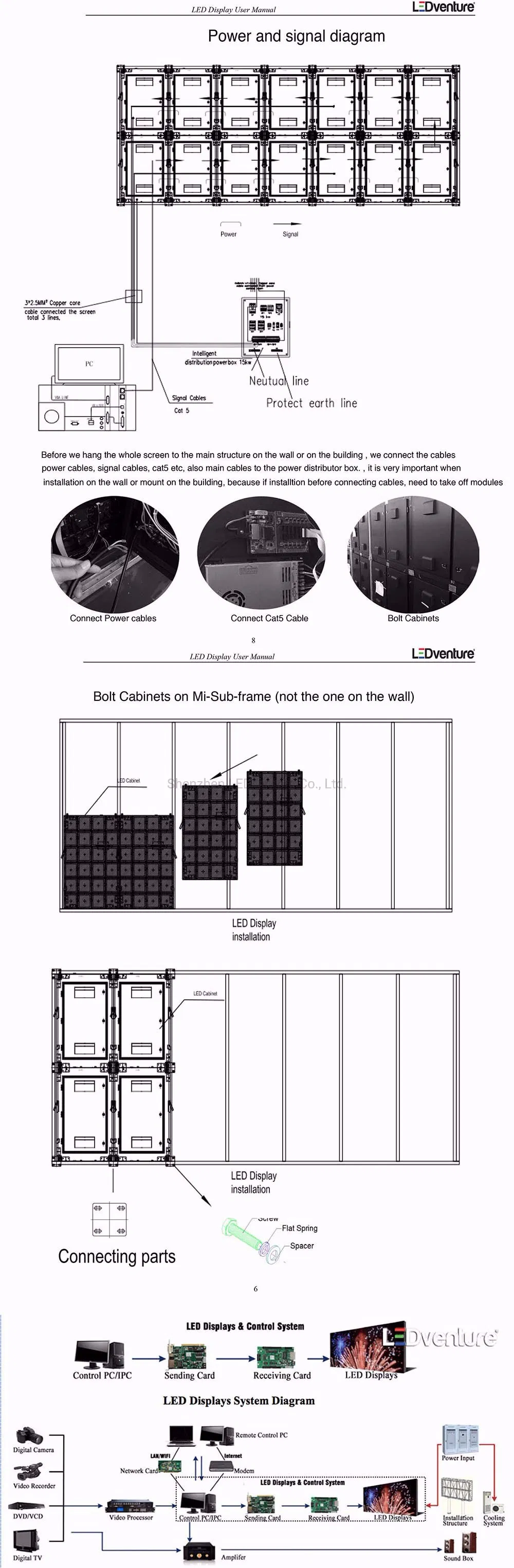

Part 5: Installation Methods
Indoor led video wall available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc

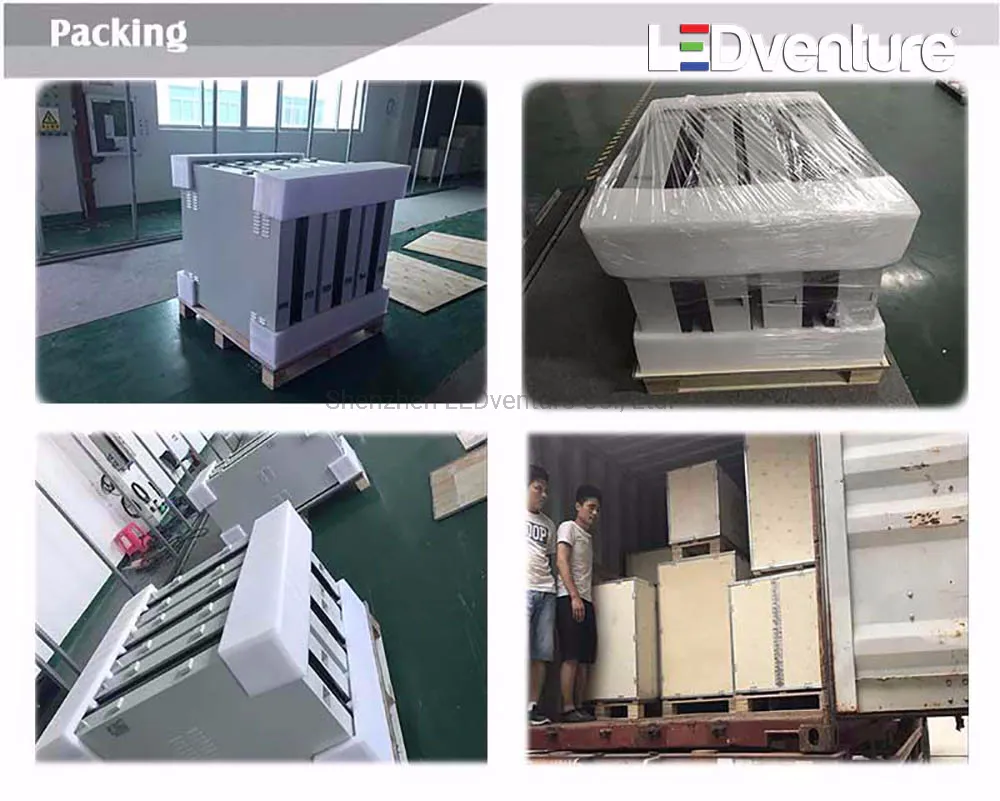

Part 6: Packing Information
Packing by plywood cases, packing well and easy to load
Part 7: Certificates.
ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.
Part 8: About LEDventure.

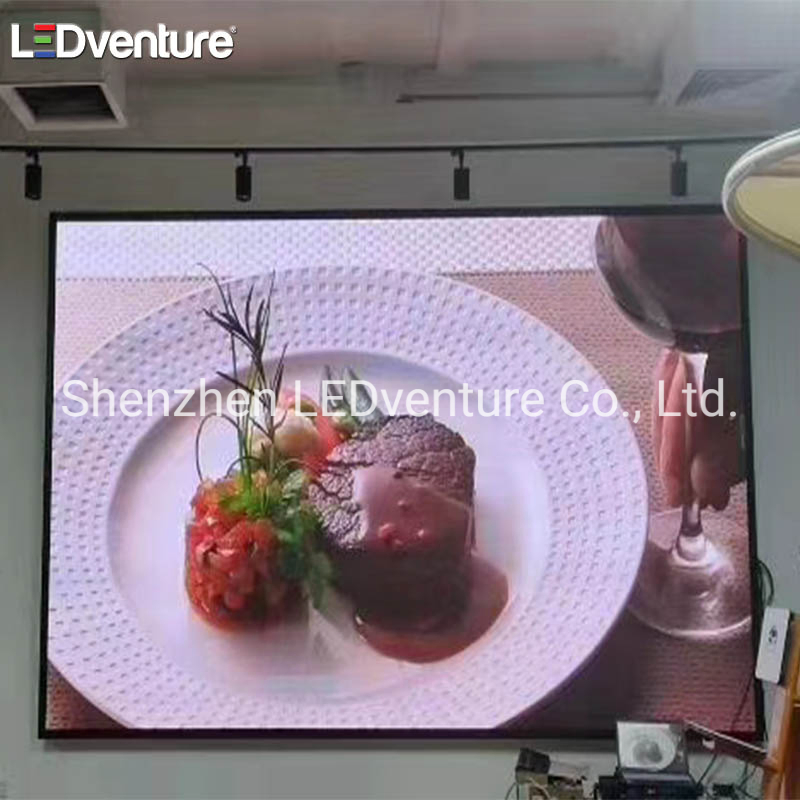

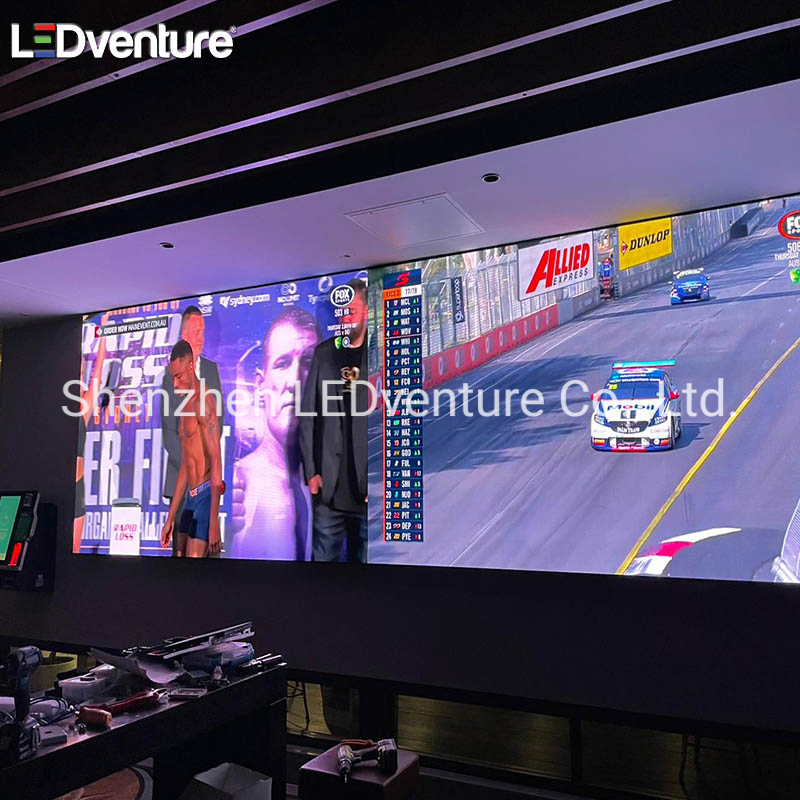

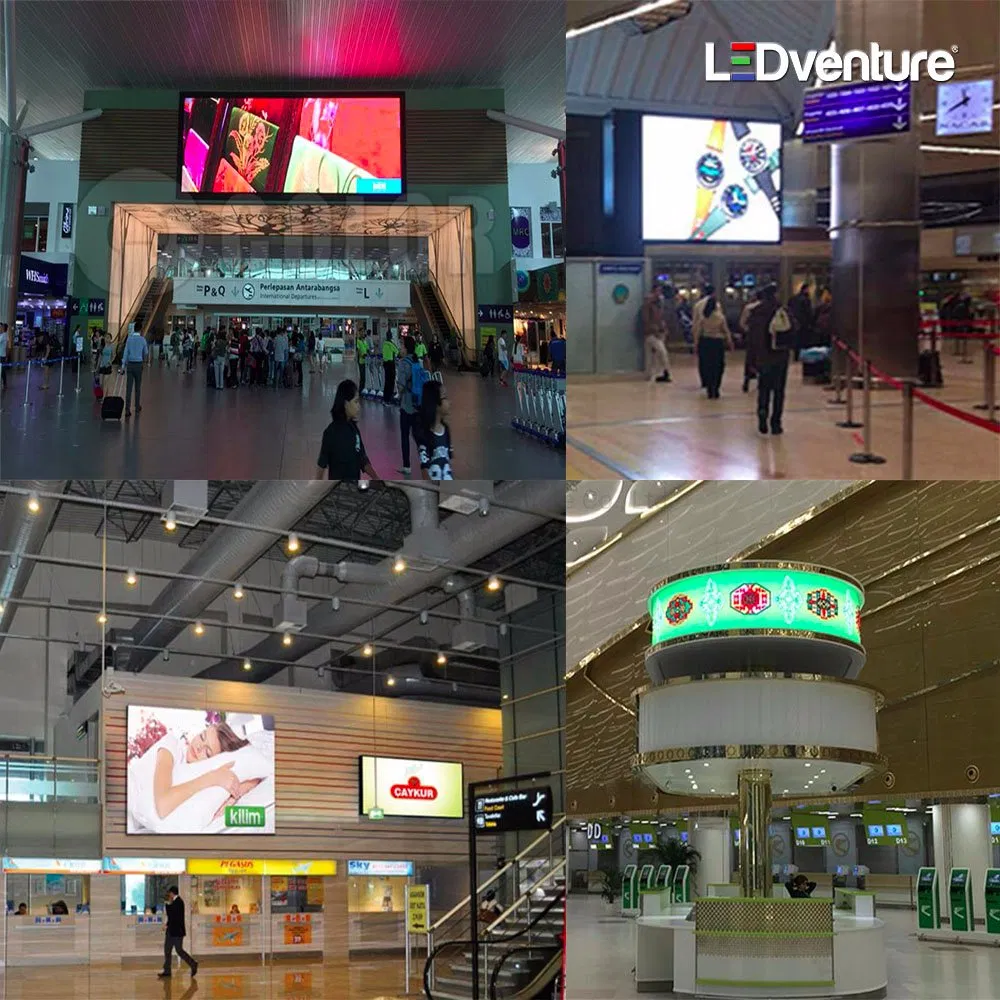

Part 9: LED Display Screen Installation Cases.
Most of our led display exported to Europe with high standards, and also exported to USA, South America and Asia
Address: LEDventure Buliding,Lebao Industrial Park,Fengxin RD,Guangming New District,Shenzhen,China.
