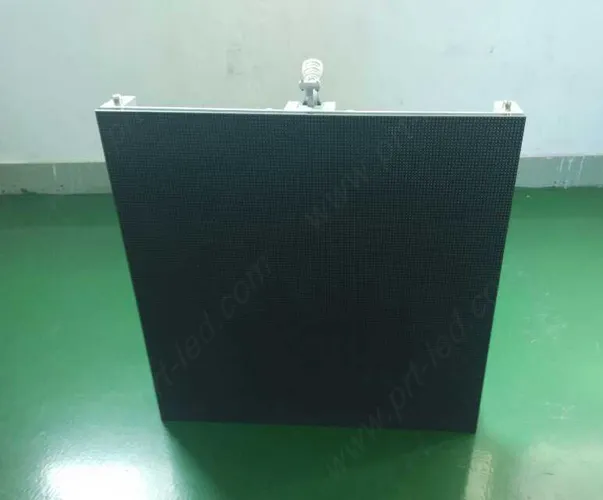

Hot Sale P4 Indoor Video Advertising LED Panel (512* 512mm die-casting Aluminum)
P4 Indoor full color led display screen/stage led screen for rental 1. Made with Die-casting aluminum material,light weight and strong configuration2.with Slim and small cabinet size of 512× 512× 60mm,It is portable by handed and move to any where,convenient to transport and col......
Send Inquiry
Product Description
P4 Indoor full color led display screen/stage led screen for rental

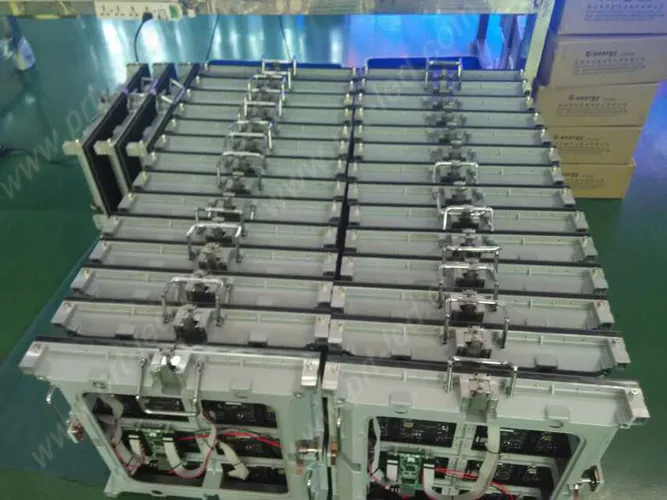

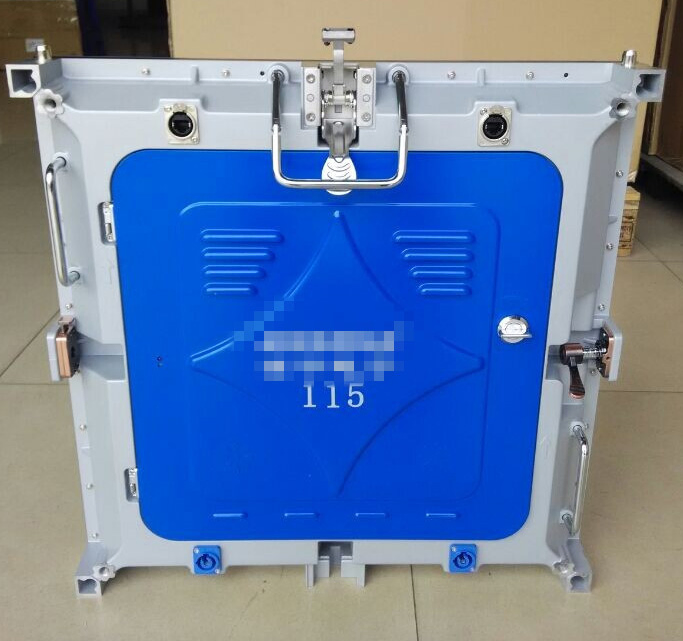

1. Made with Die-casting aluminum material,light weight and strong configuration

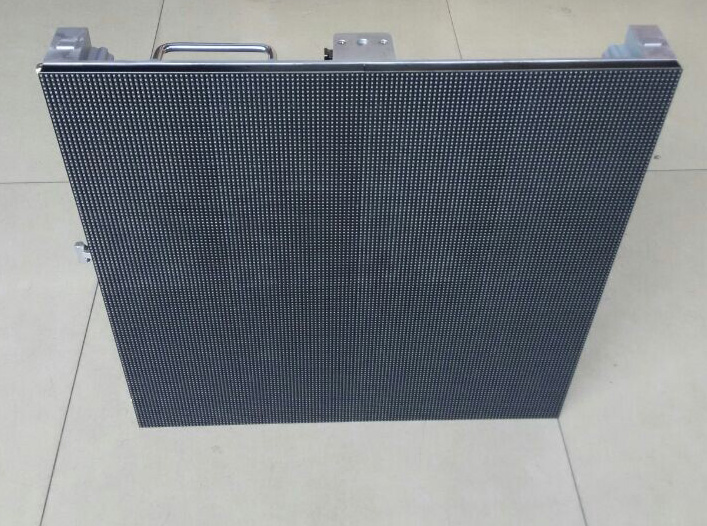

2.with Slim and small cabinet size of 512× 512× 60mm,It is portable by handed and move to any where,convenient to transport and collect

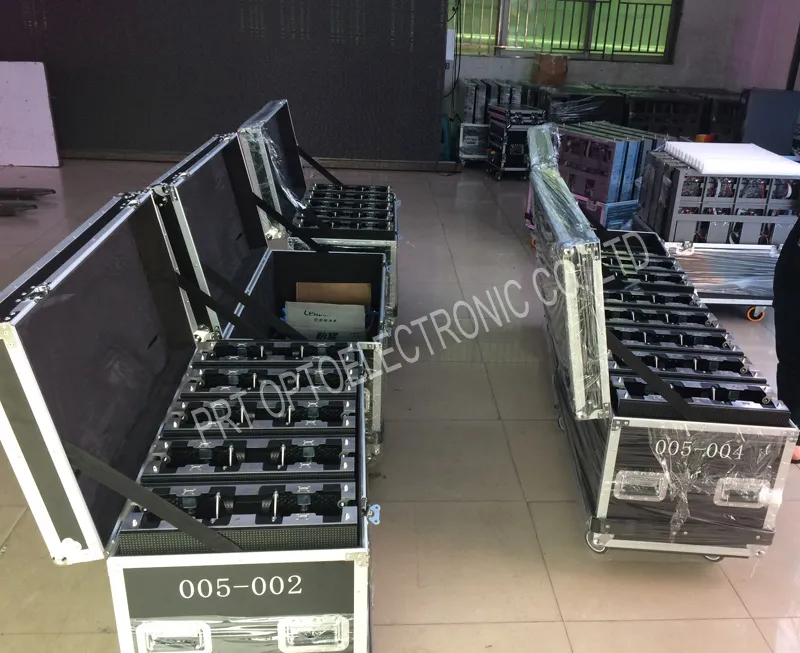

3. Rental design, easy to install and dismantle without any tools, save much time
4. Can be suspend on truss or fixed installation, Seamless spliced, good uniformity
5. Wide view angle, over 140 degree for horizontal and vertical

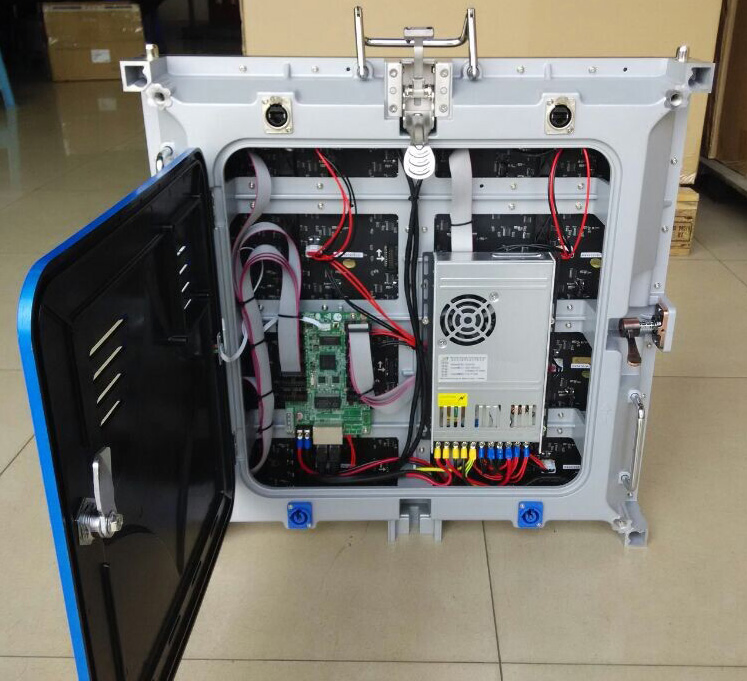

6.No fans design,lower power consumption, good heat dissipation

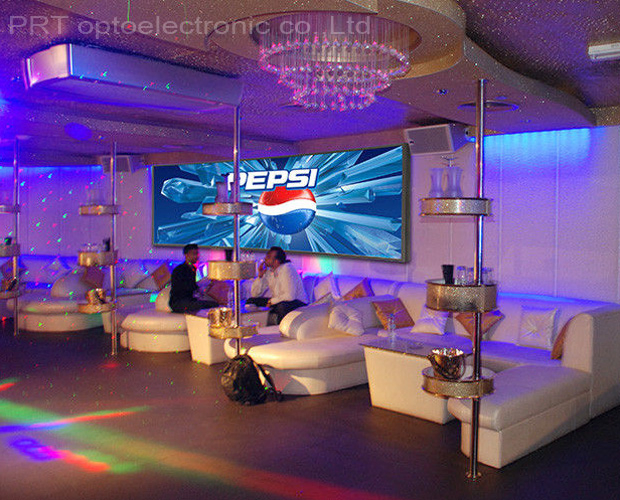

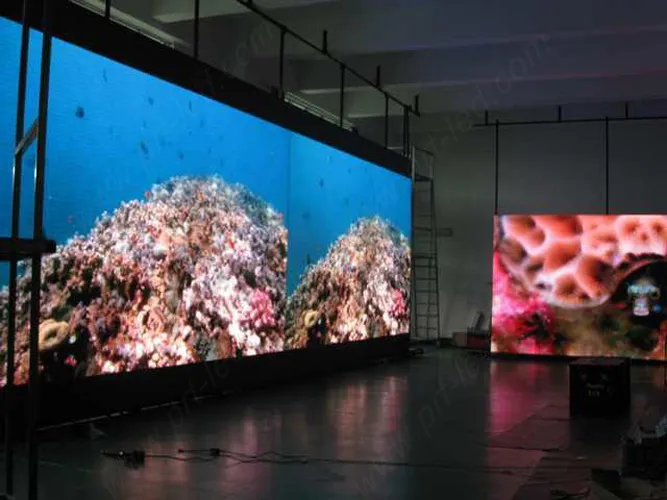

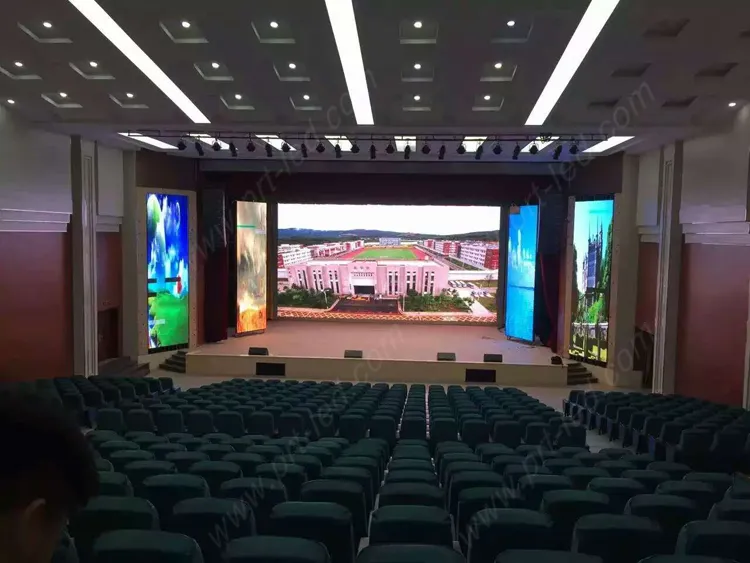

7.Widely used in public advertising, theatre, live show, live meeting, banquet, stage background,TV studio etc.
1. Made with Die-casting aluminum material,light weight and strong configuration
2.with Slim and small cabinet size of 512× 512× 60mm,It is portable by handed and move to any where,convenient to transport and collect
3. Rental design, easy to install and dismantle without any tools, save much time
4. Can be suspend on truss or fixed installation, Seamless spliced, good uniformity
5. Wide view angle, over 140 degree for horizontal and vertical
6.No fans design,lower power consumption, good heat dissipation
7.Widely used in public advertising, theatre, live show, live meeting, banquet, stage background,TV studio etc.
| P4 SMD2121 Indoor full Color LED Screen Specification | ||||||
| Pixel pitch | 4mm | |||||
| Pixel Configuration | 1R1G1B | |||||
| LED component | SMD2121 black | |||||
| Size of module | 256mm x 128mm | |||||
| Resolution of module | 64x32dots | |||||
| Size of cabinet | 512mm x 512mm x 65mm | |||||
| Resolution of cabinet | 128x128dots | |||||
| Material of Cabinet | Die-casting Aluminum | |||||
| Weight of Cabinet | 10.5KGS | |||||
| Brightness | >1200cd/sq.m | |||||
| Density | 62500dots/sq.m | |||||
| Best viewing angle | 140 /140 | |||||
| Pixel Configuration | 1R1G1B | |||||
| Best viewing distance | 3-50M | |||||
| Maximum power consumption | 1000W/sq.m | |||||
| Average power consumption | 600W/sq.m | |||||
| Driving method | 1/16 scan | |||||
| Control method | Synchronization | |||||
| Gray scale | 65536 | |||||
| Colors | 256*256*256 | |||||
| Color temperature | 3200-9300k | |||||
| Uniformity | 97% | |||||
| Working voltage | AC220V/110V±10% | |||||
| Working temperature | -20ºC~+50ºC±10% | |||||
| Working humidity | 10% ~ 90% | |||||
| MTBF | 10,000 hours | |||||
| Frame frequence | 50/60Hz | |||||
| Refresh frequence | >3000Hz | |||||
| IP grade | IP31 | |||||
| Life Span | 100,000 hours | |||||
| Data transafer method | RJ45 | |||||
| Pratical standard | CCC TUV-CE ETL etc. | |||||
| Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM | |||||
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. | |||||
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development | |||||
