Full Color Indoor P1.25 P1.56 LED TV Screen ( accessed panel 600 X 337.5 mm)
High Definition Full Color Indoor LED Display P1.56 with panel size 600x337.50mm die-casting Aluminum,seamless spliced,high contrast,double data back up,can be maintenance from front and rear, perfect vision effect, Specifications:1. Ultra HD: up 409600pixels per square meters,like as HD TV screen w......
Send Inquiry
Product Description

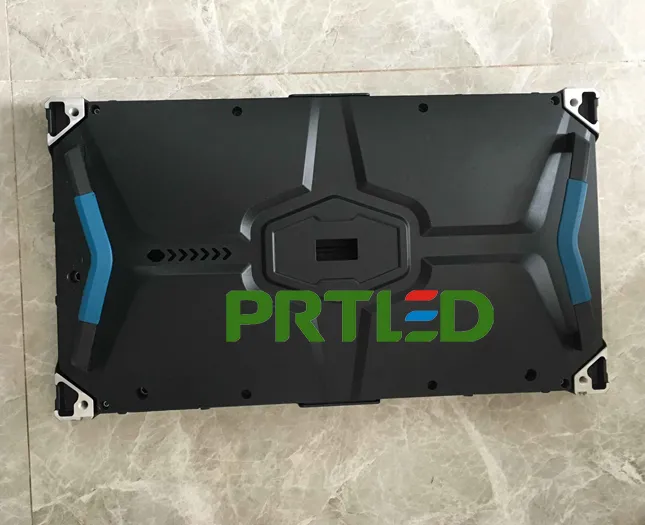

High Definition Full Color Indoor LED Display P1.56 with panel size 600x337.50mm die-casting Aluminum,seamless spliced,high contrast,double data back up,can be maintenance from front and rear, perfect vision effect,
Specifications:
1. Ultra HD: up 409600pixels per square meters,like as HD TV screen with full color

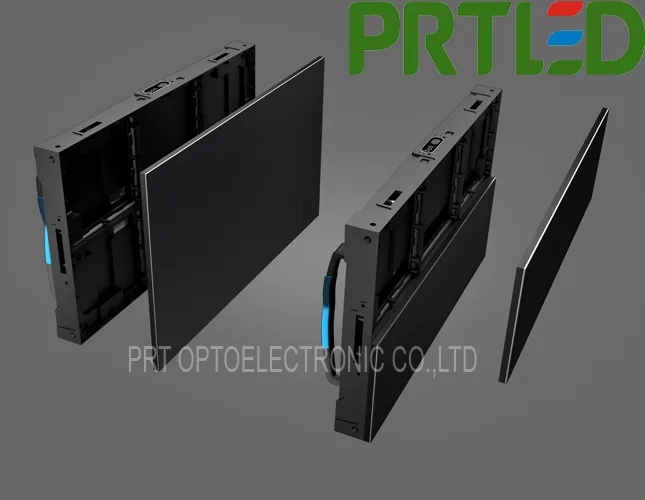

2.Ultra slim cabinet: the thickness is only 65mm,with fashion configuration design
3.High strength: made with high quality Die-casting Aluminum cabinet, enhance the heat dissipation,and extend the cabinet's working life

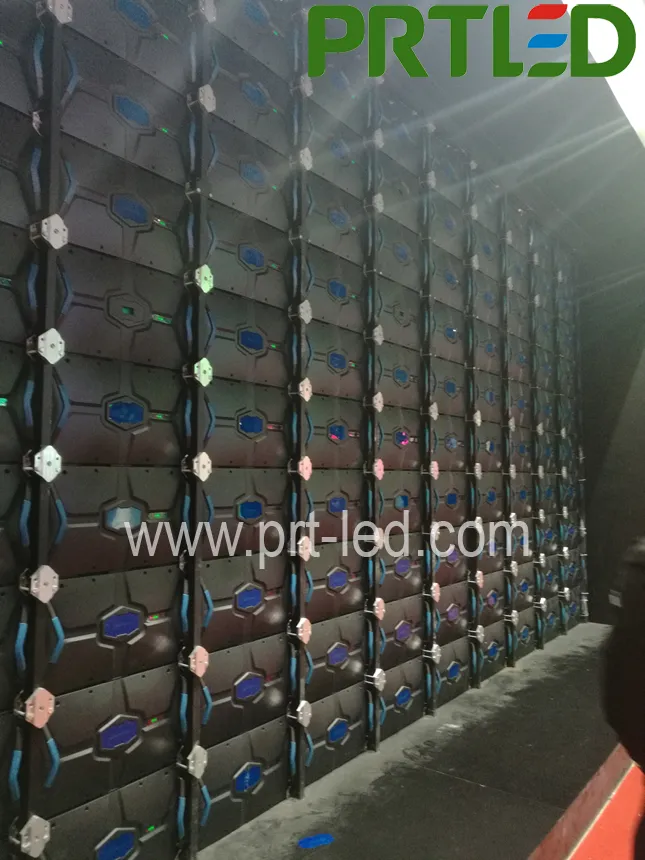

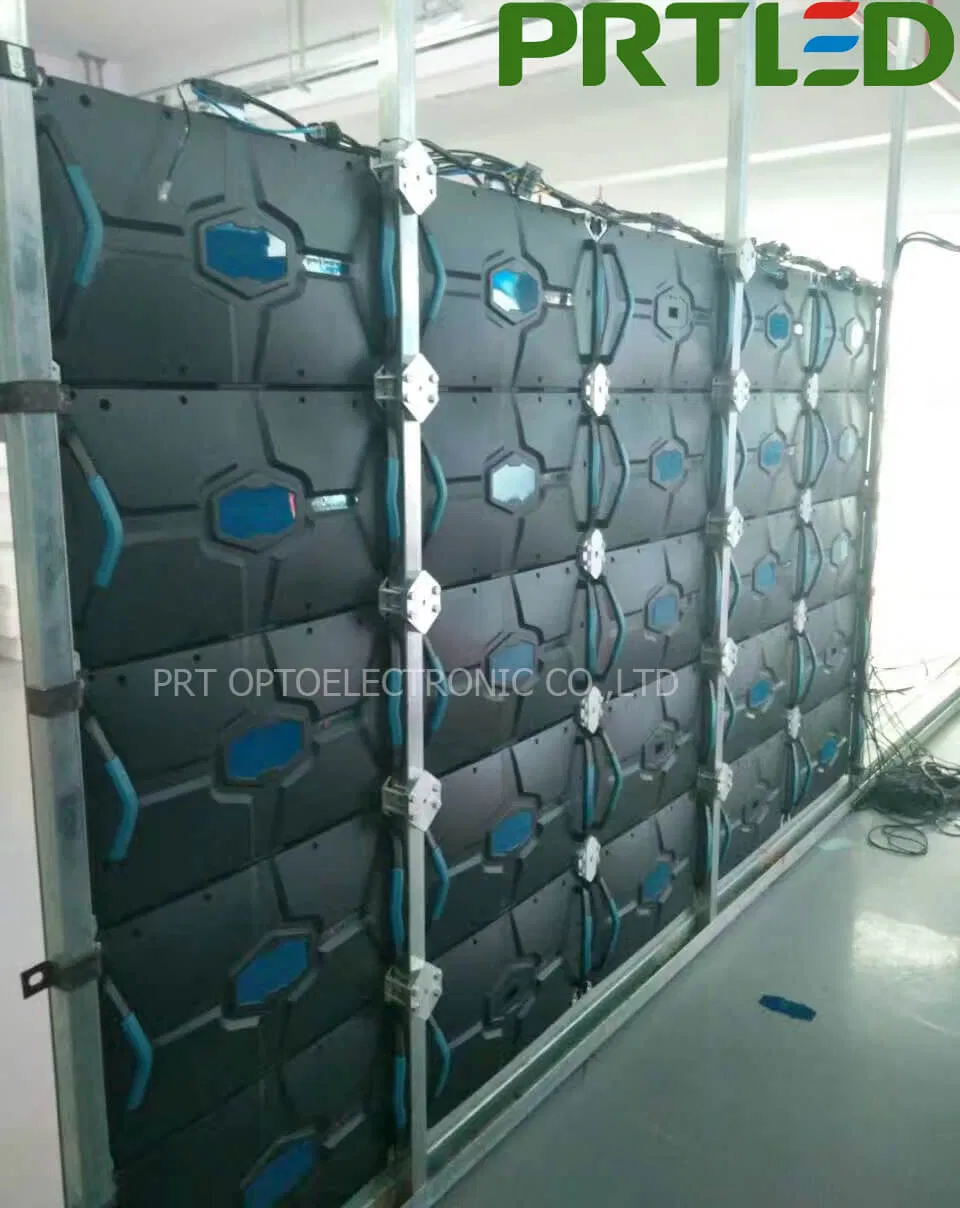

4.Seamless splice: no space/gap between the cabinet,ensure the good informance
5.High refresh rate: with advanced technology and reliable parts ensure the high gray scale and high refresh rate
6.Panel with 16:9 ratio singly,for good display vision
Advantages:
1.Support seamless splice for any sizes
2.Adjustable brightness, support 16Bit high gray scale,for images to be brightness and perfect details
3.High contrast ratio,fast response speed,high refresh rate, meet the high speed image display,and support 3D display
4.High efficiency heat dissipation, no fans no noise
5.Wide view angle, up to 140 degree, with same effection and no brightness difference
6.Long life span to 100000Hours, low brightness attenuation,good uniformity

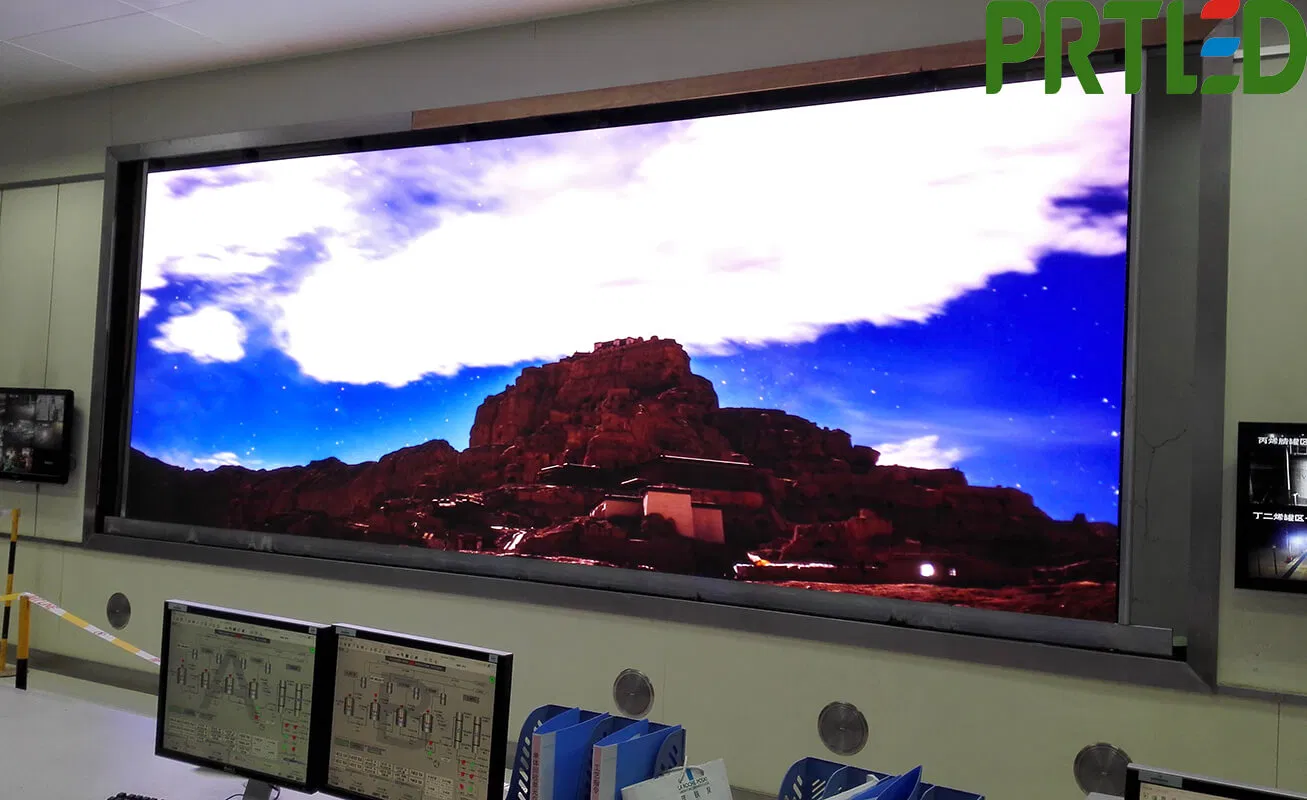

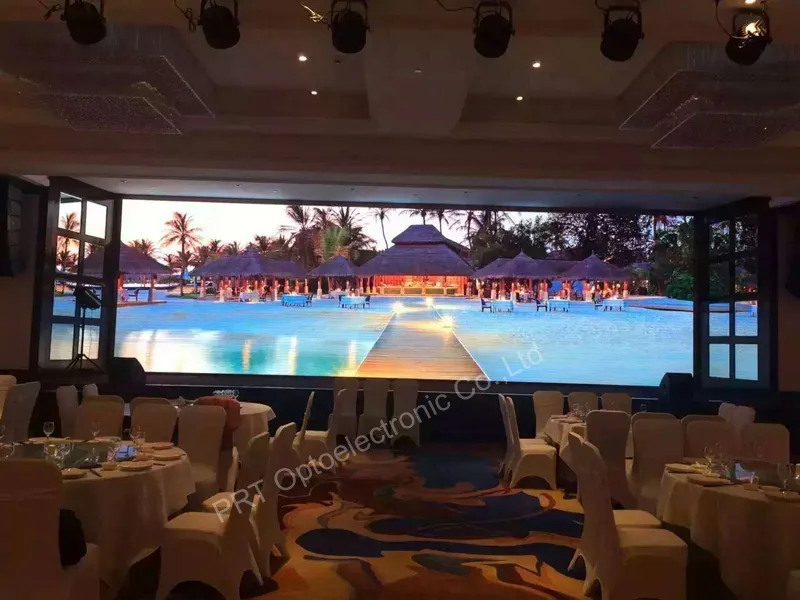

7.With 2500-10000K color temperature for choosing, can meet the different request according to the different area, especially for some special request application,like as studio,virtual simulation,Medical Display etc, and popular used in monitor room,meeting room,Command room,message display etc.

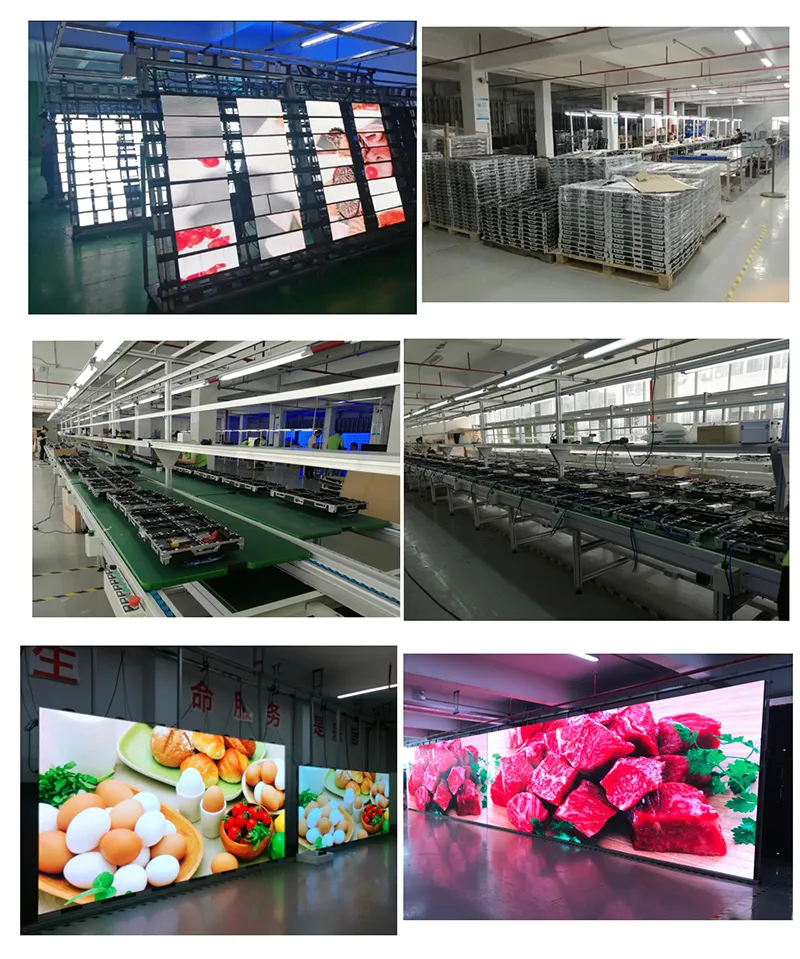

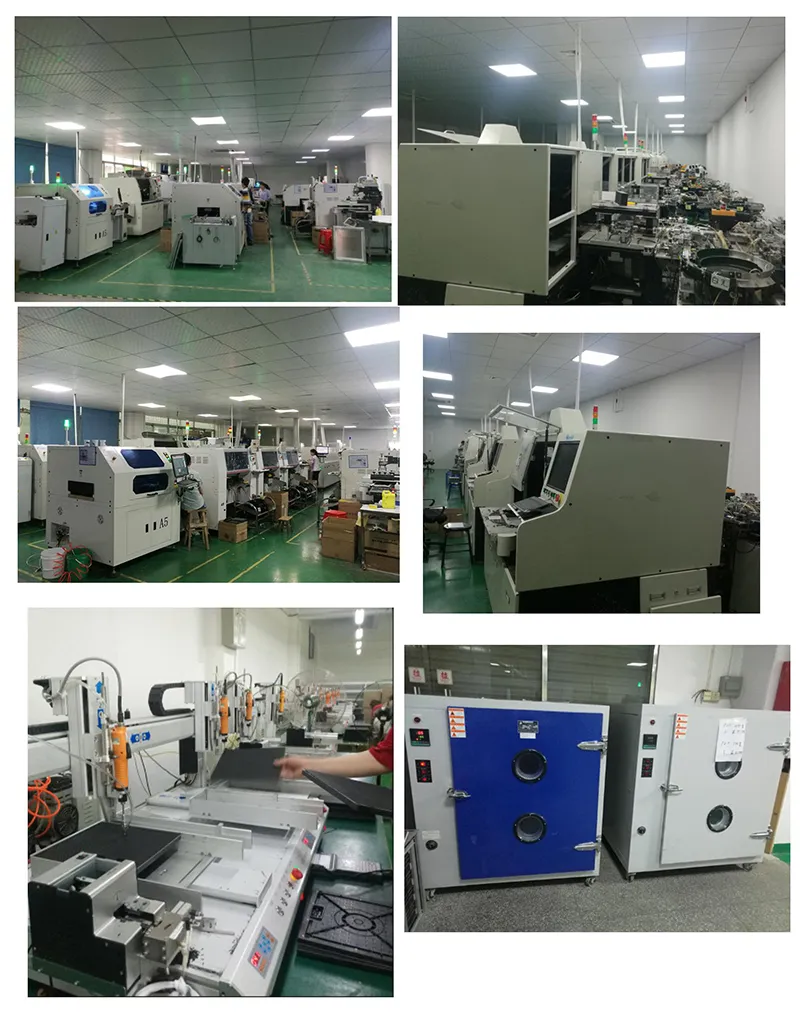

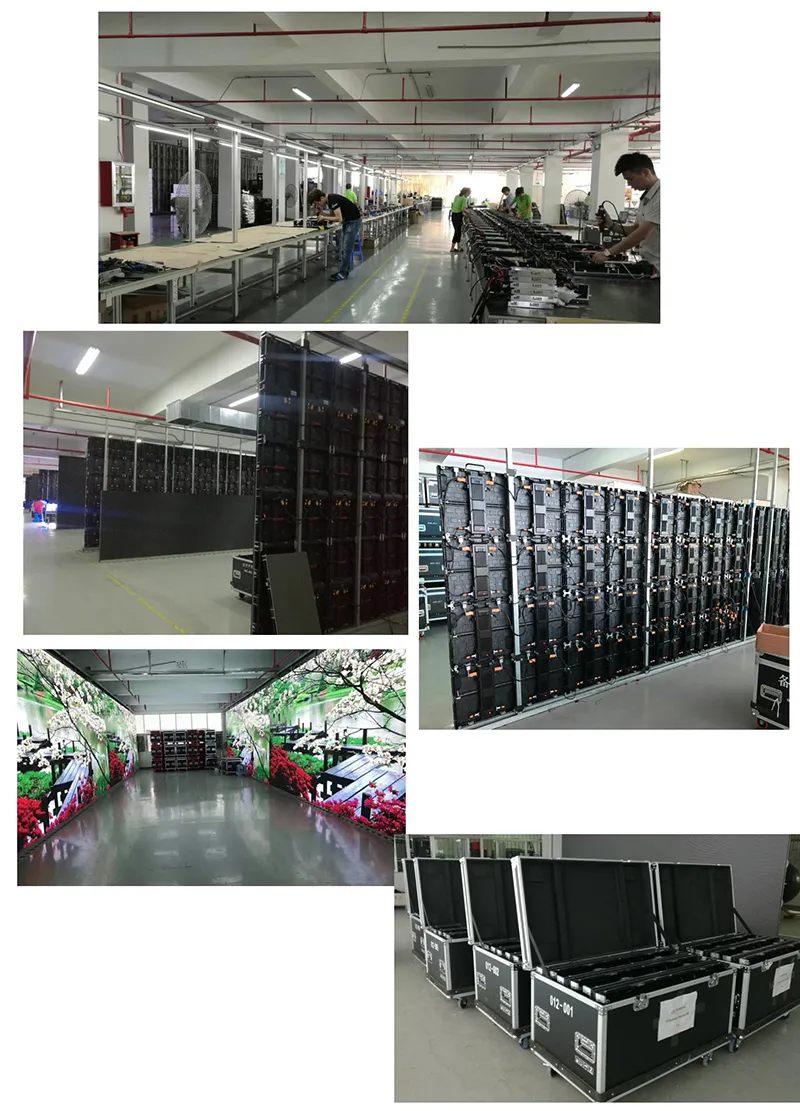

PRTLED have a strict quality control system,check and test at each produce process to ensure no problem for next process,also to save labor time and material waste,and before packing for delivery,should light and test the whole led screen for three days to confirm no problem before delivery.
Specifications:
1. Ultra HD: up 409600pixels per square meters,like as HD TV screen with full color
2.Ultra slim cabinet: the thickness is only 65mm,with fashion configuration design
3.High strength: made with high quality Die-casting Aluminum cabinet, enhance the heat dissipation,and extend the cabinet's working life
4.Seamless splice: no space/gap between the cabinet,ensure the good informance
5.High refresh rate: with advanced technology and reliable parts ensure the high gray scale and high refresh rate
6.Panel with 16:9 ratio singly,for good display vision
Advantages:
1.Support seamless splice for any sizes
2.Adjustable brightness, support 16Bit high gray scale,for images to be brightness and perfect details
3.High contrast ratio,fast response speed,high refresh rate, meet the high speed image display,and support 3D display
4.High efficiency heat dissipation, no fans no noise
5.Wide view angle, up to 140 degree, with same effection and no brightness difference
6.Long life span to 100000Hours, low brightness attenuation,good uniformity
7.With 2500-10000K color temperature for choosing, can meet the different request according to the different area, especially for some special request application,like as studio,virtual simulation,Medical Display etc, and popular used in monitor room,meeting room,Command room,message display etc.

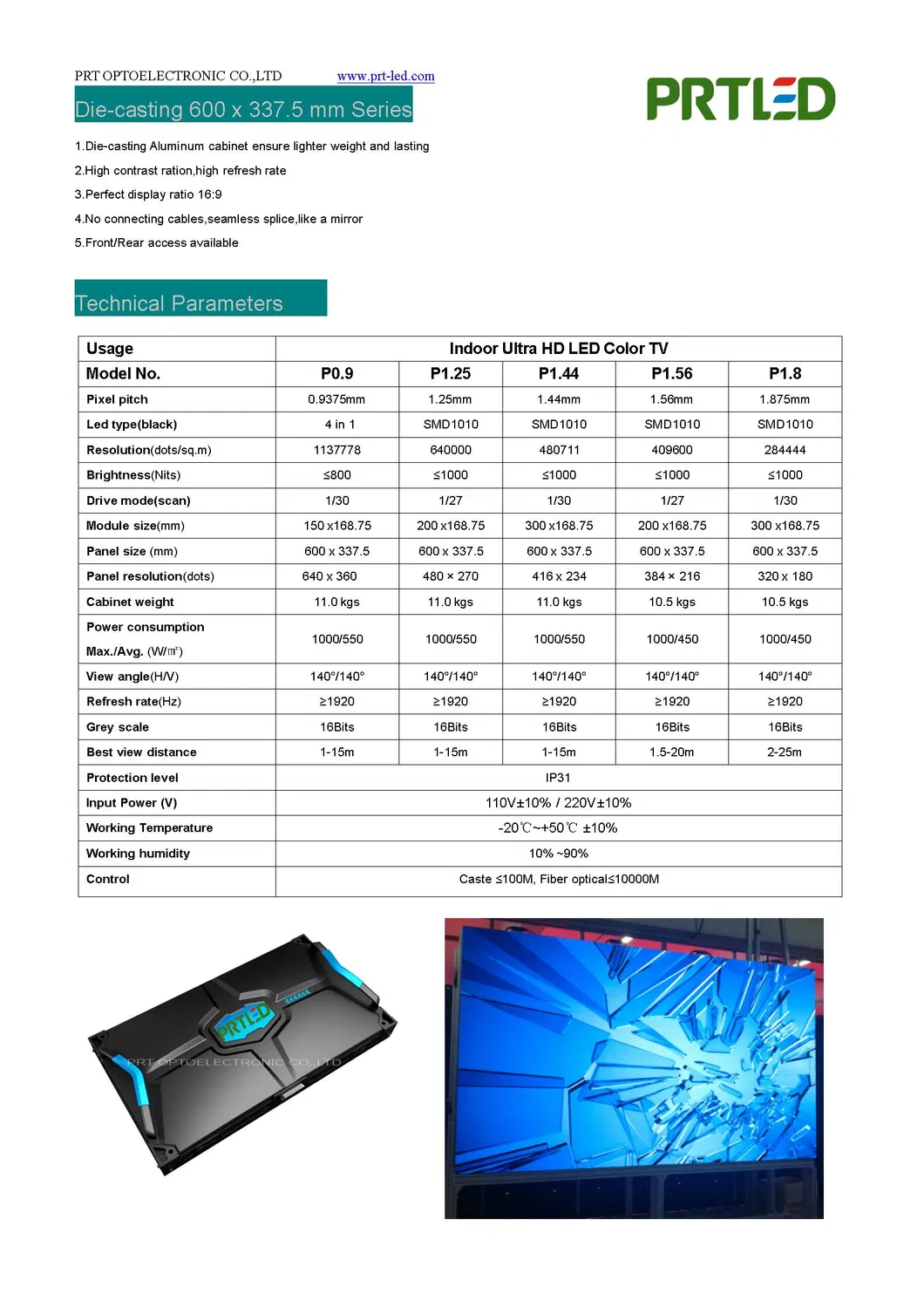

| DESCRIPTION: | PH1.56 Indoor | ||
| No. | Parameter | Specification | |
| 1 | Pixel Pitch(mm) | 1.56 | |
| 2 | Pixel Density | 409600dots/m² | |
| 3 | LED Type | SMD1010 (black) | |
| 4 | LED Wave Length(nm) | R:620-625/G:517.5-520/B:465-467.5 | |
| 5 | LED Luminous Intensity(mcd) | R:100~130/G:120~156/B:20~26 | |
| 6 | Viewing Angle | 140° | |
| 7 | Brightness | 1000cd/m² | |
| 8 | Drive Method | 1/27 scan | |
| 9 | Driving IC | MBI5153 | |
| 10 | Color Depth | 16bit | |
| 11 | Refresh Rate(Hz) | 3840 | |
| 12 | Frame Rate(Hz) | ≥60 | |
| 13 | Brightness Adjustment | Manual/Auto/Program | |
| 14 | Module Size(mm) | 200×168.75 | |
| 15 | Module Resolution(dots) | 128×108 | |
| 16 | Cabinet Size(mm) | 600×337.50 | |
| 17 | Cabinet Display Resolution(dots) | 384×216 | |
| 18 | Cabinet Type and Material | Die-casting Aluminum | |
| 19 | Cabinet Weight(Kg) | 10.00kg | |
| 20 | Power Supply | 5.0V 60A | |
| 21 | Voltage(V) | AC 110~220V | |
| 22 | Avg. Power Consumption | 400W/m² | |
| 23 | Max. Power Consumption | 900W/m² | |
| 24 | Service Access | Back/Front maintenance | |
| 25 | IP Grade | IP31 | |
| 26 | Operating Temp/Humidity | -20ºC~50ºC, 10~90%RH | |
| 27 | Storage Temp/Humidity | -40ºC~60ºC, 10~90%RH | |
| 28 | Lifetime(Normal Temp) | ≥50000H | |
| 29 | System Control | Nova/Linsn | |

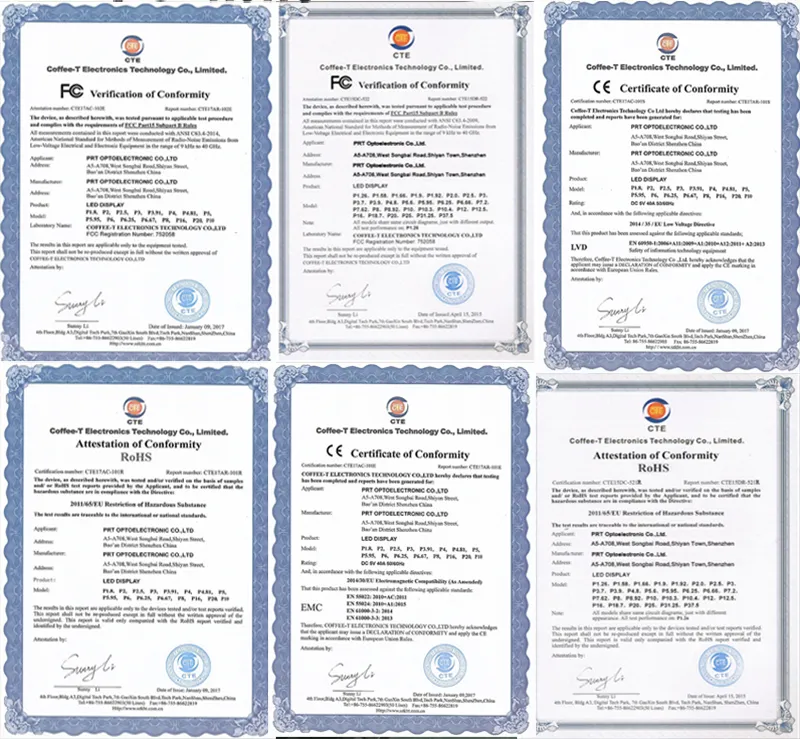

| 30 | Compliant Standard | CCC,CE,RoHs | |
PRTLED have a strict quality control system,check and test at each produce process to ensure no problem for next process,also to save labor time and material waste,and before packing for delivery,should light and test the whole led screen for three days to confirm no problem before delivery.
