Factory Indoor P3 Full Color LED Advertising Screen
Indoor Fixed Installation P3mm LED DisplayProduct Features: Quiet fan design, excellent heat dissipation.Sidelocks design for better consistency and seamless assembly.High polymer flexible mask, no mosaic phenomenon, better contract ratioHigh-performance metal plate cabinet,concise cableThe sealed-t......
Send Inquiry
Product Description
Indoor Fixed Installation P3mm LED Display
Product Features:
V SERIES-P3MM TECHNICAL DATAS
Cabinet Photos And Project Case:
Foreign Product Exhibition:
Our service
1. Your inquiry related to our products or price will be replied in 24hrs;
2. OEM&ODM, any your customized ideas we can help you to design and put into product;
3. Distributor-ship are offered for your unique design and some our current models;
4. Protection of your sales area, ideas of design and all your private information;
5. Top quality+Reasonable price+Responsible After Service;
6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package;
2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, China;
5. Warranty time: 2 years
6. Delivery time: 3-15 working days
Product Features:
Quiet fan design, excellent heat dissipation.
Sidelocks design for better consistency and seamless assembly.
High polymer flexible mask, no mosaic phenomenon, better contract ratio
High-performance metal plate cabinet,concise cable
The sealed-type back cover,effectively prevent wrong operations from the amateur
Sidelocks design for better consistency and seamless assembly.
High polymer flexible mask, no mosaic phenomenon, better contract ratio
High-performance metal plate cabinet,concise cable
The sealed-type back cover,effectively prevent wrong operations from the amateur
V SERIES-P3MM TECHNICAL DATAS
| NO. | Parameters | Specifications |
| 1 | Model | V03 |
| 2 | Pixel Pitch (mm) | 3 |
| 3 | Physical Density (dot/m2) | 111111 |
| 4 | LED Configuration | 1R1G1B |
| 5 | LED Type | SMD2020 |
| 6 | Module Size (mm x mm) | 192x192 |
| 7 | Module Resolution (PX x PX) | 64*64 |
| 8 | Drive Mode | 1/32 Constant Current Drive |
| 9 | Viewing Angle (Deg) | H:140 / V:140 |
| 10 | Brightness (cd/m2) | 1200 |
| 11 | Grey Scale | 14 |
| 12 | Refresh Rate (Hz) | ≥1920 |
| 13 | Power Consumption (W/m2) | MAX.:900 / AVE.:300 |
| 14 | Cabinet Size (mm x mm) | 576X576 |
| 15 | Cabinet Material | Iron / Aluminum |
| 16 | Color (M) | >16.7 |
| 17 | Input Voltage (V) | AC 110V~220V+/-10% |
| 18 | Refresh Frame Frequency (Hz) | 60 |
| 19 | Protection Level | IP33 |
| 20 | Working Environment | Indoor |
| 21 | Working Temperature (ºC) | -20°- +40° |
| 22 | Operation humidity (RH) | 10%-90% |

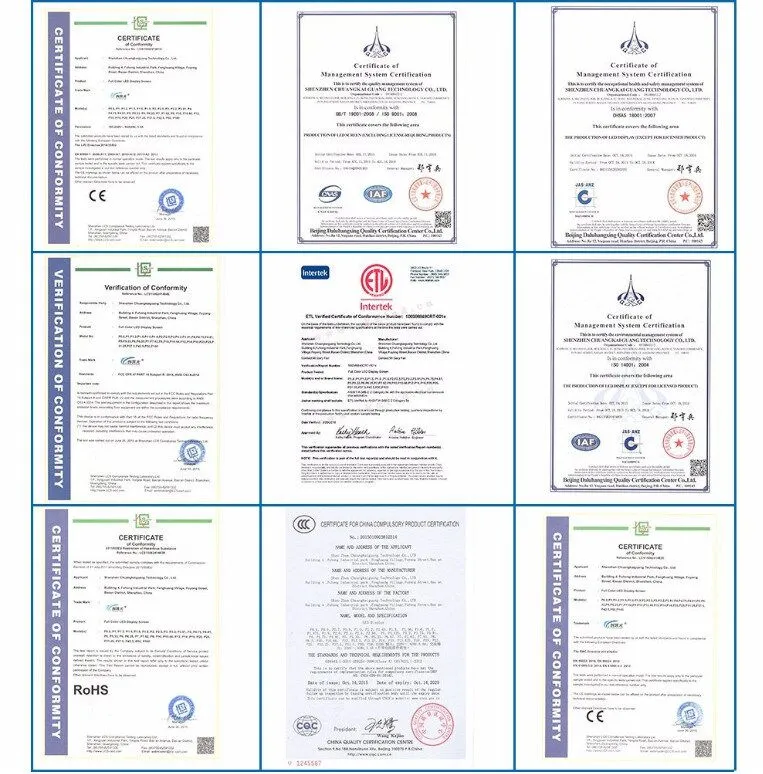

| 23 | Certificates | CCC,CE,RoH |

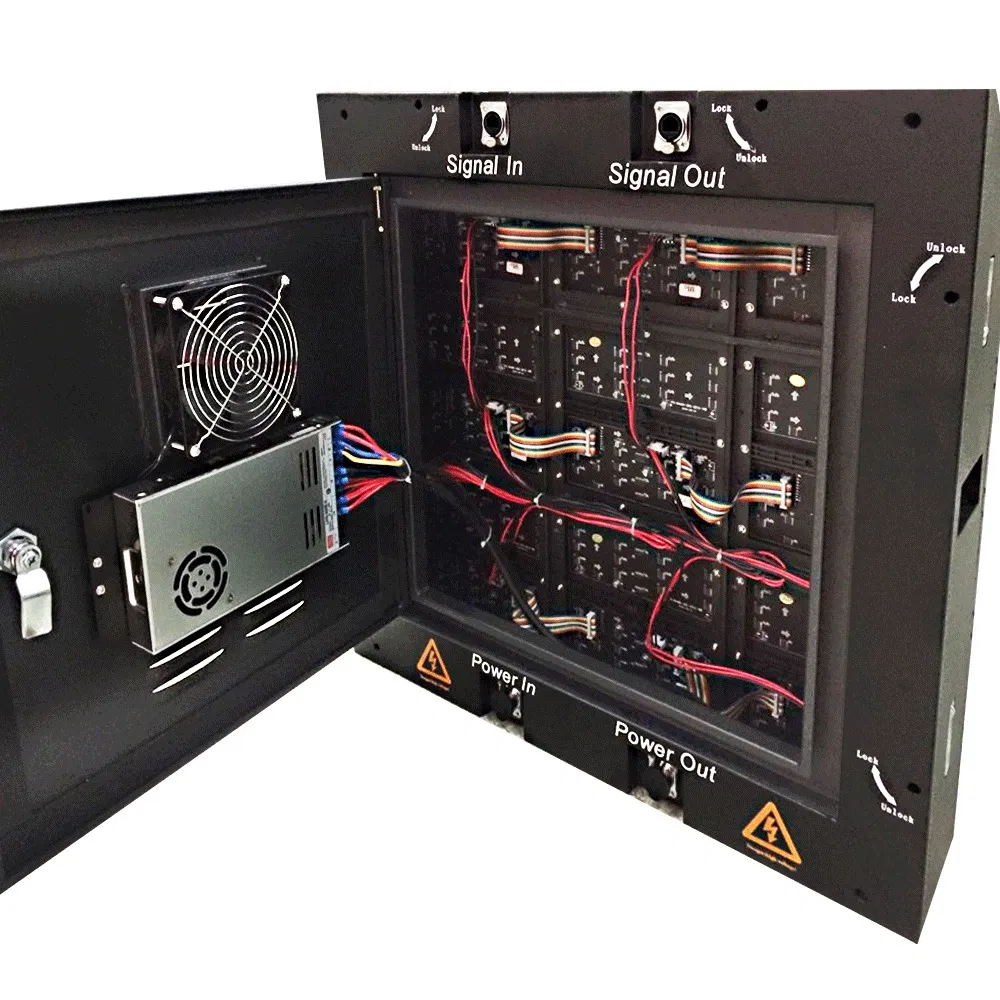

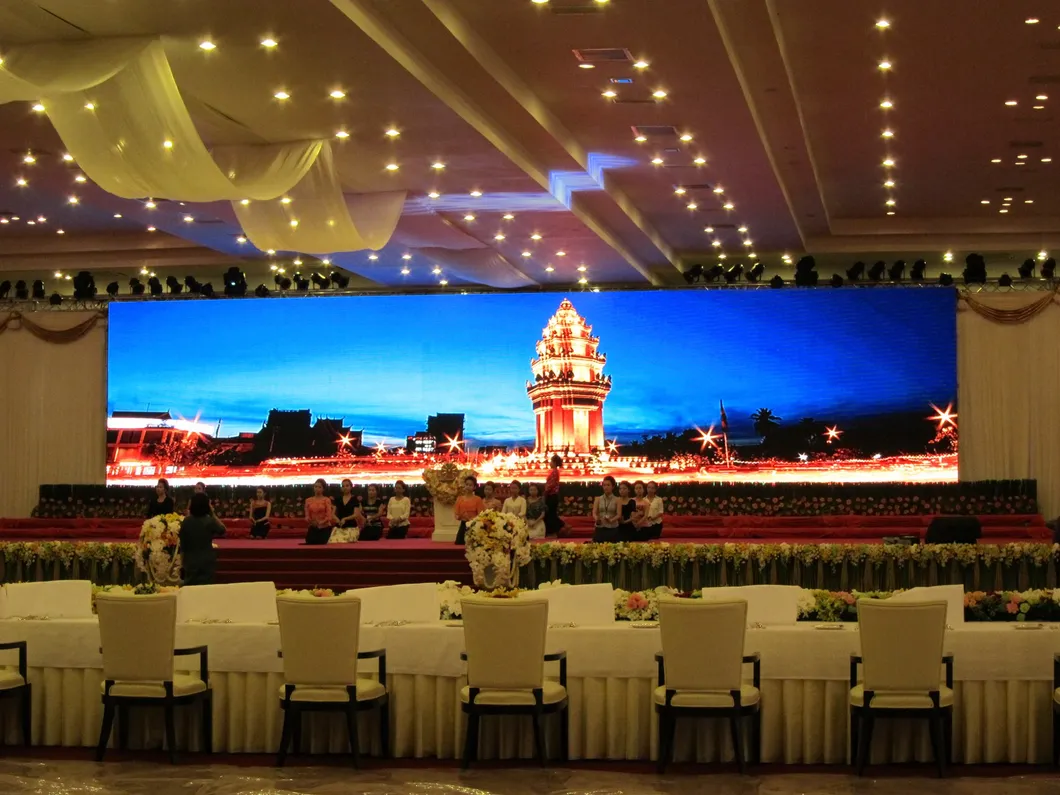

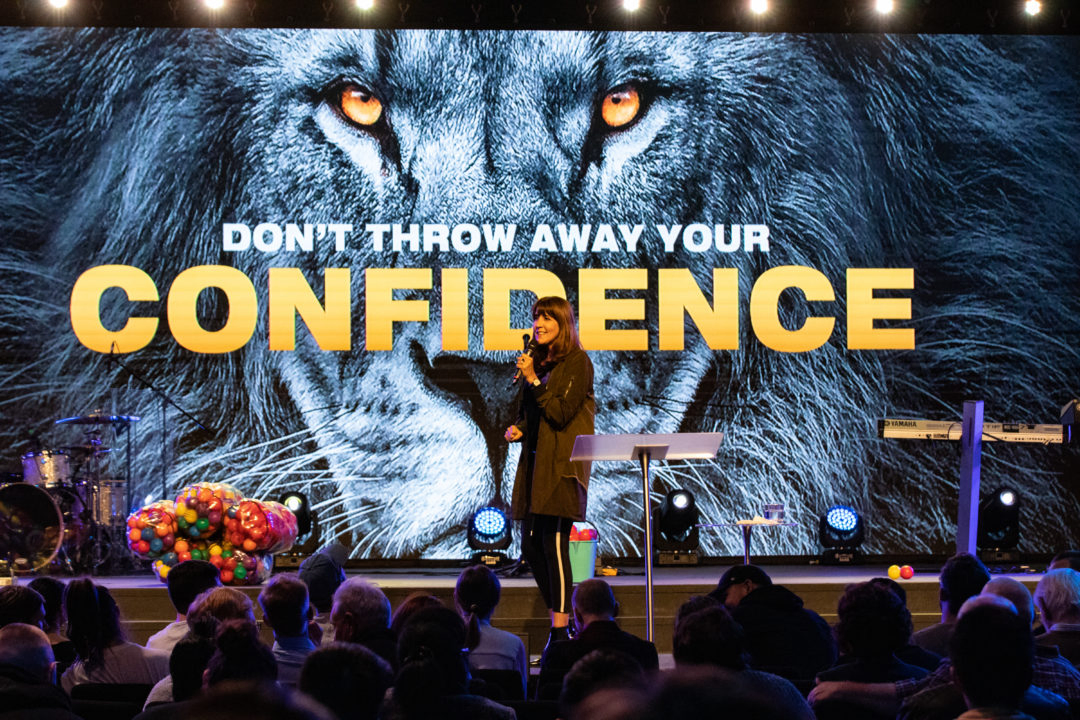

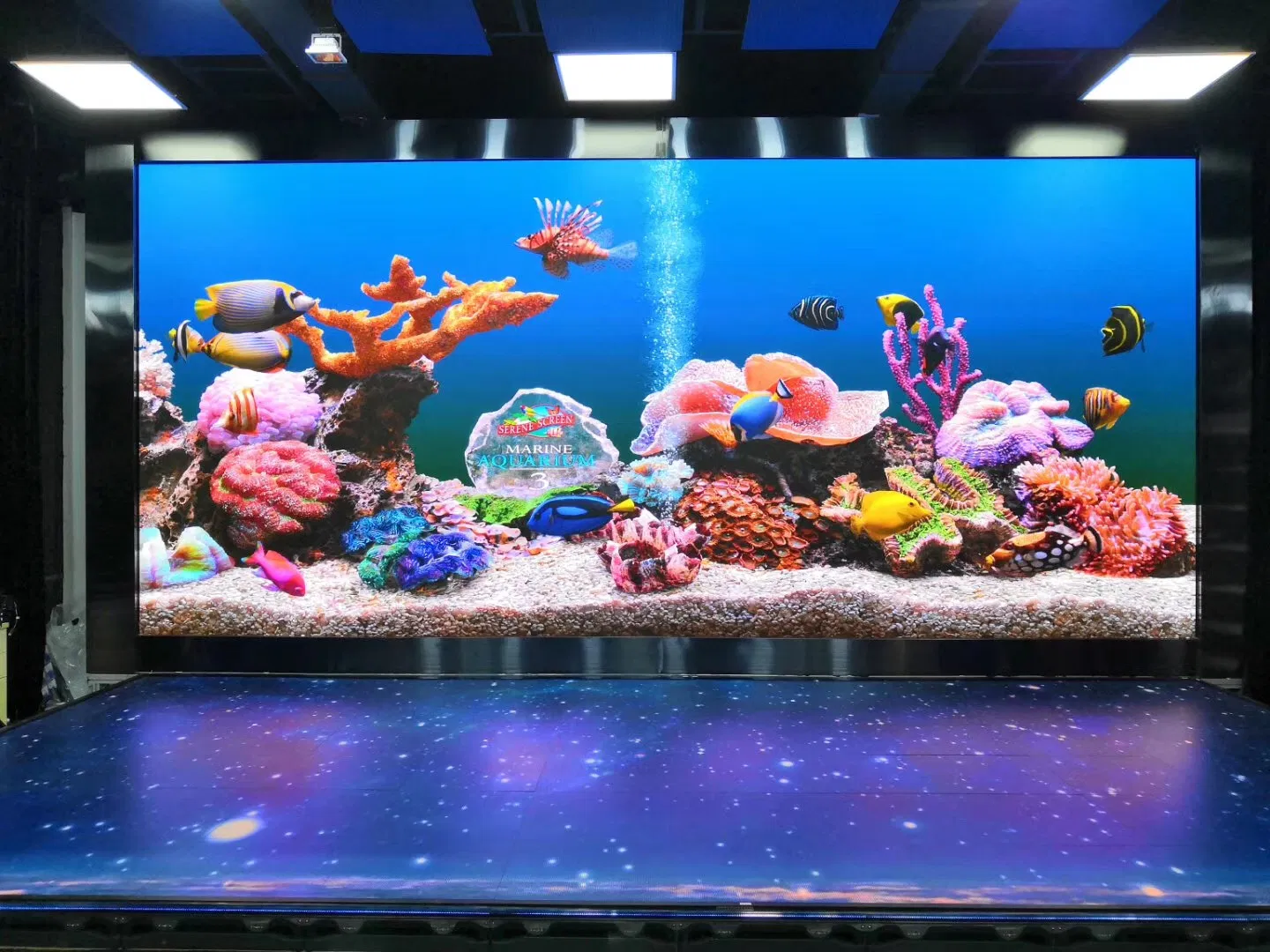

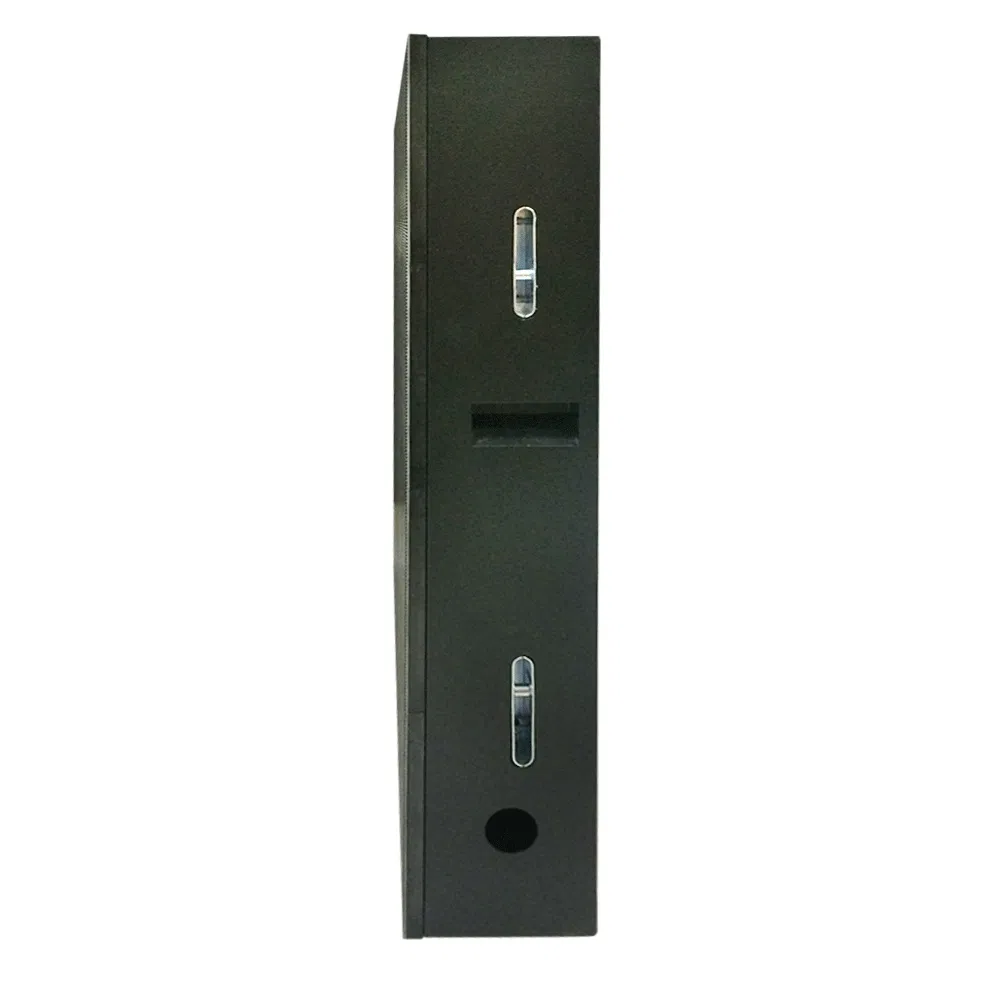

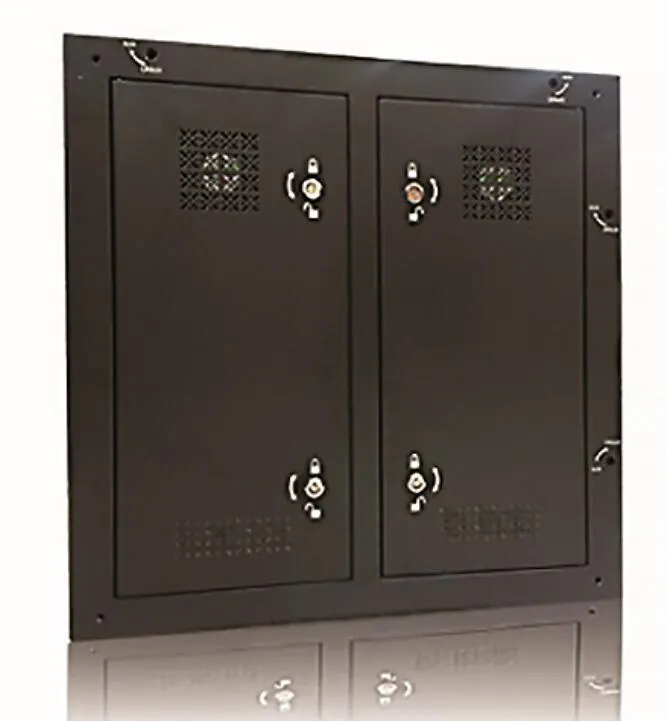

Cabinet Photos And Project Case:

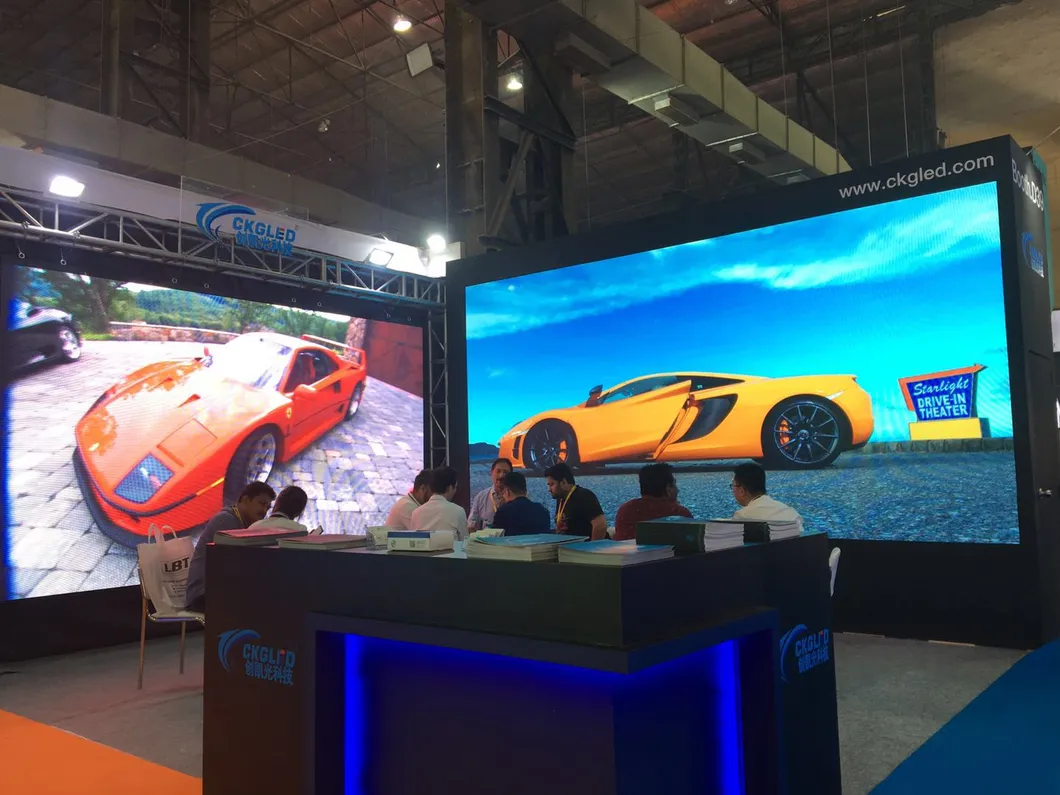

Foreign Product Exhibition:
Our service
1. Your inquiry related to our products or price will be replied in 24hrs;
2. OEM&ODM, any your customized ideas we can help you to design and put into product;
3. Distributor-ship are offered for your unique design and some our current models;
4. Protection of your sales area, ideas of design and all your private information;
5. Top quality+Reasonable price+Responsible After Service;
6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms

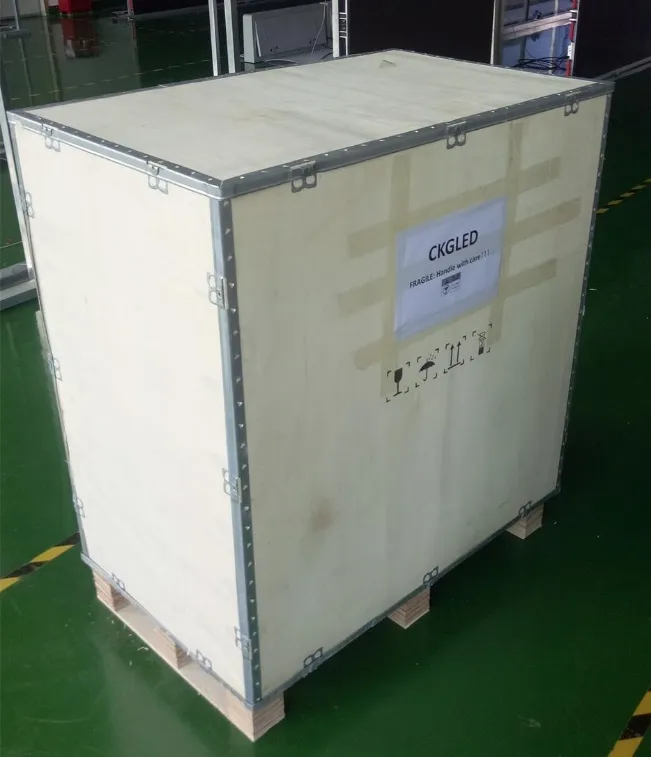

1. Package: Anti-shaking wooden package, Air flight case or Carton package;
2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, China;
5. Warranty time: 2 years
6. Delivery time: 3-15 working days
