Aluminum Cabinet 1920 Refresh Rate Curved Design Indoor Rental LED Display
Aluminum Cabinet 1920 Refresh Rate Curved Design Indoor Rental LED DisplayRental Features:1. 500x500/ 500x1000 cabinet, Average Power Consumption 64W / Panel.2. High refresh rate with NOVA control system,no scaning line when photographed.3. The new structure design enables diversified installation ......
Send Inquiry
Product Description
Aluminum Cabinet 1920 Refresh Rate Curved Design Indoor Rental LED Display
Rental Features:

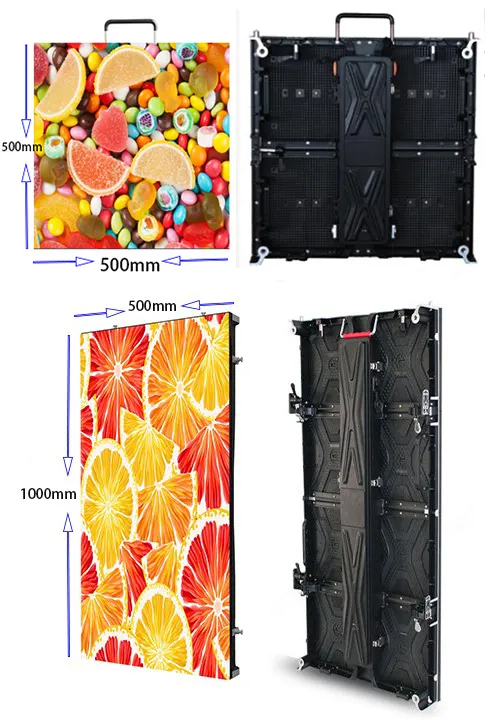

1. 500x500/ 500x1000 cabinet, Average Power Consumption 64W / Panel.
2. High refresh rate with NOVA control system,no scaning line when photographed.
3. The new structure design enables diversified installation to meet the hanging-up and stacking requirements.
4.Due to the light weight and low power consumption, it can reduces the labor cost, operating cost and transportation cost.
5.Fast set-up and take-down --- lightweight body, easy to handle, no tool needed.
6. 16 bit color, 281 trillion, showing very clear and vivid video and images.
7. Noiseless-The aluminum structure requires no fan.Combined with the noiseless power supply,the cabinet is totally silent.
Quality assurance
- Every production process has a special person to test 72 hours to ensure quality.
- Have professional engineers to check the quality.
- All products have passed CE, FCC, ROHS and other certifications.
- We have the local agency and you can enjoy the local service.
Indoor Rental Parameter
| BIR-III-3.91 | |
| Physical Pitch | 3.91mm |
| Pixel Configuration | SMD2121 |
| Pixel Density | 65,536 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2/2*4 |
| Panel Material | Die-Casting Aluminum |
| Colors | 281Trillion |
| Processing | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 64*64 |
| Physical Resolution of Panel(W*H)(mm) | 128*128 / 128*256 |
| Single Cabinet Weight | 8/14kg/panel |
| Average Power Consumption | 64/128W/panel |
| Max Power Consumption | 192/384W/panel |
| Brightness | 1200 nits |
| Viewing Angle | H:160°/ V:140° |
| Operating Temp/ Humidity | -10ºC-60ºC/10%-60% |
| Storage Temp/ Humidity | -30ºC-60ºC/10%-60% |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front/Rear |
| IP Rating(Front/Rear) | IP 40/IP21 |
| Max Stacking and Hanging | 20/10 |
| Refresh Rate | >1,920 Hz |
Stage Pruduct details
Noiseless:The aluminum structure requires no fan.Combined with the noiseless power supply,the cabinet is totally silent
Low brightness and High gray scale:14Bit-16Bit gray scale to bring excellent performance when brightness is reduced to 20%.
Control system:
1, Brightness adjust and temperature and humidity sensor function:
With multi-functional card added to adjust the brightness of the led screen according to the environment brightness,
which can be energy saving. Meanwhile, it can show the temperature and humidity of the environment
on the led screen.
2, Power on and Off timer function. The time of Power on and Power off can be setted by the software,
then the led screen run according to the software.
Packing / Delivery
Application Case:

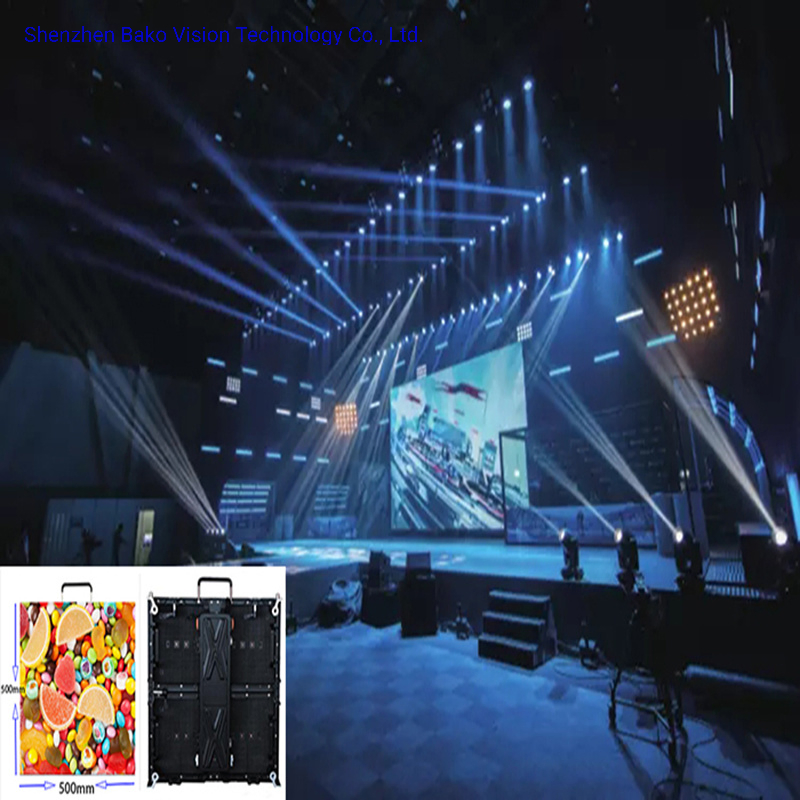

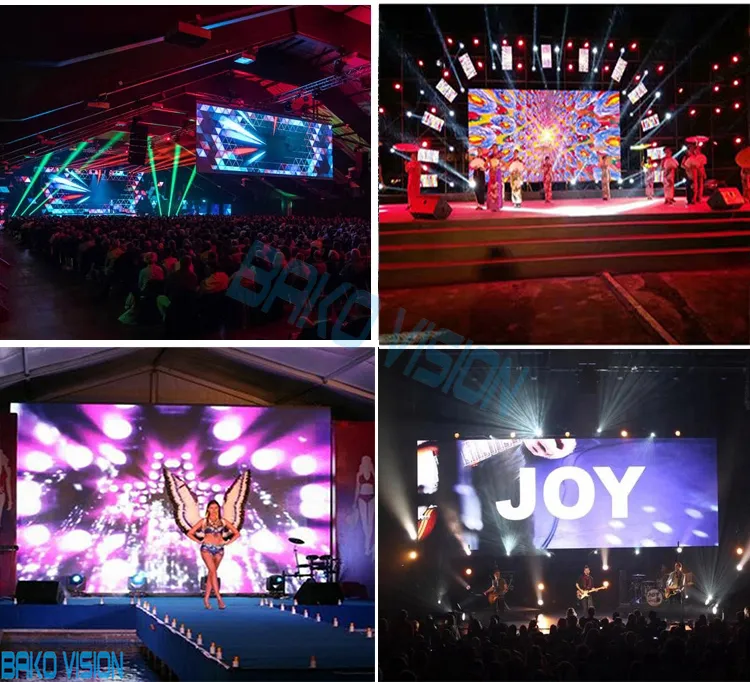

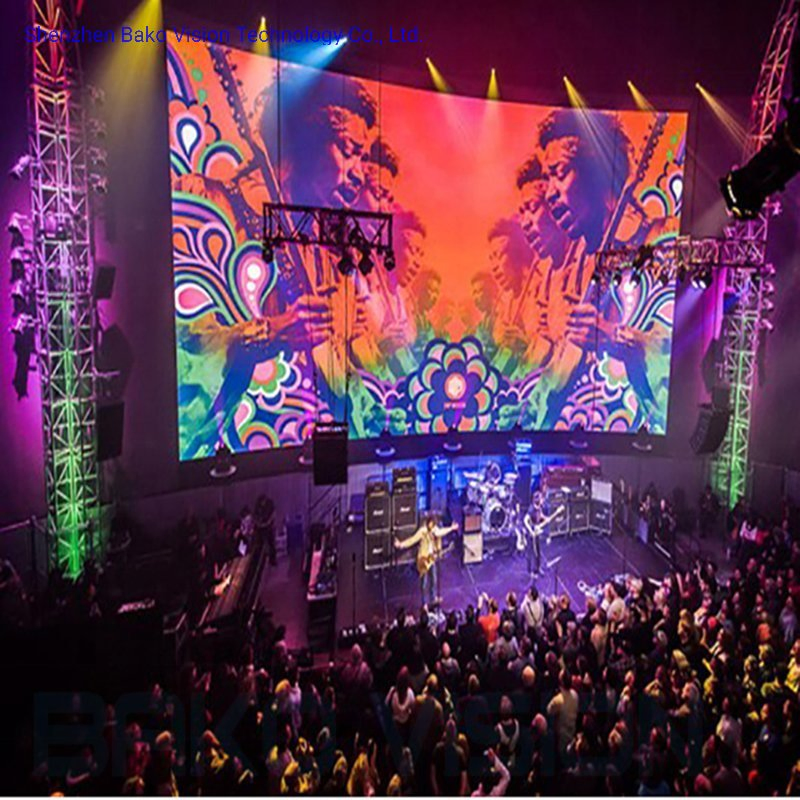

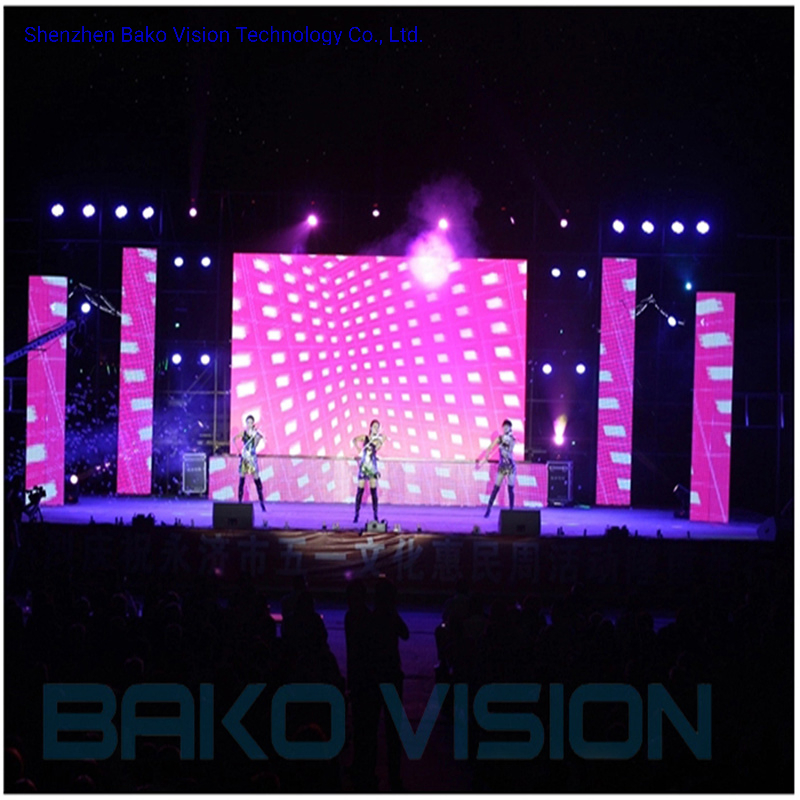

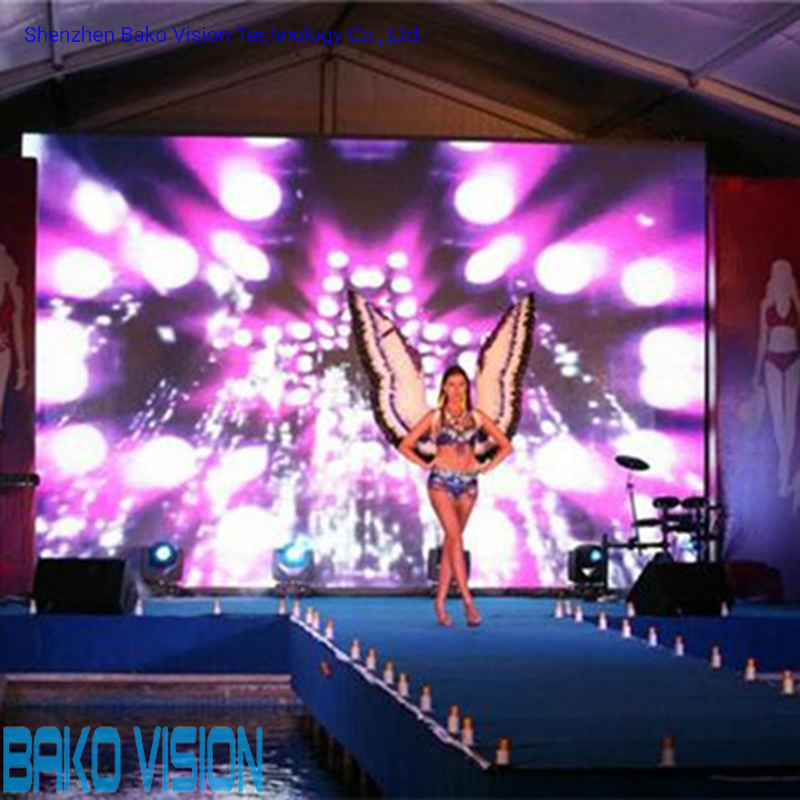

Widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.
About us
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Tips
* Package: Wooden package, Flight case.
* Shipment:By road,sea and air
* Delivery time:20-25 working days
* Payment: T/T, 30% deposits, 70% balance before delivery
* Shipping port: Shenzhen,China
* Warranty time: 2 years
