Product Description
1920*1080P 4K 8K LED TV Display Screen P1.56 HD Indoor Advertising LED Screen
Led screen parameter
| Technical Data\Model | PH1.56 |
| Pixel Pitch | 1.56mm |
| Physical Density(pixels/m²) | 409600 |
| LED Shape & Size | SMD 3 in 1 |
| LED Arrangement | 1R1G1B |
| Module Size(mm) | 150x168.75 |
| Module Resolution | 96x108 |
| Drive Mode | Dynamic 1/32 Duty Constant Current |
| Brightness | ≥1000cd/m² |
| Contrast(cd/m²) | ≥2000:1 |
| View Angle, 50% Brightness | 135°/135° |
| Minimum View Distance | 1.56m |
| Grey Scale | 10bits/1024levels |
| Color Capacity | 1.07billion |
| Maximum Power Consumption | 900W/m² |
| Ave.Power Consumption | 300W/m² |
| Operation Power Source | AC90-260V 50-60HZ |
| Frame Frequency | 60-85HZ |
| Refresh Rate | ≥3840HZ |
| Brightness Adjustment | 0-100% 8 levels automatic |
| Gamma Correction | -5.0-5.0 |
| Correction Scale Level | 16bits;18bits |
| Color Temperature | 5000-9300K |
| Brightness Correction | Pixels, Module, Cabinet Correction |
| Input Source Support | Composite, S-Video,Component,VGA,DVI,HDMI,SDI, HD_SDI |
| Control Distance | UTP CAT5E:100m;Multi-mode Fiber:50m;Single-mode Fiber:10km |
| Operating Temperature | -40°C - 65°C |
| Operating Humidity | 10-90%RH |
| Operating Life Span | 100,000Hours |
| MTBF | 6500 Hours |
| Protection Ratings | IP45 |
| Out of Control Rate | 0.01% |

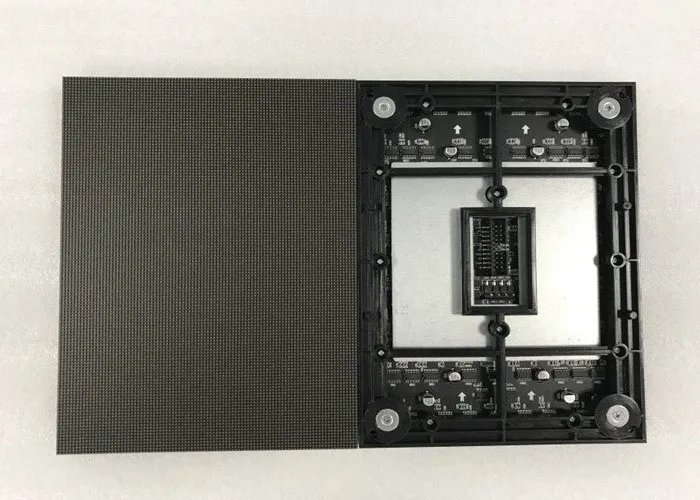

P1.56 indoor led mdoule

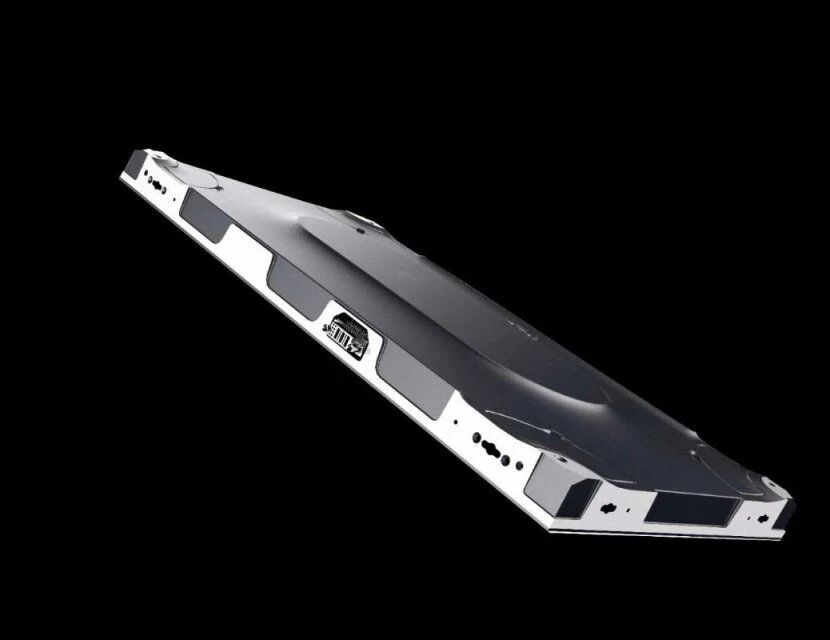

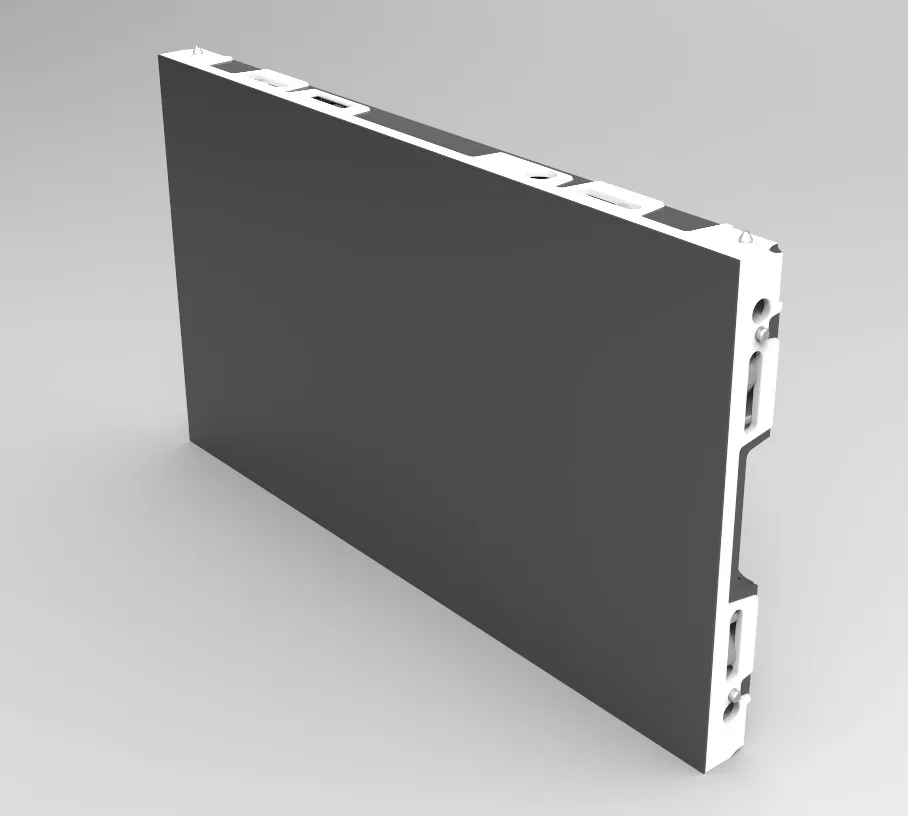

p1.56 indoor led cbainet with 600x337.5mm

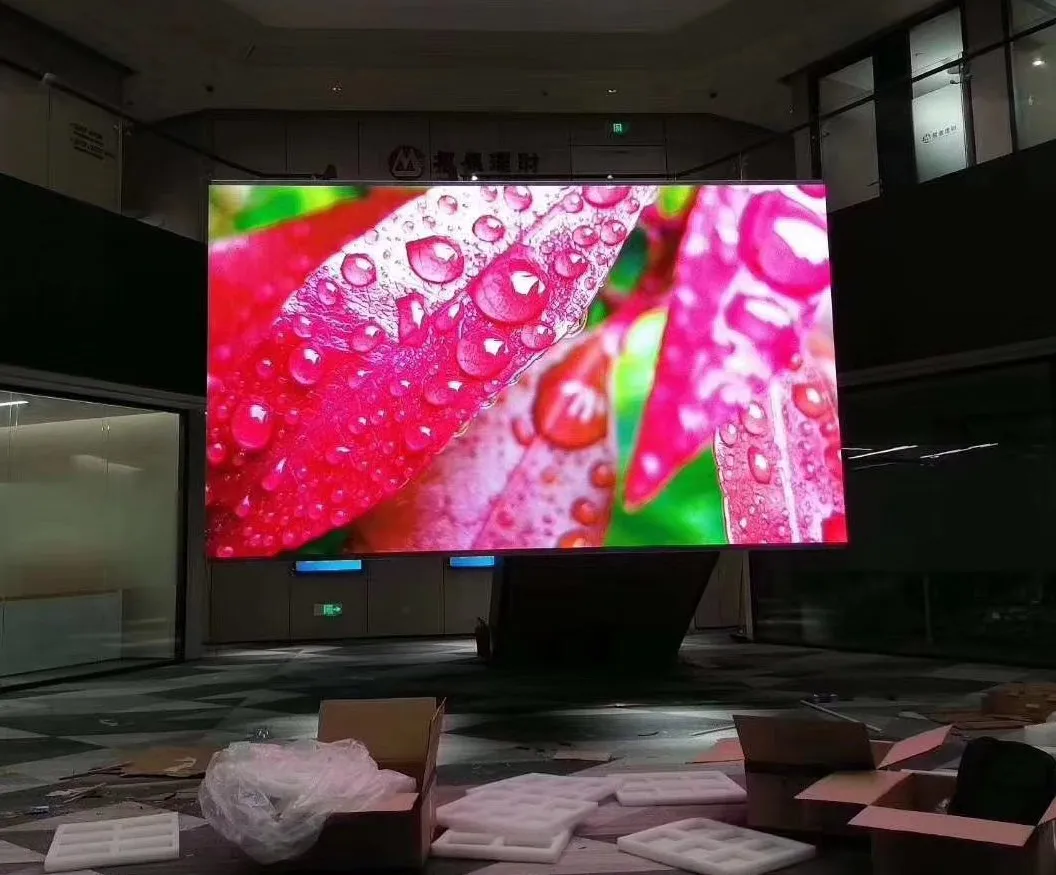

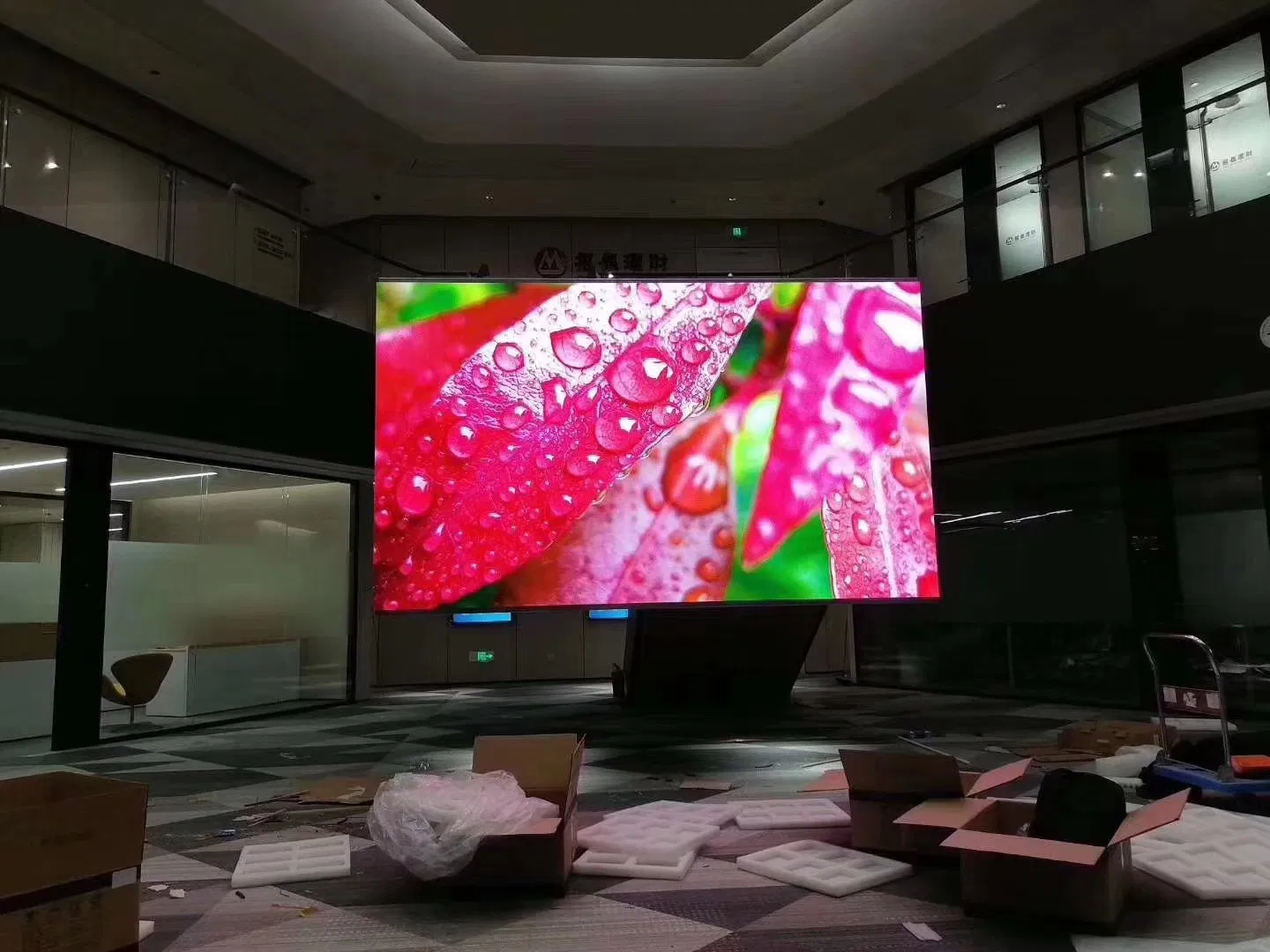

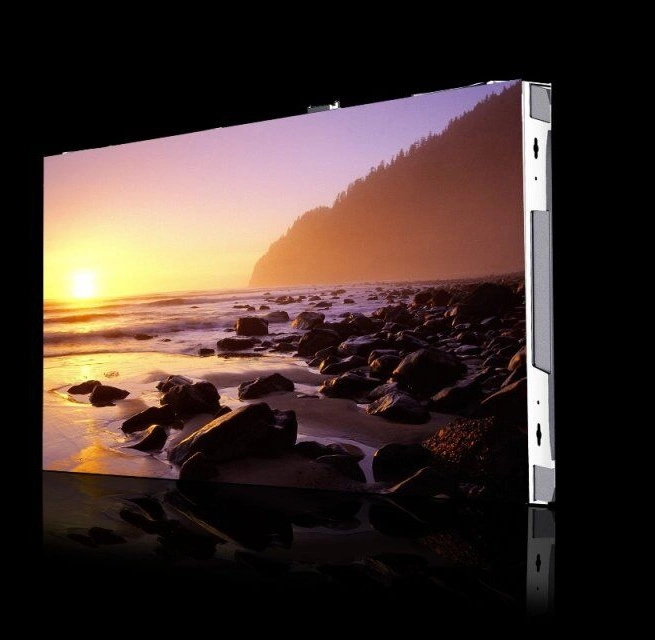

P1.56 indoor UHD led display project

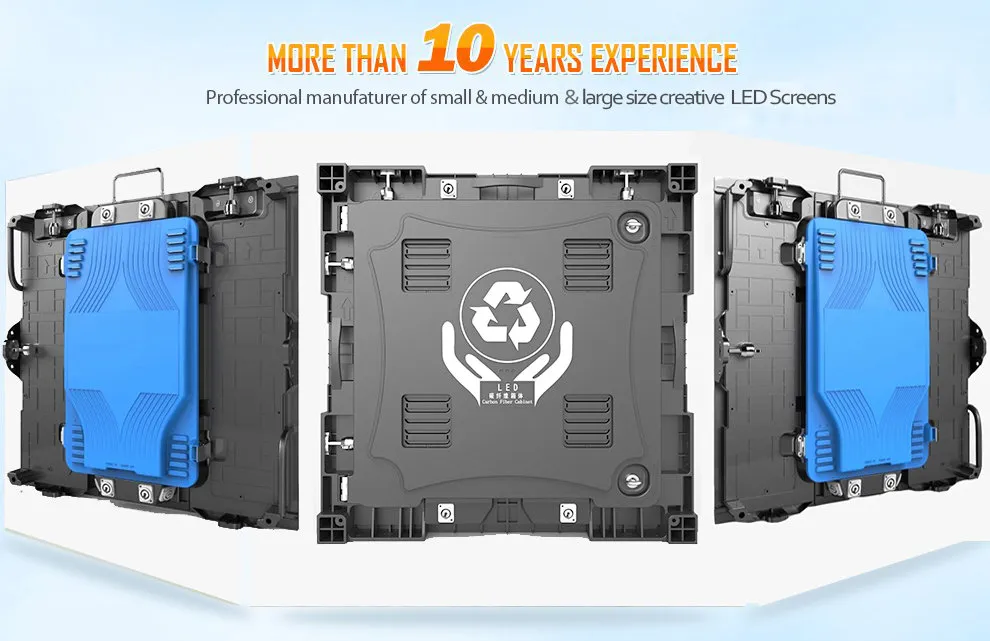

Company information:
JINGCAN led factory's main products areconsist of rental led display, advertising led screen,
football stadiumperimeter, stage background video wall, traffic guiding display, special-shapeddisplay
like curve and round, led moving light, led Par light, led modules andlaser light, etc.
The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span.
All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificatesauthorities.
Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA,
Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in
both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and
TV stage background and etc.

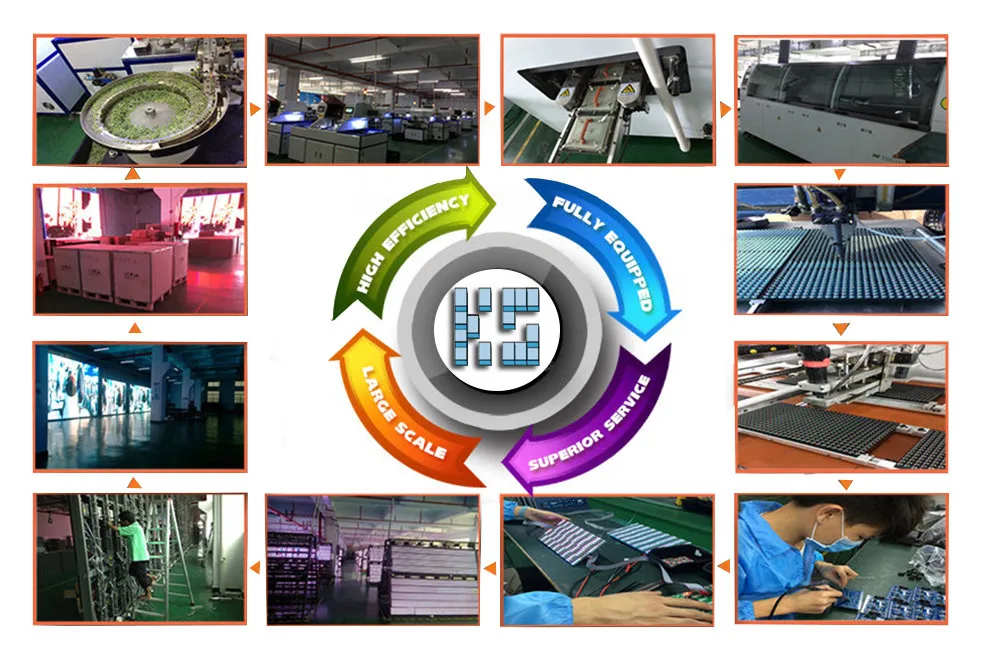

JINGCAN LED FACTORY Main LED Display Product Lines - Automatical Machines
Qualification Honor:

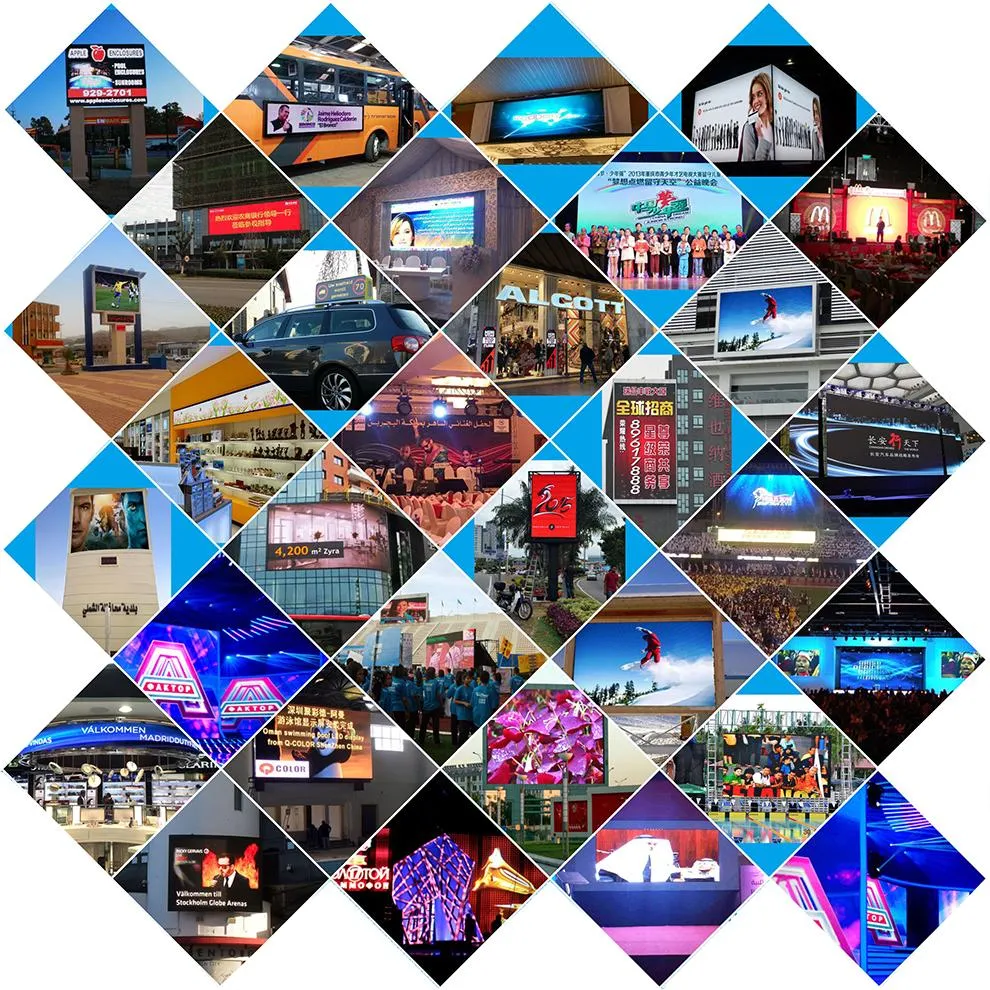

Product Project:
Packing and Shipping:
FAQ:
Q1. Can I have a sample order for led Screen?
A: Yes, we welcome sample order to test and check quality. Both for LED moduel or
a whole screen.
Q2. What about the lead time?
A:About 7~10 working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1 square meter or a moudle checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent.
It usually take 20 30 day on sea. a few days for customer clearance

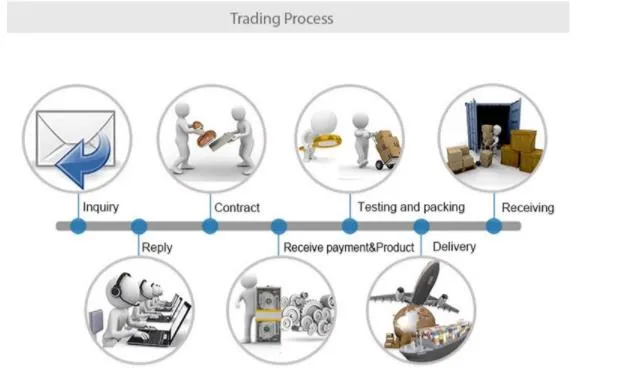

Q5. How to proceed an order for led Screen?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q7: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
