Wholesale 365nm UV Lamp for Flexo Printing
NANJING JUEHUI LIGHT SOURCE CO.,LTD is a professional manufacturer specialized in R&D, production, sell professional IR heating lamp(SW, MW, CM) and IR heating equipment in photovoltaic, semiconductor inidusty. Main Application: Diffusion, coating, screen printing, sintering, film deposition, ......
Send Inquiry
Product Description
NANJING JUEHUI LIGHT SOURCE CO.,LTD is a professional manufacturer specialized in R&D, production, sell professional IR heating lamp(SW, MW, CM) and IR heating equipment in photovoltaic, semiconductor inidusty.
Main Application: Diffusion, coating, screen printing, sintering, film deposition, low pressure vapor deposition, washing and drying, series welding assembly, packaging lamination process equipment during the Crystalline silicon and thin film solar cells producing.
Main Application: Diffusion, coating, screen printing, sintering, film deposition, low pressure vapor deposition, washing and drying, series welding assembly, packaging lamination process equipment during the Crystalline silicon and thin film solar cells producing.

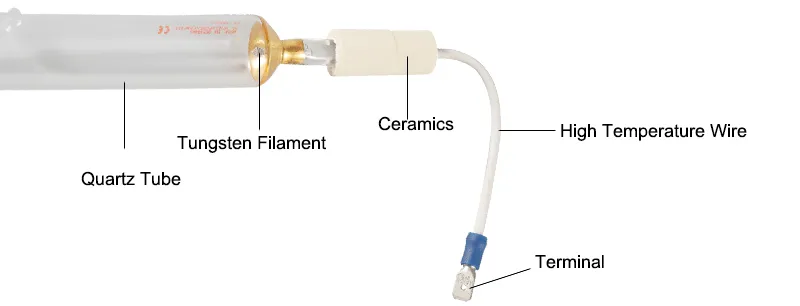

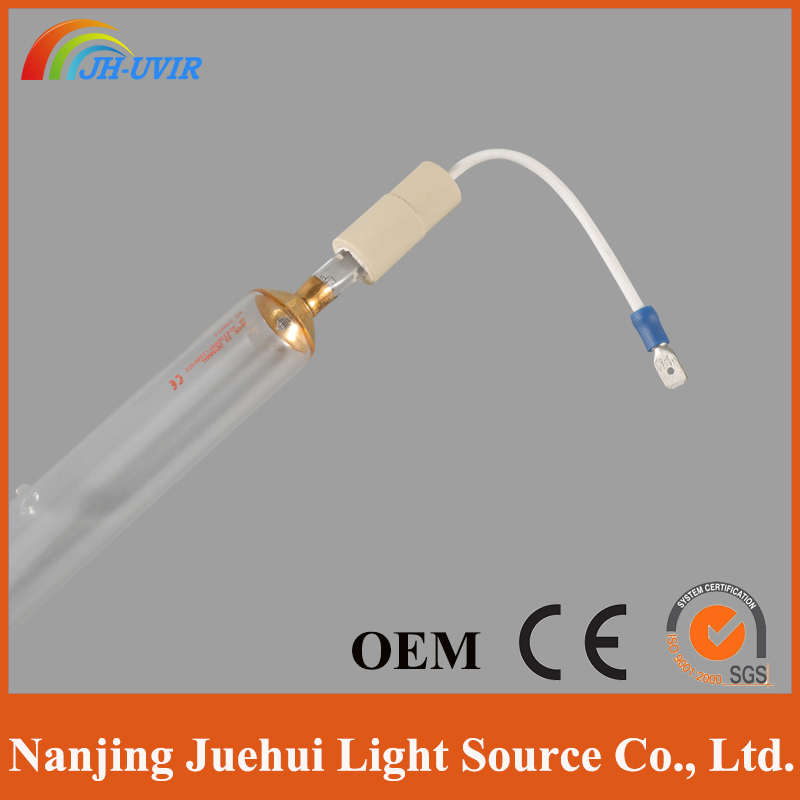

Wholesale 365nm UV Lamp For Flexo Printing
Application: Plastic forming, Printing,Bottle blowing,Paint drying,Food catering/processing and etc.
Quick Details:
| Model NO. | UV4000*483*300-500*D25 |
| Power | 4000W |
| Voltage | 500V |
| Heated Length | 483mm |
| Diamter | 25mm |
| Warranty | 1000Hours |
| Transport Package | Carton+Crate |
| HS Code | 8539490000 |
| Item No. | Watts(W) | Tube Voltage (V) | Tube Current (A) | Total Length (mm) | Polar Distance(mm) | Tube Dia.(mm) |
| UV1000*225*100-140*D22.5 | 1000 | 140 | 7.2 | 225 | 100 | 22.5 |
| UV2000*400*250-300*D22.5 | 2000 | 300 | 7.5 | 400 | 250 | 22.5 |
| UV4000*483*330-500*D25 | 4000 | 500 | 8.5 | 483 | 330 | 25 |
| UV6000*650*505-750*D25 | 6000 | 750 | 7.8 | 650 | 505 | 25 |
| UV8000*1150*1000-1200*D22.5 | 8000 | 1200 | 7.5 | 1150 | 1000 | 22.5 |
| UV12000*1440*1300-1700*D25 | 12000 | 1700 | 7.5 | 1440 | 1300 | 25 |
| UV16000*1185*1060-1800*D28 | 16000 | 1800 | 9.2 | 1185 | 1060 | 28 |
| UV18000*1010*900-1750*D28 | 18000 | 1750 | 12 | 1010 | 900 | 28 |
| UV21000*1143*1030-2150*D25 | 21000 | 2150 | 9.5 | 1143 | 1030 | 25 |

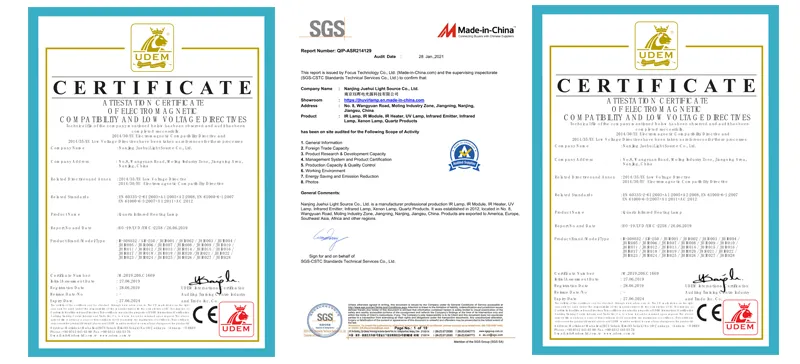

Certification:

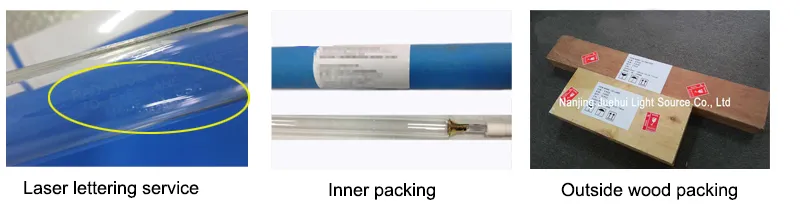

Packing method:
Shipping method:
FAQ:
1).Q: Are you a trading company or a factory?

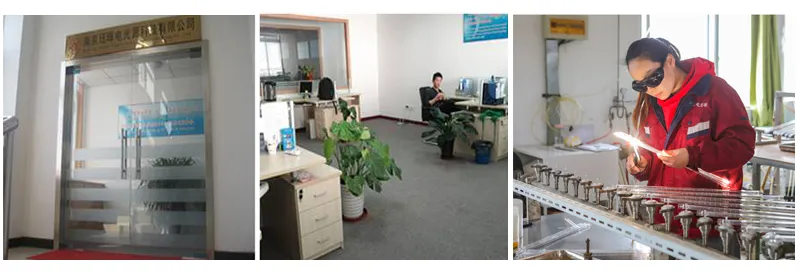

A: We are a factory for ten years experiences in production of IR radiation source.
2).Q: Do you have any certifications?
A:Yes,we have CE and SGS certificates.
3).Q: Can you make OEM/ODM services?
A:Yes,we can.
4).Q: Can you offer the CIF unit price?
A:Yes,we can. We have best forwarder who can help you to ship the goods by sea,air,railway.
