Home > Products > Ultraviolet Lamp > High Efficiency 12W 3V 360nm 365nm 370nm LED UVA 5050 Photo Diode for UV Ink Curing Photo-Catalyst Sensor Light

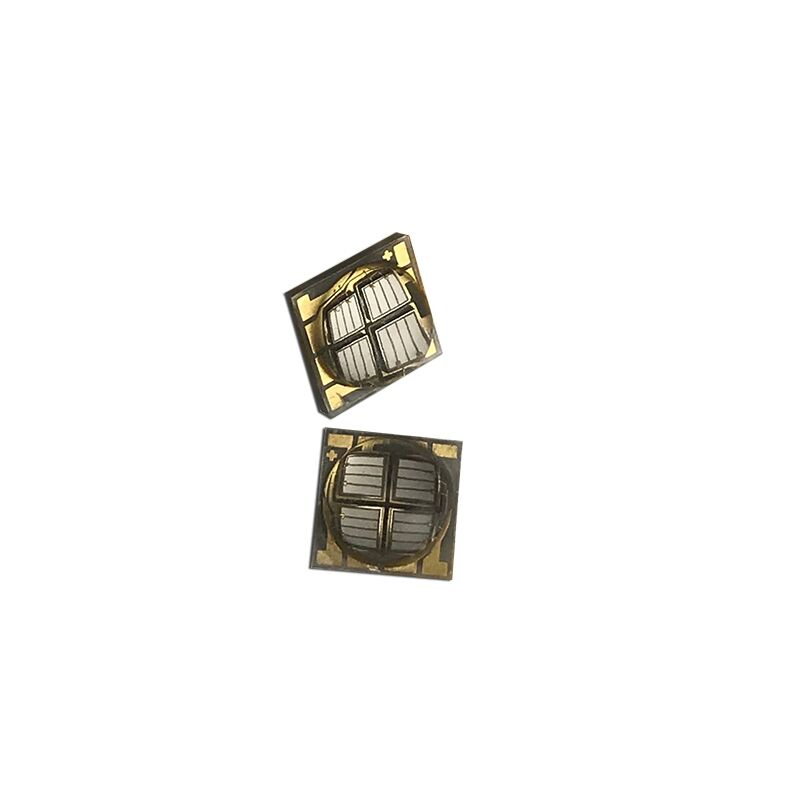

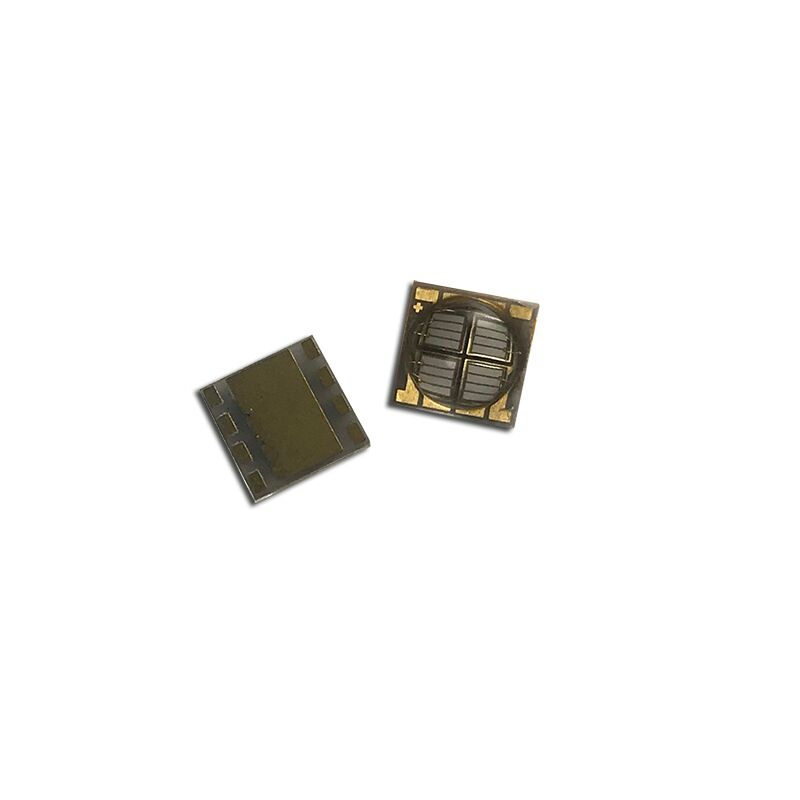

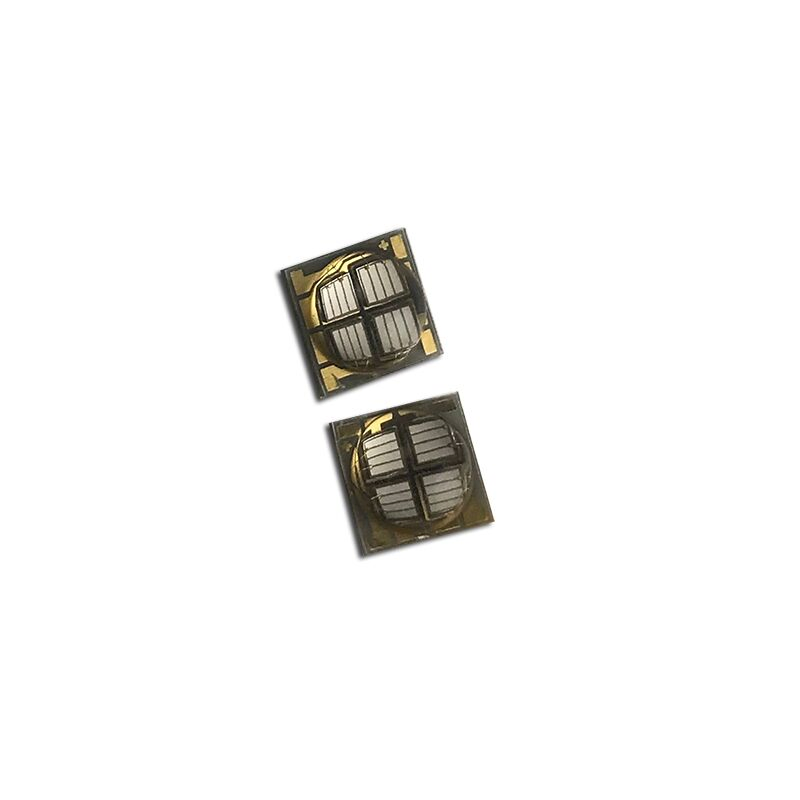

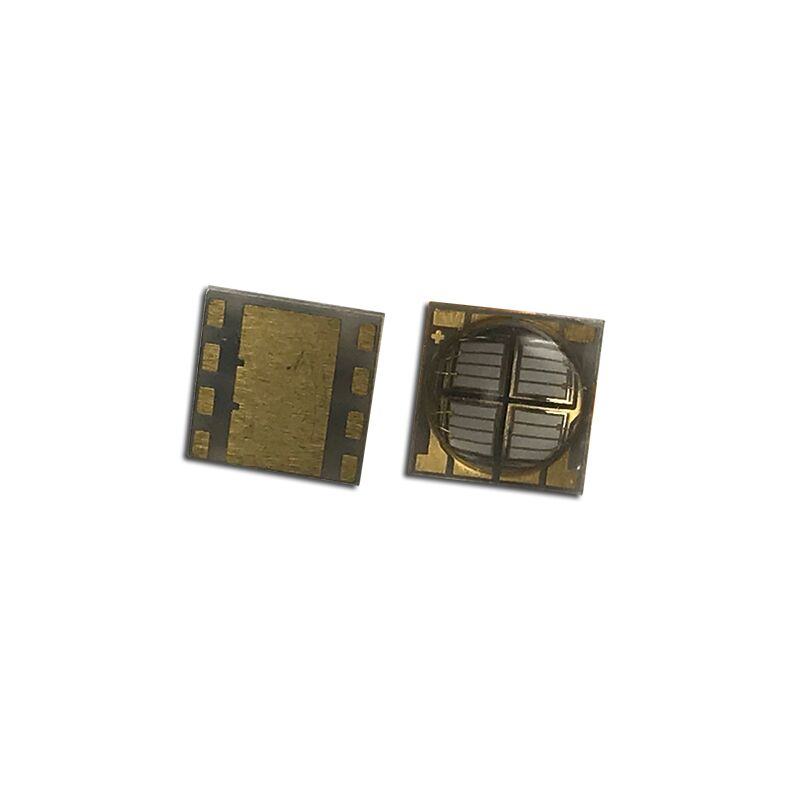

High Efficiency 12W 3V 360nm 365nm 370nm LED UVA 5050 Photo Diode for UV Ink Curing Photo-Catalyst Sensor Light
(UVA 360-430NM)Applications : Applications :1. UV Curing2.Printing3.Coating4.Adhesive5.Counterfeit Detection/ Security6.UV Torch7.Fluorescence Photography8.Dental Curing9.Crime Inspection10.Oil leak Detection ModelLED size(mm)Viewing angle Power(W)Voltage(V)Current(Ma)Wavelength(NM)Radiant Flux(MW)R......
Send Inquiry
Product Description
(UVA 360-430NM)Applications :
Applications :
1. UV Curing
2.Printing
3.Coating
4.Adhesive
5.Counterfeit Detection/ Security
6.UV Torch
7.Fluorescence Photography
8.Dental Curing
9.Crime Inspection
10.Oil leak Detection
| Model | LED size(mm) | Viewing angle
| Power(W) | Voltage(V) | Current(Ma) | Wavelength(NM) | Radiant Flux(MW) |
| RZX-S4P5050-365NM-12W-3V | 5*5*3mm | 120 | 12W | 3-3.6V | 1500-2800MA | 365-370NM | 1549.35μW/cm² |
| RZX-S4P5050-385NM-12W-3V | 5*5*3mm | 120 | 12W | 3-3.6V | 1500-2800MA | 380-390NM | 1650.5μW/cm² |
| RZX-S4P5050-395NM-12W-3V | 5*5*3mm | 120 | 12W | 3-3.6V | 1500-2800MA | 395-400NM | 1800μW/cm² |
| RZX-S4P5050-405NM-12W-3V | 5*5*3mm | 120 | 12W | 3-3.6V | 1500-2800MA | 400-410NM | 1800μW/cm² |
