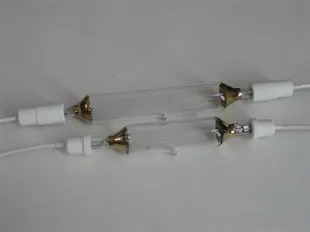

Exposure Lamp UV Lamp for Printing Machinery
Exposure lamp uv lampParameters: ItemPOWERKWLAMP(POWER SUPPLY )VLAMPPOWERALENGTHmmlight sizemmUV LAMP mmmm/jwGG100011358.12251252580GG100111358.13352002550GG200023007.540025022.580GG300037005.036025025120GG300137005.062046022.580GG400045008.848534025120GG400146207.27006002580GG500057007.87006002580G......
Send Inquiry
Product Description
Parameters:
Item | POWER KW | LAMP (POWER SUPPLY ) V | LAMP POWER A | LENGTH mm | light size mm | UV LAMP mm | mm/jw |
GG1000 | 1 | 135 | 8.1 | 225 | 125 | 25 | 80 |
GG1001 | 1 | 135 | 8.1 | 335 | 200 | 25 | 50 |
GG2000 | 2 | 300 | 7.5 | 400 | 250 | 22.5 | 80 |
GG3000 | 3 | 700 | 5.0 | 360 | 250 | 25 | 120 |
GG3001 | 3 | 700 | 5.0 | 620 | 460 | 22.5 | 80 |
GG4000 | 4 | 500 | 8.8 | 485 | 340 | 25 | 120 |
GG4001 | 4 | 620 | 7.2 | 700 | 600 | 25 | 80 |
GG5000 | 5 | 700 | 7.8 | 700 | 600 | 25 | 80 |
GG5001 | 5 | 750 | 7.5 | 725 | 625 | 22.5 | 80 |
GG5002 | 5 | 750 | 7.5 | 775 | 625 | 22.5 | 80 |
GG5003 | 5 | 850 | 6.3 | 778 | 625 | 22.5 | 80 |
GG5004 | 5 | 850 | 6. 3 | 804 | 653 | 20.5 | 80 |
GG5600 | 5.6 | 950 | 7. 2 | 826 | 700 | 25 | 80 |
GG5601 | 5.6 | 950 | 7. 2 | 1020 | 900 | 25 | 50 |
Price Terms: EXW
Packing: CTNS
Lead Time: 5DAYS AFTER PAYMENT
Standards Certificate: CE
Application area: UV CURING MACHINE ,UV DRYER, UV OVEN
Using methods and precautions:
1. Must be appropriate choke tube, supporting the use of triggers.
2. Avoid handling the lamp by hand in order to avoid direct contact with the tube surface contamination devitrification.
3. The lamp when working with strong ultraviolet radiation, must be taken to avoid burns to eyes and skin protection
4. Matching the power of the lamp are high, you should pay attention to routine inspection and maintenance.
5. Exposure time not too long, typically 20-120 seconds.
6. Tubes at a fixed point on the head, not in the ignition when the end of the wire suspension force.
