What Makes Constant Current Low Voltage Light Strips Different ?

In an era where energy efficiency, lighting quality, and system reliability dominate the conversation in architectural, commercial, and residential lighting, constant current low voltage light strips emerge as a critical innovation. These light strips operate under a designed low-voltage constant-current drive, maintaining uniform current across each LED emitter, avoiding issues such as brightness drift, color shift, and premature failure that plague traditional strips driven by variable current.

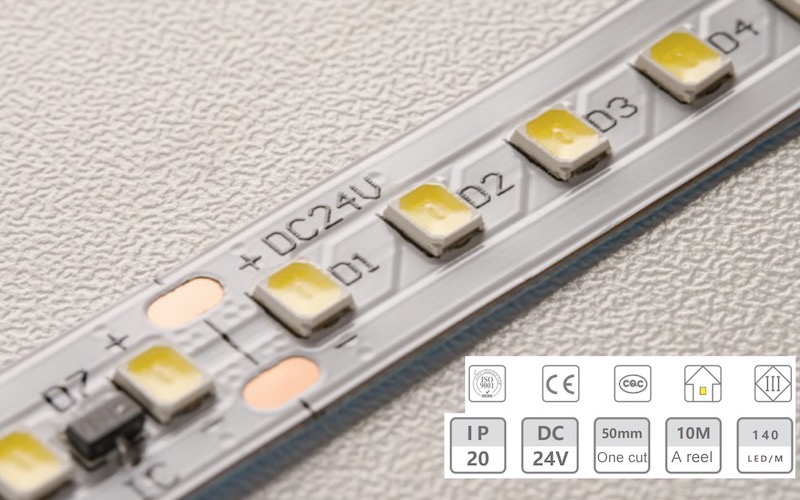

A constant current low voltage light strip delivers a fixed current to each LED regardless of variations in input voltage (within a safe range), thus ensuring consistent brightness, better color consistency, and longer lifespan. These strips typically operate at safe DC voltages (e.g. 24 V or 12 V) but include integrated current-regulating elements or driver circuits that stabilize current through each segment or LED cluster. They are particularly suited for installations where voltage drop is inevitable (long runs, long wiring distances) and where color uniformity is critical (architectural cove lighting, accent lighting, backlighting, signage).

Below is a typical parameter table summarizing a representative model used in architectural lighting:

This table provides a snapshot of the kinds of specifications one must examine when comparing products. Real-world selection often involves trade-offs among cost, brightness, run length, and control flexibility.

What — In-Depth Understanding

What is a constant current low voltage light strip?

A constant current low voltage light strip is an LED lighting solution engineered to maintain a fixed current through LEDs while operating from a low DC voltage source (commonly 12 V or 24 V). Unlike constant voltage strips, where voltage remains fixed and current is allowed to vary (subject to resistors or internal series elements), constant current strips dynamically regulate current to compensate for voltage drops, thereby giving more stable performance across the whole length.

What problems do they solve?

• Voltage drop over long runs: In conventional strips, LEDs further from the supply see lower voltage and thus reduced brightness. Constant current strips hold current constant, so brightness remains uniform.

• Color shift or drift: If current changes across the length, LED chromaticity can shift. Constant current regulation helps maintain chromatic consistency.

• Protection against over- or under-driving: Even if input voltage fluctuates within tolerances, current remains stable, preserving LED health.

• Longer effective lifetime: By preventing overcurrent or uneven driving, stress on individual LEDs is reduced, extending life to the rated L70 or beyond.

• Better dimming linearity: Because current is consistent, dimming behavior is more predictable and smoother when controlled via PWM or analog methods.

What types and variants exist?

Variants differ by:

• Input voltage (12 V, 24 V, 48 V)

• LED density and power class (low output, standard, high flux)

• Waterproofing / protective coverings

• Control compatibility (e.g. DMX, DALI, WiFi, Zigbee)

• Tunable functionality (RGB, RGBW, tunable white, etc.)

Why — Advantages and Strategic Value

Why choose constant current low voltage strips over constant voltage types?

1. Uniform brightness across runs: Traditional constant voltage strips often suffer from dimming at the far end. The constant current design neutralizes this.

2. Better color and performance consistency: Diminishing current affects emitter color; these strips maintain consistent chromaticity.

3. Greater resilience to supply fluctuation: Slight variations in voltage due to cabling losses or supply instability don’t translate into current fluctuation.

4. Long-term reliability: Because each LED is protected by design, fewer failures occur over thousands of hours.

5. Simplified design for long runs: Fewer power injection points may be needed, reducing wiring complexity and cost in many installations.

Why are they increasingly important in modern lighting systems?

• Architectural lighting demands: High expectations for seamless light transitions, uniform lines, and aesthetic precision.

• Smart lighting and IoT control: Integration into intelligent systems demands predictable dimming and color behavior.

• Energy codes and standards: Efficiency mandates push designers toward more predictable, efficient solutions.

• Retrofits and upgrades: In legacy installations, using a constant current approach can mitigate existing voltage drop issues without full rewiring.

Why is low voltage operation relevant?

Low voltage (12 V, 24 V) is safer in many installation contexts (especially in exposed or wet environments), simplifies compliance with certain codes, and reduces isolation requirements compared to high voltage LED strips. It lowers risk, installation cost, and is more user-friendly for modular systems.

How — Selection, Installation, & Optimization

How to select the right constant current low voltage light strip?

1. Determine brightness and coverage requirements
   Calculate required luminous flux (lumens) per meter or area. Choose LED density and bin grade to meet it.

2. Choose voltage level appropriately
   Use 24 V for mid-length runs (10–20 m) to reduce voltage drop. For very long runs, consider 48 V variants (if available) or multiple injection zones.

3. Evaluate control compatibility
   Ascertain control protocols (PWM, analog 0–10 V, DMX512, DALI, etc.). Ensure strip supports the chosen dimming strategy without flicker or instability.

4. Assess environment (IP, temperature, mounting)
   For indoor dry use, IP20 is often fine. In humid, outdoor, or submerged conditions, select IP65/67/68 rated versions.

5. Check thermal management and adhesive or mounting method
   Use aluminum channels or proper heat-sinking paths to maintain LED performance and life.

6. Verify power supply and driver sizing
   The constant current driver must match the strip’s current specs, plus margin (e.g., 20% headroom).

7. Plan for voltage injection points
   Despite constant current regulation, power insertion may still be necessary in extremely long runs—ensure cabling and connectors are sized appropriately.

How to install and wire them?

• Maintain polarity and correct orientation
  Even though current is regulated, polarity matters for LED forward direction.

• Use proper cable gauge
  For longer distances, choose thicker gauge wire to reduce losses before the strip.

• Provide injections where needed
  At segments far from supply, inject power so that the driver can maintain current more effectively.

• Manage thermal pathways
  Secure strips to metal channels or backsheets that dissipate heat; avoid insulating or blocking heat flow.

• Control wiring and signal integrity
  Keep control signals separate from high current lines when possible to reduce interference.

• Test each segment before full commissioning
  Verify uniform output across the run before final covering or sealing.

How to optimize performance and longevity?

• Derate brightness
  Operating at 80–90% of maximum current often increases lifetime and reduces stress.

• Monitor temperature
  Use ambient sensors or thermal feedback to ensure strip temperature stays within spec.

• Use gradual start/stop
  Ramping up/down current helps reduce stress on LEDs and power drivers.

• Keep firmware and control software updated
  With smart control, ensure PWM algorithms, dimming curves, and recalibration are kept current to avoid flicker or drift.

• Plan maintenance access
  While LEDs last long, connectors, drivers, and adhesives may need servicing. Maintain practical accessibility in design.

How will the future evolve, and what trends are emerging?

• Higher voltage constant current strips (e.g., 48 V and beyond) will support very long runs with fewer injection points.

• Integrated intelligence and sensors embedded within strip segments—thermal, current, color feedback—will create self-monitoring luminaires.

• Dynamic tunable and human-centric lighting (HCL) options will grow, enabling full spectral control within each strip.

• Printed electronics and flexible circuits might reduce material cost and make ultra-thin constant current strips feasible.

• More stringent energy and lighting standards globally will drive adoption as designers prefer predictable and certifiable lighting modules.

Common Questions (Q&A)

Q: Can a constant current low voltage light strip dim smoothly with PWM control?
A: Yes. Because the strip’s current is regulated, PWM dimming generally produces linear and stable results without flicker, as long as the PWM frequency is sufficiently high and the driver is compatible with the strip’s current specification.

Q: How long a run can one constant current strip support before needing power injection?
A: It depends on strip current, wire gauge, and input voltage. As current regulation compensates for voltage drop, longer runs are possible, but power insertion every 15–25 m is common to maintain thermal and voltage stability in large installations.

Four Key Themes Summary

1. Robust Definition & Technical Clarity

Constant current low voltage light strips deliver predictable performance by holding LED current stable, combating voltage drop, and ensuring consistent brightness and color over extended lengths.

2. Strategic Advantages & Applications

They solve real-world issues like voltage drop, color drift, and stress-induced failures, making them ideal for architectural lighting, signage, long corridors, cove lighting, and smart environments.

3. Practical Design, Selection & Deployment

To utilize them optimally requires careful calculation of brightness needs, voltage choice, control compatibility, power supply sizing, thermal management, and installation best practices.

4. Future Direction & Market Evolution

Advances in higher voltage formats, embedded intelligence, tunable lighting, and printed circuit innovations will further drive adoption. Designers seeking reliable, high-fidelity light strips increasingly favor constant current solutions.

In sum, constant current low voltage light strips represent a next-generation LED lighting solution delivering superior uniformity, longevity, and controllability. Among the many brands in the market, Kons offers a line of high-quality, high-performance constant current low voltage light strips that combine premium LED bins, precise current drivers, broad control compatibility, and durable construction. For customers seeking reliable, high-end strip lighting systems tailored to modern architectural and commercial demands, Kons provides both products and support aligned with those needs.
