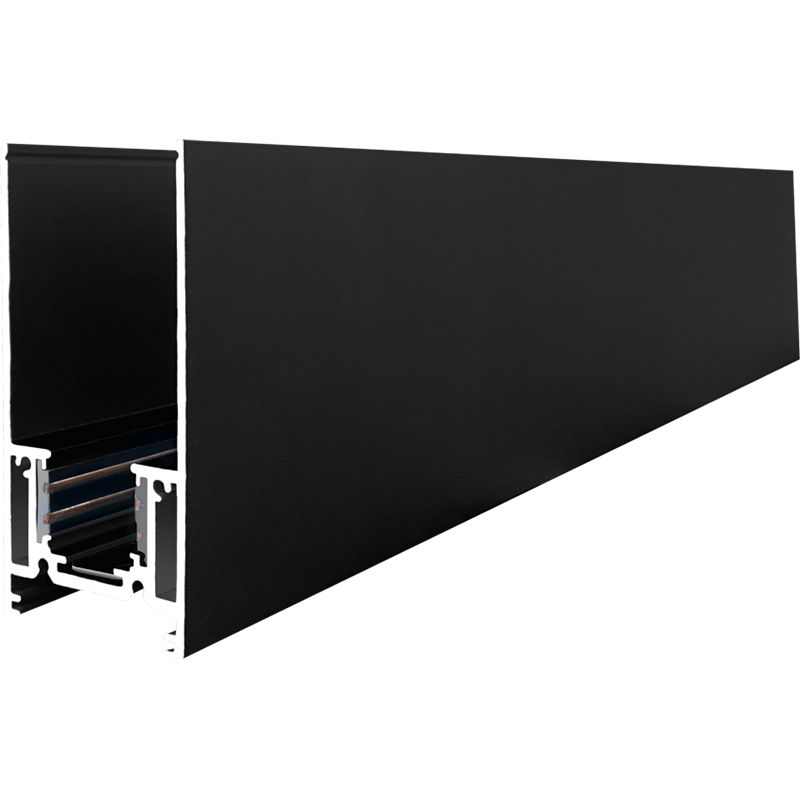

What Is the Maximum Wattage Supported by a 35mm Surface Mounted Magnetic Track Lighting Kit

When specifying a modern lighting system, the single most critical technical parameter is often the maximum load capacity. For architects, electrical engineers, and interior designers working with 35mm Surface Mounted Type Magnetic Track, understanding wattage limits determines not only brightness but also safety, driver selection, and long-term system reliability. At JR, we have engineered our 35mm Surface Mounted Type Magnetic Track to deliver industry-leading thermal management and conductive efficiency. However, the real-world answer to "maximum wattage" is never a single number—it depends on track length, conductor gauge, ambient temperature, and the type of luminaires attached. This blog breaks down every variable so you can design with confidence.

The Core Specification: What Does "Maximum Wattage" Actually Mean?

For a 35mm Surface Mounted Type Magnetic Track, the maximum wattage refers to the total continuous power (in watts) that the track’s internal copper conductors can safely transmit to connected LED spotlights, pendants, or linear modules without exceeding the temperature rise limits set by IEC 60598 or UL 2108 standards.

Most standard kits from generic brands rate their 35mm tracks at 120W per 1-meter section (total for a 3-meter run: ~360W). However, JR’s 35mm Surface Mounted Type Magnetic Track uses a 2.5mm² tinned copper busbar—pushing the safe continuous load to 180W per meter, with a peak intermittent capacity of 200W/m, provided the total run does not exceed 5 meters without a separate feed.

Critical Factors That Alter the Real-World Wattage Limit

Practical Calculation: How to Determine Your Kit’s Safe Load

Follow this 3-step formula used by JR’s technical team:

1. Identify track gauge – Our 35mm Surface Mounted Type Magnetic Track uses a 4‑pole system (2 live + 2 neutral). Each pole carries 9A max at 48V DC.

2. Calculate theoretical max – 48V × 9A = 432W per pole pair. However, continuous operation is derated to 80% → 345W total for a 2‑meter track.

3. Apply derating for joints – Each mechanical connector adds 0.5% loss. For a 5‑section run (4 connectors), reduce by 2% → final safe continuous wattage ≈ 338W.

For most retail or residential projects, JR recommends not exceeding 70% of theoretical capacity to preserve LED lifespan. That places a practical working maximum at ~240W for a standard 3‑meter JR track kit.

Frequently Asked Questions (FAQ) About 35mm Surface Mounted Type Magnetic Track

Q1: Can I run a 300W load on a single 2‑meter section of 35mm Surface Mounted Type Magnetic Track if I use a high-quality driver?

A1: Technically yes, but JR advises against it for continuous use. A 2‑meter 35mm Surface Mounted Type Magnetic Track with our 2.5mm² busbar can handle 300W for up to 20 minutes before the internal temperature exceeds 75°C—the threshold where neodymium magnets begin to lose holding force. For permanent installations, we calculate: Max Safe Continuous Wattage = (Track Length in meters) × 180W/m × 0.8 (safety factor). For 2m: 2 × 180 × 0.8 = 288W. So 300W is borderline. We strongly recommend using JR’s 350W-rated power feed kit and adding an extra feeder at the midpoint to split the current. This reduces each conductor’s amperage from 6.25A to 3.12A, keeping the track cool and extending component life by up to 40%.

Q2: Does the maximum wattage change if I mix different types of luminaires (spotlights + pendants) on the same 35mm Surface Mounted Type Magnetic Track?

A2: Yes, and this is a commonly overlooked variable. The 35mm Surface Mounted Type Magnetic Track delivers constant voltage (typically 48V DC), so all connected luminaires draw current in parallel. The total wattage is the sum of each fixture’s rated power. However, mixing spotlights (which have integral drivers) with pendants (which may use external trailing-edge dimmers) introduces harmonic distortion. This distortion can cause the effective RMS current to rise by 8–12% above the simple sum of wattages. At JR, we test our 35mm Surface Mounted Type Magnetic Track with mixed loads up to 250W total, but we mandate that no single luminaire exceeds 50W unless it is JR-certified with a power-factor correction (PFC) >0.95. For a mixed setup, we recommend a total not exceeding 220W on a 3‑meter track to avoid nuisance tripping of the circuit breaker and to maintain flicker-free dimming performance.

Q3: What happens if I temporarily exceed the maximum wattage on a 35mm Surface Mounted Type Magnetic Track—will it damage the track permanently?

A3: Short-term overload (under 5 minutes) triggers the thermal cut-off built into JR’s power supply, which shuts down the output until the track cools to 50°C. This is a protective feature, not a failure. However, repeated overloads (more than 3 times per hour) will degrade the insulating layer between the copper busbars and the aluminum housing, increasing leakage current over time. In extreme cases—e.g., running 400W on a 3‑meter 35mm Surface Mounted Type Magnetic Track for over an hour—the solder joints on the magnetic connectors can reflow, causing intermittent disconnection. JR’s warranty testing shows that permanent damage (reduced current-carrying capacity by 20%) occurs after 10 cumulative hours of operation at 120% overload. Therefore, we strongly advise using JR’s online wattage calculator (available on our product page) to match your exact fixture count. If you need to run high loads, opt for our JR‑HV series, which supports up to 600W per 5‑meter run with active cooling fins.

Best Practices for Safe and Efficient System Design

• Always oversize the driver – If your total calculated load is 200W, choose a JR 350W driver. The driver runs cooler, and headroom accommodates inrush spikes.

• Distribute loads evenly – Do not cluster all heavy fixtures at one end of the 35mm Surface Mounted Type Magnetic Track. Spread them within the first 80% of the track length to minimize voltage gradient.

• Use genuine connectors – Third-party joints often have higher contact resistance (≥5mΩ vs. JR’s 1.8mΩ). Higher resistance reduces effective wattage by converting power into heat—wasting up to 15W per joint.

• Inspect quarterly – Dust accumulation on the track surface can insulate heat dissipation. A simple wipe with isopropyl alcohol restores full thermal performance.

Conclusion & Final Recommendation

The maximum wattage for a 35mm Surface Mounted Type Magnetic Track is not a fixed label—it is a dynamic value derived from length, ambient conditions, fixture mix, and connector quality. For JR’s standard 3‑meter kit, the safe continuous working limit is 240W, with a peak of 288W under optimal cooling. For longer runs or higher outputs, upgrade to JR’s 5‑meter power-feed system or our high-capacity JR‑PRO series. Always remember: under-rating your load by 20% doubles the track’s expected service life (from 25,000 to 50,000 hours).

Contact Us Today for a Custom Wattage Assessment

Every project is unique, and guessing the wrong load can lead to costly reworks or safety hazards. The JR engineering team offers free load-verification reports for your specific layout—just send us your fixture list and ceiling plan. We respond within 4 business hours with a detailed wattage budget, connector placement map, and driver recommendation. Contact JR via our website live chat, email at [email protected], or call our technical hotline. Let us help you get the most out of your 35mm Surface Mounted Type Magnetic Track—safely, efficiently, and with zero guesswork. Reach out now and mention this blog for a complimentary thermal imaging check on your first order.
