What are the key differences between edge-lit and back-lit recessed LED panel lights
2026-04-21
When selecting a Recessed LED Panel Light for a commercial or residential project, understanding the internal technology is crucial. Two dominant designs exist: edge-lit and back-lit. WEELWAY, a trusted name in modern lighting solutions, often guides customers through this decision. This post breaks down the engineering, performance, and application differences to help you choose wisely.
Core Technology Comparison

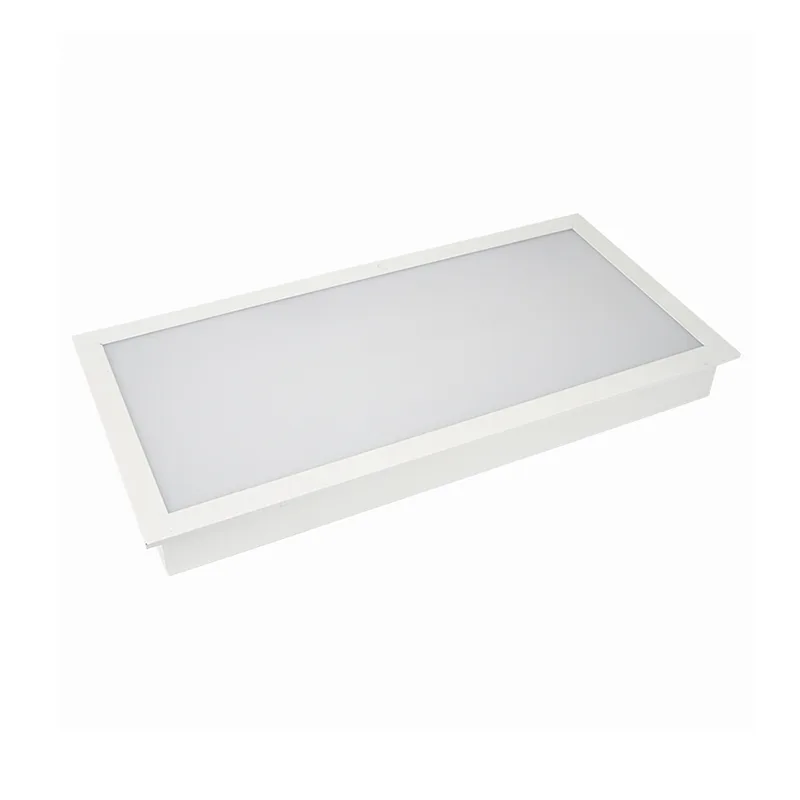

An edge-lit Recessed LED Panel Light positions LEDs along the inner frame of the panel. Light travels through a light guide plate (LGP) and is diffused downward. This allows for ultra-slim profiles, often as thin as 9-12mm. Conversely, a back-lit Recessed LED Panel Light places LEDs directly on a rear circuit board, spaced evenly across the entire back surface. Light reflects off a rear reflector and passes through a diffuser, similar to a traditional troffer but in a flat panel form.
Key Differences at a Glance
The table below highlights critical distinctions:
| Feature | Edge-Lit Recessed LED Panel Light | Back-Lit Recessed LED Panel Light |
|---|---|---|
| Typical Thickness | 9-13mm (ultra-slim) | 25-35mm |
| Light Uniformity | Good, but may have slight hot spots near edges | Excellent, very even across the whole surface |
| Lumen Output | Low to medium (≤4000 lm typical) | Medium to high (≥4000 lm possible) |
| Efficiency | 100-120 lm/W typical | 110-130 lm/W typical |
| Lifespan Concern | LGP yellowing or degradation over years | Driver or LED chip thermal stress |
| Cost | Lower to mid-range | Higher |
| Best Application | Residential, retail, shallow ceiling plenums | Offices, hospitals, industrial, high-bay areas |
Performance and Durability Factors
Edge-lit models from WEELWAY excel where space is tight and aesthetics demand a barely visible fixture. However, they rely on the light guide plate’s optical clarity. Over years, dust or heat can cause edge-lit panels to develop darker edges or uneven brightness. Back-lit units eliminate the light guide plate entirely, using only a diffuser. This makes them more robust for 24/7 operation. WEELWAY back-lit series often includes better heat sinks, which directly extends LED life. If your ceiling plenum is limited to under 2 inches, edge-lit is often the only choice. If uniform light is critical for task work, back-lit is superior.
Recessed LED Panel Light FAQ
Question 1: Can an edge-lit Recessed LED Panel Light be used in a kitchen or bathroom with high humidity?
Answer: Yes, but with caution. Edge-lit panels are typically IP20 rated (no moisture protection). However, WEELWAY offers edge-lit models with IP44 splash-proof ratings for bathrooms. High humidity can eventually affect the light guide plate’s adhesive layers or the driver. For kitchens with steam or unventilated bathrooms, a back-lit panel with a sealed optical chamber and higher IP rating (IP54 or IP65) is safer and lasts longer.
Question 2: Which type of Recessed LED Panel Light is easier to install in a drop ceiling grid?
Answer: Both are similar in installation because they use standard T-bar grid clips or suspension cables. However, edge-lit panels are significantly lighter (often 1.5-2 kg vs. 3-4 kg for back-lit). This makes edge-lit easier for a single person to lift and secure into a 2x2 or 2x4 ceiling grid. Back-lit panels are heavier and may require two people or additional support wires for safety, especially in seismic zones. WEELWAY includes universal mounting brackets in both designs to simplify the process.
Question 3: Why does my edge-lit Recessed LED Panel Light show bright spots near the frame after two years?
Answer: This is a common wear sign. The light guide plate (LGP) in edge-lit panels uses dot patterns to redirect light. Over time, heat from the LEDs can cause the LGP to warp slightly or the reflective sheet to degrade. Dust can also accumulate at the LED entry point. A back-lit Recessed LED Panel Light does not have an LGP, so it never develops this problem. WEELWAY mitigates this in edge-lit models by using high-grade optical PMMA and thermal management, but for 5+ year uniform performance, back-lit is recommended.
Final Recommendation
Choose an edge-lit Recessed LED Panel Light from WEELWAY for slim profiles, lower weight, and cost savings in residential or retail settings. Choose a back-lit Recessed LED Panel Light for maximum uniformity, higher lumen output, and long-term reliability in offices, schools, or medical facilities.
Contact us today at WEELWAY for a free lighting layout consultation. Our engineers will help you select the perfect Recessed LED Panel Light for your project, and we provide sample testing to prove performance before bulk order.
