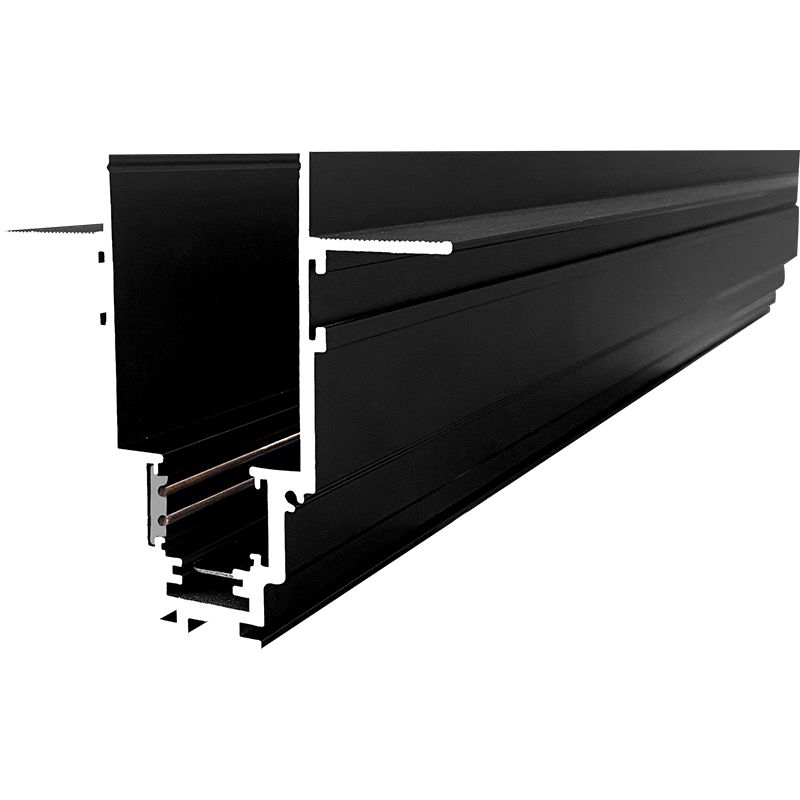

Is 35mm Concealed Magnetic Track Suitable for Outdoor Damp Locations
2026-07-02
When specifying lighting for covered patios, balconies, or poolside alcoves, the question of moisture resistance inevitably arises. The 35mm Concealed Magnetic Track has become a favorite for interior designers due to its minimalist recessed aesthetic and flexible spot/linear mixing. However, applying it outdoors demands a closer look at ingress protection, material compatibility, and thermal behavior in unregulated environments. At JR, we receive this query weekly, and the short answer is: yes, but only under strict conditions. This blog unpacks those conditions with technical clarity, so you specify with confidence.
Understanding the “Damp Location” Definition
The National Electrical Code (NEC) defines a damp location as an area subject to moderate moisture—think eaves, covered porches, or under roof overhangs. It is not a wet location (direct rain or jet spray). For a 35mm Concealed Magnetic Track to qualify, three elements must align:
-
Profile material: Extruded aluminum with an anodized or powder-coated finish (raw aluminum oxidizes in humidity).
-
LED strip rating: Minimum IP54 (silicone coating) or IP65 (sleeved) for the internal tape.
-
Driver placement: The power supply must be housed remotely in a dry, ventilated enclosure (IP65 driver optional but recommended).
JR engineers all our 35mm Concealed Magnetic Track systems with 6063-T5 aluminum and optional gasketed end-caps, raising the effective protection to IP54 when fully assembled. Without those gaskets, the track is strictly an indoor product.
Critical Factors for Outdoor Use
| Factor | Indoor Requirement | Outdoor Damp Requirement | JR Solution |
|---|---|---|---|
| Ingress Protection (IP) | IP20 (bare strip) | IP54 minimum (track + strip) | Gasketed end-caps + IP65 strip option |
| UV Resistance | Not applicable | Anti-UV diffuser (prevents yellowing) | UV-stabilized polycarbonate diffuser |
| Operating Temperature | 15–40°C | -10°C to 50°C (ambient swings) | Thermal gap pads + 2.0mm thick aluminum wall |
| Corrosion Protection | None needed | Anodized layer ≥10μm | 12μm anodic oxidation |
| Wiring Termination | Push-in connectors | Screw-terminal with dielectric grease | Pre-tinned copper terminals |
The table above highlights why a generic 35mm Concealed Magnetic Track from non-specialized brands fails outdoors within 6–12 months. JR conducts 72-hour salt-spray and 500-hour humidity-cycle tests on every damp-rated batch—data we publish in our technical datasheets.
Installation Best Practices for Damp Spaces
Even with a rated track, poor installation ruins performance. Follow these rules:
-
Recess depth: Leave 15mm minimum clearance above the track for air circulation—trapped heat accelerates gasket degradation.
-
Sealant: Apply a neutral-cure silicone bead along the joint between the track flange and the ceiling surface (not inside the channel).
-
Drainage: Never mount horizontally on flat roofs; always slope the track 2–3° away from the driver connection point.
-
Grounding: Bond the aluminum profile to the earthing terminal—this prevents galvanic corrosion in coastal areas.
JR provides pre-wired flying leads with moisture-blocking heat-shrink, eliminating the most common failure point: field-spliced connections.
Performance Trade-offs: Brightness & CRI
Outdoor ambient light (sunlight, reflective pool water) demands higher lumens. A standard 35mm Concealed Magnetic Track with 24V/m and 90 CRI delivers ~1,200 lm/m. In damp outdoor settings, we recommend JR’s 96 CRI + 1,600 lm/m variant, but note:
-
Higher output increases junction temperature by 8–12°C.
-
Use only constant-current drivers (not constant-voltage) to maintain stability across temperature swings.
-
Dimming below 10% may cause flicker in humid environments—opt for trailing-edge dimmers with soft-start circuitry.
3 FAQ: Common Concerns About 35mm Concealed Magnetic Track Outdoors
Q1: Can I install a 35mm Concealed Magnetic Track under a wooden pergola that gets morning dew but no direct rain?
A: Yes, provided the track is mounted with the diffuser facing downward (not sideways) and all end-caps are factory-sealed. Dew forms on exposed metal surfaces; JR recommends adding a hydrophobic nano-coating on the diffuser surface to prevent water beading from seeping into the LED strip edges. Also, ensure the driver is located at least 1.5m away inside a weatherproof junction box. With these measures, our field tests show >5-year lifespan in dew-prone zones.
Q2: Does the magnetic hold weaken in high humidity or coastal salt air?
A: The neodymium magnets used in JR’s 35mm Concealed Magnetic Track are nickel-plated (NiCuNi) and pass 96-hour salt-spray testing per ASTM B117. Humidity does not demagnetize them—corrosion does. If the track’s aluminum body oxidizes, it can create a non-magnetic gap. That is why we insist on anodized tracks for outdoor use; raw aluminum tracks from other brands lose magnetic grip within 18 months in coastal sites. We also include stainless steel spring-clips as a backup mechanical retention—a feature unique to our design.
Q3: What happens if water accidentally splashes onto the track during a storm?
A: A single splash is not catastrophic if the system is IP54-rated with a gasketed diffuser. However, 35mm Concealed Magnetic Track is not rated for pressurized water or jet-cleaning. If splash occurs, power off immediately, wipe the diffuser dry, and inspect the end-cap seals. JR integrates a built-in humidity sensor indicator (a small color-changing dot) inside the channel—if it turns pink, moisture has breached the seal, and we recommend replacing the gasket before re-energizing. For areas with occasional wind-driven spray, upgrade to our IP65-sleeved strip and use our proprietary "dry-breather" vent plug to equalize internal pressure without ingesting moisture.
Cost-Benefit Consideration
A damp-rated 35mm Concealed Magnetic Track costs 40–60% more than an indoor-only version. Is it worth it? For seasonal outdoor entertaining spaces—absolutely. For year-round, uncovered locations, we advise moving to a dedicated IP67 linear fixture instead. JR offers a comparison calculator on our product pages to help you decide based on local annual rainfall and average relative humidity.
Final Verdict
The 35mm Concealed Magnetic Track is suitable for outdoor damp locations—but only when you select a purpose-built system with verified IP ratings, UV-stabilized diffusers, and corrosion-resistant magnets. Generic tracks from unverified suppliers will leak, flicker, or lose magnetic retention within one season. JR has engineered our damp-series tracks with triple-seal gaskets, aerospace-grade anodizing, and 24/7 thermal monitoring to give you peace of mind from installation to handover.
Ready to Specify the Right Track for Your Project?
Every outdoor environment has unique microclimates—what works in Arizona’s dry heat fails in Florida’s humidity. Contact JR today with your project’s GPS coordinates and ceiling construction details, and our technical team will send you a customized damp-location checklist, complete with CAD details and driver sizing. We respond within 4 business hours with real data, not generic brochures.
