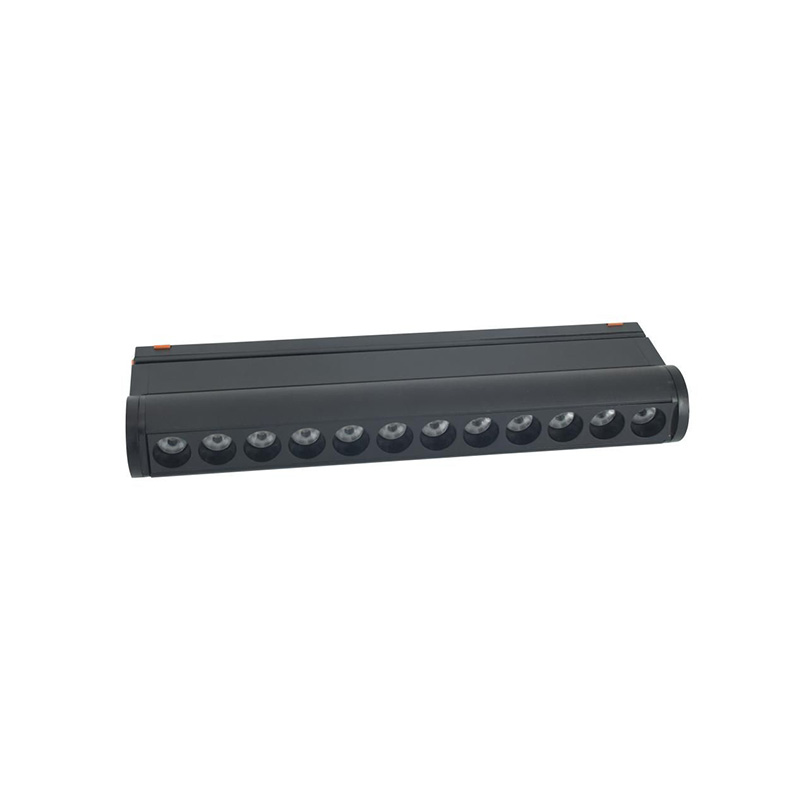

How to Install an Ultra-thin Magnetic Track Folding Lamp on a Sloped or Angled Ceiling

Installing a modern lighting fixture on a non‑horizontal surface can feel intimidating, but the Ultra-thin Magnetic Track Folding Lamp from JR turns this challenge into a straightforward DIY project. Unlike rigid track systems, this innovative lamp combines a flexible folding hinge with a powerful magnetic base, making it ideal for vaulted, cathedral, or gently angled ceilings. In this guide, we break down the entire installation process step by step, covering tools, safety, alignment, and wiring—so you can enjoy professional‑grade illumination without hiring an electrician for every adjustment.

Tools and Materials You Will Need

Before climbing your ladder, gather these essentials. Having everything ready saves time and prevents mid‑project interruptions.

Step‑by‑Step Installation Procedure

1. Turn Off Power and Test the Circuit

Locate your breaker panel and switch off the circuit serving the target junction box. Use a voltage tester on the existing wires to verify zero voltage—never skip this safety step.

2. Determine the Desired Angle and Orientation

On a sloped ceiling, the Ultra-thin Magnetic Track Folding Lamp shines because its folding joint can rotate up to 180°. Decide whether you want the light beam pointing straight down (perpendicular to the floor) or angled toward a specific wall. Mark the track’s centerline with a pencil.

3. Attach the Mounting Bracket to the Sloped Surface

JR provides a swivel‑compatible bracket that compensates for pitch up to 45°. Hold the bracket against the ceiling, align it with your marked line, and drill pilot holes. Secure it with the supplied screws—use wall anchors if you are mounting onto drywall without a wooden joist.

4. Connect the Wiring

Inside the junction box, you will find a hot (black), neutral (white), and ground (green/bare) wire. Match them to the corresponding leads from the Ultra-thin Magnetic Track Folding Lamp:

• Black to Black (live)

• White to White (neutral)

• Green/Bare to Ground

Twist on the wire connectors firmly and tuck the wires neatly into the box.

5. Mount the Magnetic Track onto the Bracket

The track features a strong neodymium magnet along its back. Simply snap it onto the steel bracket—you will hear a satisfying click. For angled ceilings, JR recommends tightening the side locking screw to prevent any gradual slippage caused by vibration or thermal expansion.

6. Fold and Adjust the Lamp Head

Loosen the hinge knob, rotate the lamp head to your preferred beam direction, and retighten. Because the folding mechanism is ultra‑thin (just 8 mm profile), it sits flush against the ceiling even when fully extended—no unsightly gaps.

7. Restore Power and Test

Turn the breaker back on and flip the wall switch. If the lamp does not illuminate, double‑check your wire connections. The Ultra-thin Magnetic Track Folding Lamp includes an integrated driver that supports 120‑277V AC, so flickering is rarely an issue when wiring is correct.

Pro Tips for Sloped Ceilings

• Use a laser level to project a straight reference line—this helps when you have multiple tracks in a row.

• Apply anti‑slip tape on the bracket’s contact surface if your ceiling pitch exceeds 30° (an extra precaution recommended by JR).

• Leave a 2‑inch gap between the folding hinge and any adjacent beam to allow full rotation without obstruction.

Frequently Asked Questions (FAQ)

Q1: Can the Ultra-thin Magnetic Track Folding Lamp be installed on a ceiling with more than a 45‑degree slope?
A: Yes, but you will need an optional angled adapter ring from JR (sold separately). This adapter extends the bracket’s swivel range up to 60°. Without it, the magnetic grip remains secure, but the folding joint’s range of motion may not allow the light head to point perfectly vertical. We recommend the adapter for cathedral ceilings taller than 4 meters.

Q2: Do I need a special dimmer switch for the Ultra-thin Magnetic Track Folding Lamp?
A: This model uses a universal 0‑10V dimming driver. You can use most standard TRIAC or ELV dimmers, but for smooth, flicker‑free performance, JR explicitly suggests using a dimmer with a minimum load of 5W. The lamp draws 18W, so compatibility is broad. If you experience buzzing, swap to a leading‑edge dimmer rated for LED loads.

Q3: What should I do if the magnetic track does not sit flat against my textured ceiling?
A: Textured surfaces (popcorn or stucco) reduce the magnet’s effective contact area. JR includes a set of rubber spacers that raise the bracket 2 mm above the texture—this lets the magnet engage fully with the steel plate. Simply place the spacers between the bracket and the ceiling before screwing it in. For extremely rough textures, sand down the high spots locally (about a 10 cm diameter) for a flush mount.

Final Checklist

Why Choose JR for Your Sloped Ceiling Lighting?

JR engineers every Ultra-thin Magnetic Track Folding Lamp with aviation‑grade aluminum, thermal management systems that extend LED life beyond 50,000 hours, and a 5‑year warranty that covers both electrical and mechanical components. The folding joint undergoes 10,000 cycle tests to ensure it holds its angle even on vibrating or windy roof structures. Combined with a sleek, minimalist design, this lamp adds value to modern, rustic, or industrial interiors alike.

Ready to Brighten Your Sloped Space?

Installing the Ultra-thin Magnetic Track Folding Lamp on an angled ceiling is not only doable—it is remarkably simple when you follow the steps above. If you run into unique ceiling conditions, need extra brackets, or want a custom length, our team is here to help.
